Numerous in variety 150mm flange pneumatic proportional control valve
- Category: >>>
- Supplier: Wuxi Sikaifu Machinery Manufacturing Co. Ltd.
Share on (60414605202):
Product Overview
Description

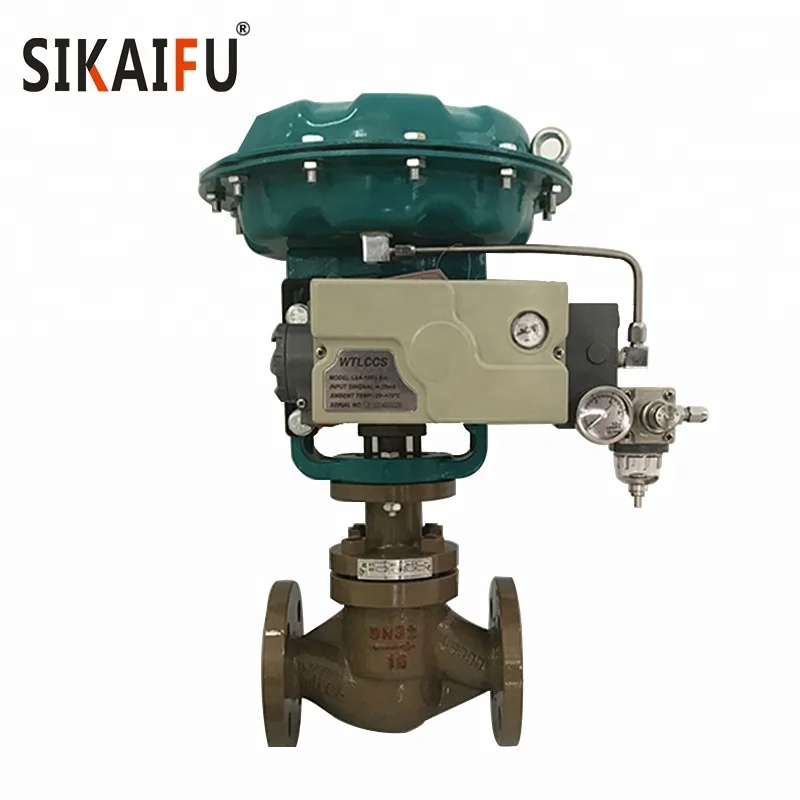

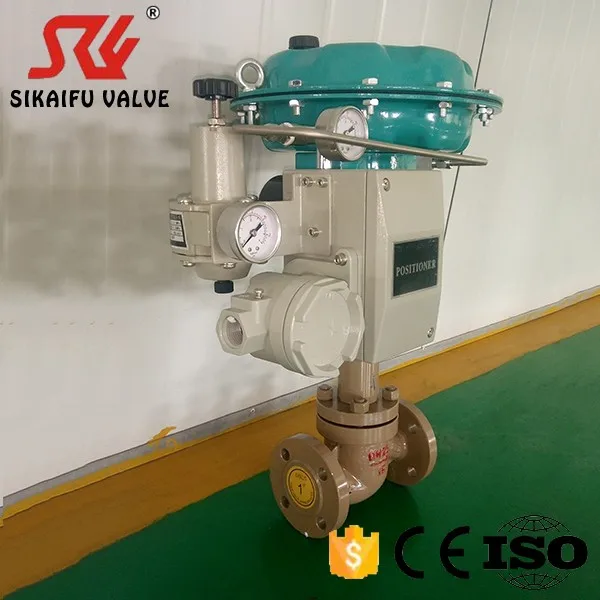

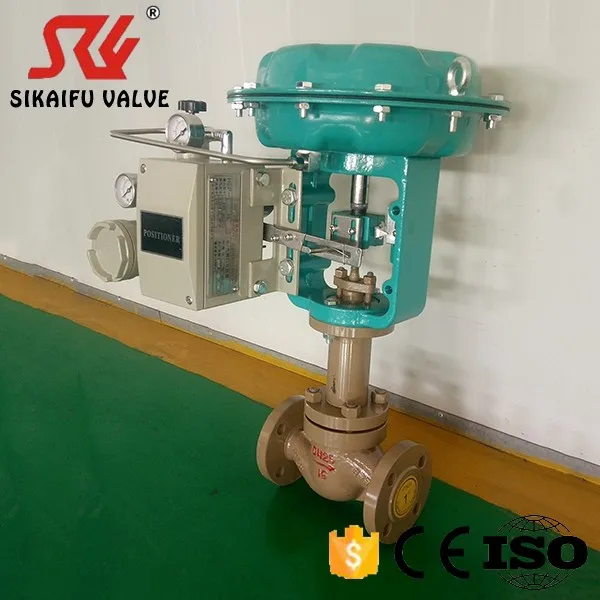

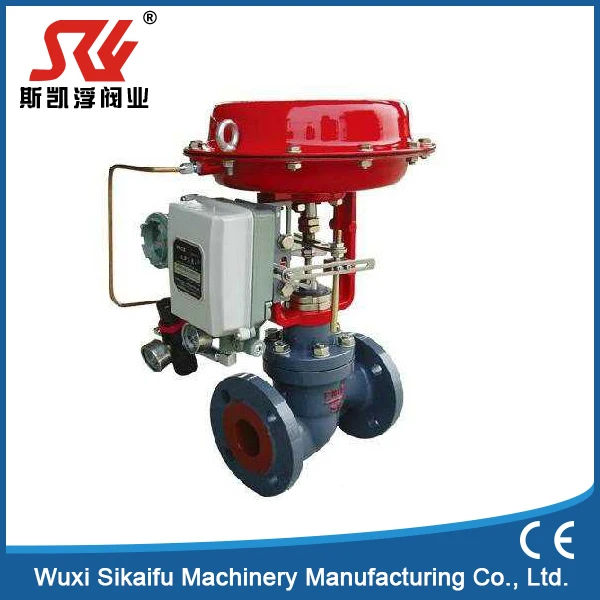

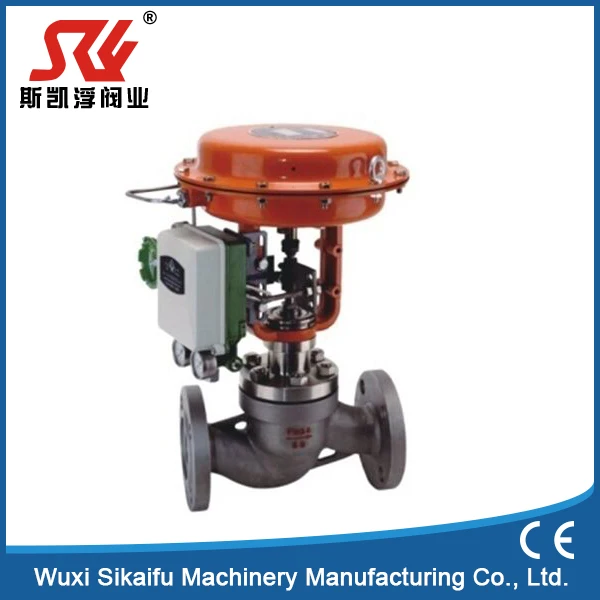

Numerous in variety 150mm flange pneumatic proportional control valve
Product Description
Type | pressure regulating valve |
Size | DN25-DN200(1”-8’) |
Nominal pressure | PN1.6mpa |
Body | Cast steel, stainless steel, cast iron |
Packing | PTFE |
Seat | SS304,SS306,PTFE |
Core | SS304,SS306,PTFE |
Technical parameters
| Nominal diameter DN(mm) 20 25 32 40 50 65 80 125 150 200 | ||||||||||||
| rated flow coficient | Linear | 12.1 | 19.4 | 30.3 | 48.3 | 75.9 | 121 | 194 | 303 | 484 | 759 | |
| Equal percentage | 11 | 17.6 | 27.5 | 44 | 69.3 | 110 | 176 | 275 | 440 | 693 | ||
| rated travel mm | 16 | 25 | 40 | 60 | ||||||||
| Membrane effective area | 280 | 400 | 600 | 1000 | ||||||||
| Nominal pressurePN Mpa | 4.0 6.4 10 | |||||||||||
| Inherent adjustable ratio | 50 | |||||||||||
| working temperate range | Heat dissipation:-40~450, normal temperate:-20~200 | |||||||||||
| Signal range(Kpa) | 20~100 40~200 20~60 60~100 80~240 | |||||||||||
| Air pressure (Mpa) | 0.14~0.4 | |||||||||||
| Allowable differential pressure | without localizer | 5.57 | 6.16 | 4.9 | 3.9 | 4.48 | 3.63 | 2.89 | 3.85 | 3.2 | 1.6 | |
| with localizer | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 3.74 | ||
| Port Thread | M16*1.5 | |||||||||||
Packaging & Shipping
1. Inner Packing: opp bag, then small carton box for each product.
2. Outside Packing: standard exporting carton box or wooden box or as you required,
Foam outside protecting the valves against damage
3. Usually we ship your order by sea or by express
4. Sample deliver: 3-7days after receiving payment by express;
100~500pcs: 10~15 working days by ship.
Above 500pcs: 30~45 working days by ship.
5. We accept T/T Bank transfer, Western Union, Moneygram, Paypal, Alipay
Our Services
1. We accept and produce non-standard valves.
2. We will provide all the details to you during the mass production.
3. Necessary test and certificate can be obtained as you request
4. Your requirement are highly respected.
Company Information
10 Year's Wealthy Experience and Expertise on Valve Manufacturing and Design;
15 Power Plants and Steelworks' Trusted Supplier;
128 Environmental Protection Company, Textile Printing Company and Sewage Treatment Company Business Supporting Company;
168 Valve Distributors' Key Business Partner.
We have a wealthy experience and expertise in manufacturing in Stainless Steel Angel Seat Valve, Ball Valve, Butterfly Valve,Knife Gate Valve, Stop Valve,Diaphram Valve,
Regulating Valve etc.
