Product Overview

Description

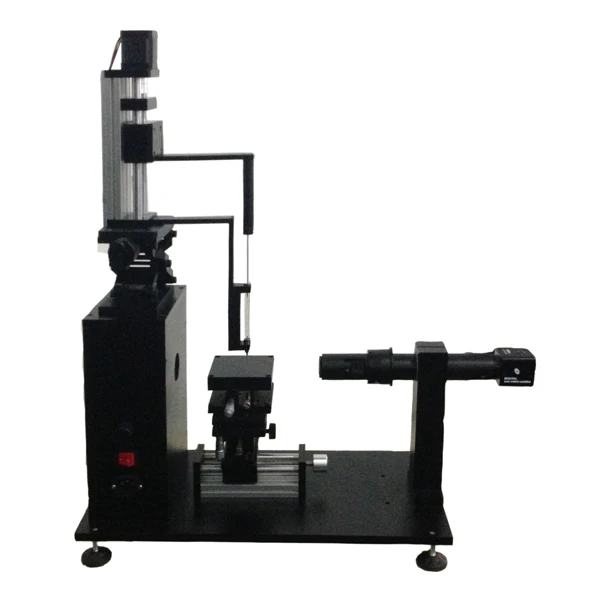

CA100A Automatic contact angle meter tester analyzer

Features



1: equipment the overall mechanical structure with all metal aluminum alloy material, durable;



Components are modular design, convenient user break-up and assembled, meet the precision of



the user requirements.



2: screw-type adjustable platform in the four corners. Convenient for the user in any uneven



platform, can be arbitrary adjustment, to ensure that the droplet platform level.



3: the unique camera fixed bracket, wide scale before and after the distance; Humanized ptfe



ring camera shell, scratch the camera to prevent moved back and forth; Hexagonal screw fastening



structure, convenient user tighten camera, prevent pictures of jitter.



4: humanization of ball screw and guide rail technology, ensure the quickness of droplet platform



back and forth motion and move around, and balancing precision of mobile, manual mobile precision



error is 0.01 mm; Before and after the broad mobile space, adjustable moving range up to 80 mm,



easy to move the camera and a sample machine to a best position.



5:Samples of adjustable horizontal object stage, convenient user adjust sample units to the level state.



6: droplet sample manual differential head and trace titration method, the precision of 0.1 uL;



Calibration is clear, easy to use; A needle locking structure; Optional stainless steel, teflon, etc



material needles, satisfy user needs material.



7: broad droplet sampler distance to move up and down, up and down adjustable range of up to 60 mm.



8:360 overall rotation accuracy as high as 0.01 degrees automatically. Support user since the programming



to realize a rotation Angle, the function of the snap a photo.



9: back light adopts LED cold light source technology, continuous adjustable brightness, droplet is clearly



visible; No fever, avoid long time detection, droplet vaporized.



10: camera adopts high performance industrial digital video camera with high resolution, high accuracy,



high resolution, good color reproduction, and the advantages of low noise, using USB2.0 standard interface,



direct connection to use, no pull plug, use very convenient; Using high resolution industrial continuous



zoom lens, optical magnification of 0.7 to 0.7 X; The camera resolution of 1280 * 1024, 25 frames per



second transmission speed, the user can choose 3 million, 5 million higher resolution camera, 100



frames - 300 frames per second of ultra-high speed transmission camera.



11: the contact Angle analysis system with software copyright, powerful automatic analysis function,



can static contact Angle test, the dynamic contact Angle, advancing Angle and back Angle; Automatic



search for gas solid liquid three-phase point; Automatically search for solid and liquid interface;



Gives the court, single circle fitting, double circle fitting, real droplet contour method such as



automatic computing contact Angle on both left and right; Provide Owens two fluid calculation method



to calculate the surface free energy; Powerful database data management way, convenient for users to



classify the preservation of data, and can be arbitrary export images and data.



12: contact Angle data acquisition modes: automatic measurements and the combination of artificial



modification. One-click "test" button, the software for automatic pictures - looking for three phase



sensitive - contact Angle values around - according to calculation result, the whole process without



human intervention, minimize the artificial factors.

Technical Parameters

model       CA100A	(manual sampling, automatic test contact Angle)
Type  keyword	base type of Contact Angle meter
Test resolution	0.01°
Accuracy of the test	0.1°
Contact Angle test range	0°<θ<180°
Sample level around mobile	Manual travel:100mm
Sample level before and after the move	Manual travel:80mm
Sample on the move	Manual travel:10mm     precision:0.01mm
Lifting platform under the sample stage	Coarse 35 mm trip
Horizontal adjustment	To adjust the platform level feet
Rotating sample	NO
The sample table size	80*80mm
Move up and down into the fluid control	The manual into the fluid stroke :90mm   precision:0.01mm
The camera moving around	travel: 0mm
The light source	Adjustable brightness monochromatic light LED light source
The lens	Industrial continuous zoom lens  0.7-4.5X
The camera	1, industrial-grade black-and-white camera usb camera or choose the same type 1394 interface 2, high-definition standard BMP image format, without image distortion or AVI video format output 3, clear the highest resolution images: 1280 * 1024 (standard BMP format); (if you have higher requirements, please choose 3 million pixels, 5 million pixels or higher camera) 4, image acquisition speed: 15 frames - 40 frames per second; (if you have higher requirements, can be customized to select 1000 frames per second or higher)
