SWT315/90H Hydraulic Butt Welding Machine maquina de termofusion hdpe
- Category: >>>
- Supplier: Hebei Boda Plastic Technology Co. Ltd.
Share on (60414673379):
Product Overview
Description
butt welding equipment for PP, PB, PE, PVDF thermoplastic material of pipes and fittings on site operation
Butt Fusion Joining machine for Field Joining of Polyethylene Pipe SWT-V315/90H
Butt Fusion Joining machine for Field Joining of Polyethylene Pipe SWT-V315/90H
Description
butt fusion machine joining of plastic pipes and fittings such as Polyethylene HDPE SWT-V315/90H
polyethylene pipe butt fusion machine for WASTEWATER TREATMENT SWT-V315/90H
Thermofusion Machinery Equipment SWT-V315/90H
polyethylene pipe butt fusion machine for WASTEWATER TREATMENT SWT-V315/90H
Thermofusion Machinery Equipment SWT-V315/90H
Product Description

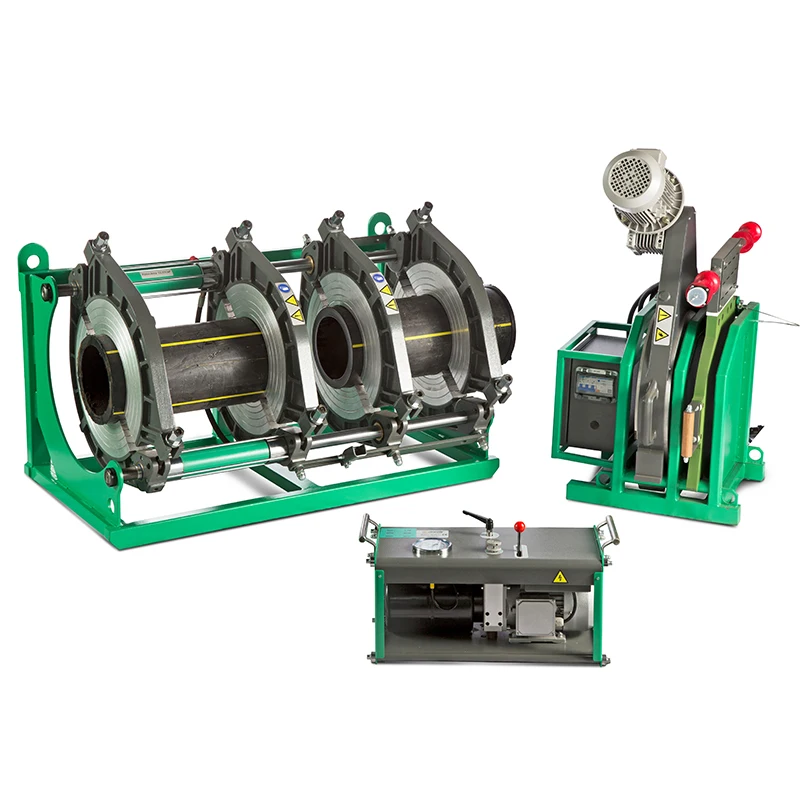

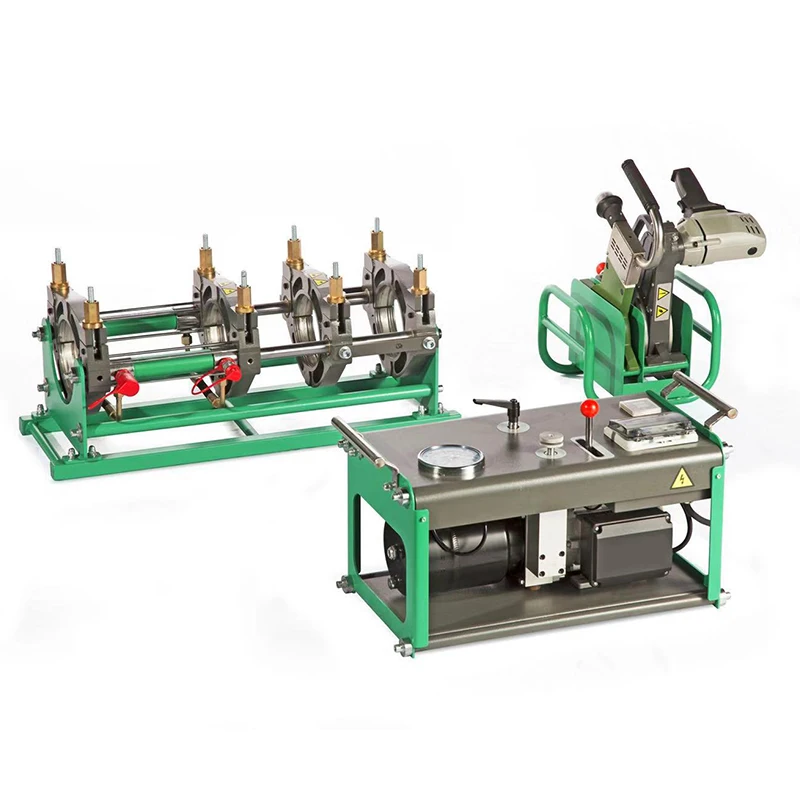

SWT-V315H is hydraulic butt fusion welder. It is used to butt weld pipe and fittings such as elbow, tees, wye and flange necks without any additional equipment by simply adjusting the clamps drag bar.
It is suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF.
Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.
It is suitable for welding plastic pipe and fittings made of HDPE, PP, PVDF.
Removable PTFE coated heating plate with separate temperature control system.
Electrical planning tool;
Be made of lightweight and high strength material; simple structure, small and delicate user friendly;
Low starting pressure ensures reliable welding quality of small pipes;
Separate two-channel timer shows time in soaking and cooling phases;
High-accurate and shockproof pressure meter in indicates clear readings.

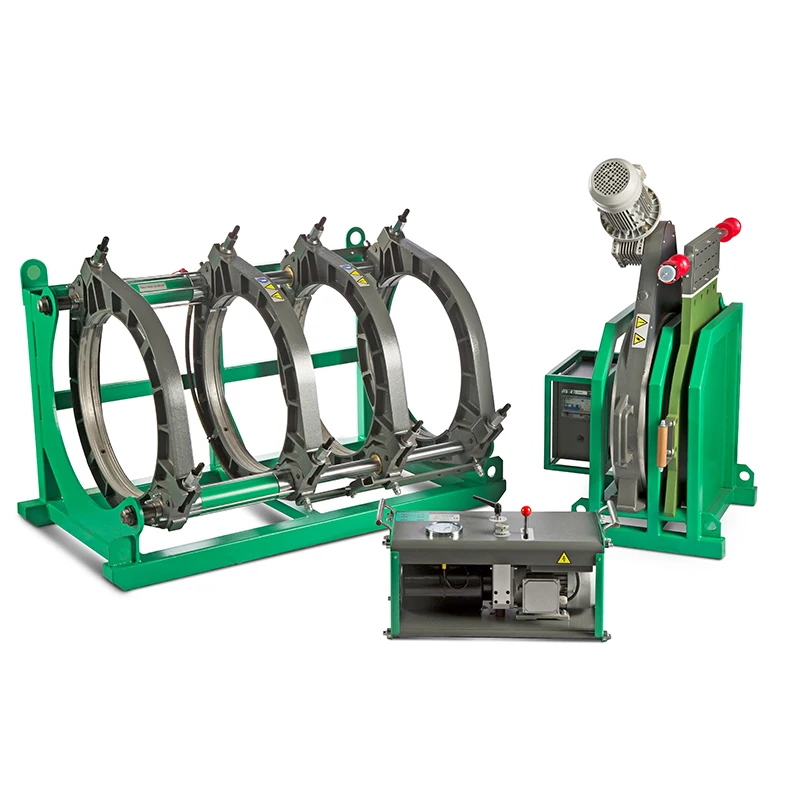

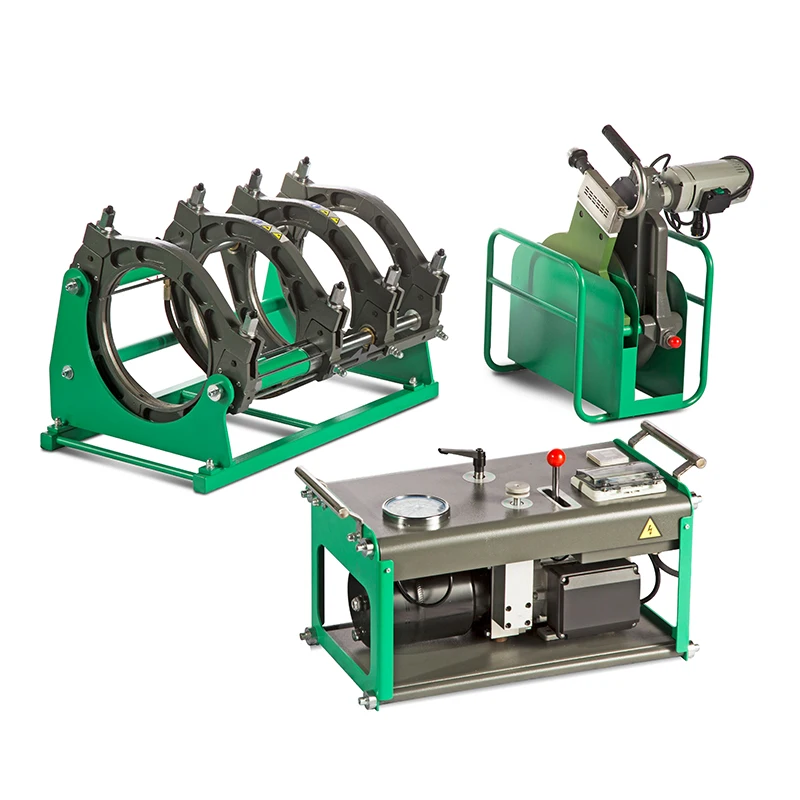

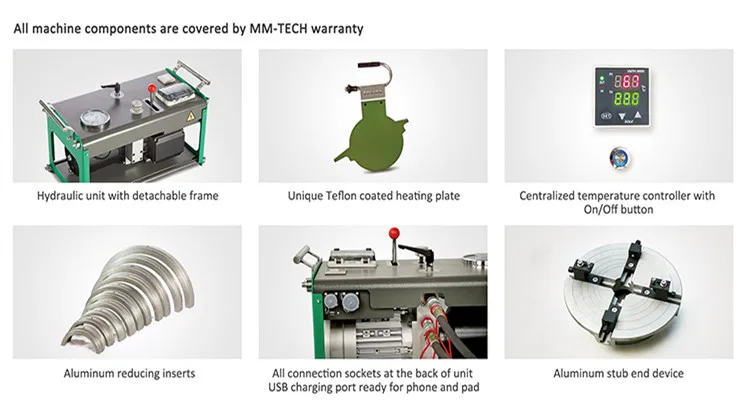

V315 includes:

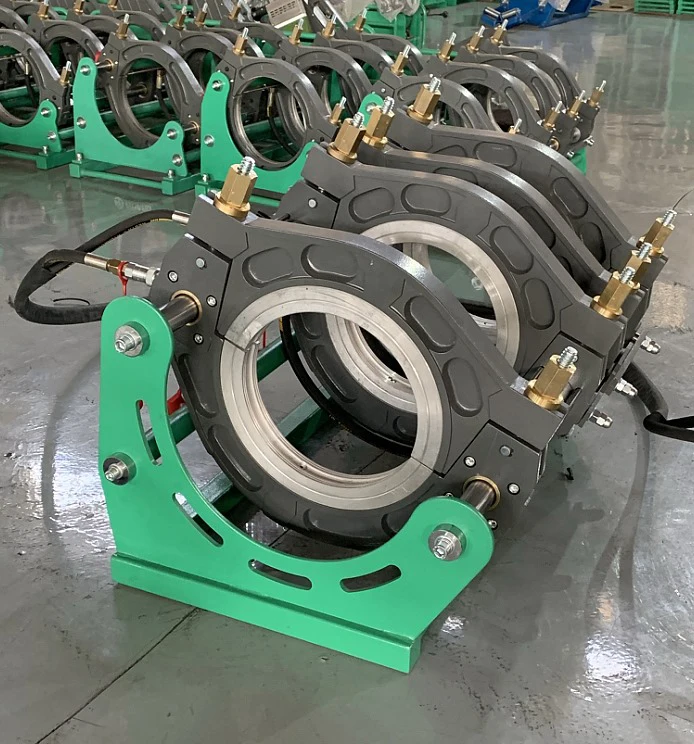

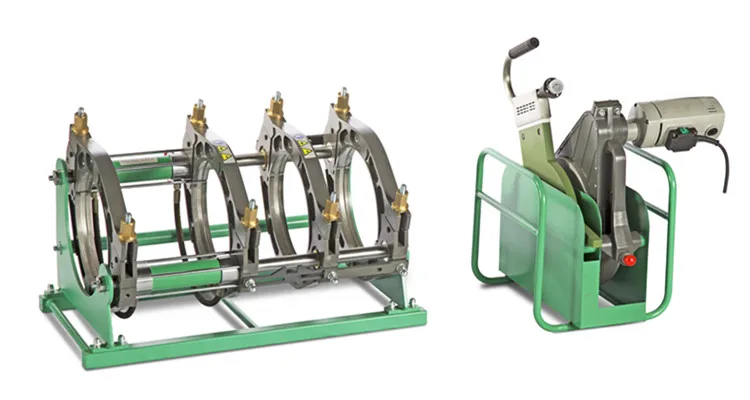

A machine body with 4clamps and 2hydraulic cylinders with fast couplings;
A Teflon coated heating plate with separate temperature control system;
A electrical milling cutter;
Hydraulic hoses with quick couplings;
Support for milling cutter and heating plate.
A Teflon coated heating plate with separate temperature control system;
A electrical milling cutter;
Hydraulic hoses with quick couplings;
Support for milling cutter and heating plate.
Available options:
Data logger;
Support roller;
Stub end holder;
Different inserts (single insert, ISO inserts).
Support roller;
Stub end holder;
Different inserts (single insert, ISO inserts).
Parameters
Welding Range | 90mm~315mm |
Reducing Inserts | 90mm-110mm-125mm- 140mm-160mm-180mm-200mm-225mm-250mm-280mm-315mm |
Ranges of application | PE,PP and PVDF |
Working voltage | ~220V±10%,50/60Hz |
Total power | 5.25 kW |
planning tool | 1.5 kW |
heating plate | 3 kW |
hydraulic unit motor | 0.75 KW |
Environment temperature | -10° ~ 45° |
Why choose us
Product quality is guaranteed
Professional team with good service
Complete after-sales service to solve your worries
Operation Video
Aplication
Application of welding of polyethylene piping by thermofusion :
Hydraulic butt fusion welding machine Suitable for welding of plastic pipes and fittings made of PE,PP, and PVDF.
Automatic butt welding machine can be operated in any complex work condition.
Thermofusion welding machine welds HDPE, PP pipes and fittings for the transportation of gas, water and other fluids.
Automatic butt welding machine can be operated in any complex work condition.
Thermofusion welding machine welds HDPE, PP pipes and fittings for the transportation of gas, water and other fluids.
Pictures
Jobsite
Exhibition
We always provide high quality products and workable price for every clients and have won the trust, enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating, we provide them for free:
--
Marcus Wang
Area Sales Manager
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating, we provide them for free:
--
Marcus Wang
Area Sales Manager
