Voltage class: 3phase 380v Temperature protect :KTY/PTC 180×180 motor base/ force-air cooling S1 working system(IEC 60034-1)

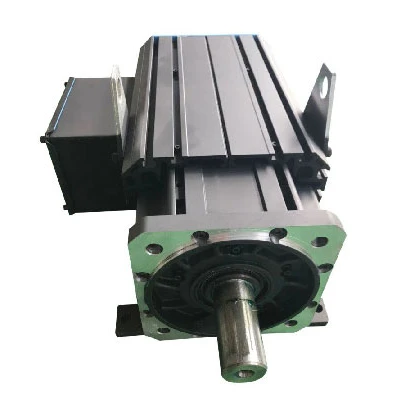

Brief Introduction of servo motor prices for injection molding machine
XingTai Servo Motor are RE Permanent magnet synchronous servo motor ,was conceived and designed as an advanced and homogeneous range of high performance servo actuators,in line with the evolving demands of the automation industry ,and is particularly suited for direct drive applications. XingTai Servo Motor Designed for process lines and apply in sustained operation at high speed,forced cooling over frame with fan servo controlled by the motor ,overall protection grade IP 54; The advantage of combination of permanent magnet and Magnetic reluctance are: 1.10% higher efficiency than induction motor; 2.wider speed range compared to general permanent magnet motor; 3.Slender structure make motor faster dynamic response ,lower noise; 4.Special airduct design make the motor more outstanding cooling effect.
XT690 Series Servo Drive and Motor combo for retrofit injection molding machine
140Bar System Pressure
Servo drive
Servo motor
Pump
Model No.
KW
power capcity (KVA)
Rated output current(A)
Model No.
KW - NM
Rated speed (rpm)
Sunny
XT690T045
10kw
17
22
D1004F.20.3
8.7kw - 42nm
2000
16cc
XT690T045
10kw
17
22
D1005F.20.3
12kw - 58nm
2000
25cc
XT690T070
15kw
21
32
D1005F.20.3
12kw - 58nm
2000
32cc
XT690T070
15kw
21
32
D1007F.20.3
18.2kw - 87nm
2000
40cc
XT690T085
22kw
24
37.5
D1008F.20.3
20.4kw - 95.6nm
2000
50cc
XT690T130
30kw
40
61
D1010F.20.3
28.3kw - 135nm
2000
63cc
XT690T170
37kw
57
75
D1013F.20.3
36.7kw - 175nm
2000
80cc
XT690T210
45kw
69
91
D1315F.18.3
39kw - 196nm
1800
100cc
XT690T240
55kw
85
112
D1320F.18.3
44kw - 232nm
1800
125cc
XT690T320
75kw
114
155
D1330F.18.3
67kw - 357nm
1800
160cc
*Note:The adaptive servo motor and pump suggested on the sheet are referring to 140kg pressure systems.For others please contact us for best suggestions.
Application
Injection molding machine

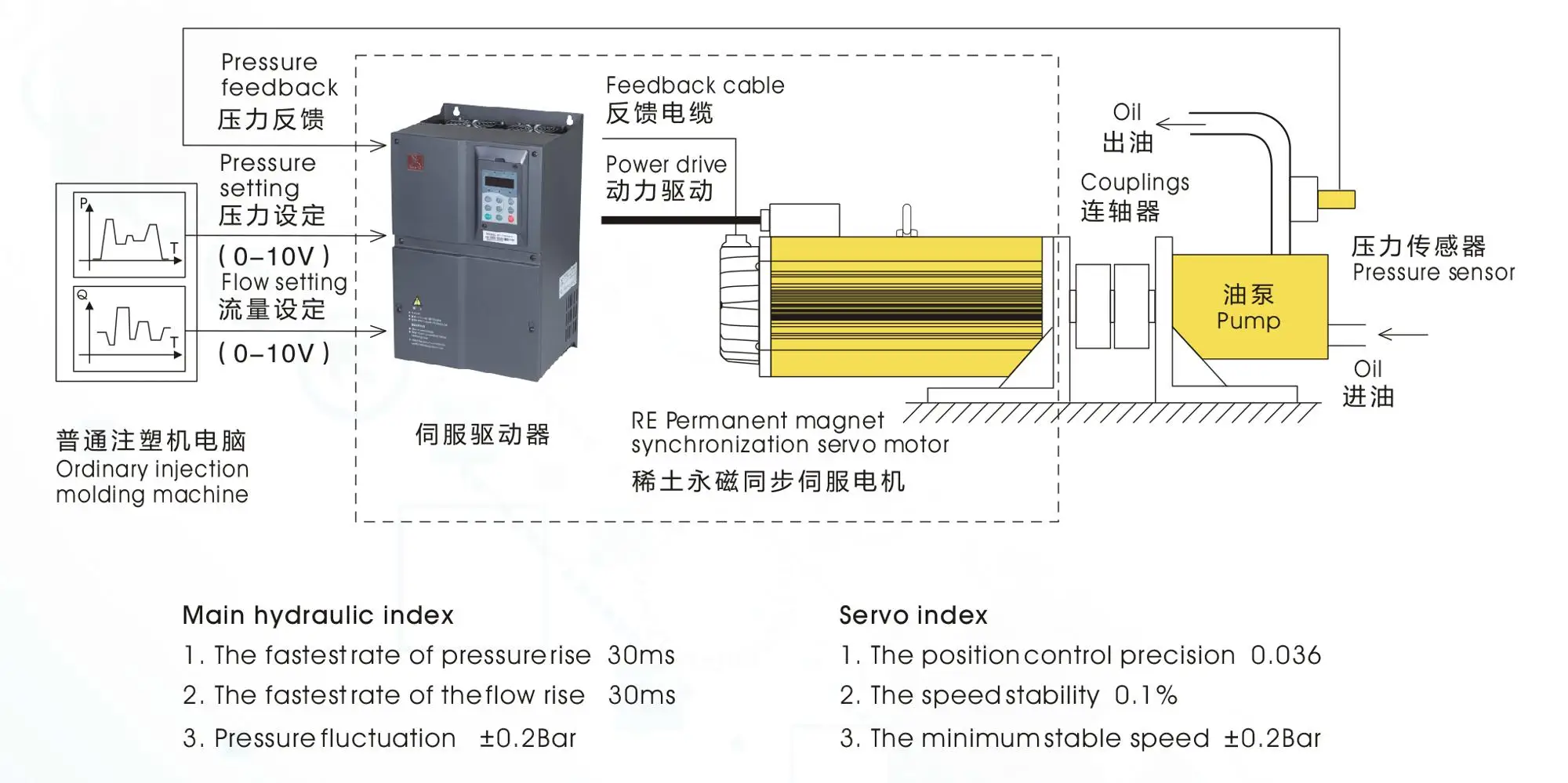

XingTai XT690 Series servo driver uses the flow, pressure closed loop control, combined with the perfect efficiency ofweak magnetic control , brings the injection molding machine system more energy efficient, precision, efficient and quiet running effect, in the market have many mature modification and application cases, across thousands of machines in stable operation.
The advantages are as follows:
Energy saving: direct drive of servo motor, higher efficiency and energy saving.
Simple structure: driven by servo drive and servo motor (or servo motor, deceleration mechanism), simple structure.
Speed stability: through encoder feedback to achieve closed-loop control, high speed stability.
Suitable for the production of clean products such as medical products.
Company Information
Ningbo Xingtai Technology Co.,Ltd ( Brand XingTai Servo) are professional servo system solution providers for injection molding machine in China, we Concentrate on the research & development, production and sales of high performance servo drive and motors from 2002.
FAQ
1.Do you offer complete set of servo system for injection molding machine? Yes ,We are offering professional solutions of complete set of servo system for different tonnage injection molding machine,We offer servo drive+servo motor+pump+pressure senser+brake resist+other accessories.etc.Please inquriy us for best solutions,
2.What is your mainly delivery port?
Our factory is loacted in Ningbo city,Ningbo Port is our primary choice of delivery sea port.
3. Is there a minimum quantity request?
We does not require a minimum order for standard servo drive and motor, as we understand that some customers may only need 1 or 2 sets of our products or wish to try us out for the first time.
4.What are your packing methods?
We mostly pack into wooden cases or a combination of box and pallet.Xingtai packages will protect the servo drives well.
5.When can I except to receive my order?
Generally 3-15days after order confirmation.
6.What is your servo products quality assurance?
Our XT690 Series servo drive passed CE certificate and all servo drive and motors will be tested on injection molding machine in our factory before delivery ,You just assemble and easy debuge as per our introductions.
Generally we offer 18month warranty for our servo drive and motors,Any problems we are on the behind of you.
7.Is there any possibility to be your partner in our country?
Yes,We are looking for agent in differrent countries and areas ,Please contact one of our sales manager for more business cooperation.
