2022 Cheapest price Towable Center Pivot Irrigation system for big potato farm
- Category: >>>
- Supplier: Rainfine (Dalian) Irrigation Co. Ltd.
Share on (60414822333):
Product Overview
Description
Sprinkler Irrigation
Product Description
![20160620_133122[1]](http://sc01.alicdn.com/kf/HTB17j5ASVXXXXXPXVXXq6xXFXXXP/200155159/HTB17j5ASVXXXXXPXVXXq6xXFXXXP.jpg)

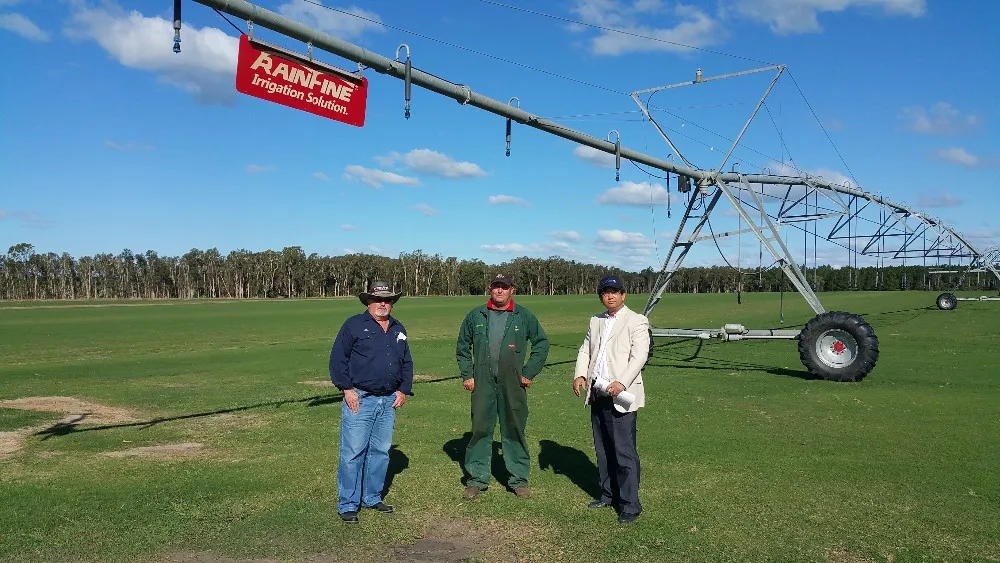

River and bore well can be the water resource of the fixed point, the water transports through main pipes and sprinklers, finally applied to the field. The advantage of this system is to use less labor and water to irrigate 13-130ha from one water feeding point. Steel structure of special design can satisfy different lengths of the machine. One span with one overhang (80m) is the simplest machine you can choose for small land. The heavy duty design can be extend to more than 11 spans (650m) with the angles and bolt pivot anchors strong enough to fight windstorm.
| The specification of the Rainfine Center Pivot | |||
| Items | Specification | Items | Specification |
| Pivot length | 41.1-791.2m | Land covered | 0.53-196.7ha |
| Qty.of spans | 1-16 | Span length choice | 41.1/47.8/54.4/61.3m |
| Overhang length | 6.7/13.4/20.1/26.8m | Pivot clearance | 2.91-3.75m |
| Span dia. | 141/168/203mm | Pivot height | 4.62-5.46m |
| Span thickness | 3mm | Surface | Hot dip galvanization |
| Flow rate | 15-1080m3/hr | Water pressure at pivot base | 1-7.5Bar |
| Friction Loss | 0-2.5bar | Tire | Rubber: 320×1260 mm Plastic: 318×1170 mm |
| Max speed | 142m/hr | Sprinkler | Nelson/Senninger |
| Regulator | 10/15psi | Type of drops | Flex 5.5-ft drops |
| Gear box | 50:1 heavy duty | Gear motor | 33rpm(full loaded) at 380V.3/4HP 40:1 Ratio. Over-heating protection |
| Control panel | Standard | Required run power | 0.7-11.5kw |
| Power supply | 415V 50HZ | Irrigation Hours/Day | 0-24hr/day |
| Daily applicationrate | 0-50mm/day | Pressure gage | 0-60psi |
- Metallic zinc-coated with USASTM-A123 galvanizing standard
- Maine Panel, hard on vertical pipe of the water feeding and Press Gauge
- Pivot point light, thumbing electrical collector and irrigation end gun managerial system
- Feed by water from pipe line
This center pivot can even walk in the waving land without any distroy!
- Metallic zinc-coated Spans rubber-band united between itself
- Mounted on support of intermediate towers-each with two wheels
- <V>-type, axles drive unit from electric geared motor to Wheels gearboxes
- Electronic block of the system with equalization and checking
- Control transformer
- Monitoring indicators
- Fuses - 30 amps
- System monitors
- Fused disconnect in panel rated 600v at 30 amps
- Forward / reverse contactors rated 600v at 30 amps
Heavy duty gear box
- Enhanced casing design, increase intensity, reduce wear and tear
- Special seal, prevent dist and humidity
- Large power output bearing, load capacity enhances 55%
- High-strength cast iron, big gear design
- Shorten driven wheel design, reduce extra load
- High-strength caps pre-commitment load
NOTICE
1. If you want pivot, please give us the following details"
- your country and name
- land area (in ha or m2 )
- crop and water application (mm/day or m3 /h or LPS)
- working degree (0- 360O )
- if you need any extras (options) for pivot such as Diesel generator, end gun with booster pump, corner control system for end gun, Fertilizer unit
2. Small parts are not sold seperately, except for large amount.
Company Information
GLOBAL MANUFACTURER OF IRRIGATION EQUIPMENT SINCE 2002
Rainfine is an international irrigation company based in Dalian, China that specializes in center pivot and lateral move systems.
We are a leading manufacturer across the globe, supplying irrigation parts and equipment to major manufacturers in the United States, France, Russia, Australia, Sudan, Kazakhstan, Nigeria and Saudi Arabia.
Our irrigation manufacturing meets the following standards:
International: ISO15873 ISO12374 ISOTR15155
French: NFEN909
British: BSEN12325-2
American for galvanizing: A123
ISO9001-2008 QC standard
Rainfine's work
-land surveying and planning
-Pipeline network calculation
-Pump station calculation and design
-Business proposals and budget plans
-Pumps, valves and irrigation machines supply
-Installation and commissioning
Warranty
-1 year concerning electric equipment
-10 years/10 000 working hours for gearboxes and gear motors whichever expires earlier
-20 years concerning the galvanized equipment against corrosion
-3 years for tires and rims
