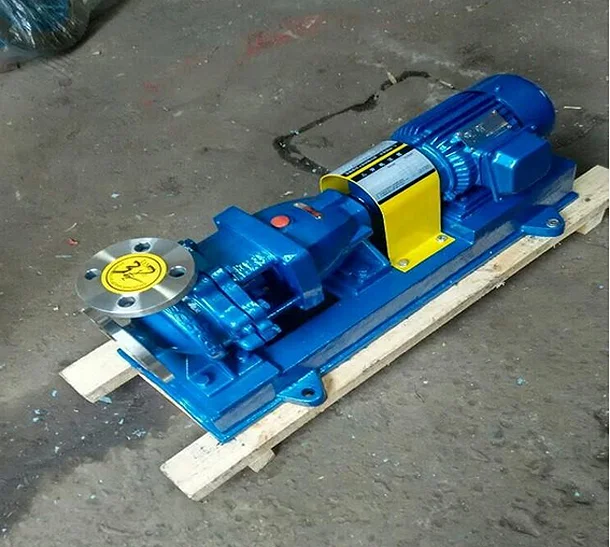

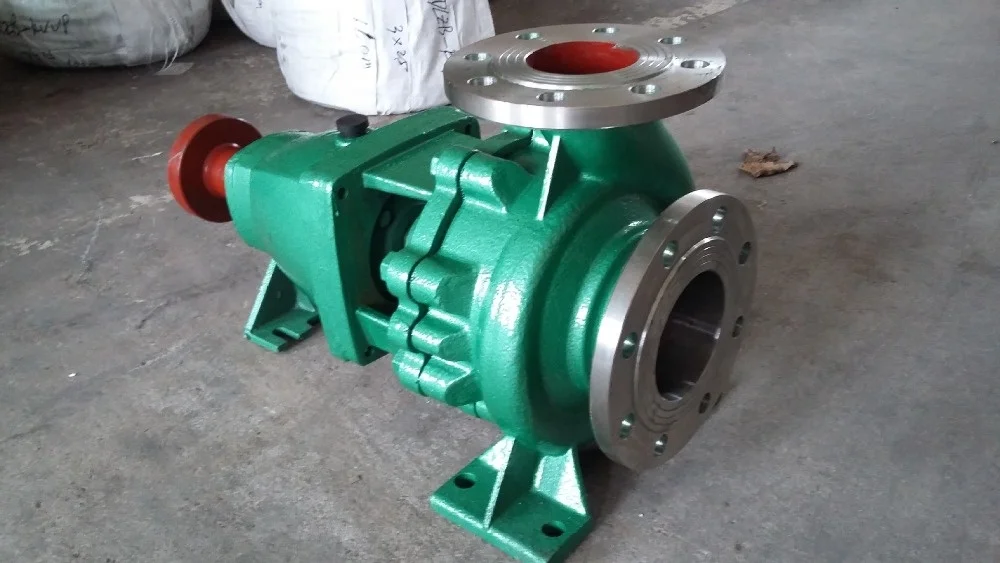

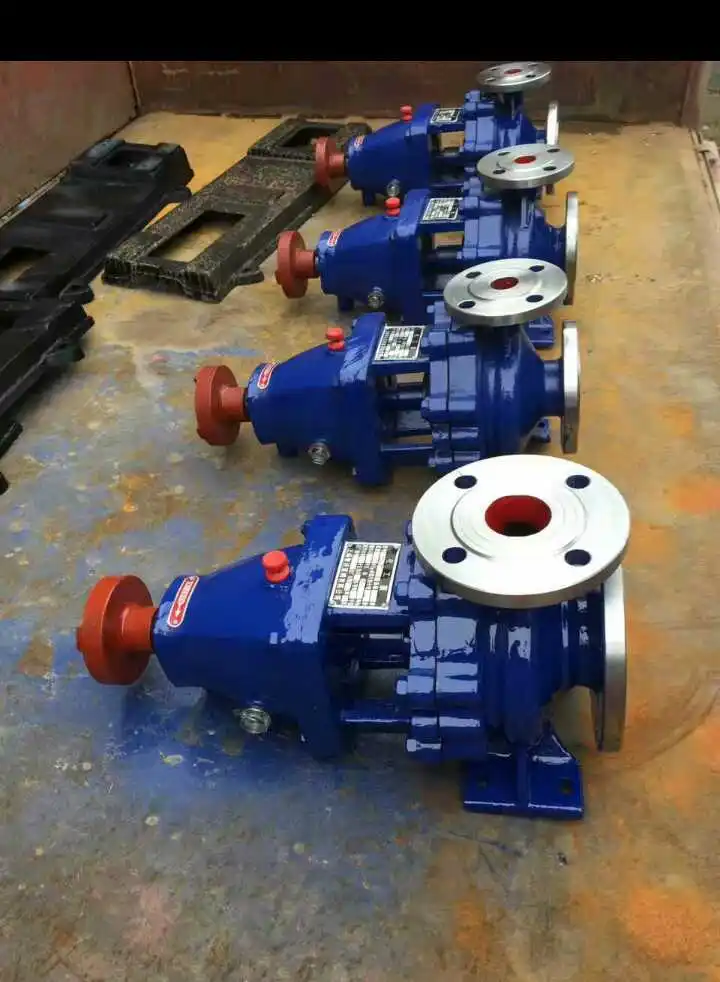

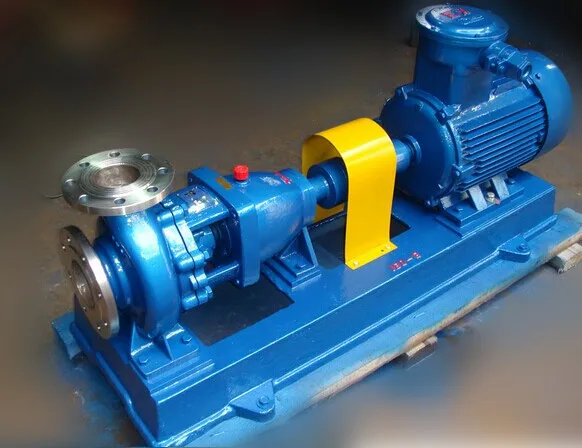

IH 50 32 125 series Centrifugal Pump transfer chemical liquid pump

Brief introduction:

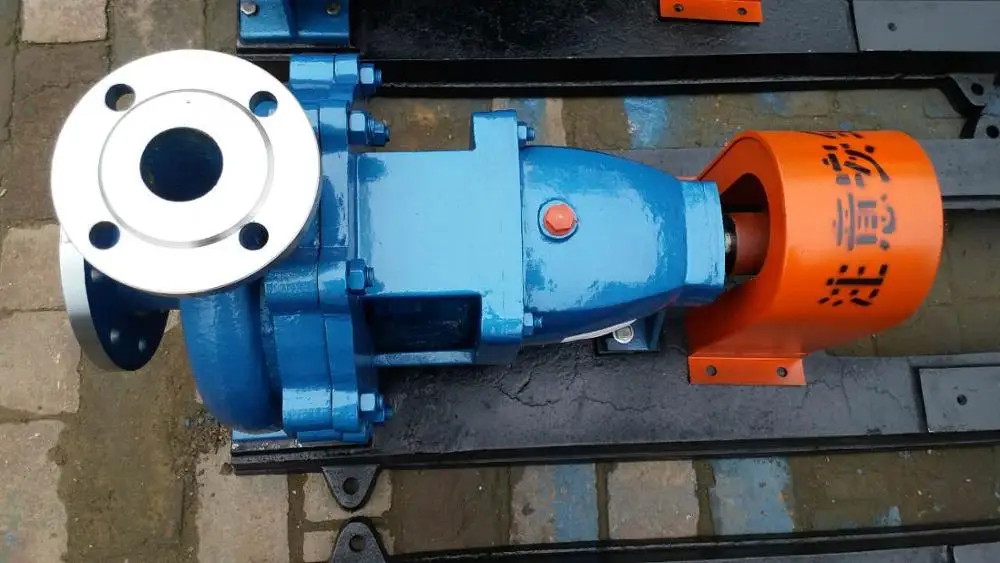

IH type stainless steel centrifugal chemical pump conveies containing no solid particles liquid whichiscorrosive, and viscosity similar to water in the liquids.Mark it, performance rating and size equivalent international standard ISO2858 being adopted, with wide performance range, high efficiency, "three" level is high and maintenance is convenient wait for a characteristic, its efficiency is increased by 5% on average than F type pump, is the national promotion of energy-saving products.

Application scope:

1.Chemical industry

2.petroleum industry

3.electric power industry

4.papermaking industry

5.food industry

Construction:

IH type stainless steel centrifugal chemical pump is mainly leaf transmission line, seal ring nut, pump cover, impeller, intermediate support, sealing parts, suspension parts, shaft, etc. Pump cover through the seam allowance on the fixed bracket in the middle, and then through the connection of the pump body and the middle bracket the pump cover is clamped in the middle, the pump body is axial suction, radial discharge, foot bearing type, can be directly fixed on the base.

Suspension parts through the seam allowance on the fixed bracket in the middle, with a suspension bracket support on the base. Design for disassembly is convenient, the lengthened coupling, repair can not remove the import and export connecting piping, pump body and the motor. Only need to remove the coupling in the middle of the connection, you can exit the rotor parts for maintenance. This is one of the international structure.

Model meaning:

Parameter Data:

IH chemical Pump's impeller

IH chemical centrifugal pump's mechanical seal

IH chemical centrifugal pump
