Product Description
Applications:
Electon records the seales/records the hearyscales etc;
Recommended platform size:250X350mm.
Features:
Aluminum-alloy;
Colorless anodized;
Glue sealed.
Technical Parameters:
Rated Load
0-120KG
Insulation Resistance
>=5000Mohm(100VDC)
Precision
0.02
Excitation Voltage
9-12VDC
Composition Error
0.02%FS
Compensated Temp.Rnge
-10 to 40℃
Rated Output
2 +/-0.2 mV/V
Use Temp.Range
-35 to 65℃
Non-linearity
0.017%FS
Temp.Effect on Zero
0.03%FS/10℃
Hysteresis
0.02%FS
Temp.Effect on Span
0.02%FS/10℃
Repeatability
0.01%FS
Safe Overload
120%FS
Creep
0.02%FS/30min
Ultimate Overload
150%FS
Zero Balance
+/-1%FS
Defend Grade
IP65
Input Resistance
405 +/- 6 ohm
Cable
Ø4
Output Resistance
350 +/- 3 ohm
Recommended Platform Size
250x350mm
Dimensional Drawing(unit:mm):

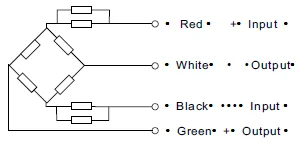

Wiring Schematic Diagram:
