Electric Switch Socket automatic assembly Machine

Product Overview

Description

Automatic Machine For Wall Switch Socket Assemly





Technical Parameter:



Production Capacity: 22-30pcs/min



Input Voltage: 200-240VAC, 50-60HZ



Input Air Pressure: 4.5-8.0kgf/cm2



Feeding System: bowl feeder automatic feeding



Dimension: 2200(L)X1000(W)X1900(H) (mm)



Weight: About 1200Kg





Machine Appearance

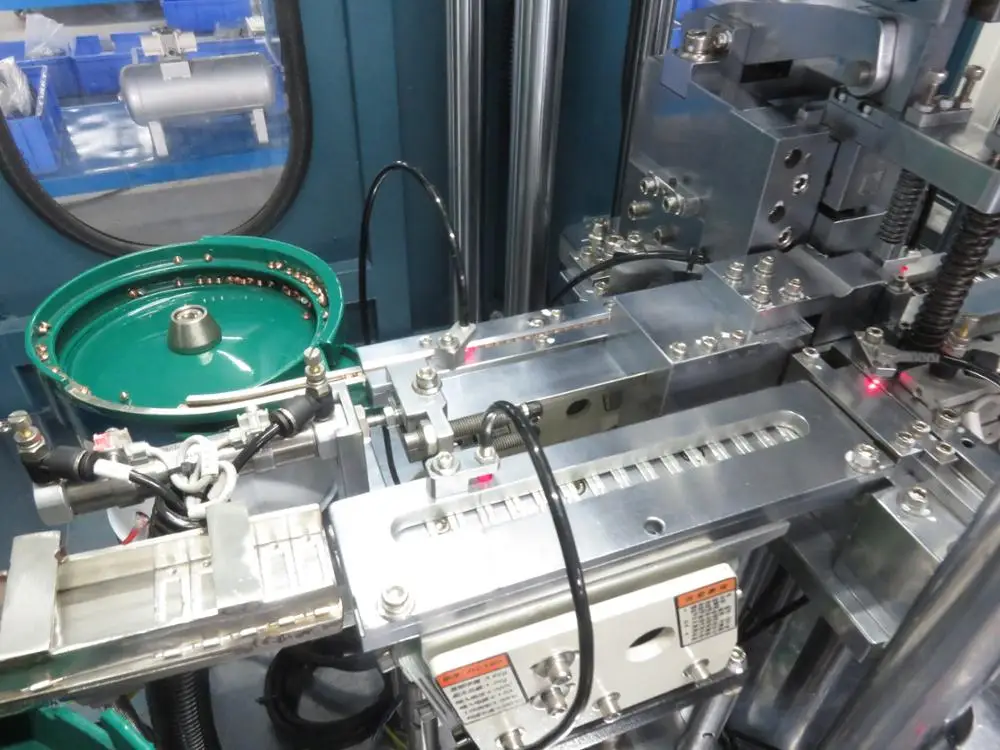

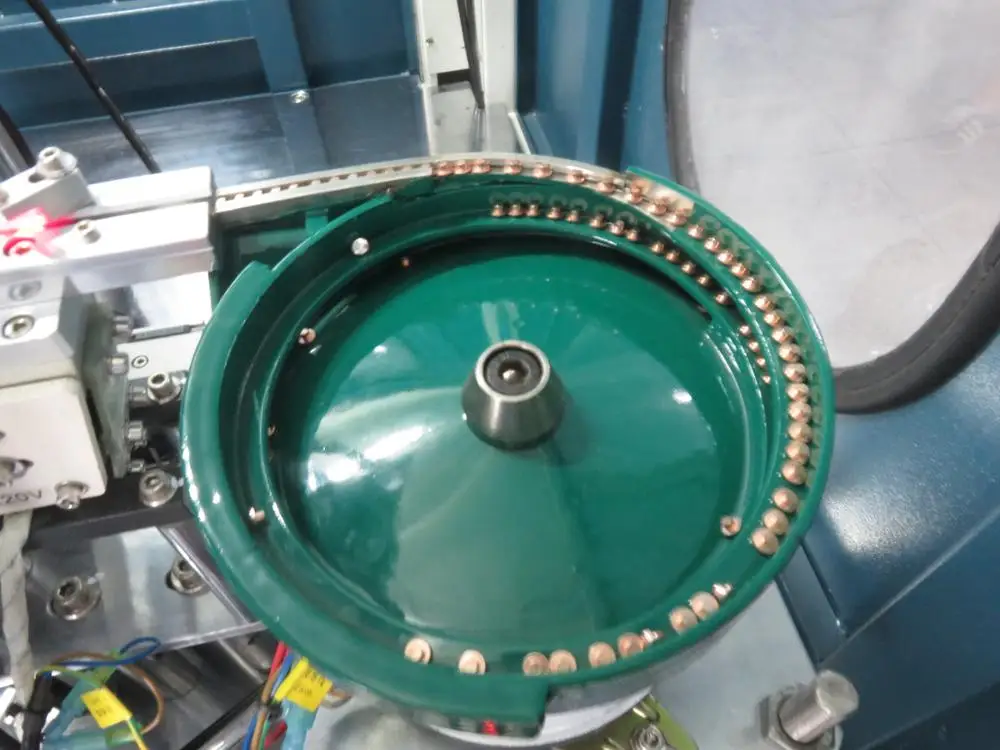

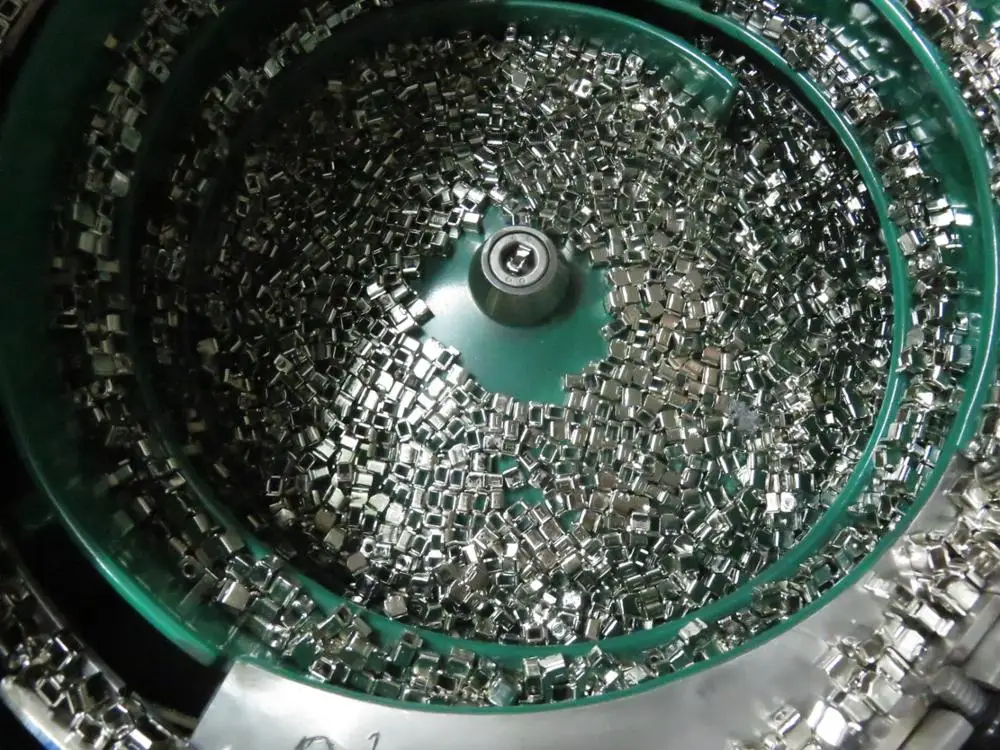

Bowl Feeder Automatic Feeding

















Automatic Assembly









Function:



PLC control system, to complete bottom cover, Live components, Neutral components, Middle inserter components, upper cover and other parts of socket automatic feeding and assembly.





Application:

Be used in socket manufacturing area, to achieve automatic feeding, screw locking and assembly.







Advantage:

The machine includes open-type series G09, K9, series 86G06, 86K9, series national standard 5 holes, series 118 five small holes, series 3 pin air conditioning soket, to complete bottom case, line copper parts, neutral copper parts, earth copper parts, 2 plugs shutter & spring, 3 plugs shutter & spring, surface cover, out frame and other parts of wall switch assembly automatically, auto detect finished products for insertion and extraction force, conducting functional test etc..  The production capacity is 1200 to 1500 pcs per hour, can work instead of 8 to 10 workers.









Other Machines Yicheng R&D For Cooperators

Cooling Fan Automatic Production Line





Automatic production line, with the model of human-machine combination, several single machine in series,  to realize fully automation for critical processing procedure of cooling fan, to achieve 95% automatic production from coil winding to products assembly, effectively solve the problems of quality. The production capacity is around 900 pcs/ hour, can work instead of 10 to 15 workers.





Micro Motor Automatic Production Line







Automatic production line, with the model of human-machine combination, several single machine in series,  to realize fully automation for critical processing procedure of cooling fan, to achieve 95% automatic production from coil winding to products assembly, effectively solve the problems of quality. The production capacity is around 900 pcs/ hour, can work instead of 10 to 15 workers.





Switch Groups Automatic Assembly Machine







Yicheng R&D many automatic equipment according to different manufactures' requirements and various switches' features and applications , to complete switch components auto assembly and detection, basically covered all kinds of switches. If you are switch manufacturer, you can definitely get what you want in Yicheng.









Features:

1 This series machine is designed and manufactured specifically for the switching industry
2 Automatic feed terminal, loaded terminal / riveting / complete
3. Automatic detection,auto start when there is material, auto cut off when no material detected
4. Automatic counting, set output
5 Using the touch screen, intuitive interface, simple and safe operation
6 Reporting irregular operation and giving the relative solutions in the form of message.







Partner:











FAQ:



1.Are you the manufacture or trading company?
Answer:We are the manufacture for non-standard automatic machine with over more than 10 years

experience.



2.What about the price?

Answer:Competitive price with high quality.We are the solution provider & manufacturer for automatic machine. OEM & ODM service offered.



3.How many certificates & qualification do you have?
Answer:CE,ISO



4.How long the delivery time?
Answer:70 days approximately (can be?negotiated additionally)



5.Question:What is the MOQ?
Answer:no MOQ required.



6.How about the payment?
Answer:T/T in advance, western union also can be accepted.



7.What are the process from initial discussion to delivery?
Answer: Part One: Design→Offer solution→Evaluate→Price quote→ Sign contract
                 Part Two: Process parts→ Test→Program→Debug→Operate→ Packaging



8.If I can not find the machine which I need, what should I do?
Answer:Please contact me online or send inquiry, write down your request and E-mail, we will then reply to you accordingly. We can customize machine for you according to your individual needs, used in fans, motors, switches manufacturing & product (shown as below picture). And electronics products as well.





You are welcome to join us to build up a win-win business cooperation!



For more details we are at your disposal at any times.
