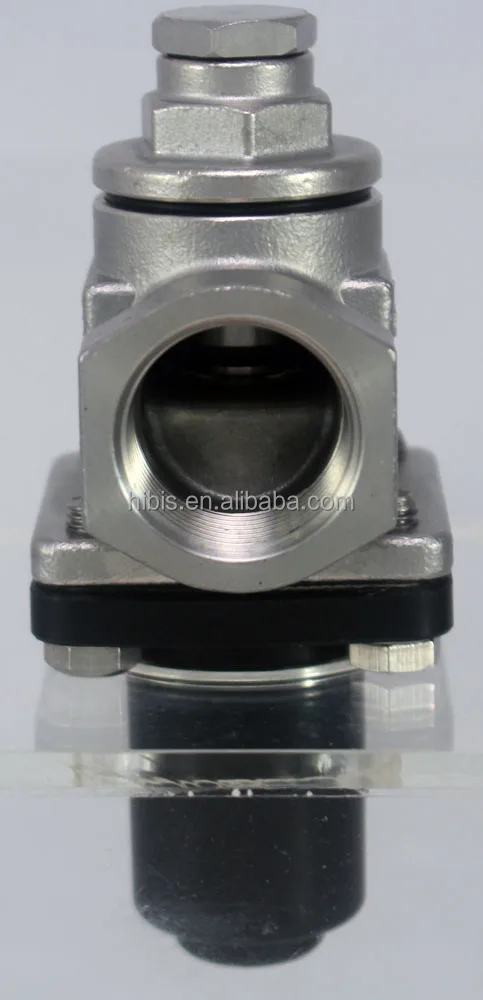

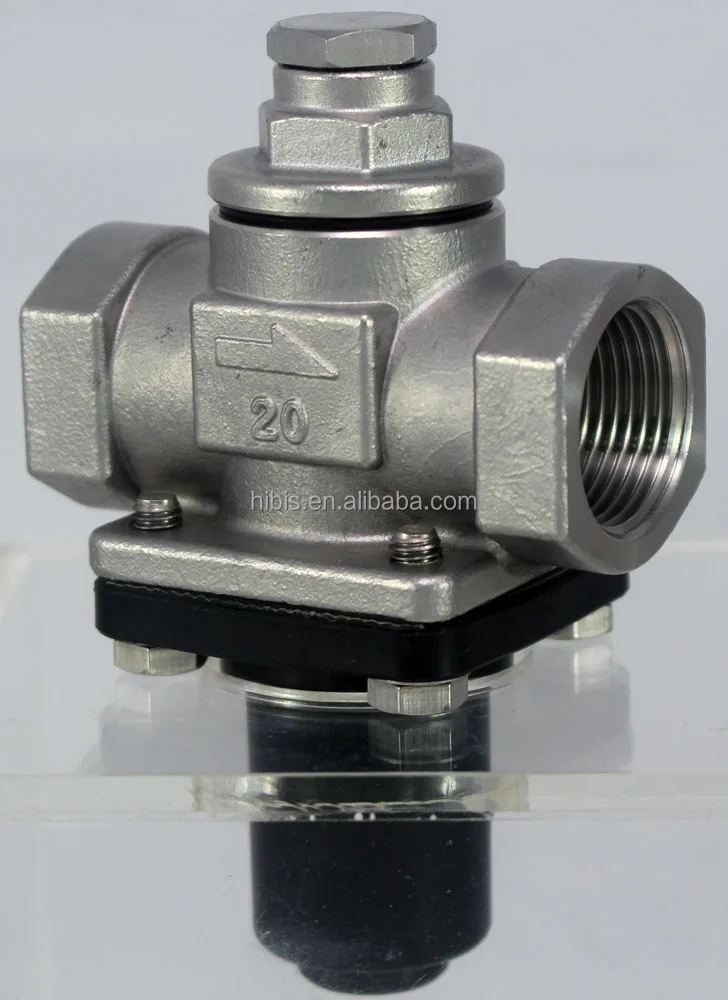

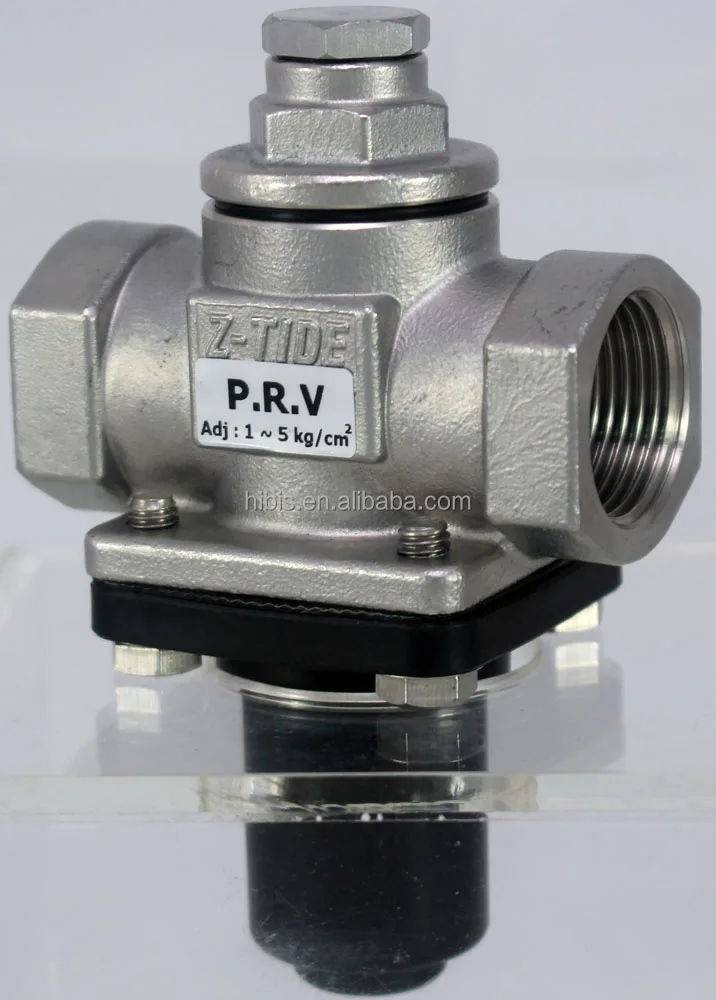

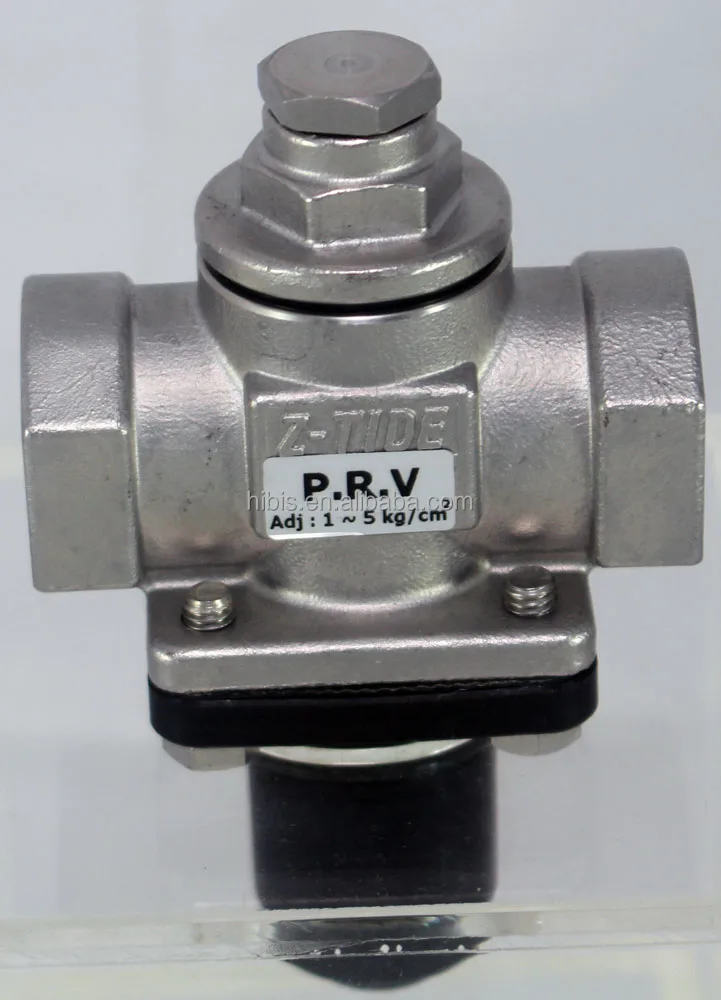

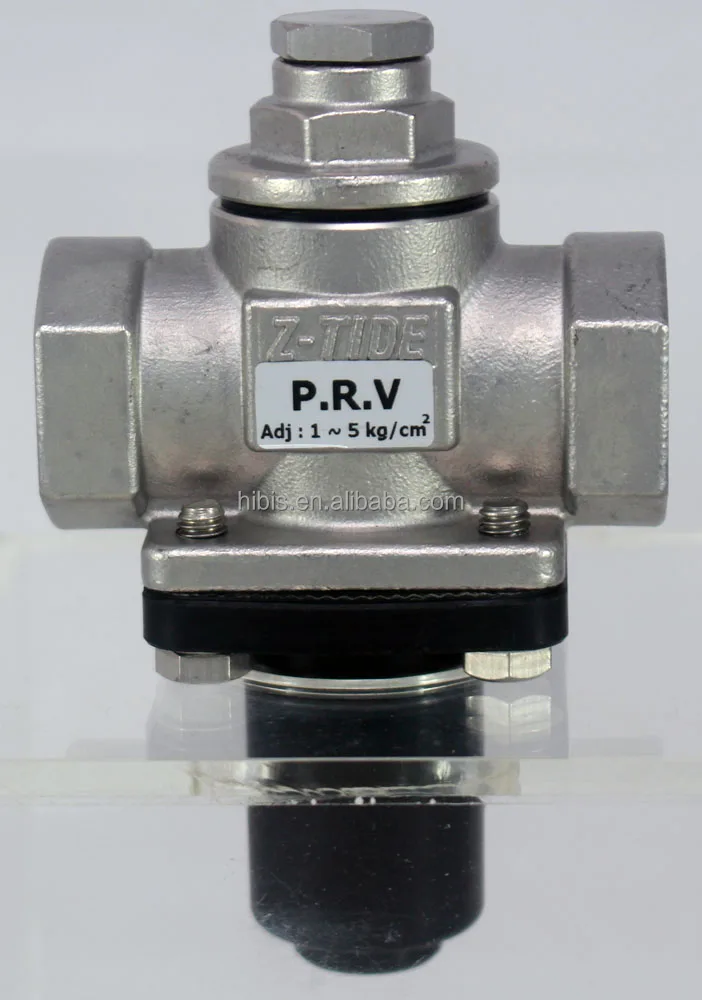

Z TIDE RDT 15 Stainless Steel Direct Activated Flange End Pressure Reducing Valve

1. The gate is designed for opening status, which will not influence the water

    supply function under unsatble inlet pressure condition.

2. When the outlet pressure responds directly to the pressure control chamber

    and adjusts the setting pressure, it responds quickly and adjusts the pressure

    accurately.

3. Pressure Adjusting Range:

    * 1kgf / cm²~3kgf / cm²
    * 2kgf / cm²~5kgf / cm²
    * 4kgf / cm²~9kgf / cm²

4. Pressure needed from fully-closed gate to fully-opened gate :

    1.5 kgf/cm² (1 kgf/cm2 = 14.2 psi)

5. Applied Temperature
    * -15°C~80°C

6. Maximum Applied Pressure: 12 kgf/cm²

Z-Tide Valve is a manufacturer and exporter of valves in Taiwan. We produce following products:

Valve type: Pressure Reducing Valve, Pressure Relief Valve, Pressure, Sustaining Valve, Butterfly Valve, Safety Valve, Electrical Actuator, Water Hammer Arresters, and Fire Fighting Valve.

You can see our Full Catalog or hyperlink //www.z-tide.com/download-e.html (We have the complete product line for engineering project used)

Application: Water supply / Treatment, HVAC & Plumbing, PCW, Power Plant, Pump Station, Fire Protection, Food & Beverage, Chemical, Off-Shore, Oil & Gas and Steam.

Material: Cast Iron, Ductile Iron, Bronze and Stainless Steel.

Valve size: Range from 1/2" (DN15) to 52"(DN 1300) .

Valves Certificacion : CE and ISO 9001, c UL us VLMT – File No. VLMT.EX15524 / VLMT7.EX15524.
