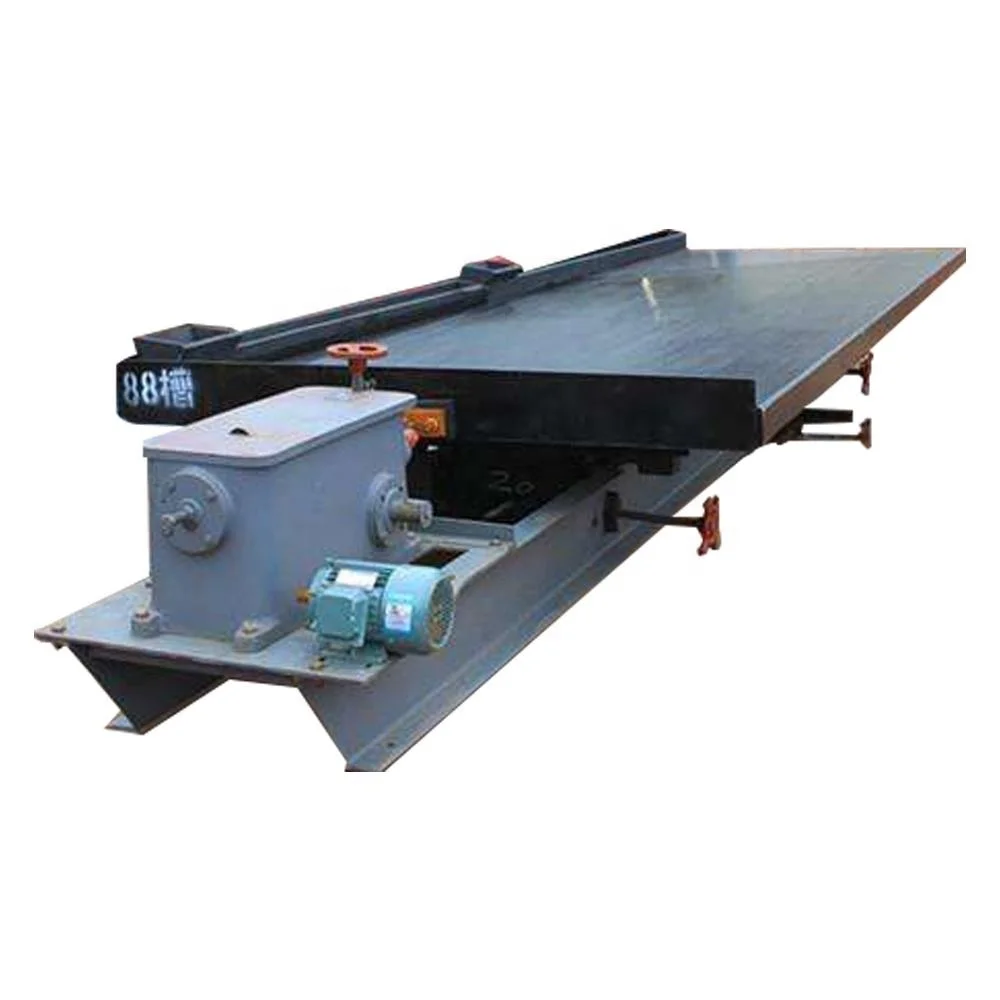

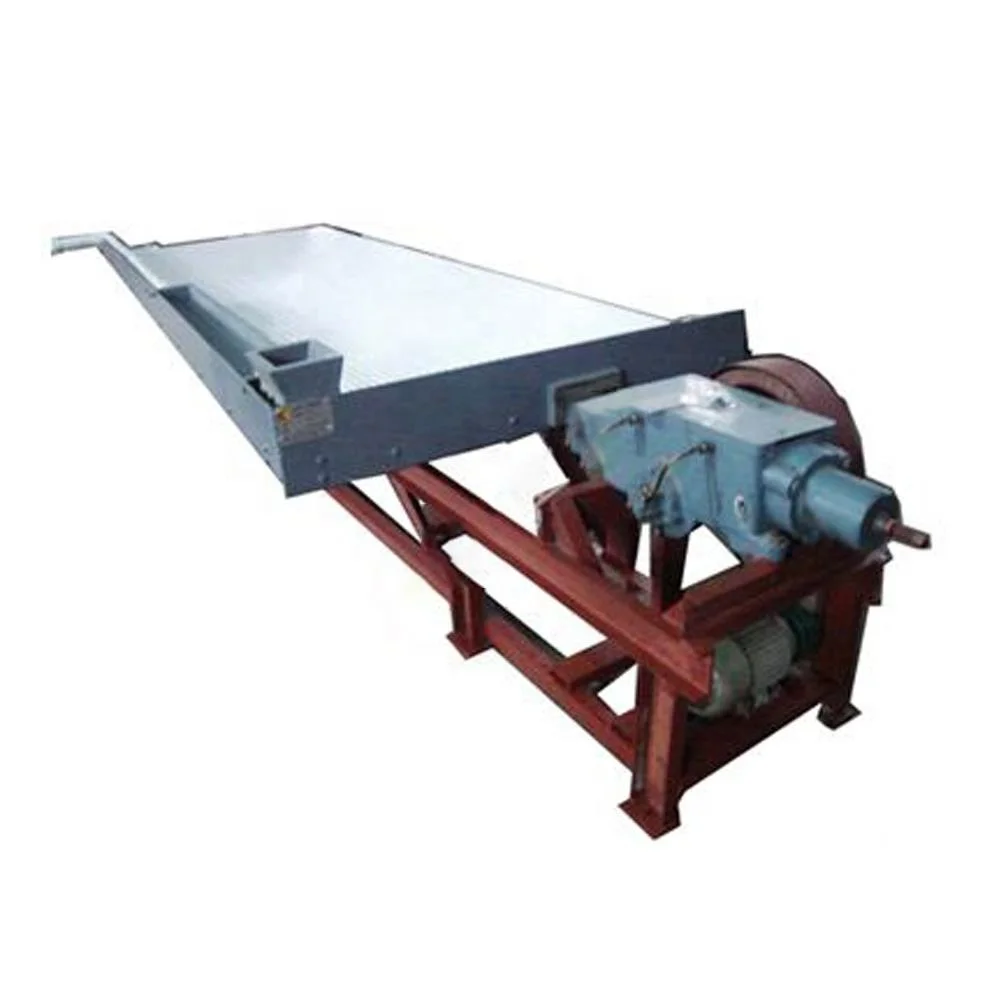

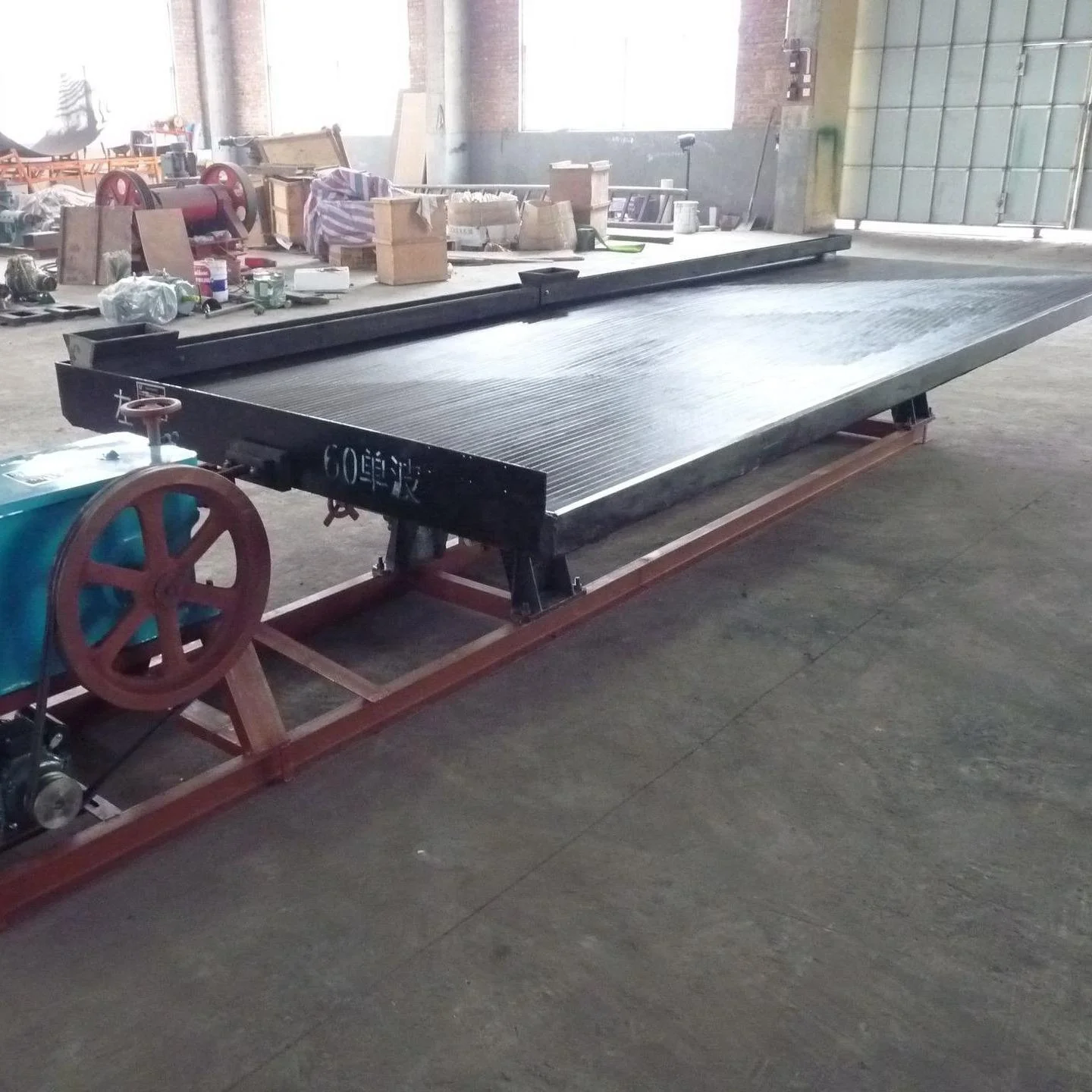

Shaking Table

Introduction of Shaking Table

The gold shaking table is an equipment for the separation of concentrates, it is widely used gold, tungsten, tin, tantalum niobium, manganese and other rare metals and precious metals

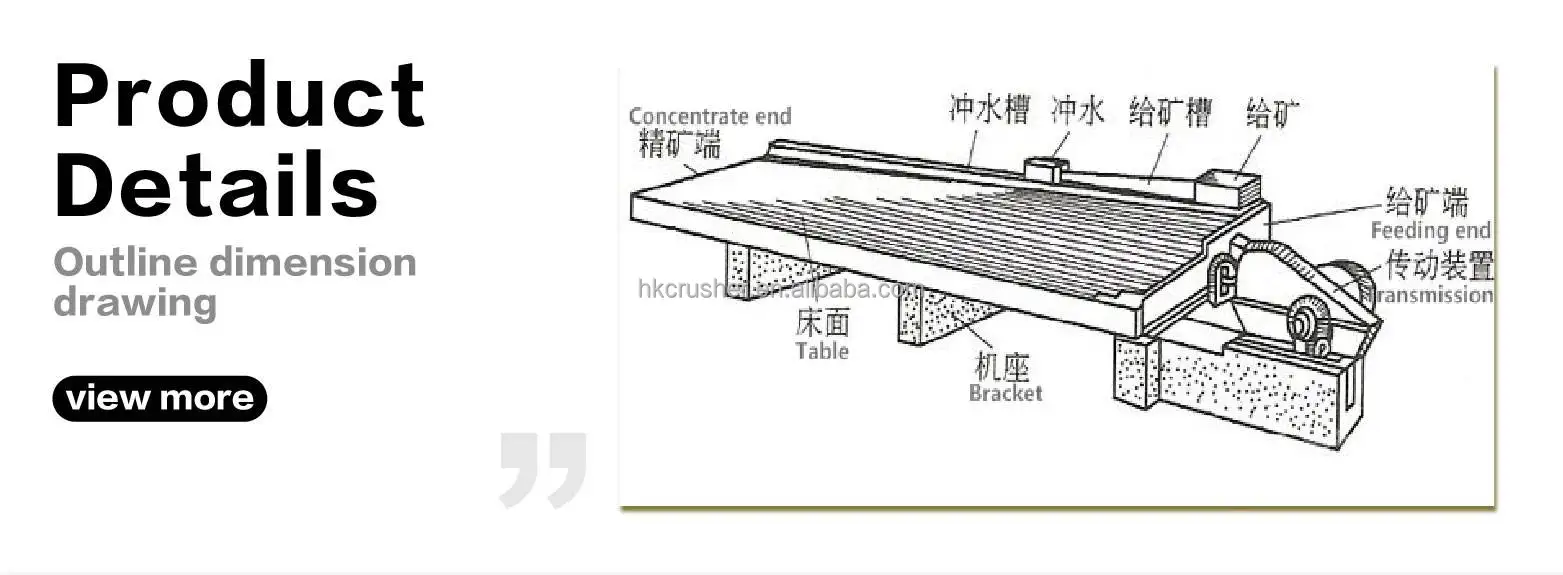

Structures of Shaking Table

The Application of Shaking Table

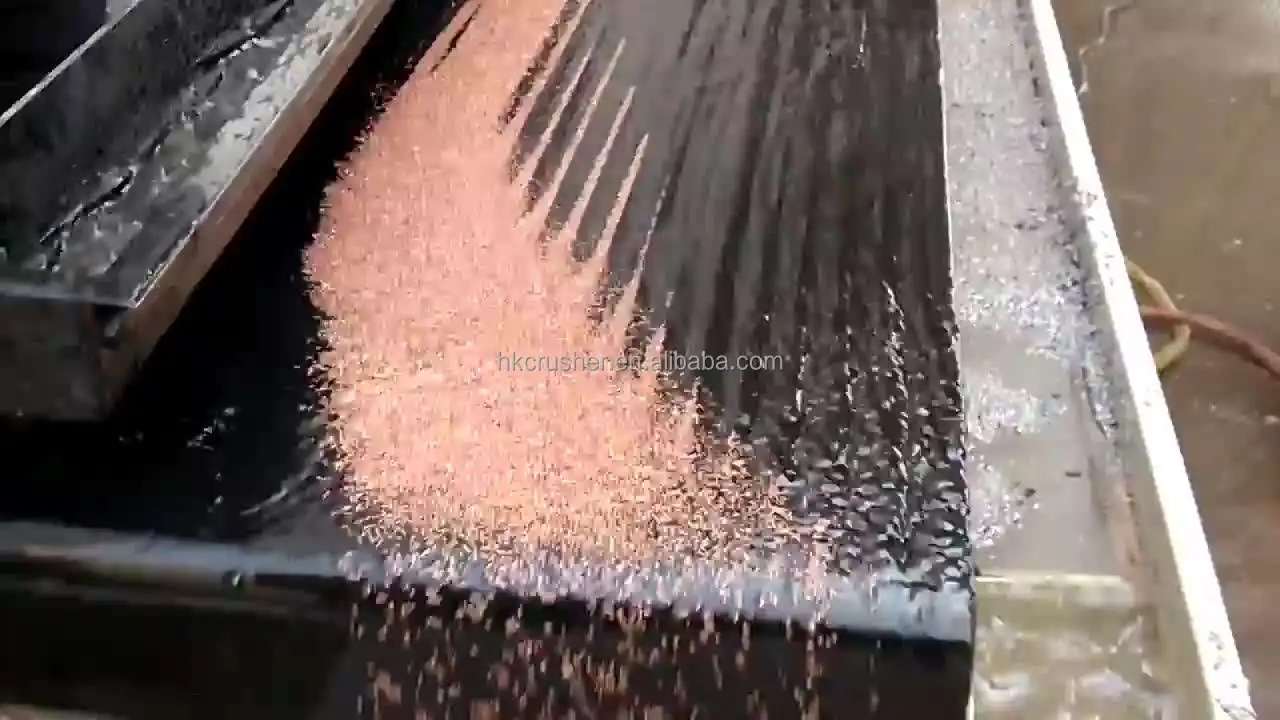

Shaking table is one of the main equipments of gravity concentration. It is not only widely applied on separating tunium and other rare metals and the noble metal ore.

Shaking table is also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc.

The shaker effective recycling granularity scope is 2-0.22 millimeters.

Technical Data of Shaking Table

Model		6-S	LY	LY	LY
Deck Size	Length(mm)	4500	3000	2100	1100
	Transmission end width(mm)	1850	1620	1050	500
	Concentrate end width(mm)	1560	1110	850	430
Beneficiation area(m2)		7.6	4.08	1.95	0.51
Feeding Size (mm)	Coarse sand Deck	2-0.5	2-0.5	2-0.5	2-0.5
	Fine sand Deck	0.5-0.1	0.5-0.1	0.5-0.1	0.5-0.1
	Slime Deck	0.1-0.037	0.1-0.037	0.1-0.037	0.1-0.037
Feeding amount (t/h)	Coarse sand Deck	1-2	0.6-1.5	0.4-0.8	0.1-0.2
	Fine sand Deck	0.5-1	0.3-0.8	0.2-0.5	0.05-0.1
	Slime Deck	0.3-0.5	0.2-0.4	0.1-0.2	0.03-0.05
Feeding Density (%)		10-30	10-30	10-30	10-30
Water Added (t/h)		0.5-3	0.3-1.5	0.2-1	0.1-0.5
Stroke (mm)		8-36	10-30	12-28	9-17
Frequency (F)		240-380	240-420	240-450	280-460
Transverse slope of Deck		0°-5°	0°-8°	0°-10°	0°-10°
Motor	Model	Y70L-4	Y100L-4	Y90L-4	Y80L-4
	Power (kw)	1.1	1.1	1.1	0.55
Weight (kg)		650	550	350	150
