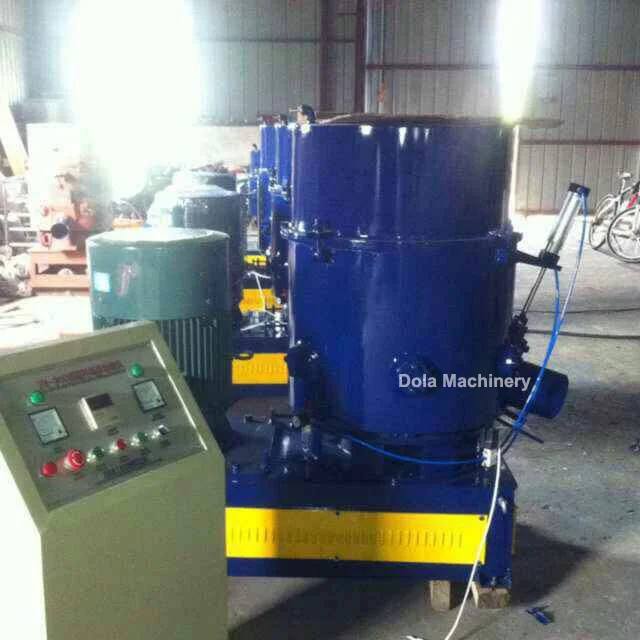

Waste Recycled PP PE Plastic Grinding Mill Granulating/Granulator Machine, Granules Making Machine

Product Overview

Description





The plastic granulating machine adopts Japanese design principles, employs the principles of grinding rapidly, agitating continuously, milling and fractioning to be heated with multi-knives and cooling and contracting. It produces granules from waste materials and angle materials such as the plastic films, filament, ribbons, pieces, soft plastic pipes, foaming materials, and degrading materials, and puts then into reproduction. It is the latest ideal granulating equipment to recycle plastics and reproduce.

1. Recycle the waste materials and leftover bits and pieces of various flexible plastic films, bags, filament, ribbons, pieces, and pipes such as polyvinyl chloride, polyethylene of higher density, and linear polyethylene of lower density, and put them into reproduction.


2. Recycle and reproduce the grinding and granulating of degrading plastic films and angle materials.


3. Grind chemical fiber waste materials, and process the waste filament that has been put into reproductions.


4. The machine is applied in many respects. It can be substitute for blending machine or dryer.



Character:

1. Milling, mixture and staining can be processed all in one machine.


2. The machine takes up little area of land.


3. It is characterized by simple structure and ease of operation.


4. The interstitial of the blade can be adjusted with convenience of replacing.


5. It is characterized by high efficient in production and low consumption (1 ton of daily production, and 200 degrees of electricity consumption).


6. Granulate at lower temperature, do not damage molecular structure of materials basically, and do not damage physical performance.







Model	SJ-100L	SJ-150L
Barrel Capacity	100L	150L
Output Capacity	30-60kg/hr	60-80kg/hr
Main Motor Power	15kw	18kw
Water Adding Device	125w	125w
Heating Power	1.5kw	1.5kw
Rotary Speed of Main Shaft	660r/min	660r/min
Machine Dimension	1300×600×1300mm	1500×700×1400mm
Working Voltage	380V 3-phase 50Hz
