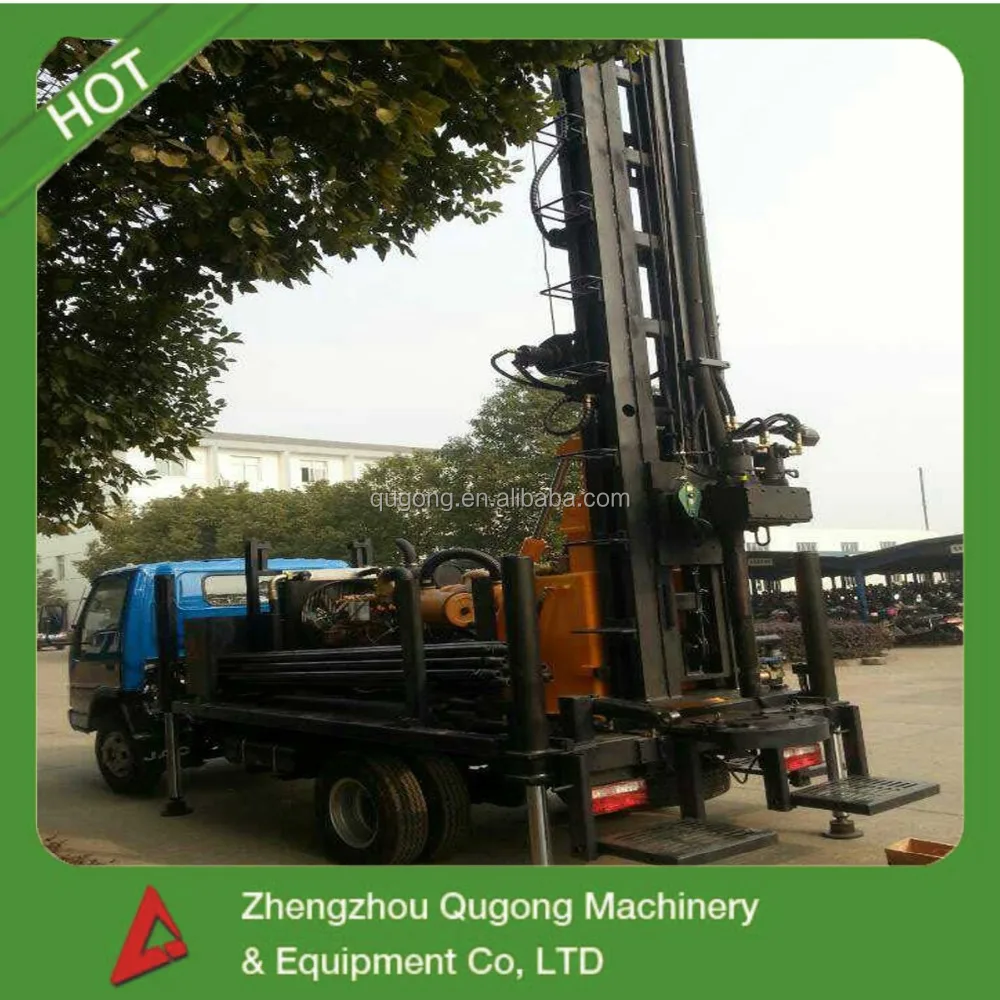

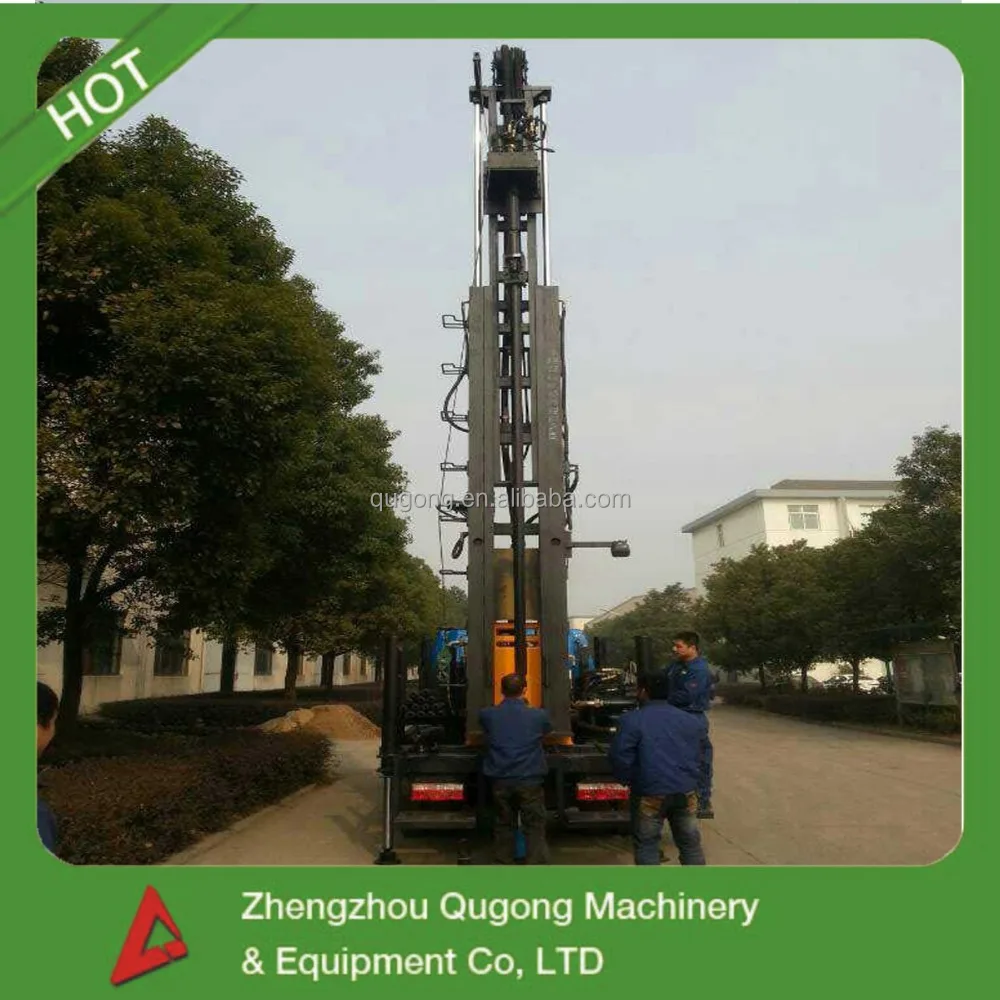

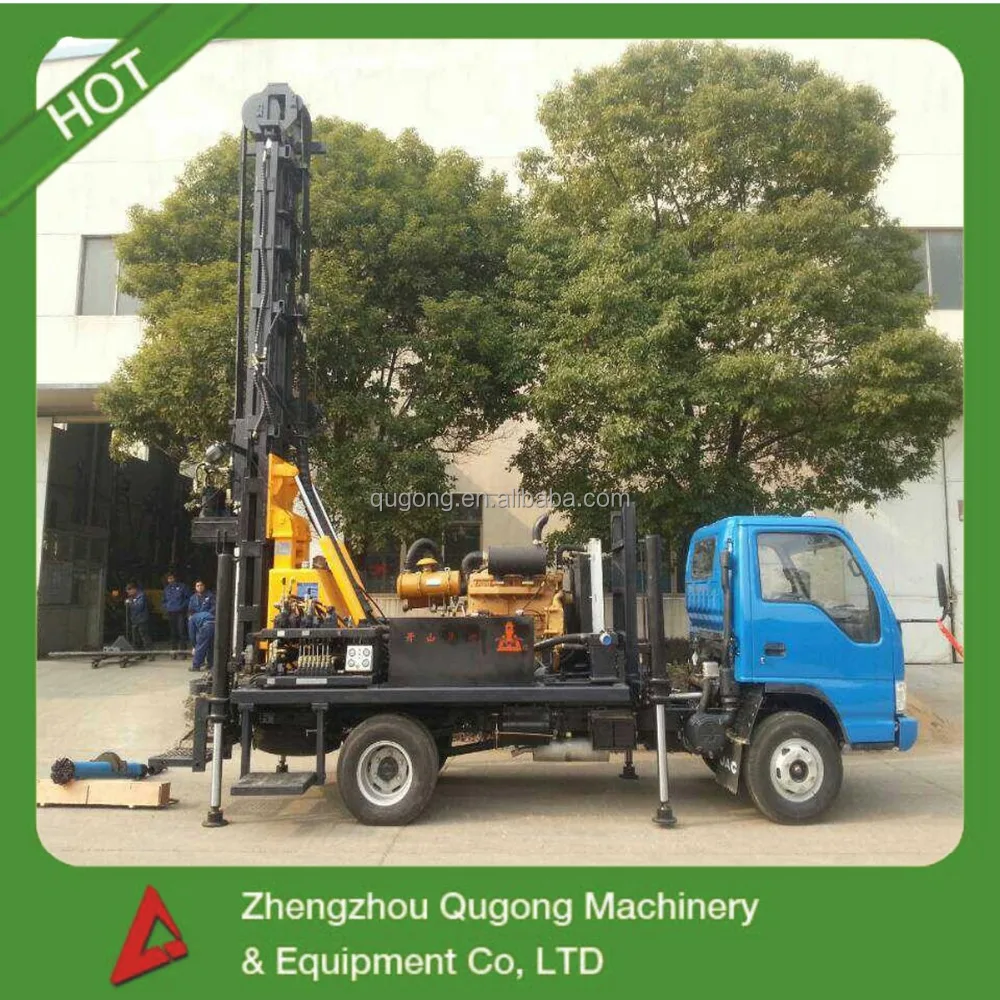

KW20 200m truck mounted bore well drilling machine, work with air compressor or mud pump

Product Overview

Description

KW20 200m truck mounted bore well drilling machine, work with air compressor or mud pump





Porduct Name	bore well drilling truck
Dia. of hole	115-254mm
drilling depth	200m
Model	KW20
Dimension	5100*2300*2850mm
Weight	8500KG
engine power	92KW
lifting power	95000N
air consumption	20-45m3/min
working pressure	10.5-24.6Mpa

 Tecnical parameter of bore well drilling truck







Truck information of bore well drilling truck



Application of bore well drilling truck

KW20 model truck mounted well drilling rig is punctured equipment for light, efficient, versatile,

it is mainly applied to bore hole drilling wells, geothermal air conditioning hole and other uses.



   Advantage of bore well drilling truck

1.Safe and stable traveling system

2.Centralized operating system of Mobile Drilling Rig for Sale

 3.Powerful feeding and rotating system of Mobile Drilling Rig for Sale

 4.Easy operation and high efficiency as the hydraulic feeding be taken

 5.As the ball type chuck and the driving rod, it can complete no-stopping rotating while the spindle relift.   The pressure indicator of bottom hole can observe and control the well conditions easily.

 6.Close levers, convenient to operate.
 7.Compact size and light in weight are easy to set up and transport on working plains and mountain area.



 introduction of bore well drilling truck

 The rig can create jobs in different formations, the max. hole depth of up to 200 meters The rig using a new

 type of hydraulic technology, supporting large torque hydraulic motor rotation and large bore hydraulic cylinder

 pushing, factory engine to provide power for the hydraulic system, the two stage air filter and air compressor

 air inlet design, prolong the service life of dieselengine. Convenient pump group design unique repair, reduce repair cost.

Hydraulic centralcontrol console, convenient operation. The rig adopts a special crawler chassis of engineering machinery,

strong crosscountry performance. Module design independently, can make the rig mounted on trucks, increase its mobility.

Positioner combined, can be adjusted according to the drill pipe and the impact of different types of replacing

the positioning disk, to ensure the positioning accuracy, reliable centering.

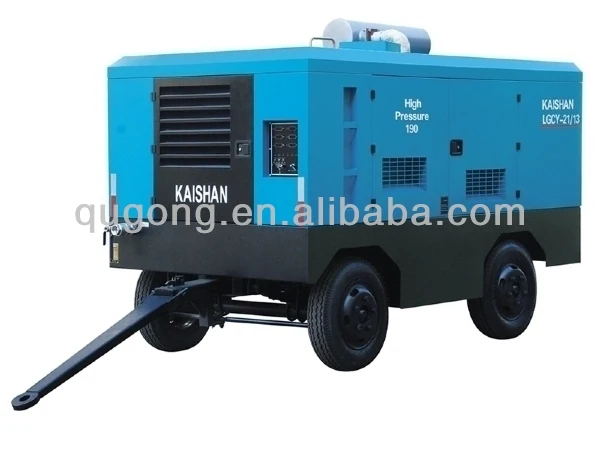

Matched Air Compressor for KW20 bore well drilling truck

LGCY-27/20Diesel mobile screw air compressor

1.Air pressure: 2.0Mpa

2.Air displacement: 27m3/min

3.Power: 265Kw

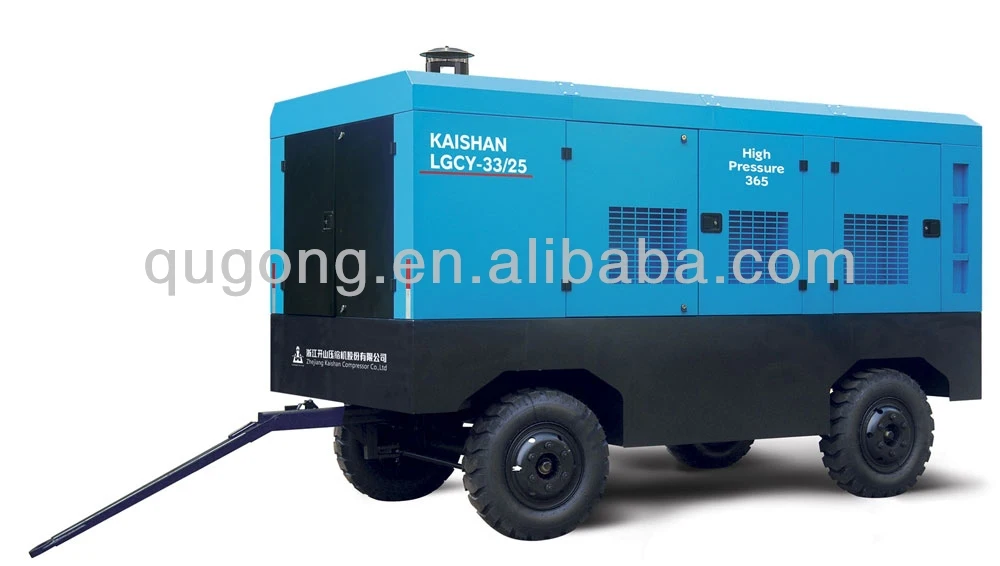

LGCY-33/25 Diesel mobile screw air compressor

1.Air pressure: 2.5Mpa

2.Air displacement: 33m3/min

3.Power: 294Kw
