telescopic mast for camera on Small monitoring car

Product Overview

Description

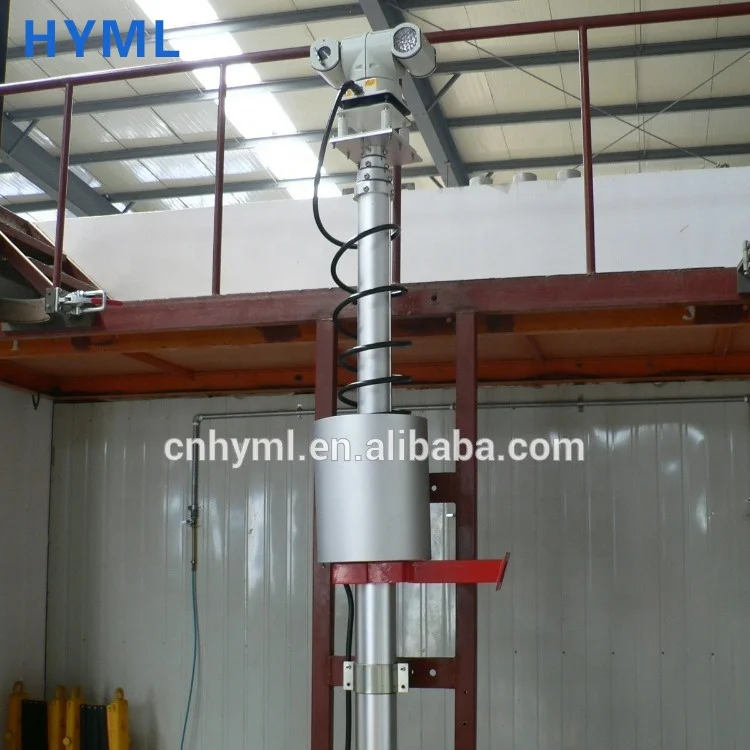

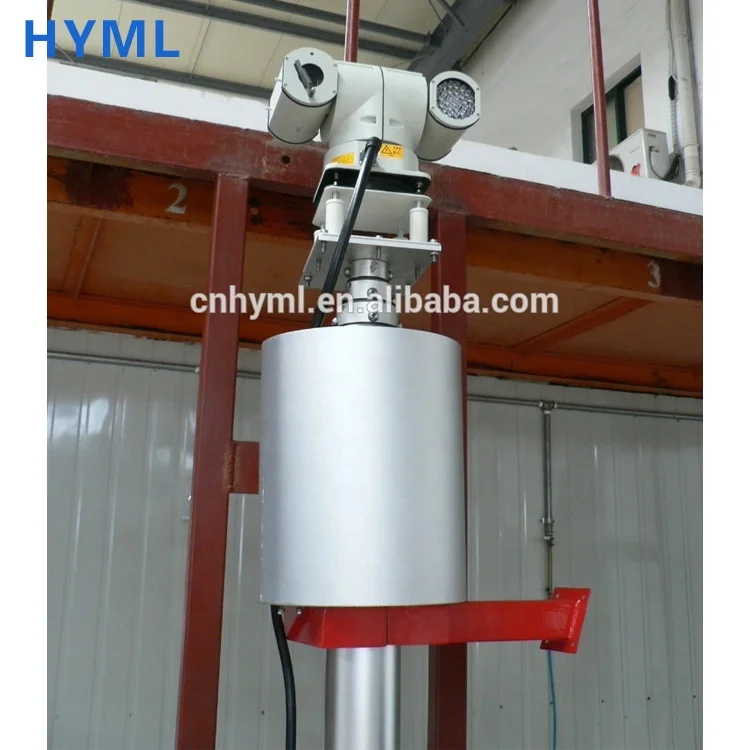

This is a small telescopic monitoring equipment which is installed in a Pick-up. The telescopic mast is mounted outside of the vehicle compartment, or mounted inside the vehicle. The vehicle compartment should be strengthened. The mast top is generally mounted a camera with its rotating head.

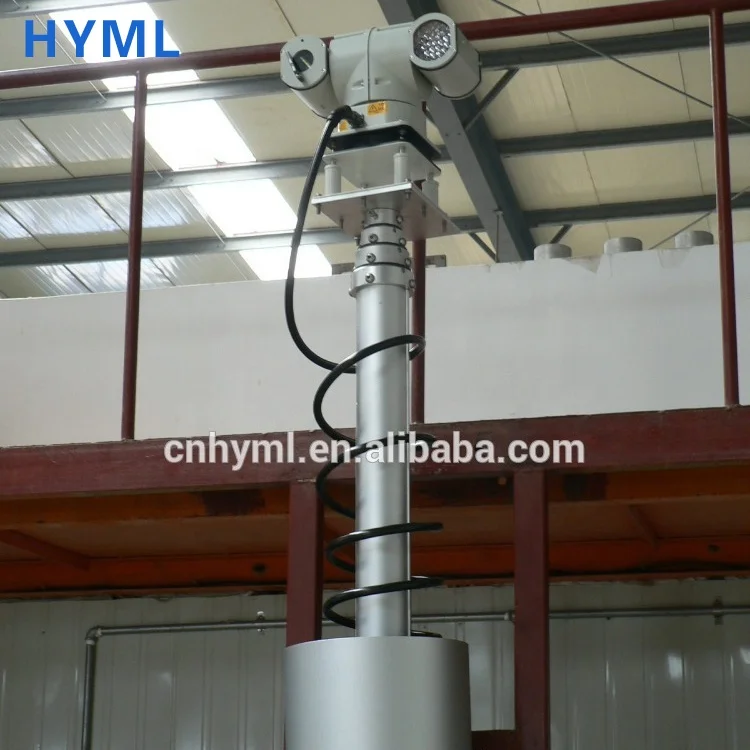

The cable for camera could be straight cable or spiral cable. Spiral cable could be inside or outerside of the mast,which depends on the mast extended height.





Common Mast
DATE:2016.1
Model	nested height (m)	extended height (m)	outer Dia. (mm)	inner Dia. (mm)	theoretical top load (Kg)
A4-110	1.2	3.5	118	60	50
A4-110	1.3	4	118	60	50
A4-110	1.5	4.5	118	60	50
A4-110	1.6	5	118	60	50
A4-110	1.7	5.5	118	60	50
A4-110	1.8	6	118	60	50
A6-110	1.2	4.5	118	30	20
A6-110	1.3	5	118	30	20
A6-110	1.4	5.5	118	30	20
A6-110	1.5	6	118	30	20
A6-110	1.6	7	118	30	20
A6-110	1.7	7.5	118	30	20
A6-110	1.8	8	118	30	20





Built-in Cable Mast
DATE:2016.1
Model	nested height (m)	extended height (m)	outer Dia. (mm)	inner Dia. (mm)	theoretical top load (Kg)
AN5-150	1.4	4.5	160	75	70
AN5-150	1.5	5	160	75	70
AN5-150	1.6	5.5	160	75	70
AN5-150	1.7	6	160	75	70
AN5-150	1.8	6.5	160	75	70
AN5-150	1.9	7	160	75	70
AN5-150	2	7.5	160	75	70
AN4-130	1.4	4	140	75	70
AN4-130	1.5	4.5	140	75	70
AN4-130	1.6	5	140	75	70
AN4-130	1.8	5.5	140	75	70
AN4-130	1.9	6	140	75	70
AN4-130	2	6.5	140	75	70
AN3-110	1.4	3	118	75	70
AN3-110	1.5	3.5	118	75	70
AN3-110	1.6	4	118	75	70
AN3-110	1.8	4.5	118	75	70
AN3-110	2	5	118	75	70
