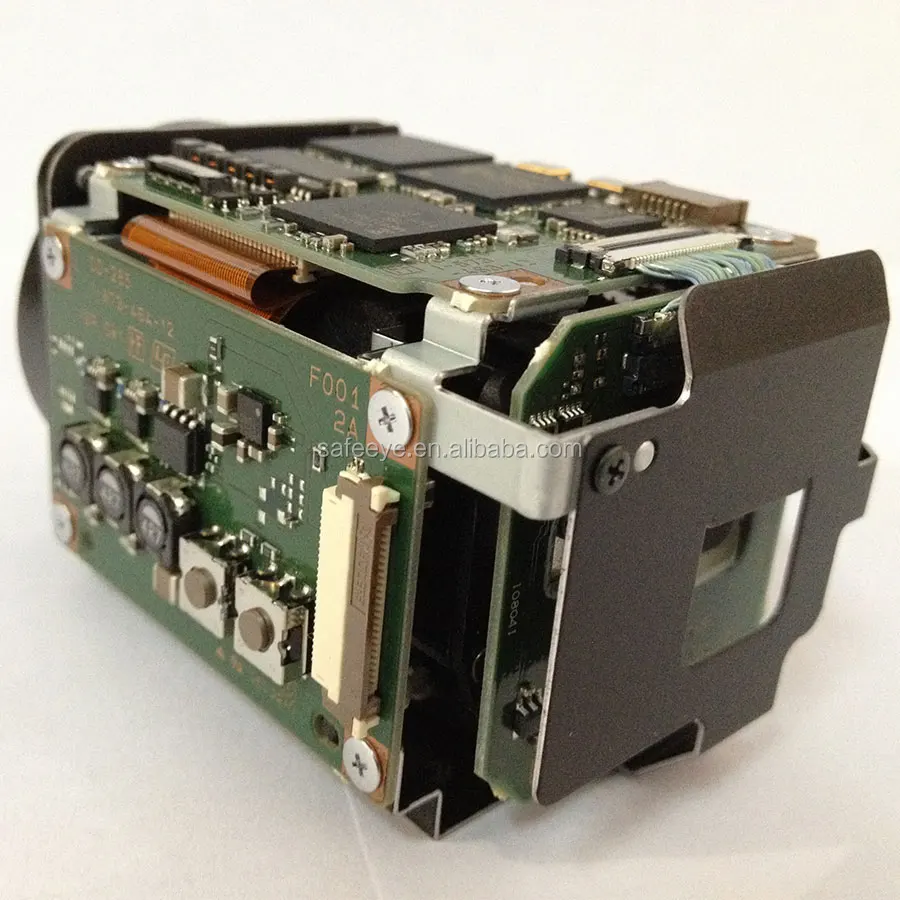

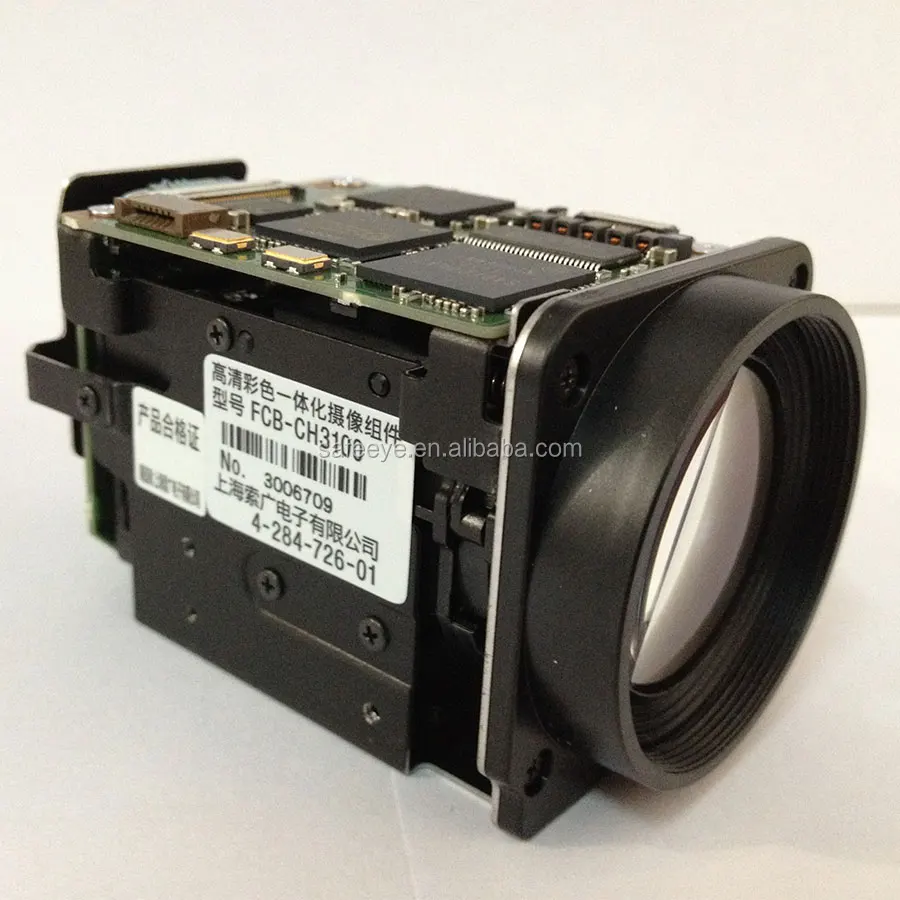

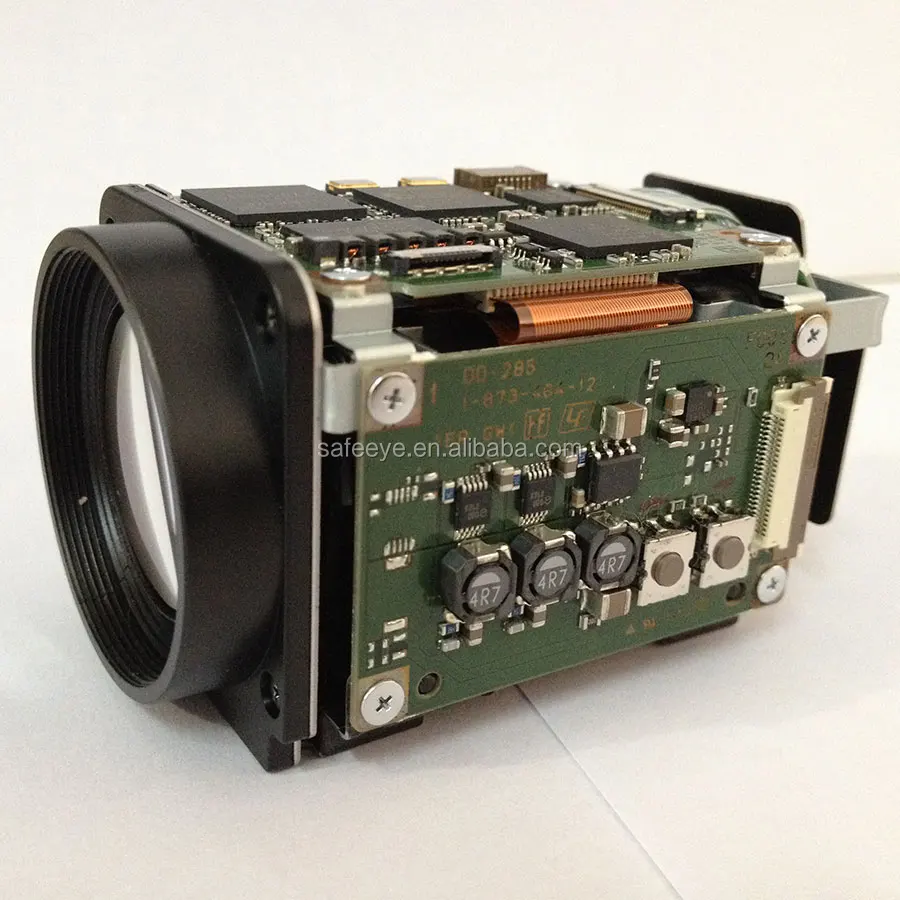

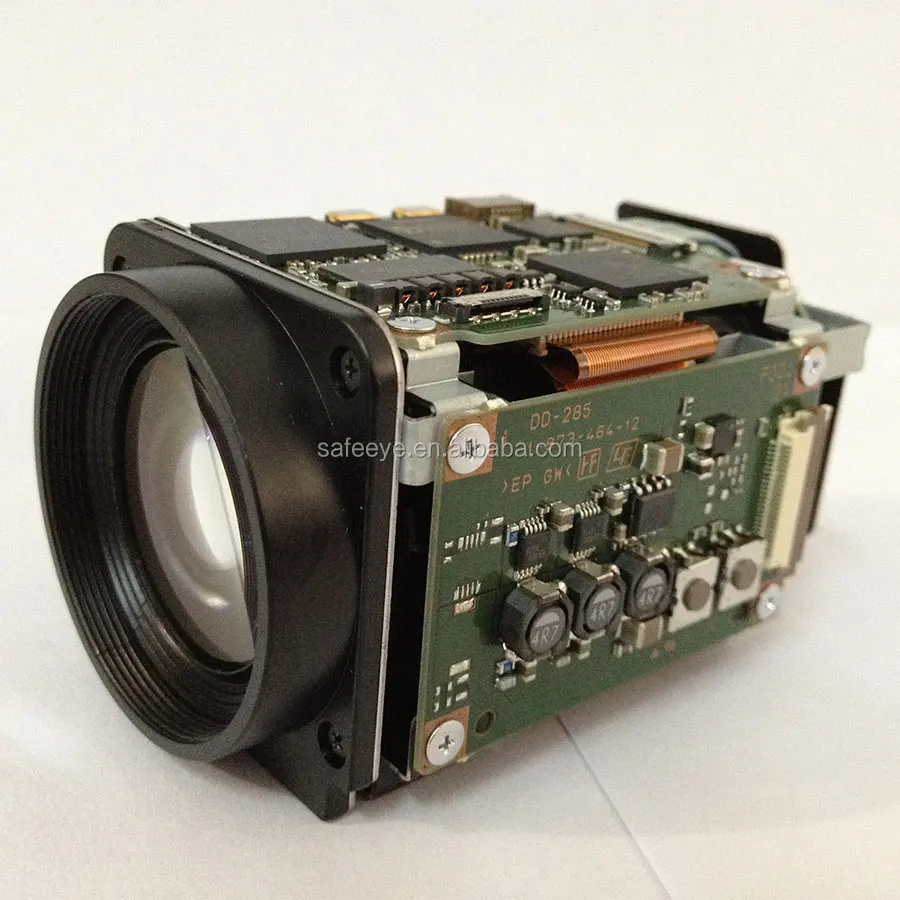

SONY FCB-CH3100 colour camera HD 1080P 10x optical zoom (12x digital) FCB-CH3100 Color Camera Block Module
Continuing Sony's commitment to HD picture quality for applications that require dynamic, high-resolution images, Sony introduces the FCB-CH3100 . This stunning HD camera block expands the application possibilities by incorporating a Day/Night capability resulting in a minimum illumination of 1.0 lx. This enables the camera to capture high quality colour images by day and clear, black and white images by night making SONY FCB-CH3100 a great choice for a wide range of security applications.
The SONY FCB-CH3100 HD camera module incorporates a 1/3-type HD CMOS image sensor boasting approximately two-million effective pixels, and provides a 16x9 aspect ratio making it ideal for use with wide screen displays. SONY FCB-CH3100 camera module also features multi-format video outputs from SD to full HD (1080i), offering both system flexibility and high quality images. SONY FCB-CH3100 therefore is a versatile and flexible camera block that can initially be used in an SD system but allows easy migration to HD when you are ready. In addition, SONY FCB-CH3100 inherits many outstanding features from the Sony world-renowned FCB Series. With a 10x optical zoom lens, and 12x digital zoom the reach of the two million effective pixel resolution is maximised.
In addition, the camera includes other key features such as Picture Freeze Function, SPOT AE Function, and Slow Shutter. SONY FCB-CH3100 is ideal for applications such as inspection, video conferencing, cable TV broadcasting and point-of-view (POV) applications. Furthermore with the incorporation of the Day/Night function, SONY FCB-CH3100 achieves a minimum illumination of 1.0 lx by dynamically removing the infrared cut filter thus allowing the spectral range to extend into the near infrared. This capability is essential for monitoring, making the camera a great choice for a wide range of security applications in, for example, car parks, retail stores, and many others.
The FCB-EH6500 camera incorporates a 1/2.8-type Exmor™ CMOS image sensor with 1080p resolution, Features include:
- Excellent high-definition (HD) picture quality
- The “Exmor” CMOS sensor realizes high image quality and high sensitivity
- Powerful zoom capability
- Various output modes
- HD
Analog: Component (Y/Pb/Pr)
Digital: Y/Cb/Cr 4:2:2 via LVDS (Y: 8-bit, C: 8-bit, V-sync, H-sync, Field and Clock)
- SD
VBS
- Simple connection - one cable, one connector
- Covering video, VISCA communication and power supply with a single cable.
- Supports both 30-pin micro coaxial (digital and analog output) and 24-pin FFC (analog output only) interfaces.
- StableZoom™
StableZoom is a function for performing correction using the image-stabilization function in accordance with the zoom ratio, and smoothly zooming up to approximately ×33 using a combination of the optical zoom and digital zoom. In StableZoom mode, this function starts naturally without bringing an abrupt change to the horizontal angle of view.
- Video Mode Change on The Fly
Without any power cycle, this function makes it possible to change video mode, for example, from 1080p/29.97 mode to 720p/59.94 mode.
- Security-oriented functions include:
Wide-D technology (On/Off/ Auto/Ratio fix)
Day/Night function (On/Off/ Auto/Threshold enabled)
Digital noise reduction (Up to 5 levels)
Spherical privacy zone masking (24 zones with various PTZ controls)
Motion detection alarm (4 zones with several triggering and threshold modes)
- Various modes for White Balance
(Auto, AT W, Indoor, Outdoor, Outdoor Auto, Sodium Vapor Lamp Fix/Auto, One-push, Manual)
- Picture effects
E-Flip, Nega Art, Black & White, Mirror Image, Colour Enhancement)
- Picture freeze
- Temperature readout
- Slow AE response (Approx. 5 min.)
- Title display (20 characters per line, max. 11 lines)
- Camera mode display (English)
- Electronic shutter/slow shutter
- Spot AE
- High Resolution Mode
- IR Focus Correction Function
- 4 Presets for Gamma Control
- 4 Levels of Chrominance Suppression
Sprcifications:
| Image Sensor | 1/3-type CMOS |
| Image Sensor (Number of Effective Pixels) | Approx. 2.00 Megapixels |
| Signal System | 1080i/59.94, 1080i/50, 720p/59.94, 720p/50, NTSC, PAL |
| Minimum Illumination (50%, Normal Mode) | 12 lx (F1.8, ICR off) |
| 1 lx (F1.8, ICR on) | |
| Recommended Illumination | 100 lx to 100,000 lx |
| S/N Ratio | More than 50 dB |
| Gain | Auto/Manual : -3 dB to +18 dB (8 steps) |
| Shutter Speed | 1/2 s to 1/10,000 s, 21 steps |
| Sync System | Internal |
| Exposure Control | Auto, Manual, Priority mode (shutter & iris priority), Bright, EV compensation, Slow AE |
| Backlight Compensation | Yes |
| Aperture Control | 16 steps |
| White Balance | Auto, Indoor, Outdoor, One-push, Manual |
| Lens | F1.8 to F2.1 |
| f = 5.1 mm (wide) to 51.0 mm (tele) | |
| 10x optical zoom | |
| Digital Zoom | 12x (120x with optical zoom) |
| Focusing System | Auto, One-push AF, Manual, Infinity, Interval AF, Zoom Trigger AF |
| Horizontal Viewing Angle (1080p Mode) | 50.0°(wide end) to 5.4°(tele end) |
| Horizontal Viewing Angle (720p Mode) | 50.0°(wide end) to 5.4°(tele end) |
| Minimum Object Distance | 10 mm (wide end) to 800 mm (tele end) |
| Camera Features | |
| Auto ICR | Yes |
| Wide-D *[1] | No |
| Noise Reduction | No |
| Progressive Scan Mode | No |
| Image Stabilization | No |
| Stablezoom | No |
| Digital Output | No |
| Spherical Privacy Zone Masking | No |
| Motion Detection | No |
| Alarm | No |
| Slow AE Response | No |
| Picture Effects | Nega Art, Black & White |
| Picture Freeze | Yes |
| Slow Shutter | Yes |
| Temperature Readout | No |
| Title Display | No |
| Camera Mode Display | Yes |
| Key Switch Control | No |
| Camera Operation Switch | No |
| Interface | |
| Video Output (HD) | Analog: Component (Y/Pb/Pr) |
| Video Output (SD) | VBS, Y/C |
| Camera Control Interface | VISCA (CMOS 5 V level) |
| Baud rate: 9.6 Kbps, 19.2 Kbps, or 38.4 Kbps, Stop bit: 1 bit | |
| General | |
| Power Requirements | 6.0 V to 12.0 V DC |
| Power Consumption | 4.8 W (max.) |
| Operating Temperature | 32°F to 113°F 0°C to 45°C |
| Storage Temperature | -4°F to 140 °F |
| Storage Temperature | '-20°C to +60°C |
| Operating Humidity | 20% to 80% |
| Storage Humidity | 20% to 95% |
| Dimensions (W x H x D) *[2] | 47.2 x 43.1 x 72.2 mm |
| 1 7/8 x 1 11/16 x 3 inches | |
| Mass | Approx. 2 lb 10 oz |
| Approx. 120 g | |
| Notes | |
| Note | *[1] Wide dynamic range |
| *[2] The values for dimensions are approximate. | |
