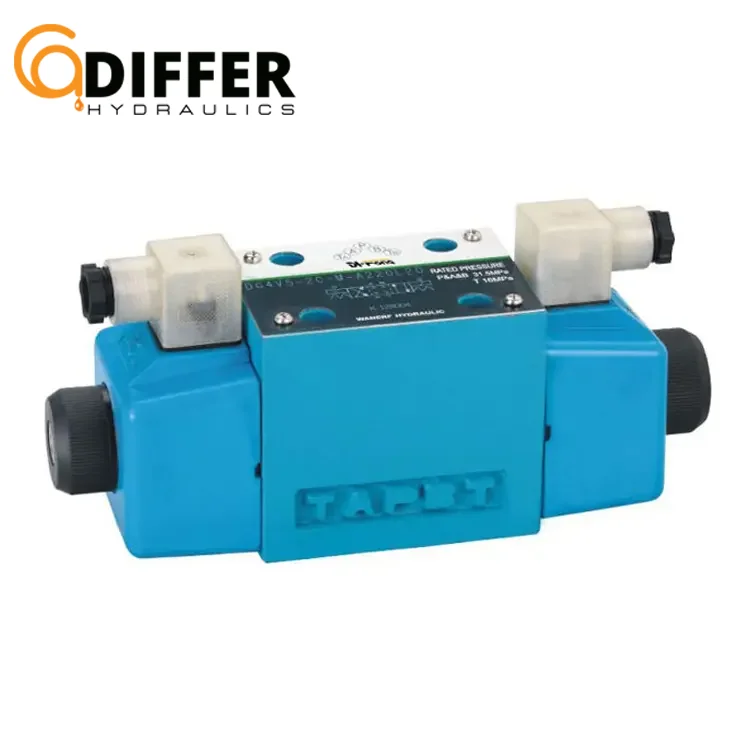

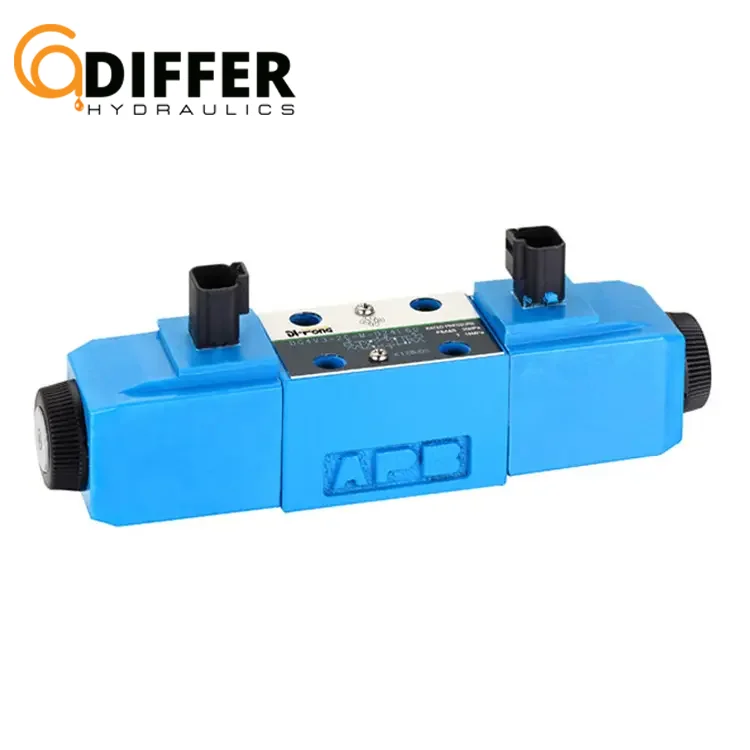

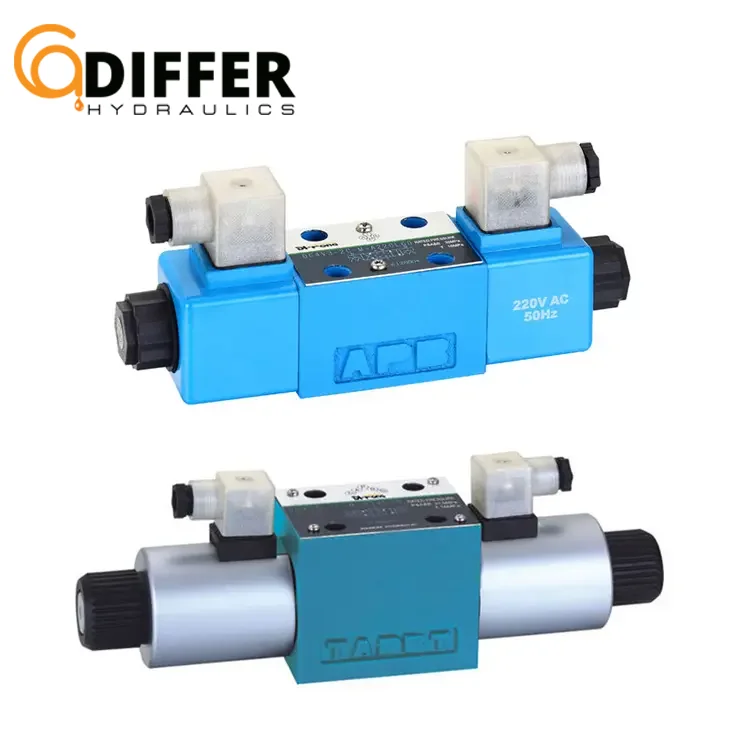

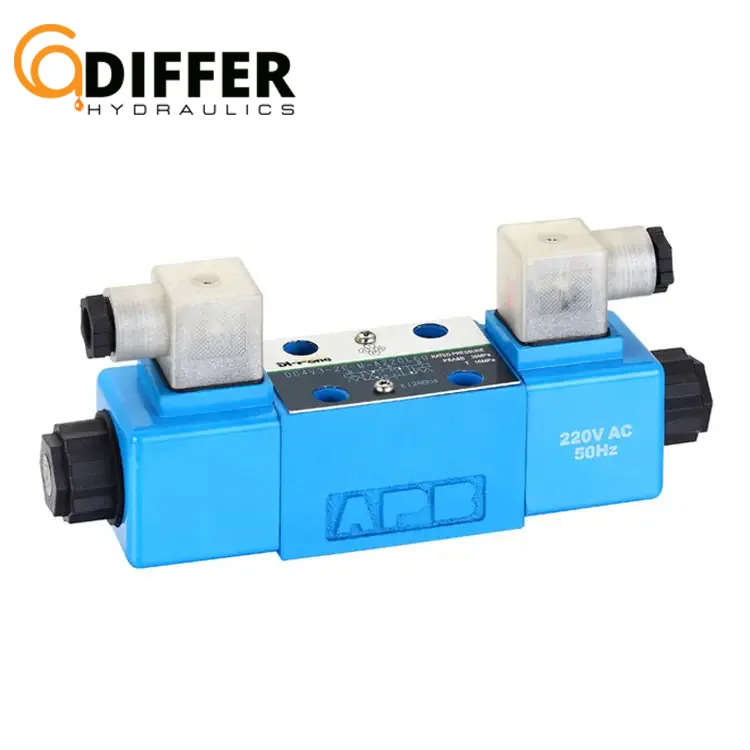

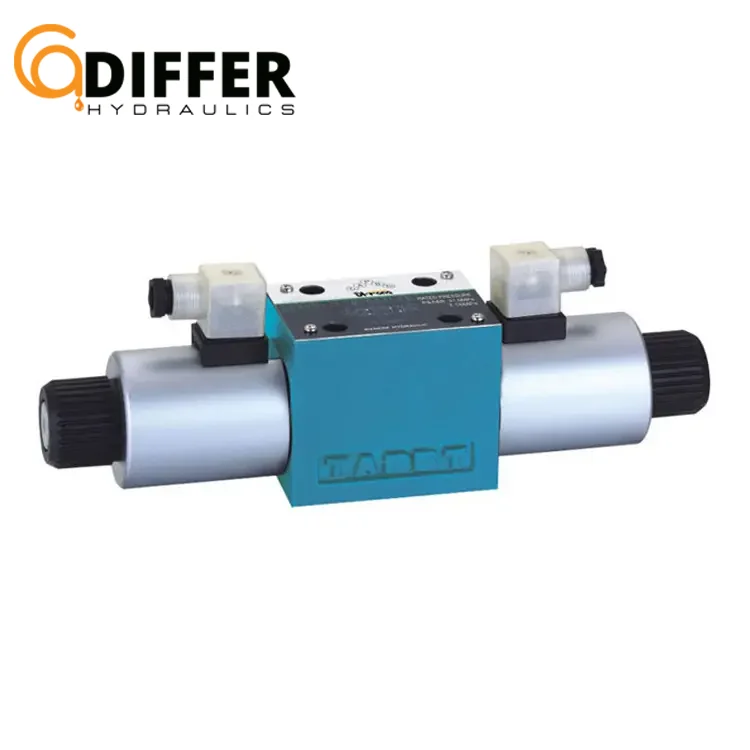

  • Chinese Company Manufacture Vickers DG4V3 DG4V5 DG5V7 DG5V8H Series Solenoid Directional Control Valve
Chinese Company Manufacture Vickers DG4V3 DG4V5 DG5V7 DG5V8H Series Solenoid Directional Control Valve
Chinese Company Manufacture Vickers DG4V3 DG4V5 DG5V7 DG5V8H Series Solenoid Directional Control Valve
Chinese Company Manufacture Vickers DG4V3 DG4V5 DG5V7 DG5V8H Series Solenoid Directional Control Valve
Chinese Company Manufacture Vickers DG4V3 DG4V5 DG5V7 DG5V8H Series Solenoid Directional Control Valve
Chinese Company Manufacture Vickers DG4V3 DG4V5 DG5V7 DG5V8H Series Solenoid Directional Control Valve
Chinese Company Manufacture Vickers DG4V3 DG4V5 DG5V7 DG5V8H Series Solenoid Directional Control Valve
Chinese Company Manufacture Vickers DG4V3 DG4V5 DG5V7 DG5V8H Series Solenoid Directional Control Valve

Chinese Company Manufacture Vickers DG4V3 DG4V5 DG5V7 DG5V8H Series Solenoid Directional Control Valve

Share on (60415817585):


Price:$21.00 - $26.00

Quantity:


Product Overview

Description









DG4V-3-40 series solenoid operated directional valves


General Data


The total weight of one solenoid valve(with two solenoids)
kg
2.30
The total weight of one solenoid valve (with one solenoid)
kg
1.69
The total weight of one solenoid valve(with two solenoids)
Optional position
The total weight of one solenoid valve (with one solenoid)
℃
-20~+50(adopt NBR seal ring )


Hydraulic Data


Maximum working oil pressure
Oil port P,A and B
MP a
35
The highest dynamic oil pressure T cavity can bear
MP a
15.5
The highest static oil pressure T cavity can bear
MP a
21
Rated flow
1/min
38
Maximum flow
1/min
50
Liquid medium
Mineral hydraulic oil, Phosphate hydraulic oil
The oil temperature range
℃
-20~+80
The oil cleanliness
ISO4572:β10≥75NAS1638:Class 9


Electrical Data


Voltage category
DC,RAC(coil with a rectifier component)
Duty cycle
ED
100%
voltage allowable fluctuation range
%
-10~+10
The reserving and resetting time
ms
On120 off100(do not include RAC type)
Maximum operating frequency
Hz
3
Coil insulation class
H
The maximum operating temperature coil allowed
℃
180
Coil weight
kg
0.35
voltage
V
12
24
48
110
R110
R220
Power types
DC
DC
DC
DC
RC
RC
Power frequency
Hz
50/60
50/60
Power consumption
W
30
30
30
30
32
32
Coil resistance(20℃)
ohm
4.8
19.2
76.8
403
75.2
313
Operating current(20℃)
A
2.5
1.25
0.63
0.27
0.38
0.19

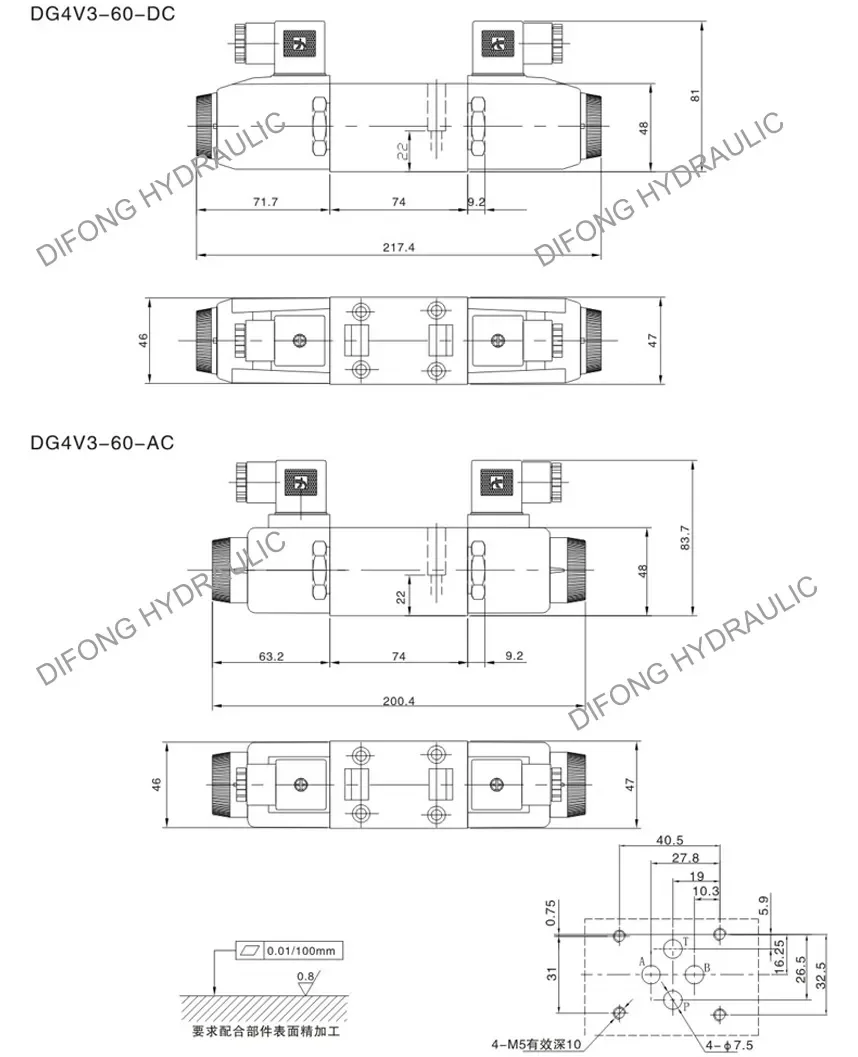

DG4V-3-60 series solenoid operated directional valves


General Data


The total weight of one solenoid valve(with two solenoids)
kg
DC: 2.30 AC:2.1
The total weight of one solenoid valve (with one solenoid)
kg
DC: 1.7 AC:1.5
Installation site
Optional position
Operating temperature
℃
-20~+50(adopt NBR seal ring )


Hydraulic Data


Maximum working oil pressure
Oil port P,A and B
MP a
35
The highest dynamic oil pressure T cavity can bear
MP a
2
The highest static oil pressure T cavity can bear
MP a
21
Rated flow
1/min
60
Maximum flow
1/min
80
Liquid medium
Mineral hydraulic oil, Phosphate hydraulic oil
The oil temperature range
℃
-20~+80
The oil cleanliness
ISO4572:β10≥75NAS1638:Class 9


Electrical Data


Voltage category
DC,AC,RAC(coil with a rectifier component)
Duty cycle
ED
100%
Allowed voltage fluctuation range
%
-10~+10
The reserving and resetting time
ms
AC: on 20ms off 40ms
(do not include RAC type)DC: on 120ms off 100ms
Maximum operating frequency
Hz
3
Coil insulation class
DC: class B AC: class H
The maximum operating temperature coil allowed
℃
DC:135 AC:180
Coil weight
kg
DC:0.65 AC:0.38
voltage
V
12
24
48
110
R110
R220
110
220
Power types
DC
DC
DC
DC
AC
AC
AC
AC
Power frequency
Hz
50/60
50/60
50
50
Power consumption
W
30
30
30
30
32
32
32
32
Coil resistance(20℃)
ohm
4.8
18.8
75.2
395
73.6
313
27.5
110
Operating current(20℃)
A
2.5
1.25
0.63
0.27
0.38
0.19
0.56
0.28
