PALLET CUSHIONS - Prevent Costly Shock Damage
Product Description
Product Description :
Pallet Cushion is an air dampened cushioning device that provides a fast, cost effective and durable customized solution to protect sensitive products from shock and vibration. The PALLET CUSHION can be easily mounted on a crate or pallet base creating an air-ride cushion in place of hardwood skid runners eliminating the need for expensive air-ride trucks.
PALLET CUSHION have
Orange/ BLUE/Yellow/Green /Brown 5 different colors,
shockproof balls of different colors represent different bearing.
Parts No. | Color | Load Capacity | Fixing | Unit Weight | |
|

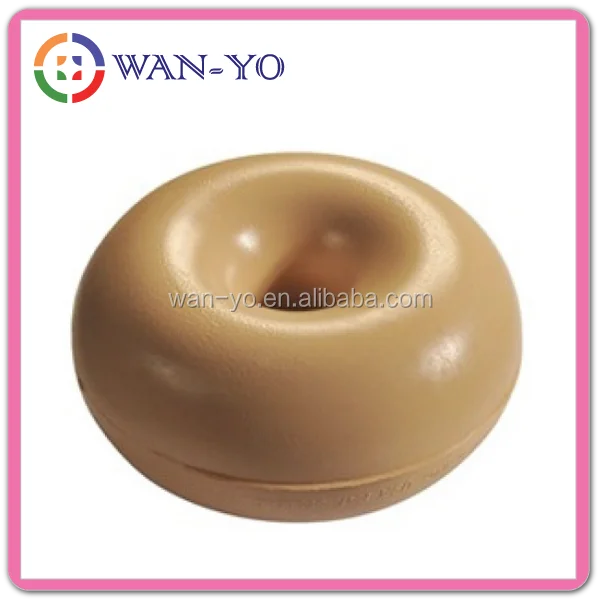

WY-60035 |
Tan |
9.6-15.9kg/21.16-35.05Lb |
M8 T-NUT |
0.12kg±5g |
|

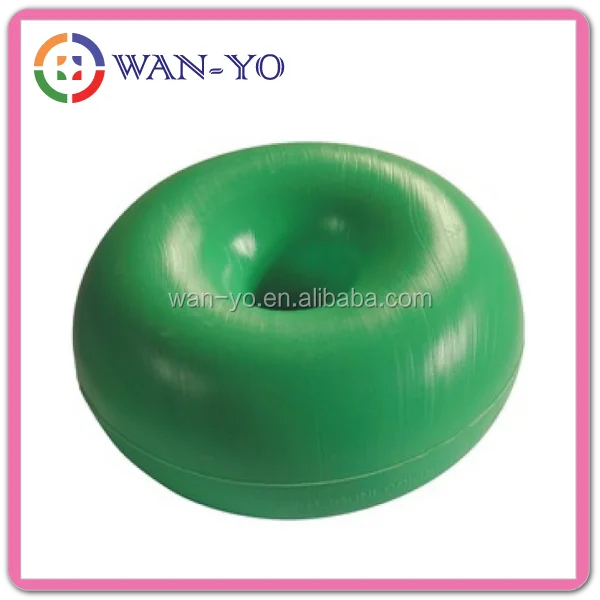

WY-60050 |
Green |
13.6-22.7kg/29.98-50.04Lb |
M8 T-NUT |
0.13kg±5g |
|
WY-60080 |

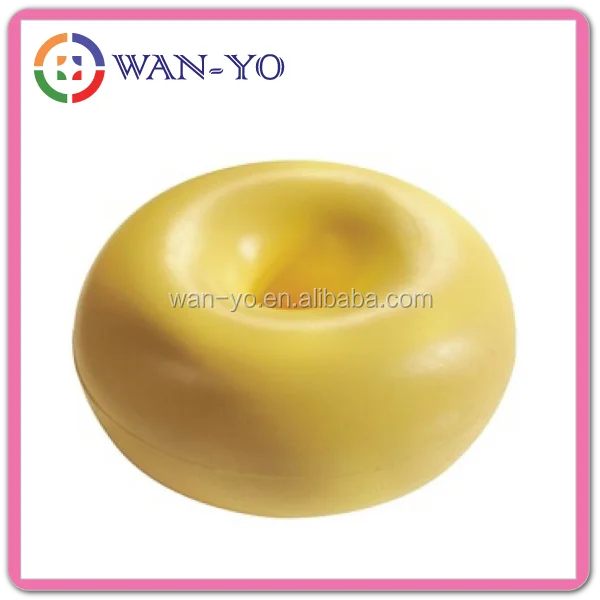

Yellow |
20.4-36.3kg/44.97-80.03Lb |
M8 T-NUT |
0.15kg±5g |
|

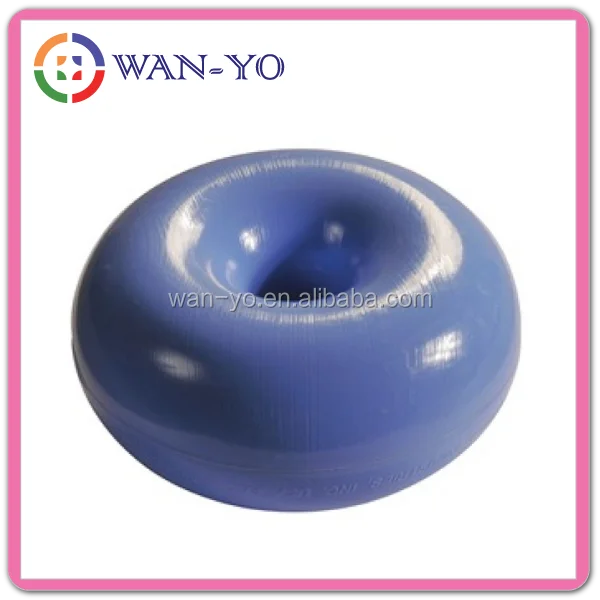

WY-600125 |
Blue
|
31.8-56.7kg/70.11-125Lb |
M8 T-NUT |
0.16kg±5g |
|
WY-600225 |

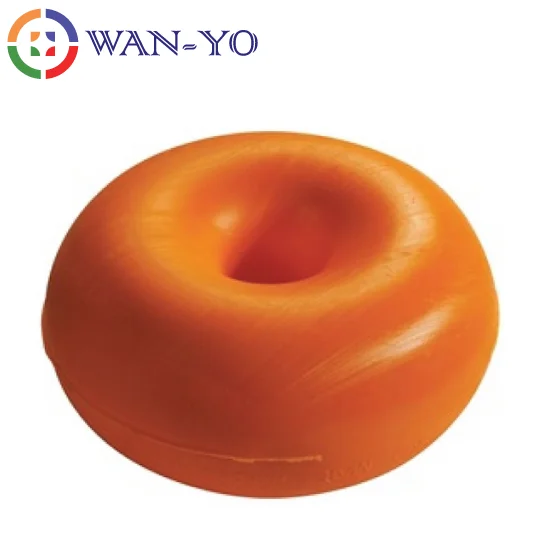

Orange |
56.7-102kg/125-224.87Lb |
M8 T-NUT |
0.17kg±5g |

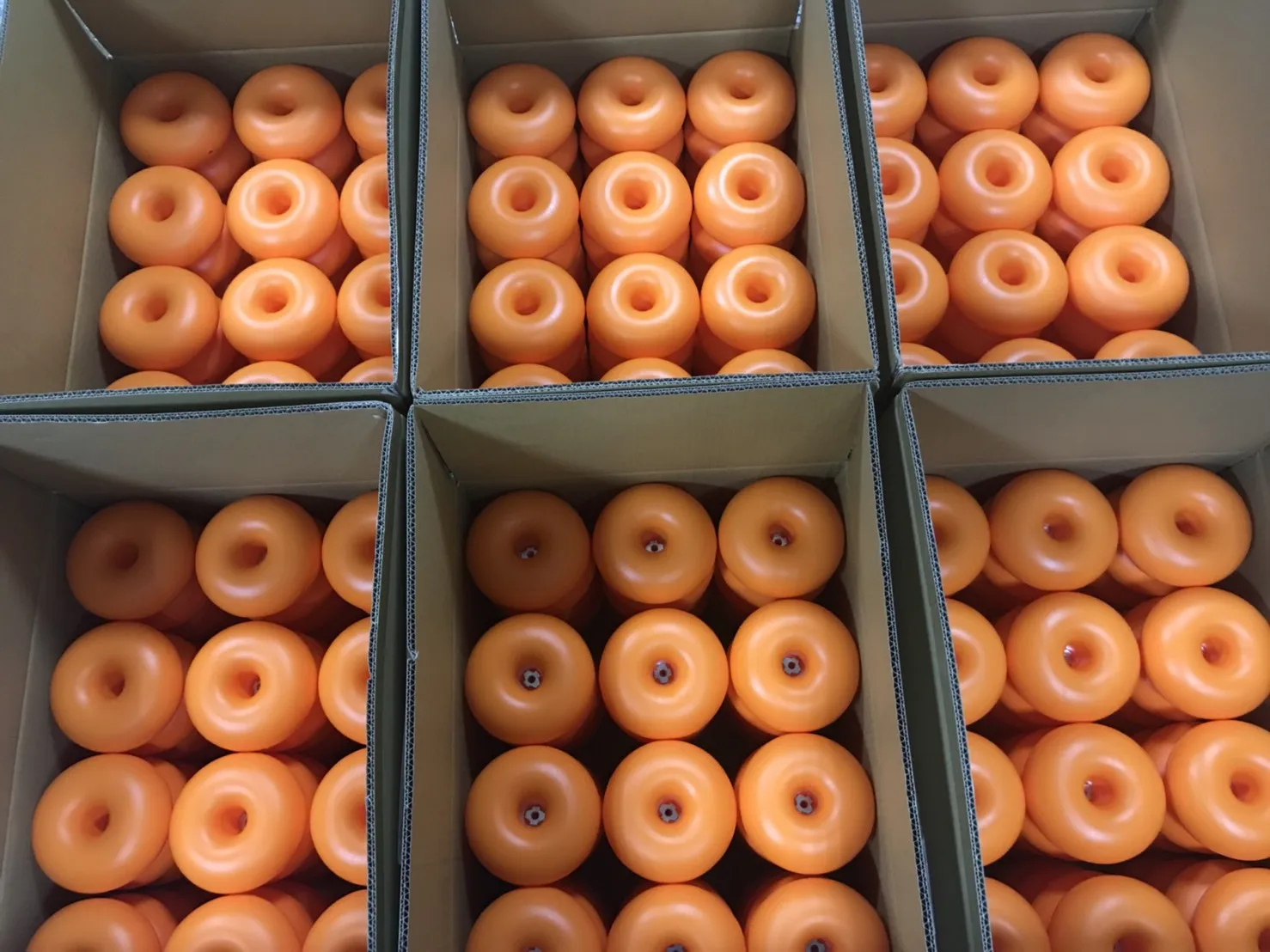

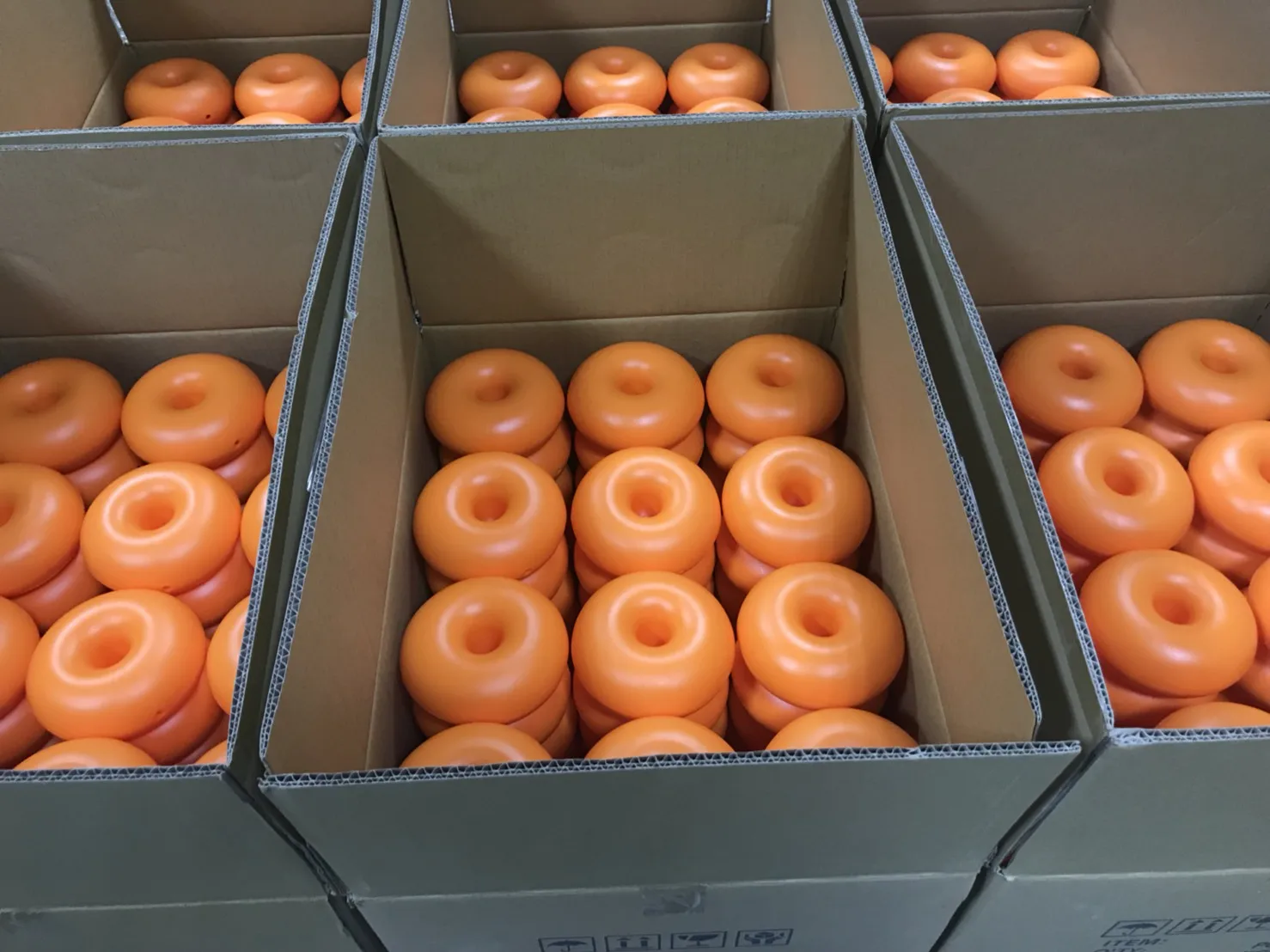

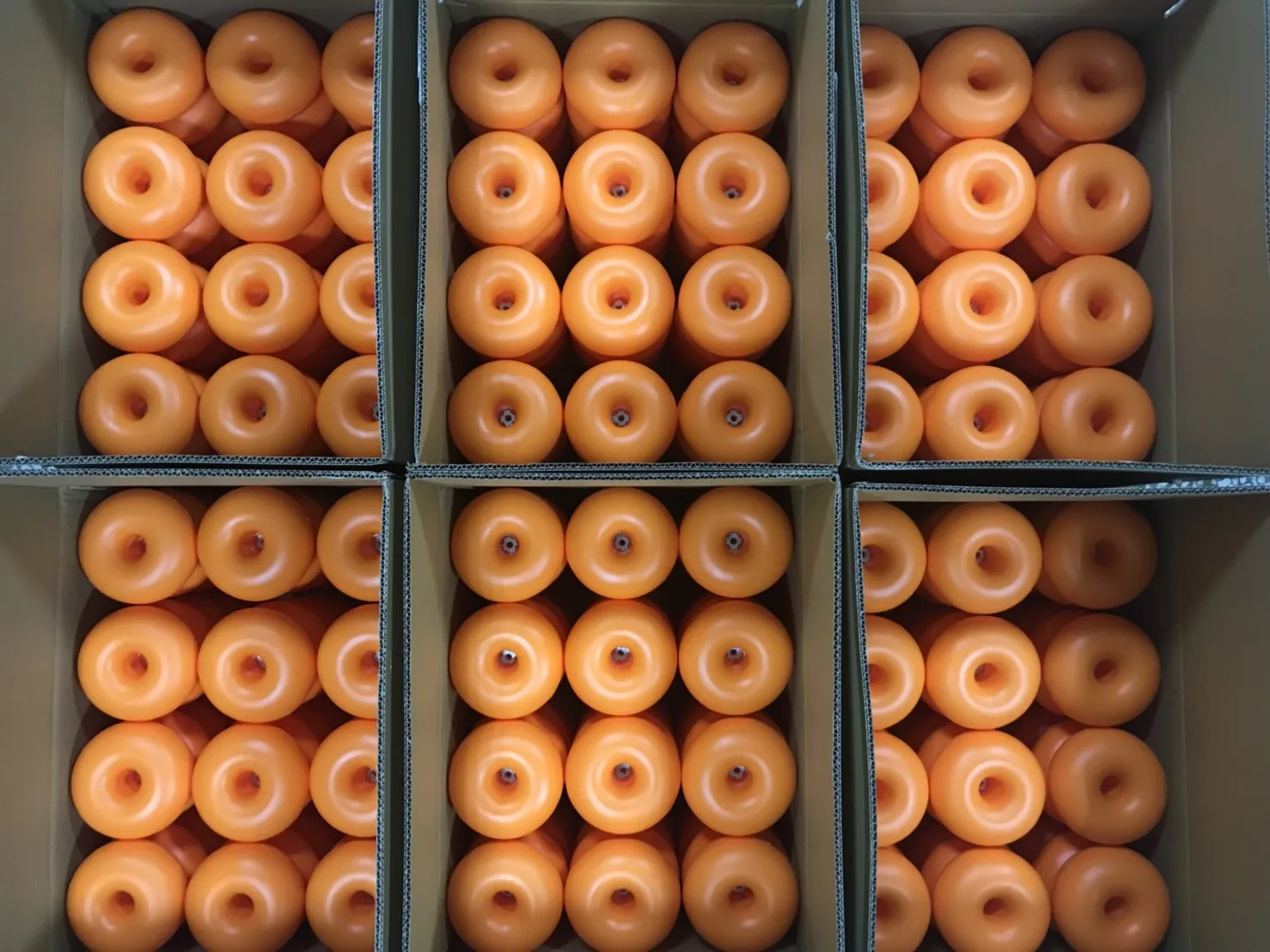

PALLET CUSHION PACK: 60/BOX | |||||
|

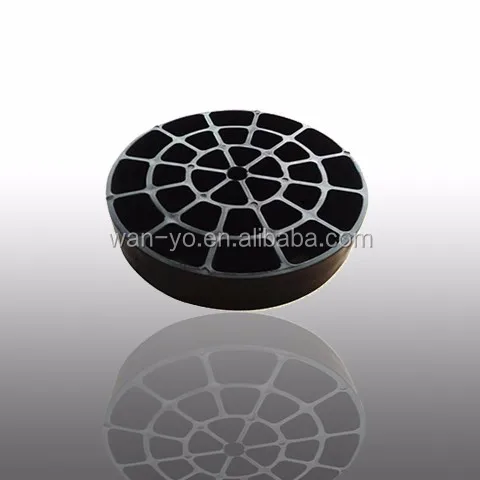

WY-20509 |
Black |
Spacer |
Pack : 100/box |
Specification:
MATERIAL : | LDPE |
WITH METRIC M8 OPTION | |
SIZE : | 150*70mm |
TEMPERATURE : | CHSHIONS are suitable for use between -40℃~+54℃ |
CHEMICAL RESISTANT : | Cushions are made of polyethylene a chemically inert material |
DURABLE & TOUGH | Under the maximum load, cushions can endure 3000 feet (914meters) of dragging over concrete and floor joints |
REVYCLABLE: | Every cushion is environmentally friendly and reusable |
SPACER Specification:
Material: PP
Size: 140*28mm

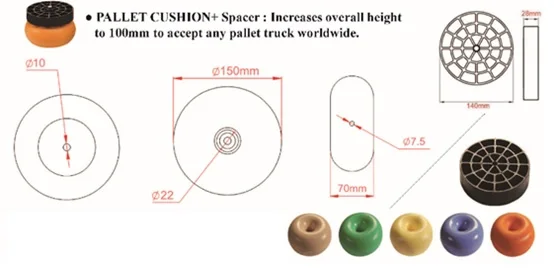

Dimension:
Advantages:
- Reduce packaging design & assembly time and cost
- Eliminate costly damage from handling hazards during shipment
- Reduce costs associated with shock and vibration damage
- Provide protection during loading/unloading
- Eliminate the need for expensive air-ride vans
- Permit 4-way pallet entry design
- Easily add shock protection to crates/pallets

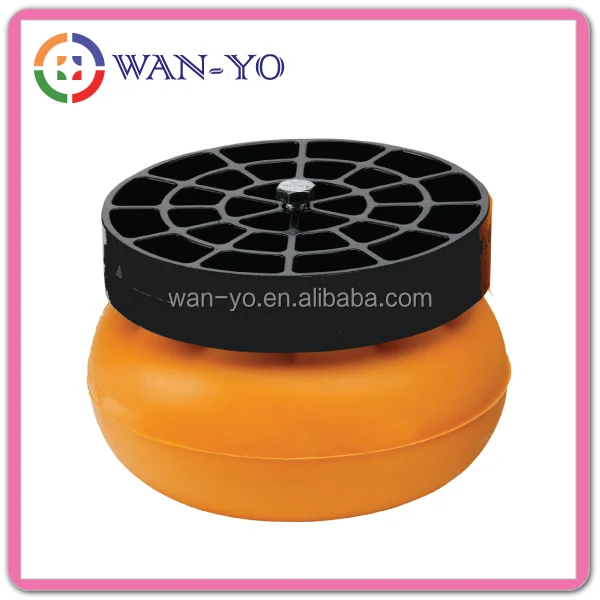

- PALLET CUSHION + SPACER fits most pallet jacks worldwide
