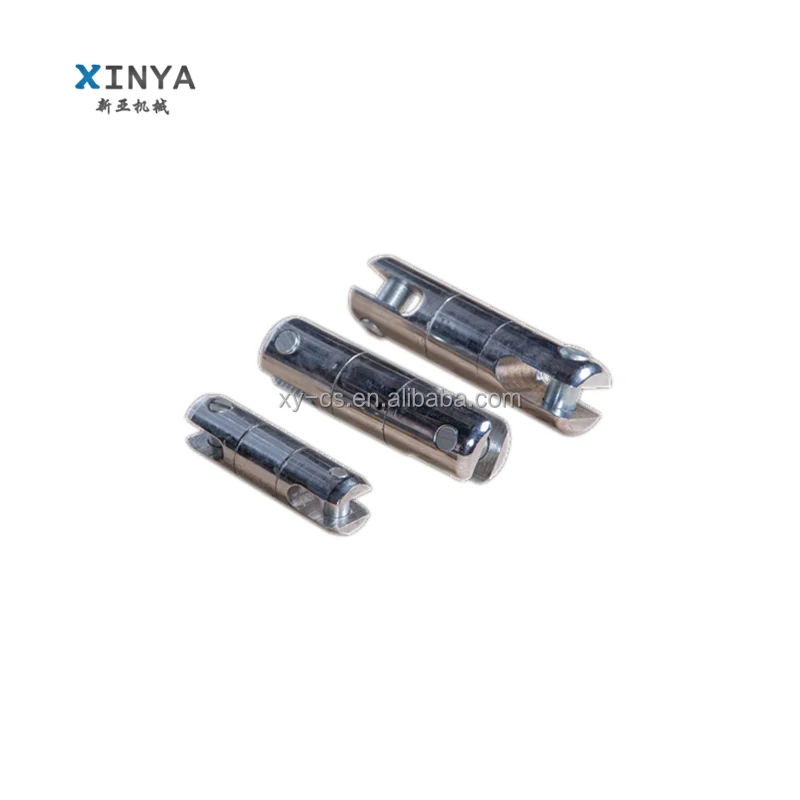

Wire Rope Fitting Swivel Connector Cable Pulling Swivel
- Category: >>>
- Supplier: Changshu Xinya Machinery Manufacturing Co. Ltd.
Share on (60415936698):
Product Overview
Description
Wire Rope Fitting Swivel Connector Cable Pulling Swivel
Application
In transmission line, traction of wire or underground cables, the Steel Cable high strength Swivel connector is used to connect with the net sleeve and wire rope, in order to release wire rope twisting.
It adopts alloy tool steel.
Features
It is high strength, light weight,
and it can smoothly go through the machine traction pulley and the tension machine.
Technical Data
| Product No. | Model Type | Rated Load(KN) | Outter Diameter(mm) | Groove Width(mm) | Weight(kg) |
| 80202 | XL-1 | 5 | Φ18 | 8 | 0.2 |
| 80203 | XL-2 | 10 | Φ22 | 12.5 | 0.4 |
| 80204 | XL-3 | 30 | Φ30 | 14.5 | 0.65 |
| 80205 | XL-4 | 50 | Φ42 | 17 | 1.5 |
| 80206 | XL-5 | 80 | Φ55 | 22 | 2.75 |
| 80207 | XL-6 | 130 | Φ60 | 24 | 3.5 |
| 80208 | XL-7 | 180 | Φ72 | 30 | 4.2 |
| 80209 | XL-8 | 250 | Φ85 | 36 | 5.5 |
