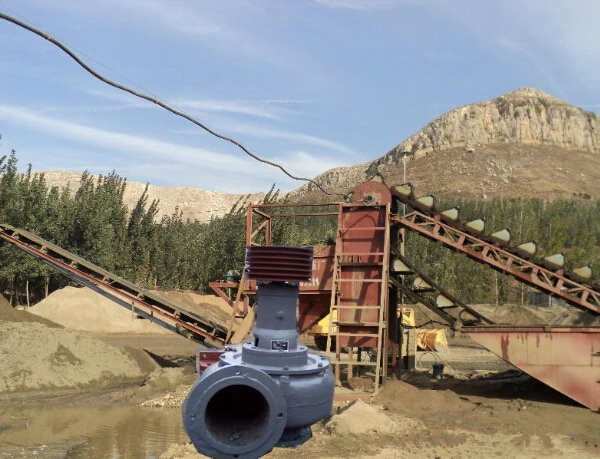

River used sand suction, dry Sand Pump

Product Overview

Description

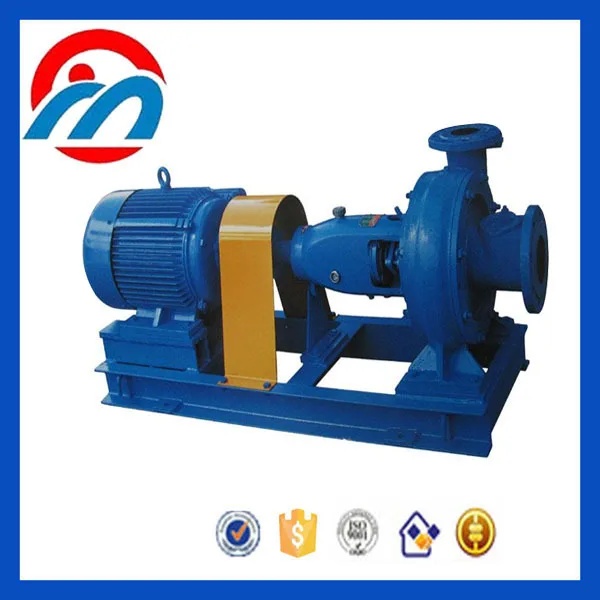

River used sand suction, dry Sand Pump

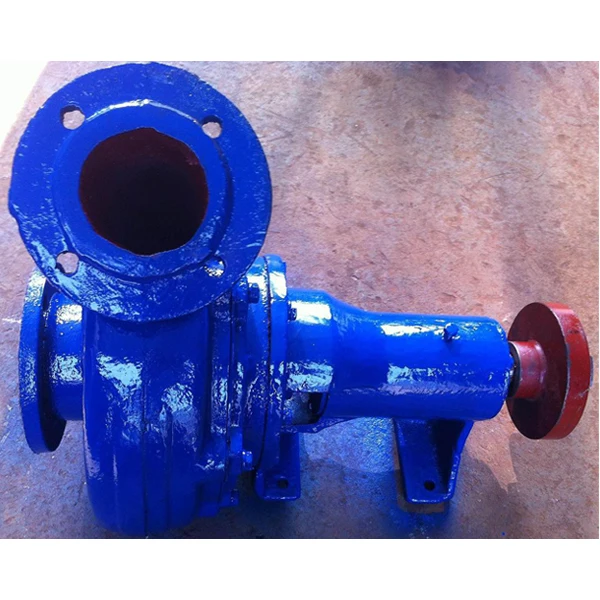

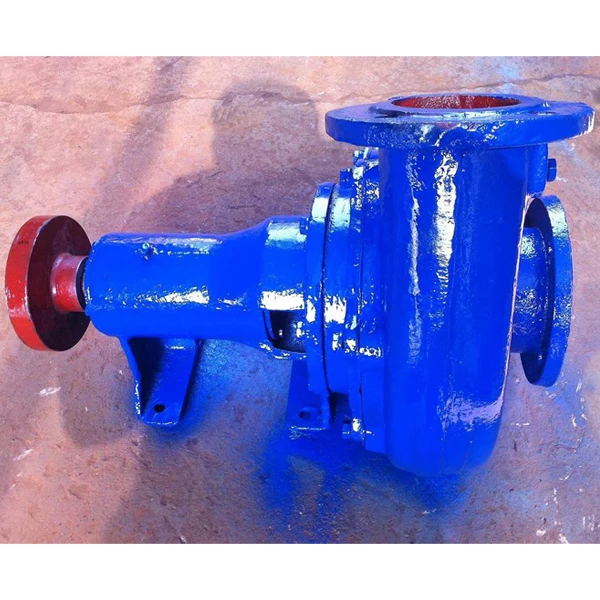

Ps series sand pump is horizontal, end suction, centrifugal sand pump, suitable for transfer sand slurry type liquid,  for example, transfer fine surry and drain tailings in ore-dressing plant , transfer slurry in coal preparation plant , transfer high temperature, easy crystallized slurry, and transfer cement slurry in cement plants.



PS series sand pump parameter:



Model	Capacity	Head	Speed	Efficiency	Power	Diameter(mm)
	(m3/h)	H(m)	n(r/min)	η(%)	kw	Inlet	Outlet
2.5ps	50	23	1460	44.50%	15	100	65
2.5ps	50	34.5	1800	42%	22	100	65
4ps	120	36.5	1470	50%	55	150	100
4ps	120	24	1200	52%	30	150	100
5ps	240	28	980	55%	55	200	125
5ps	240	35	1080	55%	75	200	125
6ps	280	28.5	980	56%	115	250	150



Feature:



1. wetted parts are made of alloy material, wear-resistant, long life ime, long overhaul periods.



2. this ps series sand pump have two inlet for slurry, easy for arrange pump layout.



3. easy maintaince, when change the wearing parts( impeller, backplate , pump body), do not need move the motor and pipe



4. the interval between impeller and backpalte is adjustable to keep a certain capacity.

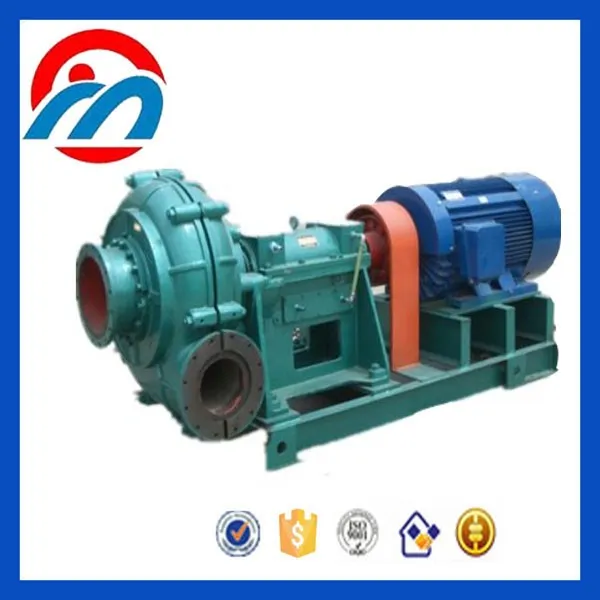

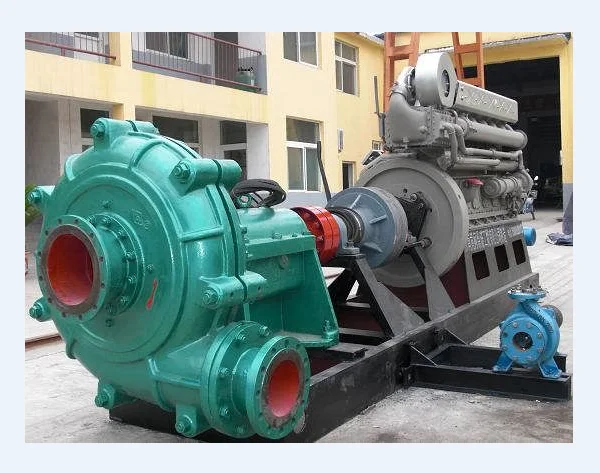

Type G GH series sand and gravel pump are designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump.They are suitable for delivering slurries in mining, explosive sludge in metal smelting, dredging in dredger and course of rivers, and other fields. Type GH sand suction pumps are of high-head type.



Specification:



Item	sand and gravel pump
sand and gravel pump	G GH type sand and gravel pump for sand dredge
Model	G GH
Material	High Chromium alloy and customized
Color	Yellow and adjustable
Mode	Horizontal
Drive	Belt or coupling
Seal	Soft packing seal or mechanical seal
Speed	1400r/min, 980r/min, 700r/min, adjustable
Theory	Centrifugal pump
Structure	Single stage pup
Usage	sand, gravel, slurry, mud
Power	Electric
Standard or Nonstandard	Standard
Application	Dredging, Dewatering, mining
Outlet diameter	4”, 6” , 8”
Capacity	36-930m³/h
Head	7-48m
Power	4-185kw
Warranty	1year
Certificate	ISO9001
OEM	Acceptable
Feature	easy installation and operation, good performance of NPSH, abrasion resistance



Feature:

1. Horizontal, cantilevered, single-casing structure, centrifugal pump.

2. Wide passage , good performance of NPSH, anti-wearing and anti-corrosion, high efficiency

3. Easy installation. discharge outlet can be adjusted at any direction of 360.

4. Cylinder bearing assembly, grease lubrication, adjusting the distance between impeller and pump.

5. Mechanical seal, expeller seal and packing seal for selection.6. Drive type: V-belt drive, gearbox drive, elastic coupling drive, fluid couplings drive, frequency conversion drive, silicon controlled rectifier speed regulation, etc

Application:

1.Sand suction pump are designed for continuously handling the most difficult higher abrasive slurries which contain too big solids to be pumped by a common pump. 2.Suitable for dredging, mining and metal smelting blast slag delivery, etc3.Dredge, suck in th Sand Reclamation

4.Absorb the sand in the river, lake and sea.

5.Absorb the silt and sand in the reservoir, electric power plant .

6.Absorb the slurry of stone processing plant.

7.Delivery of slurry with strong abration high concentration for metallurgy, mines, coal
