CW1550CW1550 woodworking lathe wood copying lathe

Product Overview

Description

 wood cutting machine/wood working machinery/wood copying lathe/woodworking lathe/wood shaper/wood copying machine/wood copying lathe

MCF3020A  WOOD COPYING LATHE



The machines used for duplicate turning of wood cylinder, and used for turning of end side by the installation of attachment. The straight leading liner make the tools side move vertically, and the feeder can be moved automatically or by hand it is widely used in the products of furniture, decoration and handcraft.



WOOD COPYING LATHE SPECIFICATIONS



Type	MCF3020B	MCF3015
Max. turning diameter (mm)	240	150
Max. turning length(mm)	1500	1200
Spindle speed(r/min)	965 1440 2150	700 11400 2100
Auto-feeding speed(mm/min)	650	/
Motor power(KW)	1.5	0.37
Overall dimensions(mm)	2165*520*1105	1730*500*460
Net weight(kg)	400	93

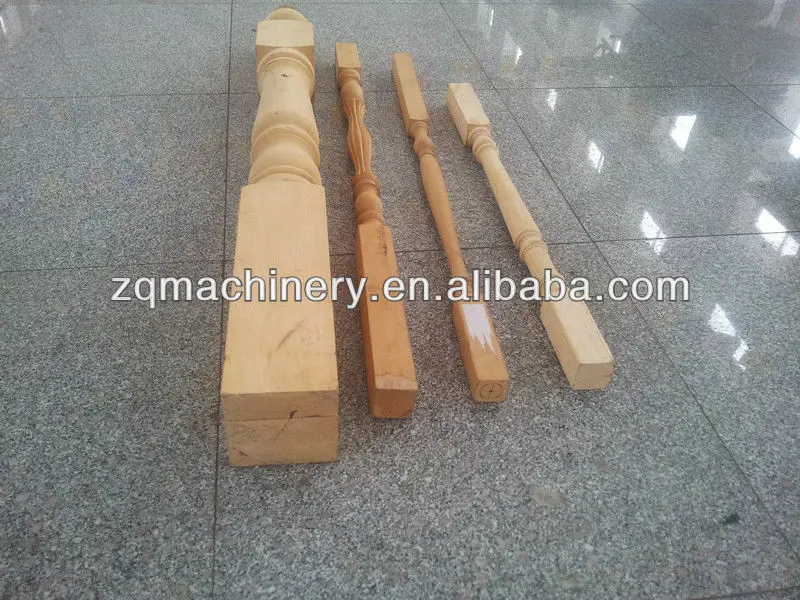

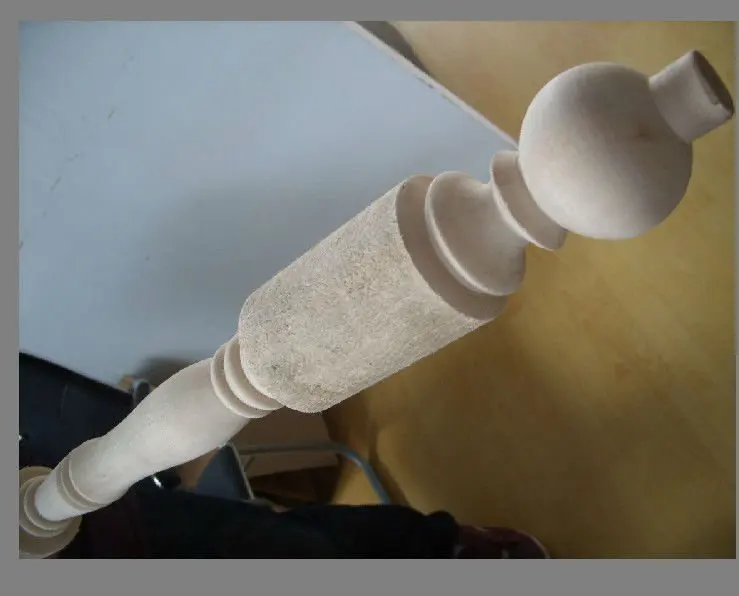

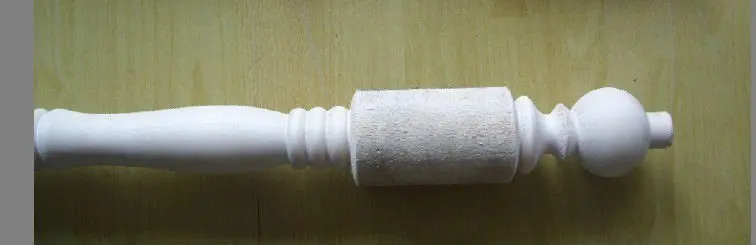

WOOD COPYING LATHE FINISHED PRODUCTS

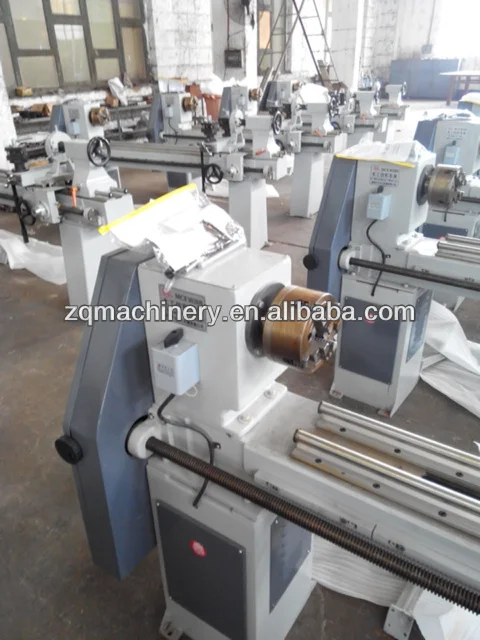

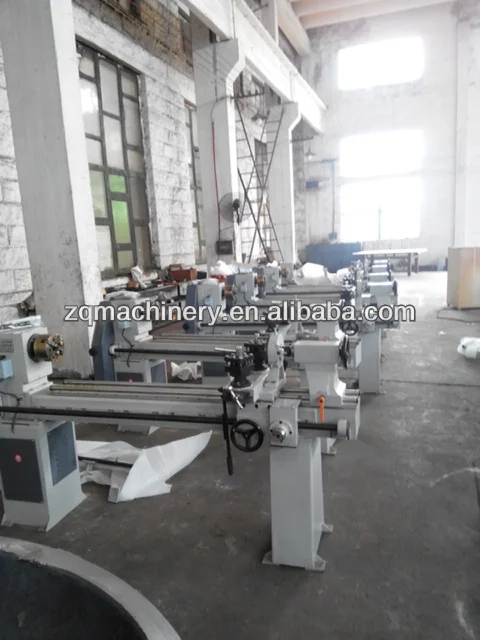

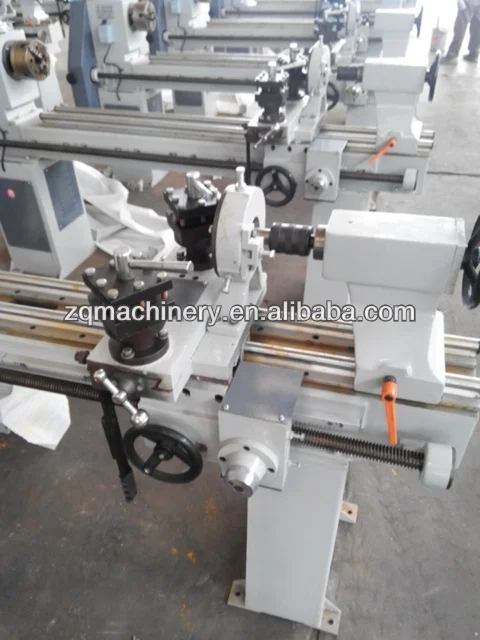

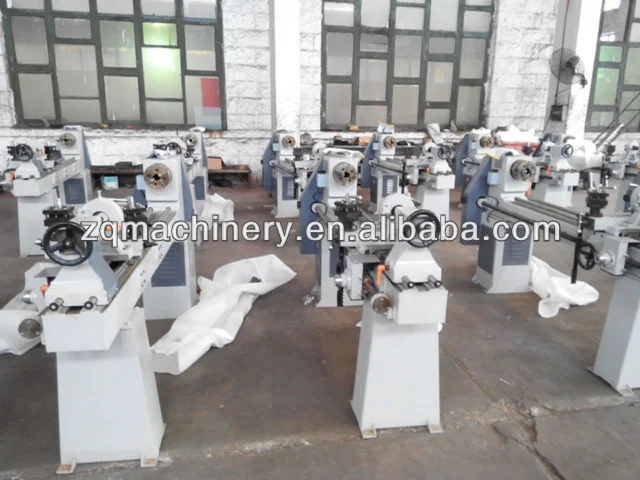

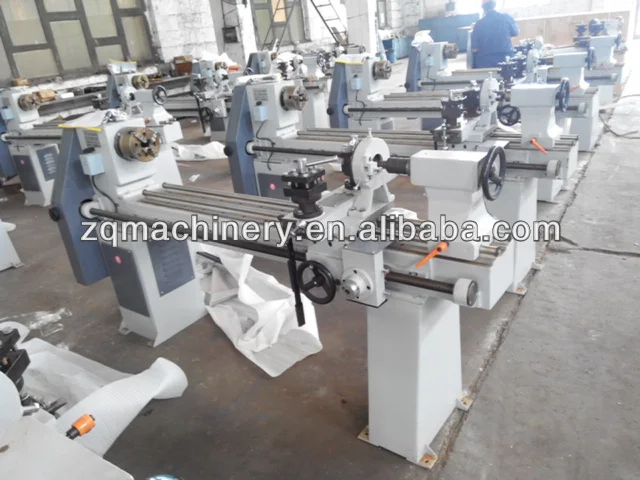

WOOD COPYING LATHE WORKSHOP













 We also provide the CNC wood turning lathe, adopted by :



Operating system :CNC-Z  MCK650A,

Mapping mode :    CAD or G Code

Axes options:        double axes and double knives; single axis and double knives;

Transmission:       belt drive or gear drive

Other function:      automatic center system for standard timber
