telescopic mast for antenna and camera and lighting

Product Overview

Description

Introduction

When the telescopic mast is mounted on the ground , for example golf courses telescopic lighting mast , airports, sea ports and the places which need special lighting and protection.The mast has the ground foundation stake to fix .It also need the lifting up and down control air supply box .

This product HYML has developed integrates the former into one whole successfully.it is beautiful and practical, but also to reduce the cost

These masts are usually common telescopic mast to lift up and come down at any time, the height is 10-20m, The mast can be customized for the clients. Please see the picture.



Each mast has one or two set American Thomas air pump .If there are many masts, it can be centralized control.

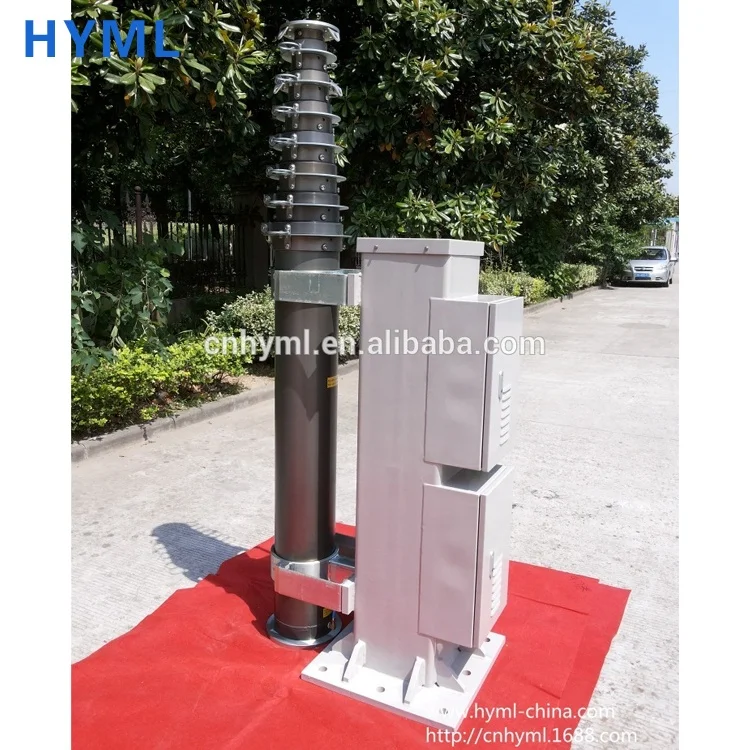

The ground foundation stake is made of square steel pipe 300 * 300. The height depends on the mast height. There are two doors on the square steel pipe after processing, it becomes two floors of space. It stores the electrical circuits and air supply & air path respectively. The inner and outer surfaces of square pipe have hot-dip zinc treatment.The outer surface is painted to ensure corrosion resistance.

The ground foundation stake is installed on a concrete foundation, the foundation structure see pictures.



Do you have Skype ID ? My Skype is erinyixing

Welcome to buy one sample and visit our factory

Erin

Mobile : 0086 -13706155652







Common telescopic Mast
DATE:2016.1						h:nested height H:extended height D:outer diameter d:inner diameter L:top payload     If you do not find the suitable  specifications in the table,  please contact with us, we can design for you.
Model	h	H	D	d	L
	(m)	(m)	(mm)	(mm)	(Kg)
A6-215	2	8	229	110	200-250
A6-215	2.3	10	229	110	200-250
A6-215	2.6	12	229	110	200-250
A7-215	2.1	10	229	90	150-200
A7-215	2.4	12	229	90	150-200
A8-215	2	10	229	75	100-120
A8-215	2.2	12	229	75	100-120
A8-215	2.6	15	229	75	100-120
A7-270	2.6	13	284	130	250-300
A7-270	2.8	14	284	130	250-300
A7-270	2.9	15	284	130	250-300
A7-270	3	16	284	130	250-300
A8-270	2	10	284	110	200-250
A8-270	2.3	12	284	110	200-250
A8-270	2.5	14	284	110	200-250
A8-270	2.8	16	284	110	200-250
A8-270	3	18	284	110	200-250
A9-270	2	10	284	90	150-200
A9-270	2.2	12	284	90	150-200
A9-270	2.5	15	284	90	150-200
A9-270	3	20	284	90	150-200
Model	h	H	D	d	L
	(m)	(m)	(mm)	(mm)	(Kg)



Hand Brake telescopic Mast
DATE:2016.1						h:nested height H:extended height D:outer diameter d:inner diameter L:top payload         If you do not find the suitable  specifications in the table,  please contact with us, we can design for you.
Model	h	H	D	d	L
	(m)	(m)	(mm)	(mm)	(Kg)
AZ6-215	2.1	8	229	110	200-250
AZ6-215	2.4	10	229	110	200-250
AZ6-215	2.7	12	229	110	200-250
AZ6-215	3	14	229	110	200-250
AZ7-215	2.2	10	229	90	150-200
AZ7-215	2.6	12	229	90	150-200
AZ7-215	2.9	15	229	90	150-200
AZ7-215	3	16	229	90	150-200
AZ8-215	2	9	229	75	100-120
AZ8-215	2.1	10	229	75	100-120
AZ8-215	2.4	12	229	75	100-120
AZ9-215	2.6	15	229	60	50-80
AZ7-270	2.6	12	284	130	250-300
AZ7-270	2.7	13	284	130	250-300
AZ7-270	2.8	14	284	130	250-300
AZ7-270	3	15	284	130	250-300
AZ8-270	2.6	13	284	110	200-250
AZ8-270	2.7	14	284	110	200-250
AZ8-270	2.8	15	284	110	200-250
AZ8-270	2.9	16	284	110	200-250
AZ8-270	3	16.5	284	110	200-250
AZ9-270	2.6	14	284	90	150-200
AZ9-270	2.7	15	284	90	150-200
AZ9-270	2.8	16	284	90	150-200
AZ9-270	2.9	17	284	90	150-200
AZ9-270	3	18	284	90	150-200
Model	h	H	D	d	L
	(m)	(m)	(mm)	(mm)	(Kg)
