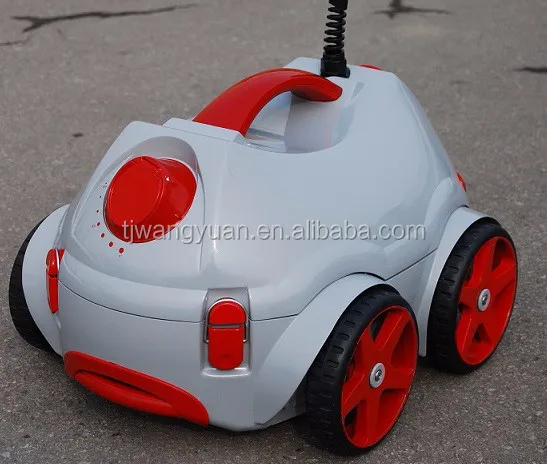

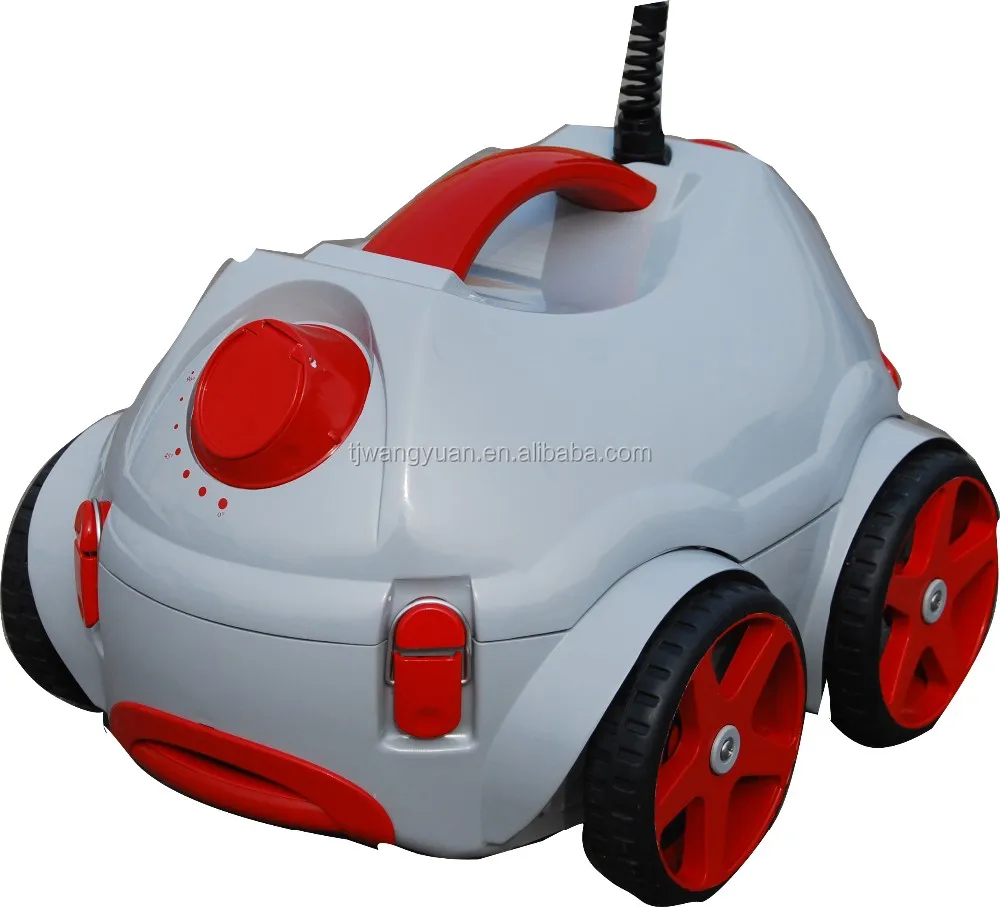

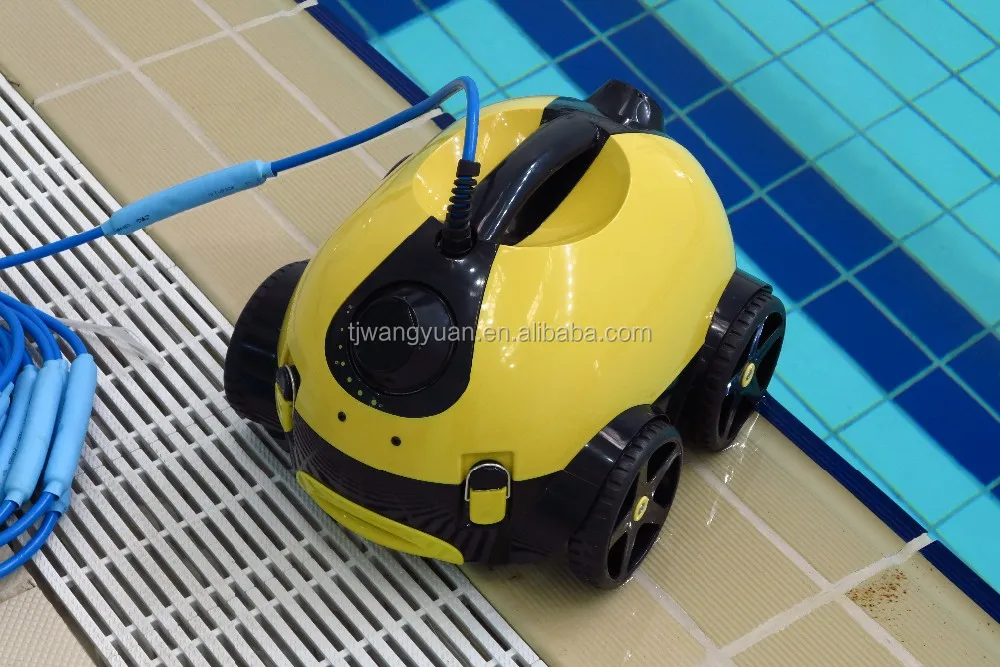

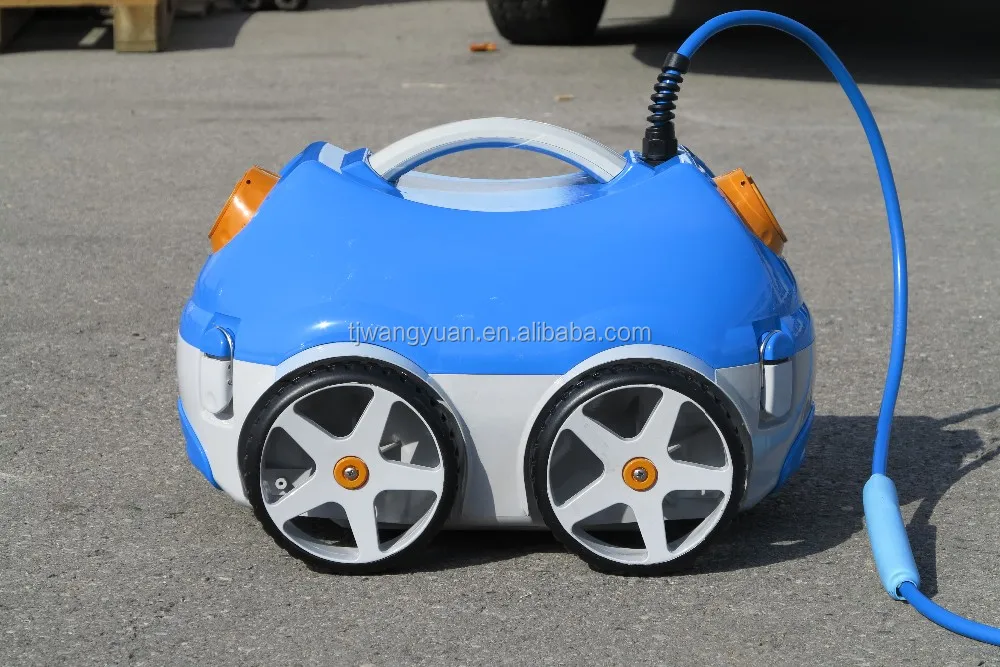

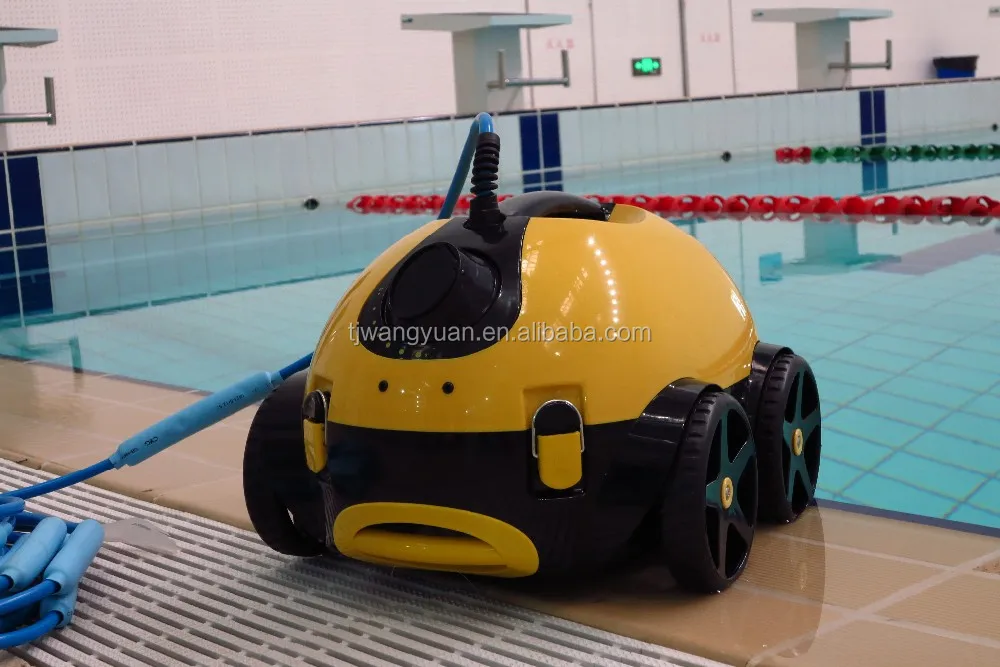

The automatic swimming pool floor cleaner HJ1009Mis a new type of highly efficient swimming pool cleaning equipment. Through its advanced computer controlled program, it can clean the pool floor automatically without draining pool water. At the same time, it filters the pool water and gets rid of suspended particles and sediments.
For safe operation, the cleaner works on 24V direct current.
specification
1.Rated input voltage and frequency: 220V/50Hz
2.Output Voltage: DC24V
3.Rated input and output power: 150W/120W
4.Working cycle: 1h/1.5h/2h/2.5h
5.Cable length: 12m
6.Maximum cleaning area: 150m²
7.Filtering capacity: 15m³/h
8.Filtering capability: 150µm
9.Water temperature of use: 10°C - 35°C
10.Creeping speed: 15-18m/min
11.IP Grade:Cleaner-IPX8 Power supply unit-IPX4
12.Working temperature: 10°C - 40°C
13.Pool depth: 2.5m
Structure
Operation
Cable connection
Plug the cable line into the socket on the power supply unit (note: make sure to plug it in the correct direction and position), and fasten the nuts on both sides of the plug.
Panel operation
Function and adjustment of nozzle
There are two nozzles on the cleaner (as shown in Fig.5.4), one of them opens once the other closes. Water flows out through the opening nozzle to thrust the cleaner move forward. Operator can adjust the nozzle direction through rotating it by which to control the moving path of the cleaner.
Methods of puting the cleaner into pool
Replacing filter bag
Please use new filter bag in case broken as structure bellow
Our Company
Website://www.wyindustry.com
As a manufacturer of Sino-French joint-venture, we're established in 2005, key product includes swimming pool cleaner and related accessories. We have strong technical ability, good financial condition and a professional team of both Chinese and French engineers, as well as experienced technical workers and a elite management team led by general manager who has many years experience in France. We committed to research, production, selling and after sales service, the R&D centre and European marketing centre is located in France and is in charge of new product developing, design and communications with European super markets and professional shops, there is a perfect after sales service system in Europe with manufacturing base in TEDA of Tianjin, the plan of opening new branches in the USA, Australia and Middle east is also in process.
We attend professional shows held world wide every year and our market covers 27 countries in Europe, Middle east, North-Africa, Australia and South-east Asia, we have good selling records in more than 10 chains super markets like Carrefour and Auchan in France and Spain and gained good reputation with our stable quality and competitive price.
Certification
Packing
Our Services
1)High quality products
2)we'll meet the market requirements by constantly providing new and powerful models
3)Warranty period is 2 years from the date of delivery.
