50kg CCTV Heavy duty all weatherproof pan tilt driver outdoor pan tilt head PT3081
- Category: >>>
- Supplier: Shenzhen SafeEye Technology Co. Ltd.
Share on (60416614599):
Product Overview
Description
Product Description
CCTV 50kg Heavy duty all weatherproof pan tilt driver outdoor pan tilt head PT3081
Features & Fuctions:
Heavy-Duty offers 50kg maximum load
Invisible cables from Pan Tilt to Housing (SafeEye housing options)
Water-level for balanced and stable installation
Illuminators or Thermal-imaging system are available for Night-Vision application at Double-payload
Worm and Worm-gear driving system
High repeatability and accurate preset position
Real-time Pan and Tilt angles display on screen
Absolute angles/positions control
Please note before purchase: what do you choose is network pan tilt or analog pan tilt Thank you
Sprcifications:
| Specifications | PT3081 |
| Input Voltage | 24VAC±25% (24VDC±20% optional) |
| Power of Pan/Tilt | ≤85W (Without heaters) |
| Power to housing | ≤85W |
| Pan Speed | Pan:0.01~30 °/s |
| Tilt Speed | Tilt:0.01~15 °/s |
| Pan Range | Pan:0~360 ° continuous |
| Tilt Range | Optional - 60 ° ~ + 60 ° load 40kg |
| Double load: ±45° | |
| Communication | RS-485/RS-422 |
| Protocol | Pelco D/Pelco P |
| Baud rate | 2400, 4800, 9600, 19200 bps |
| OSD menu | Available |
| Preset | Up to 80 |
| Auto Scan | Up to 8 lines, based on OSD function, configurable speed |
| Auto Cruise | Up to 8 groups, based on OSD function, configurable speed |
| Keep Watch | Programmed a preset, an auto scan line or an auto cruise group, based on OSD |
| function, dwell time counting down display | |
| Helix Scan | 8 line, configurable speed and angles |
| Continuous Scan | 8 line, configurable speed and angles |
| Angles Display | Real-time on screen display/Response by query command |
| Absolute angles control | Support |
| Lens control | Self-adaptive |
| Lens drivien | 10V/6V software control and adaptive |
| communication interface | RS485, support angle query and return; Optional RJ45 network port (network pan tilt configuration) (optional RS422, support angle real-time return) |
| Power to housing | Up to 3 outputs with 12VDC |
| Video output | Up to 2 outputs |
| AUX | 4 Relay Outputs |
| Surge Protection | Built-in Lightning and Surge Protection |
| Max Load | 50kg |
| Load mode | Top/Double load |
| Installation | Outdoor |
| Waterproof | IP66 |
| Operation Temperature | -35°C~ +65°C, ≤90%RH |
| Construction | Al Alloy |

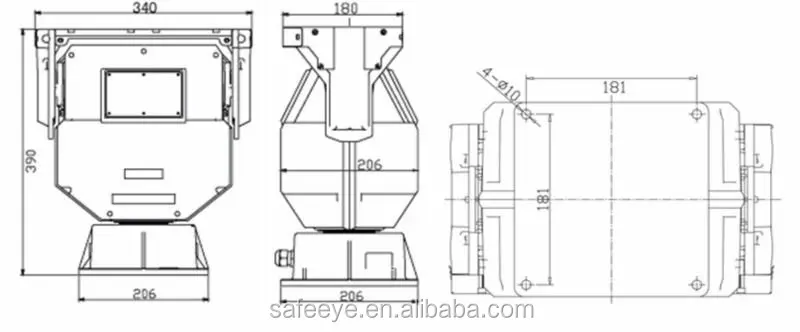

| Dimensions of PT body | 340mm(L) × 206mm(W) × 390mm(H) |
| Weight | 28kg |
CCTV High-speed PTZ Heavy duty pan tilt driver/ CCTV outdoor pan tilt/ pan motor driver/ PTZ
