Top quality CCTV camera pan tilt unit motor load weight 30kg Vehicle mounted Heavy duty pan tilt PT3051
- Category: >>>
- Supplier: Shenzhen SafeEye Technology Co. Ltd.
Share on (60416617712):
Product Overview
Description
Product Description
CCTV Top quality CCTV camera pan tilt unit motor load weight 30kg Vehicle-mounted Heavy duty pan tilt PT3051
Please note before purchase: what do you choose is network pan tilt or analog pan tilt? Thank you
Sprcifications:
| Model | PT3051 |
| Input Voltage | 24VAC±25% |
| Power of Pan/Tilt | ≤85W |
| Pan Speed | Pan:0.01~60 °/s |
| Tilt Speed | Tilt:0.01~30 °/s |
| Pan Range | Pan:0~360 ° continuous |
| Tilt Range | Top load: -75°~+40° (-90°~+40° optional) |
| Double load: ±90° | |
| Protocol | Pelco D/Pelco P |
| Baud rate | 2400, 4800, 9600, 19200 bps |
| Communication | RS-485/RS-422 |
| Preset | Up to 128 |
| OSD menu | Available |
| Auto Scan | Up to 8 lines, based on OSD function |
| Auto Cruise | Up to 8 groups, based on OSD function |
| Keep Watch | Programmed a preset, an auto scan line or an auto |
| cruise group, based on OSD function | |
| Angles Display | Real-time on screen display/Response by query |
| command | |
| Absolute angles control | Support |
| AUX | 4 Relay Outputs |
| Lens control | Self-adaptive |
| Lens interface | TTL/RS485/RS232/motorized control |
| Load mode | Top/Double load |
| Operation Temperature | -35°C~ +65°C, ≤90%RH |
| Installation | Outdoor |
| Waterproof | IP66 |

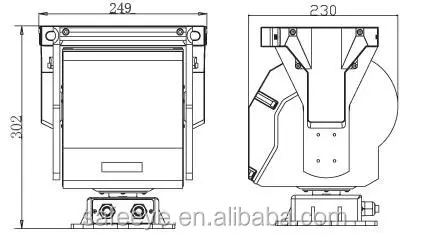

| Dimensions of PT boday | 249mm(L)×230 mm(W)×302mm(H) |
| Surge Protection | Built-in Lightning and Surge Protection |
| Max Load | 30kg |
| Weight | 28kg |
CCTV outdoor pan tilt/ pan motor driver/ PTZ CCTV Outdoor Camera Pan tilt Motor Pan Tilt Units Manufacturers
Recommend Keyboard :
1. Feature
* Control up to 128 common Pan/Tilt,Pan/Tilt module,preset speed Pan/Tilt and shift speed preset
Pan/Tilt.
* Vector solving joystick is used in the keyboard,it is convenient to operate.
* Each preset Pan/Tilt can preset 128 points;1-128 preset by hand\\1-16 preset points automatic.
* Period 1-60s,Auto adjustment.
* Liquid crystal display window,multi protocols inside
2.Technology specifications
* Keyboard voltage:DC9V-12V,current≤200mA
* Baud rate;2400bit/s\\4800bit/s\\9600bie/s
* Capable of 32 node interfacing RS485,It needs RS485 public drive when there are more than 32
nodes or public line is more than 1500m.
