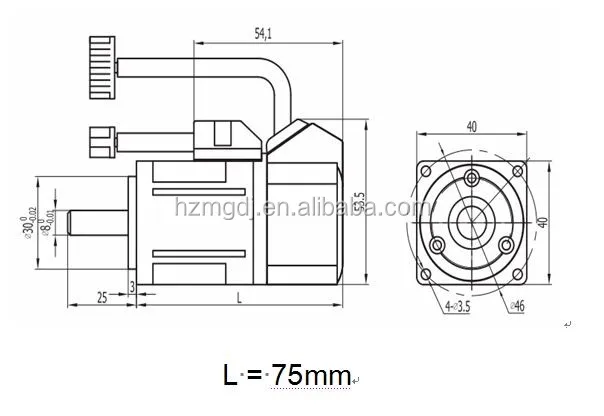

50w Nema 17 MIGE new design servo motor
- Category: >>>
- Supplier: Hangzhou Mige Electric Co. Ltd.
Share on (60416695359):
Product Overview
Description
Product Description
40mm 50w MIGE new design servo motor has a very compact structure and attractive appearance. The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.
They are widely used in digit control machine tools, laser processing machines, computer embroidery machines, textile machinery, printing machinery, packaging machinery, markers, engraving machines, winding machines, three-coordinates measuring machines, XYZ three- dimensional tables, industrial robots, medical equipment, woodworking machinery, ceramic machinery and other industries.
AC220V 3.8kw magnetic motor and controller specifications
Motor model | 40ST-M00130 | |
Rated power(W) | 50 | 50 |
Rated voltage(V) | 48 | 220 |
Rated current(A) | 1.1 | 0.4 |
Rated speed(rpm) | 3000 | 3000 |
Holding torque(N.m) | 0.16 | 0.16 |
Peak torque(N.m) | 0.48 | 0.32 |
Voltage constant(V/1000r/min) | 9.2 | 36.8 |
Torque coefficient(N.m/A) | 0.145 | 0.4 |
Rotor inertia(Kg.m) | 0.025×10-4 | 0.025×10-4 |
Phase Resistance(Ω) | 6.75 | 108 |
Phase Inductance(mH) | 7.5 | 108 |
Electrical time-constant(Ms) | 1.11 | 1.0 |
Weight(Kg) | 0.32 | 0.32 |
Encoder line number(PPR) | 2500 | |
Insulation class | Class B | |
Safety class | IP65 | |
The operating of Environmental Conditions | Temperature: -20 ~ +50 centigrade Humidity: Below 90%RH No dewing | |
Motor winding plue | Winding lead wire | U(red) | V(yellow) | W(blue) | PE(yellow, green/black) | ||||||||||||||
Plug serial numberr | 1 | 2 | 3 | 4 | |||||||||||||||
Encoder plug | Signallead wire | 5V | 0V | B+ | Z- | U+ | Z+ | U- | A+ | V+ | W+ | V- | A- | B- | W- | PE | |||
Plug serial number | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 1 | ||||
Packaging & Shipping
Our Services
• Certified actual products - We have a zero-tolerance policy for asset recovery vendors.
• Lowest package prices -Always offer lower price than other companies.
• Professional technical engineer team- possible fastest response and support to client’ application demand.
• Quality guarantee – Free, 12 month warranty and life-long maintenance. Any quality problem, MIGE promise to refund.
• Fast, professional and reliable International delivery – flexible and low cost delivery solution for clients.
• Free payment mode by T/T, L/C, western union and Ali express can be available.
Company Information
FAQ
1. Q: Can I get some samples?
A: We are honored to offer you samples for quality check.
2. Q: Do you can produce products according to our requirements?
A: Yes, we can produce the products according to your detail requirements if it is not our standard products.
3. Q: What’s the delivery time?
A: It usually takes within 5 working days.
