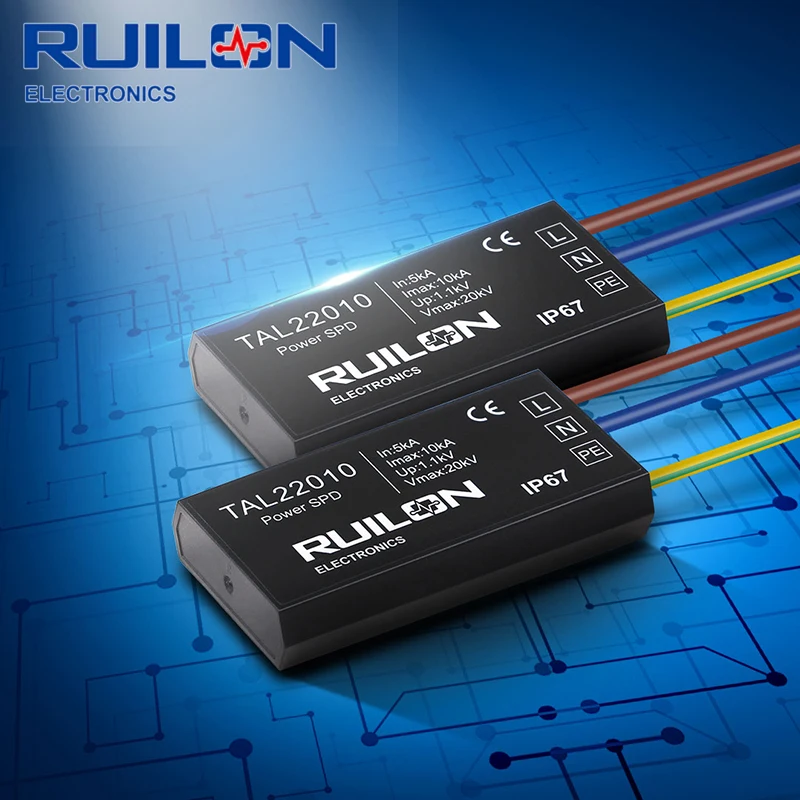

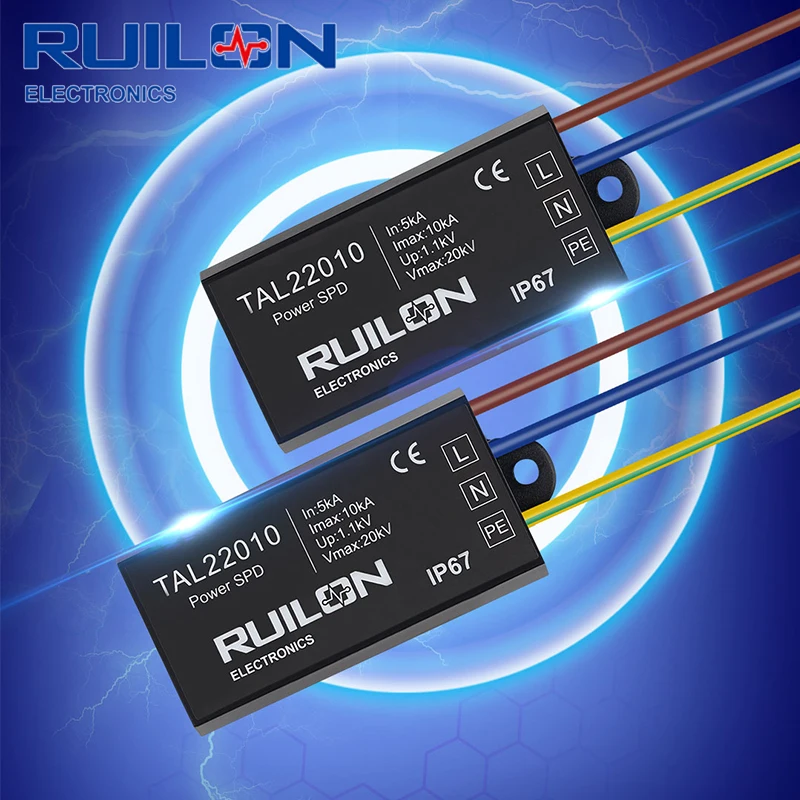

TAL22010 Power Surge Protective Device 110~277VAC outdoor lightning protector Digital signage 10kA

Product Overview

Description

LED street lighting Protector Power Surge Protective Device SPD





Surge, also known as power surge, refers to the peak value that exceeds the stable value instantaneously, including surge voltage and surge current.



The surge in the power supply system mainly comes from two reasons: external (thunder and lightning) and internal (start and stop of electrical equipment, failures, etc.). Surge is often characterized by a very short time (the overvoltage caused by lightning is often in the microsecond level, and the overvoltage caused by electrical equipment is often in the millisecond level), but the instantaneous voltage and current are extremely large, which is very likely to affect the electrical equipment and Cables cause harm, so a surge protector is needed to protect them.



Surge Protector, English name Surge Protective Device, SPD for short, is an electronic device that provides safety protection for various electronic equipment, instruments and communication lines, and is mainly used to limit overvoltage and discharge surge current. Surge protectors are generally connected in parallel with the equipment to be protected. When an overvoltage is generated, it can have the effect of shunting and limiting voltage. Prevent excessive current and voltage from damaging the equipment.

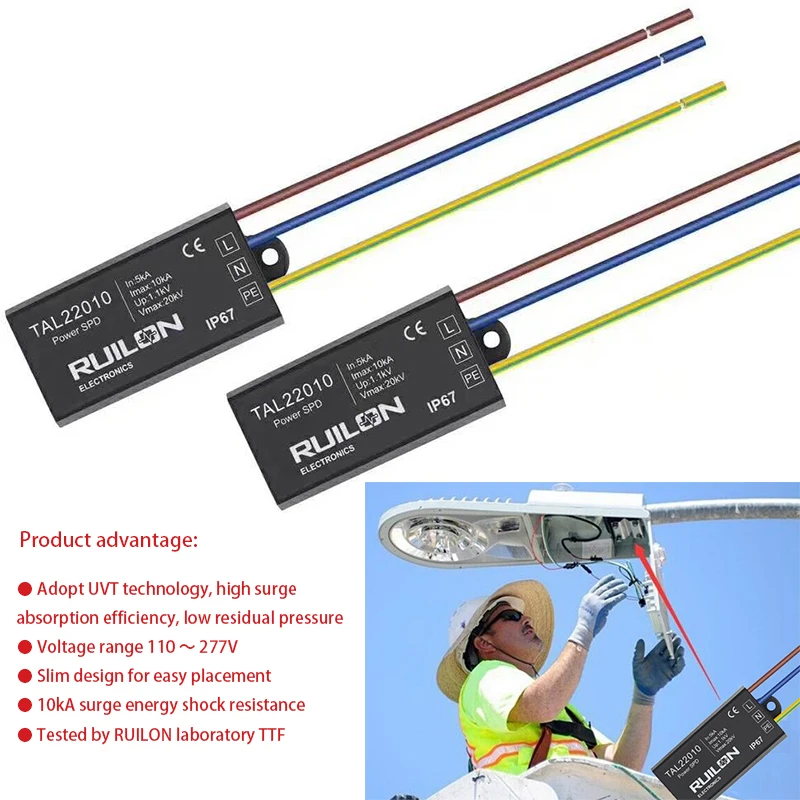

Product Advantage:

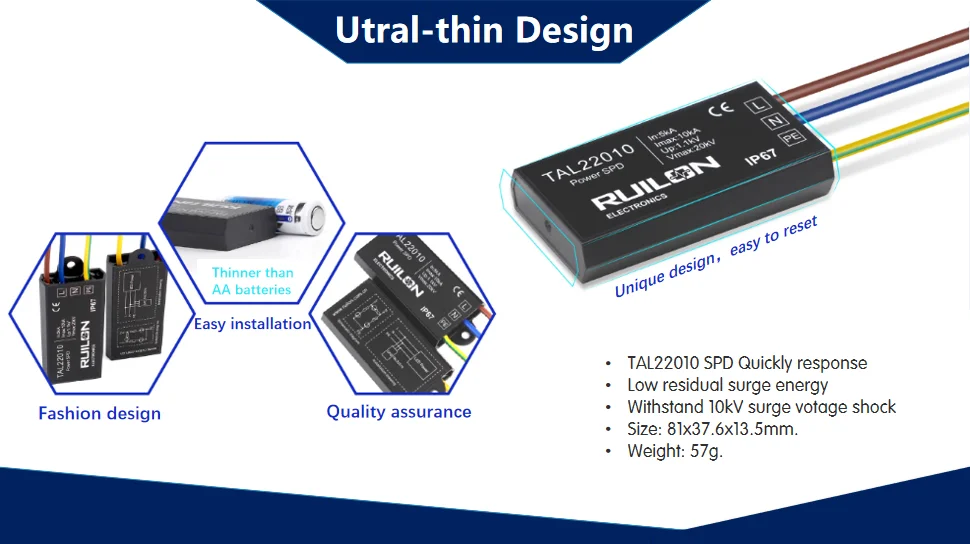

(1) TAL22010 is designed to protect electrical devices from electronical surge and voltage spikes.
(2) It has the characteriestics of low residues and fast response;
(3) Which is safe and reliable;
(4) External installation, can be replaced independently;
(5) Easy to install and maintain;

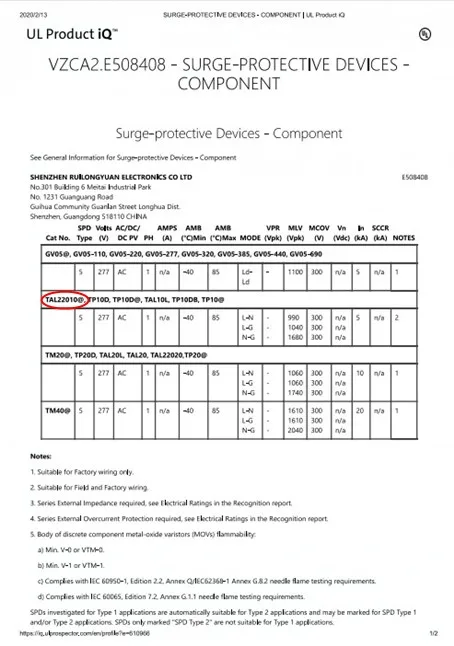

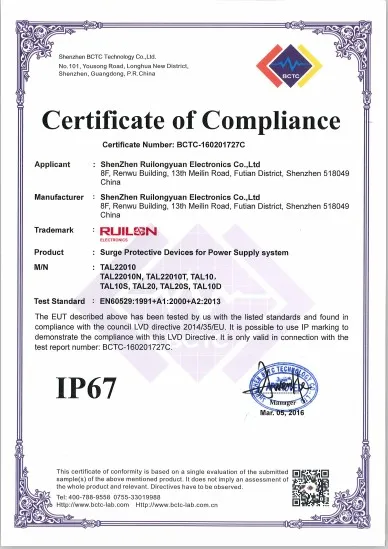

(6) The SPD has strictly approved UL, CE certification to satisfy most of the equipment.

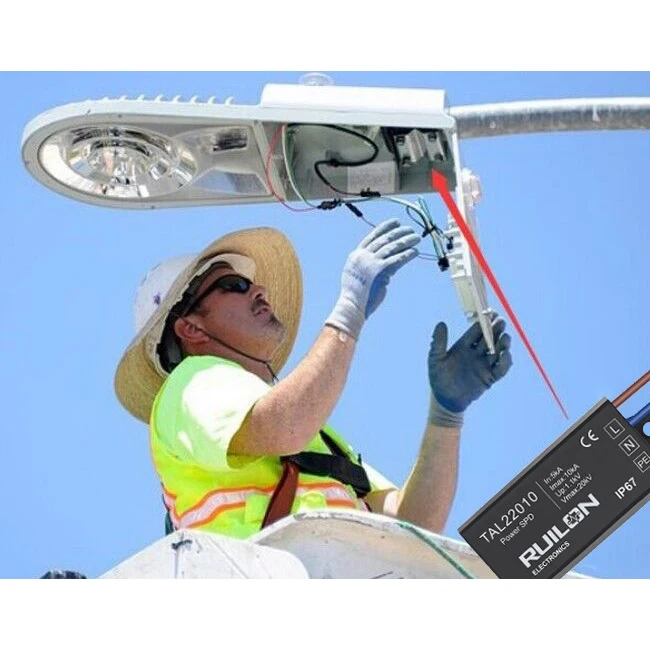

Description of LED street lighting luminaire Surge Protective Device SPD :

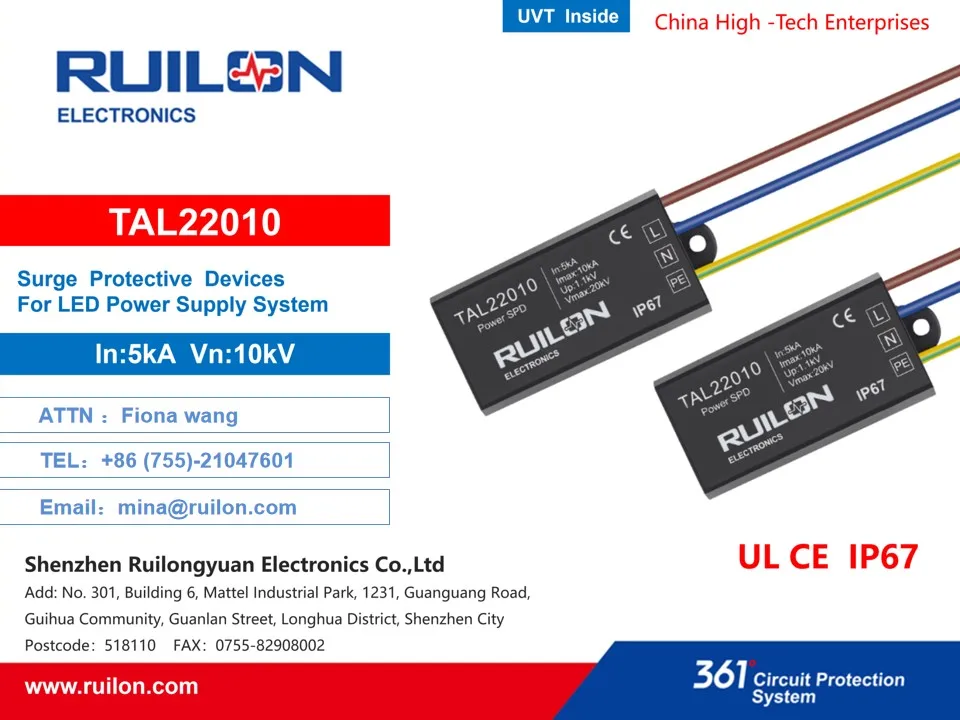

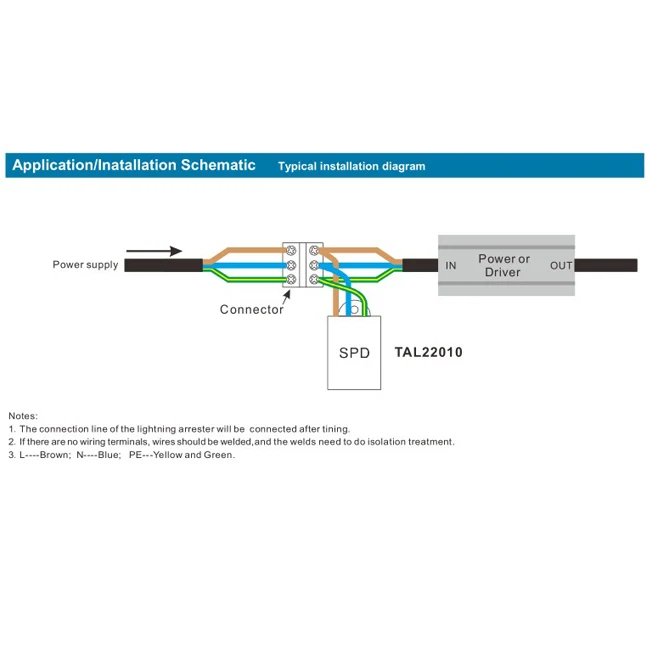

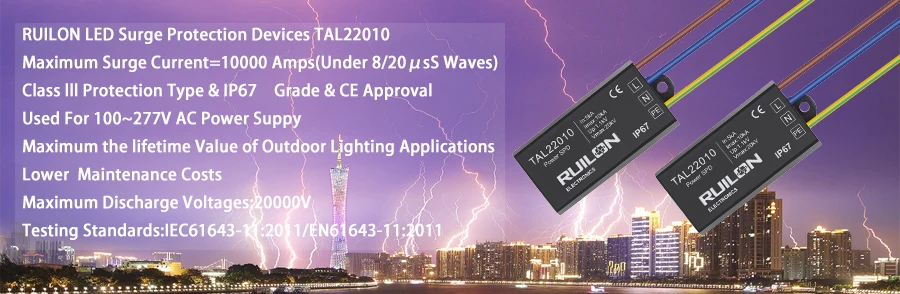

LED Street Lights Power SPD: TAL22010 designed for protecting 220V LED Driver

and could be connected perfectly with its input port, sealed enclosure, waterproof and

dustproof, IP67 protection grade, belongs to Class III power SPD. This SPD use common mode, differential mode,full protection with leakage current and cut the overcurrent capabilities.
