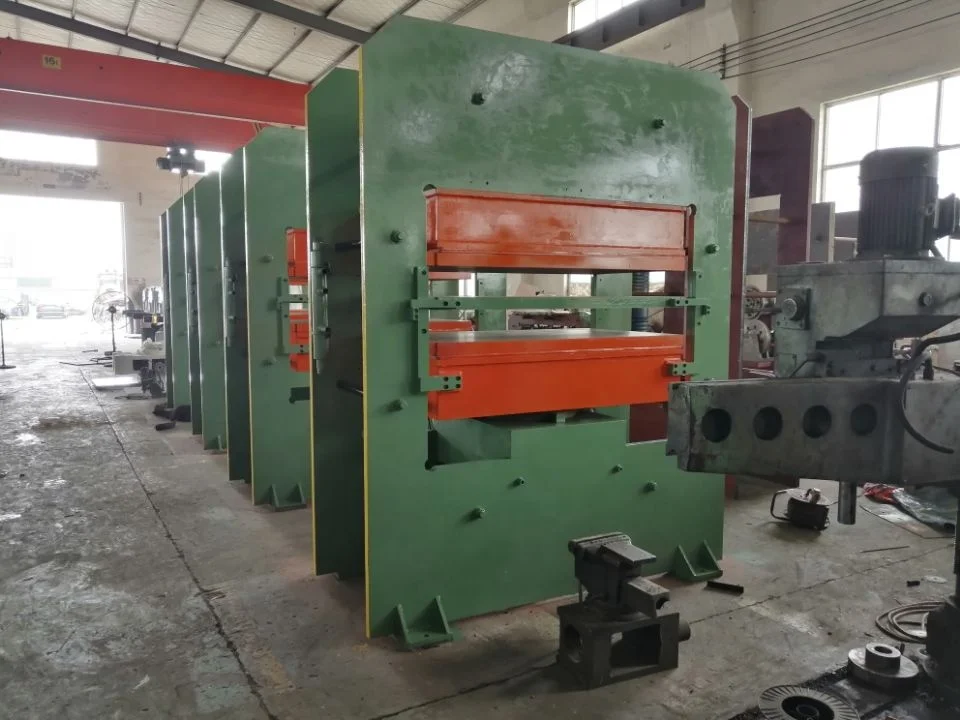

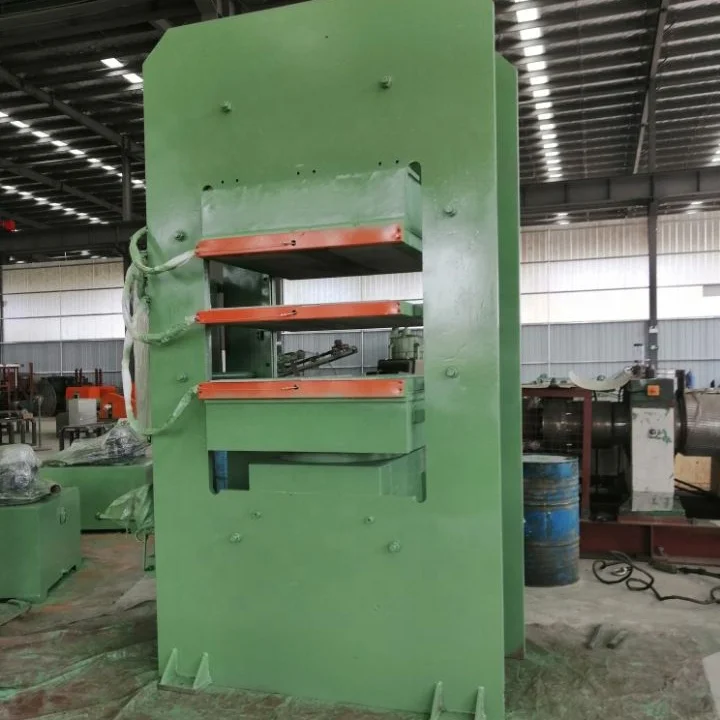

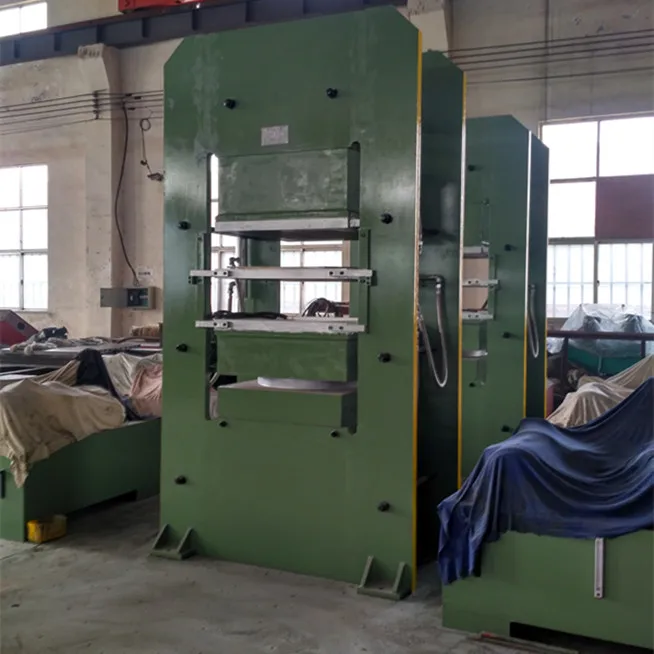

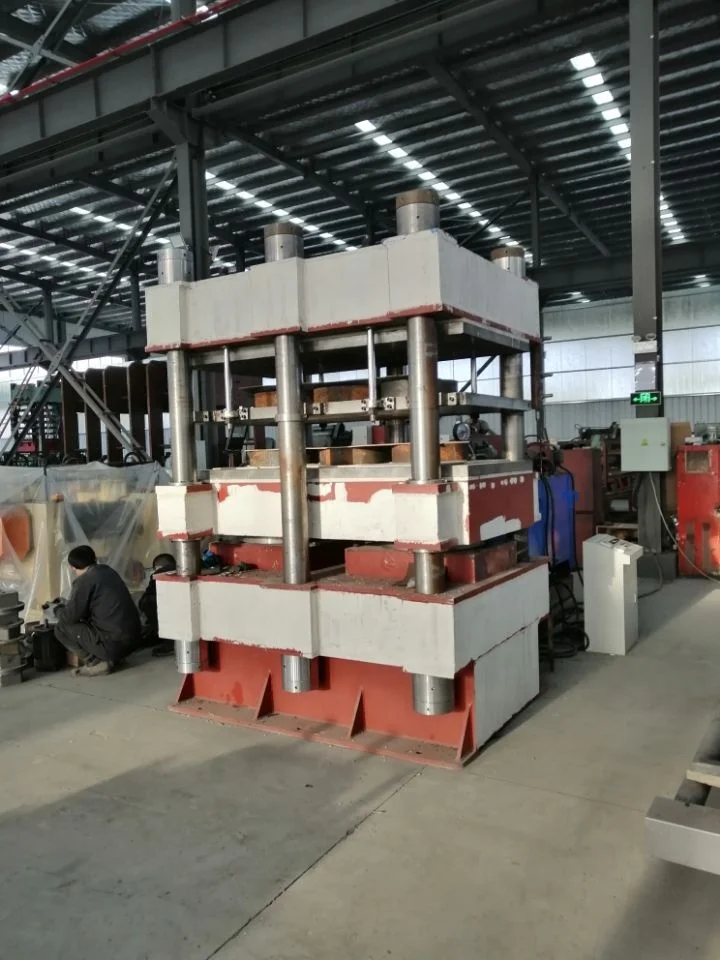

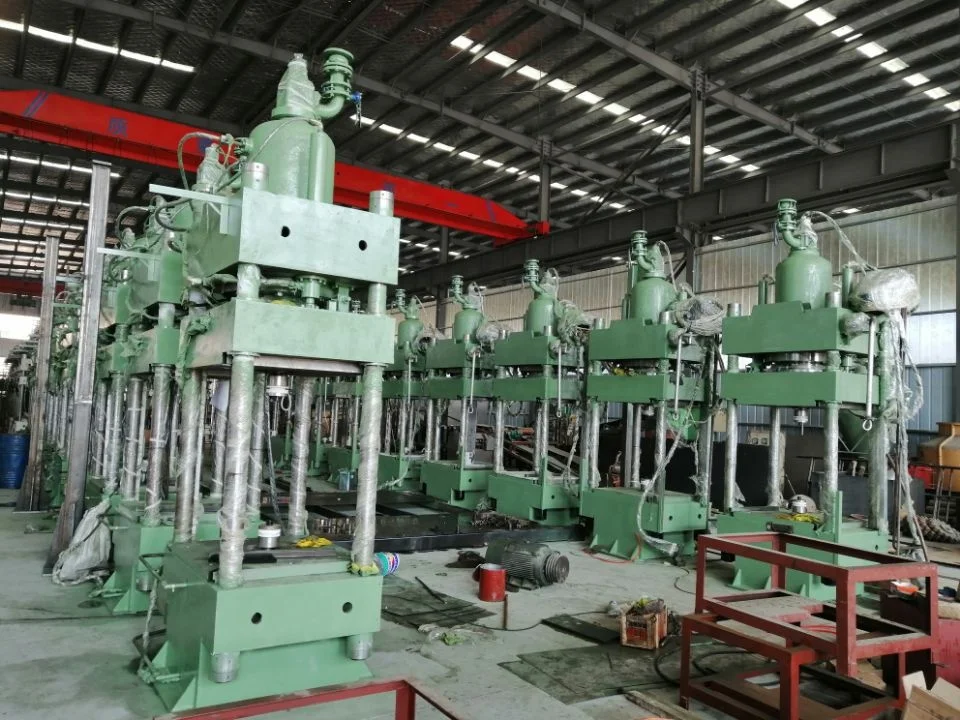

Rubber press vulcanizing machine/High efficient rubber compression molding machine

Product Overview

Description

            Rubber vulcanizing machine /Rubber press vulcanizing machine







Productions Introduce:



1. Application



It is mainly in use of vulcanizing various kinds of rubber pattern products.



1) The body use frame type, mainly consist of top crossing, plate, table, piston, hydraulic cylinder and frame. We put asbestos board between plate and top crossing, table, for its good heat insulation. Use polyurethane material sealing ring between piston and hydraulic cylinder with good sealing property. The piston material is chilled cast iron; hydraulic cylinder material is ductile cast iron; weldment between top and bottom crossing.



2) Put holder and oil cylinder at the side of plate, push-off and resetting moulds are finished by oil cylinder moving when using. There is not ejecting holder in manual ejecting mould structure, but still convenient when using.



3) Hydraulic system is consisting of unipump, operating valve and control system.



4) Electric system is consisting of oil pump motor and vulcanizing timing. When working pressure reach 22.1 Mpa, electro connecting pressure gauge control, time relay on the faceplate is used for setting vulcanizing time. When reach the setting time, it will warn automatically, push TA button can remove warning.







2. Operation:



1) Being a frame structure and upward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger



2) The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure



3) This engine base is combined together with the cylinder and base frame, which is made of ductile iron to increase the cylinder intensity and abrade ability, the cylinder is fitted with the sealing washer made of the oil-resisting rubber for the sealing purpose



4) By moving the operational handle of the control value to the two different positions, the heating plate can open and close



5) It uses the electric pipe for heating, thus makes the workshop clean with easy and reliable operation



Type	XLB-1200X2200X1
Plate Size	1200X2200X70mm
Total Pressure	1000ton
Daylight	300mm
Daylight No	1
Piston Stroke	250mm
Hydraulic system pressure	16Mpa
Piston diameter	450mmx4
Quantity of piston	4
Main Motor Power	11+7.5KW
Overall Dimension	2600X1500X2500mm
Weight	27000kgs







3 Main specifications

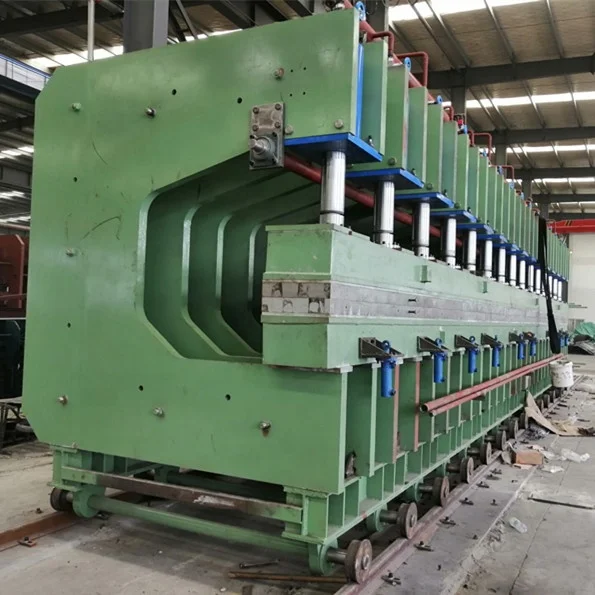

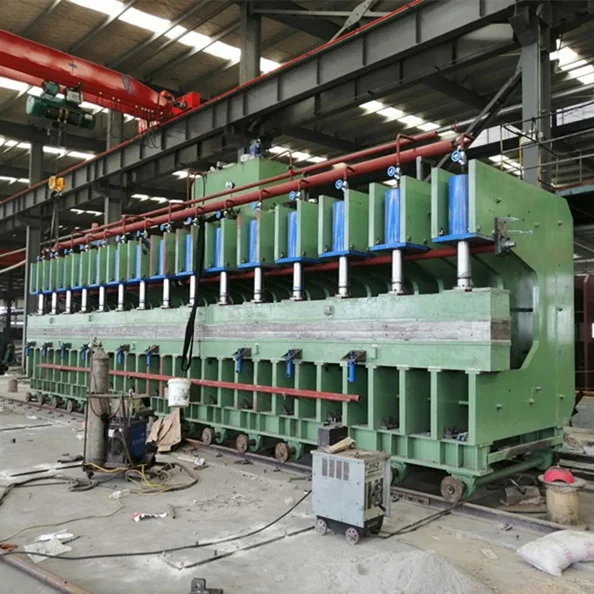

Model	XLB-1100*5700	XLB-1400*5700	XLB-1400*10000	XLB-1600*8500	XLB-1600*10000	XLB-2000*10000
Plate size	1100*5700	1400*5700	1400*10000	1600*8500	1600*10000	2000*10000
Total pressure	17.55MN	25.00MN	49.00MN	47.60MN	56.00MN	70.00MN
Plate pressure	2.8 Mpa	3.13 Mpa	3.5 Mpa	3.5 Mpa	3.5 Mpa	3.5 Mpa
Diameter of piston	500 mm	360 mm	450 mm	500 mm	450 mm	600 mm
Piston number	5	10	20	14	18	16
Piston stroke	520 mm	400 mm	300 mm	300 mm	400 mm	300 mm
Working layer	2	2	1	1	2	1
Clamping force	0.5	0.72	0.9	0.6	1.2	1.2
Drawing force	0.4	0.6	0.8	0.5	1.1	1
Steam pressure	0.63 Mpa	0.63 Mpa	0.63 Mpa	0.63 Mpa	0.63 Mpa	0.63 Mpa
Cooling pressure	0.3 Mpa	0.3 Mpa	0.3 Mpa	0.3 Mpa	0.3 Mpa	0.3 Mpa
Operation system	PLC	PLC	PLC	PLC	PLC	PLC







 We can also design and produce according to customer’s requirement. If you are interested in our products or have any questions, please contact us freely. We will try our best to meet your requirement in the first time.

Terms

1. Price: FOB Qingdao China.

2. Payment terms: 30% paid by T/T as deposit, the rest of 70% paid before delivery time.

3. Package: suitable for long distance transportation
