gird sieve set soil sampler for flakiness testing of aggregate
- Category: >>>
- Supplier: Zhuozhou Tianpeng Imp. And Exp. Trade Co. Ltd.
Share on (60416849139):
Product Overview
Description

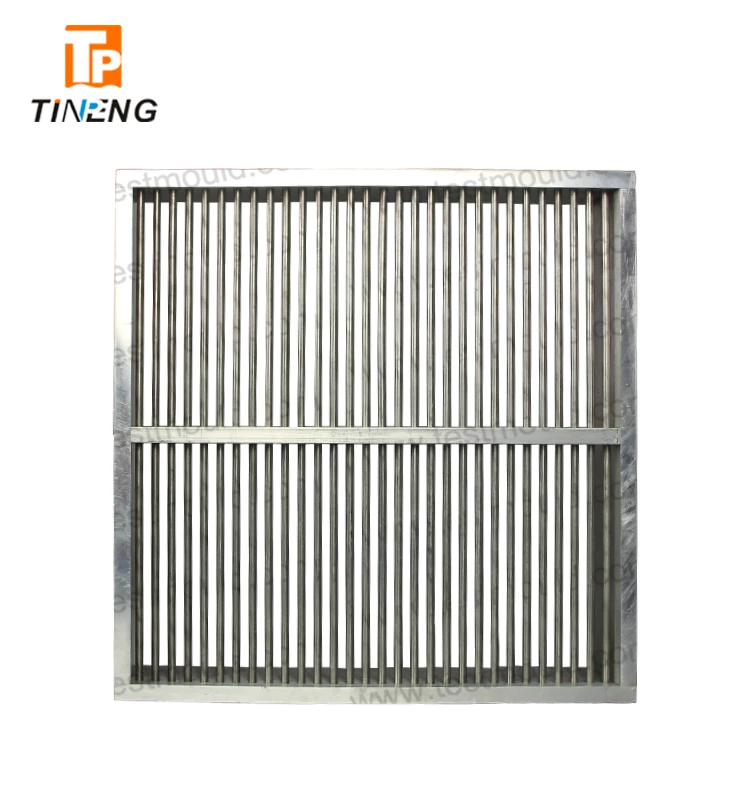

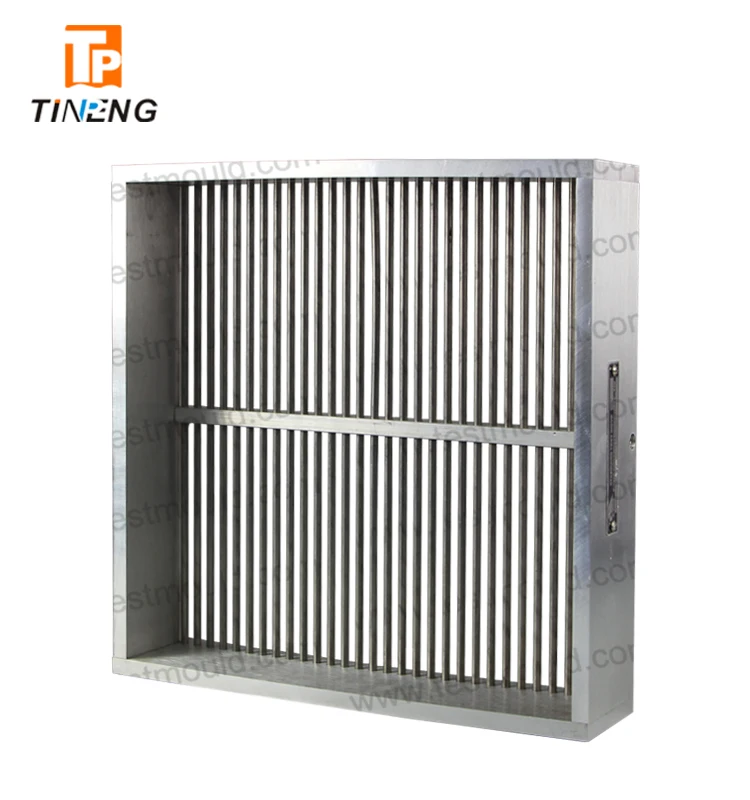

Grid sieve set
En 993-3
Grid sieve for flakiness testing of aggregates
Feature:
- 300 mm x 300 mm.
- Made entirely of stainless steel.
- Lightweight construction.
- Strong and anti-corrosive.
- Durable.
Product Description
1. Used to determine the flakiness index for the aggregate particles and determine the particle shape.
2. The sieve is made from robust frame with stainless steel bars.
3. Consists of 14 sieves with openings as the following(mm):
>>50.00-40.00-31.50-25.00-20.00-16.00-12.50-10.00-8.00-6.30-5.00-4.00-3.15-2.50
Technical Specifications:
1. Metal frame
2. stainless steel parallel bars
3. set of 14 sieves(mm)
>>50.00-40.00-31.50-25.00-20.00-16.00-12.50-10.00-8.00-6.30-5.00-4.00-3.15-2.50
| Grid Sieves | |||
| Part No. | Slot Width | Particle Size Fraction | Net Weight Unpacked |
| TPG-50.00 | 50.00mm | 100mm-80mm | 1.6kg |
| TPG-40.00 | 40.00 | 80mm-63mm | 1.7kg |
| TPG-31.50 | 31.50 | 63mm-50mm | 1.8kg |
| TPG-25.00 | 25.00 | 50mm-40mm | 1.9kg |
| TPG-20.00 | 20.00 | 40mm-31.50mm | 2.0kg |
| TPG-16.00 | 16.00 | 31.50mm-25mm | 2.1kg |
| TPG-12.50 | 12.50 | 25mm-20mm | 2.2kg |
| TPG-10.00 | 10.00 | 20mm-16mm | 2.3kg |
| TPG-8.00 | 8.00 | 16mm-12.50mm | 2.5kg |
| TPG-6.30 | 6.30 | 12.50mm-10mm | 2.6kg |
| TPG-5.00 | 5.00 | 10mm-8mm | 2.8kg |
| TPG-4.00 | 4.00 | 8mm-6.30mm | 2.9kg |
| TPG-3.15 | 3.15 | 6.30mm-5mm | 3.1kg |
| TPG-2.50 | 2.50 | 5mm-4mm | 3.2kg |
