double head threaded screw making machine
- Category: >>>
- Supplier: Nantong,Zhenhuan,Trade,Co.,Ltd.
Share on:
Product Overview
Description

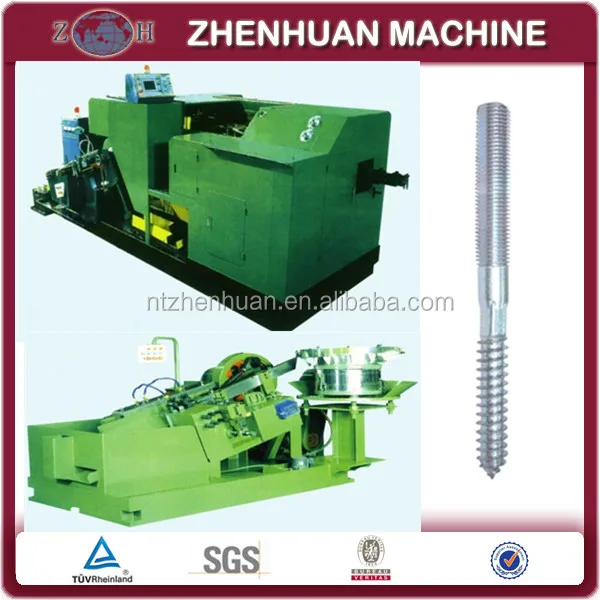

Double head threaded screw making machine
I Description of the double head threaded screw making machine
This machine is used for making no-standard parts.
IIMain technical data of the double head threaded screw making machine
Item | Data |
Machine code |
|
Forging station | 3 |
Max. diameter of cutting off | 12mm |
Max. length of cutting off | 180mm |
Kick out length | Max. 175mm |
P.K.O length | Max 30mm |
Cutting die size | 40 x 80mm |
Main die hole | 80 x 135mm |
Dies pitch | 90mm |
Punch hole | 50 x 130mm |
Ram stroke | 250mm |
Forging power | 85mm |
Suitable of product size | M10 |
Max. length of products | 150mm |
Output | 100-120pcs/min |
Main motor power | 22kW |
Weight of machine | About 13T |

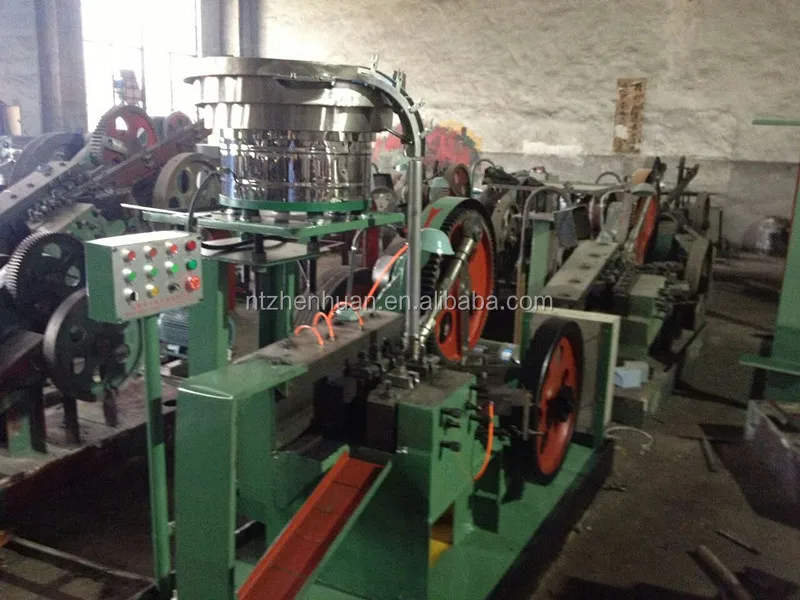

Double Head Thread Rolling Machine
I Description of the machine
This machine is specialized for clamp pins with two thread rolling heads.
II Main technical data
Item | Data |
Suitable screw diameter | 8-16mm |
Producing speed | About 45 pcs/min |
Main driving power | 7.5kW |
Machine dimension | 2500 x 1000 x 1500mm |
Weight of machine | 1500kg |
III Photos of double head threaded screw making machine
Cold heading machine
Automatic thread rolling machine for two type thread
Company Information
We are established on 2004, more than 14 years experiences on providing double head threaded screw making machine solutions. We are certified by SGS, TUV and BV on our credit and profession.
