CDMA2000 1x, CDMA2000 EV-DO Rev 0, CDMA2000 EV-DO Rev A
Supports BC0 (800MHz band), BC1 (1900MHz band)
Payment
Certification
EMV L1 , L2 , PCI certified
Magcard
Conforms to the ISO7811, and supports triple track (tracks 1/2/3), bi-directional
Chip Card
Supports ISO7816 standard
Contactless Cards(RFID)
Supports 14443A / 14443B approved;
Supports 10MHz~20MHz frequency, and reading access time less than 300 milliseconds
PSAM
Conforms to ISO7816 standard x 2
Printer
58mm printing paper, 203dpi / 8dot / mm;
Printing speed: 50~70mm/s, and supports barcode printing
30mm paper roll
Others
Prompting mode
Green, red and blue LED, vibration, speaker
Camera
5MP camera with LED flash and auto-focus function
GPS
GPS,Supports A-GPS,GNSS
Power
Main Battery
Rechargeable 7.4V, 2800 mAh lithium polymer battery pack (Typical Operation time ≥8 hours)
RTC Battery
Real time clock battery
User Environment
Operating Temperature
-10℃ ~ 50℃
Storage Temperature
-20℃ ~ 60℃
Humidity
5% ~ 95% (non condensing)
Drop Durability
1.2m
Peripherals and Accessories
Expansion

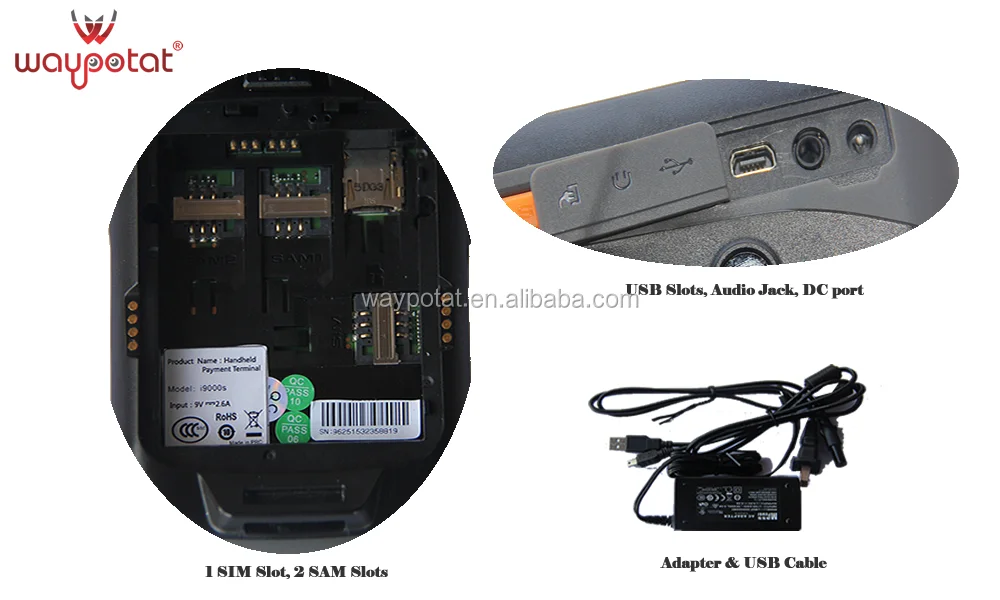

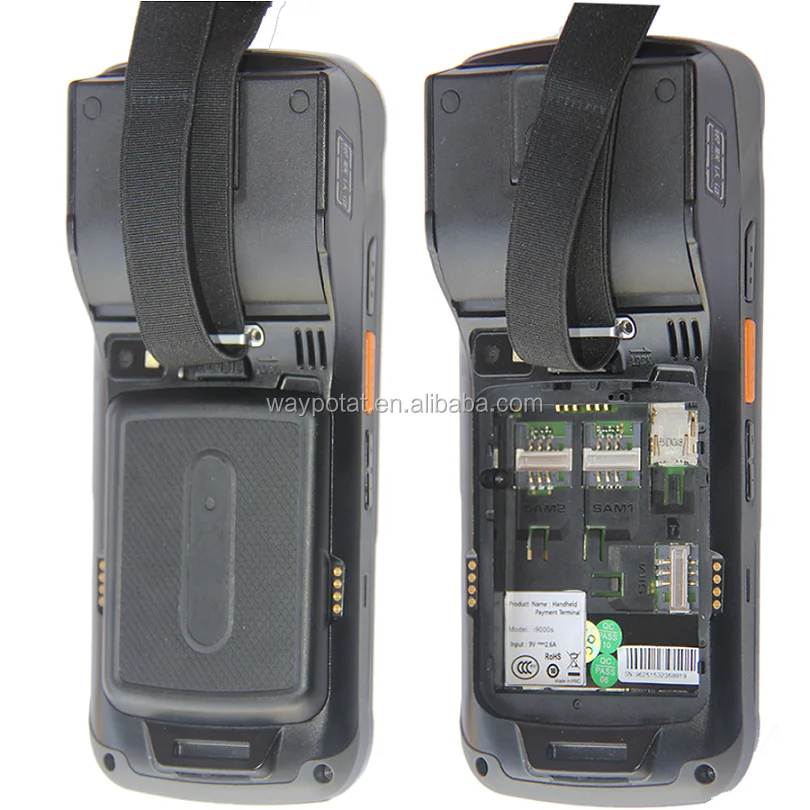

Micro SD/TF x 1(a maximum of 32 GB), SIM x 1, SAM x 2
Interfaces
Mini USB x 1, POGO PIN x 1, 3.5mm Audio Jack x 1
Regulatory
Product Certification
CCC, CE
Warranty
12 months (except the accessories)
Applications

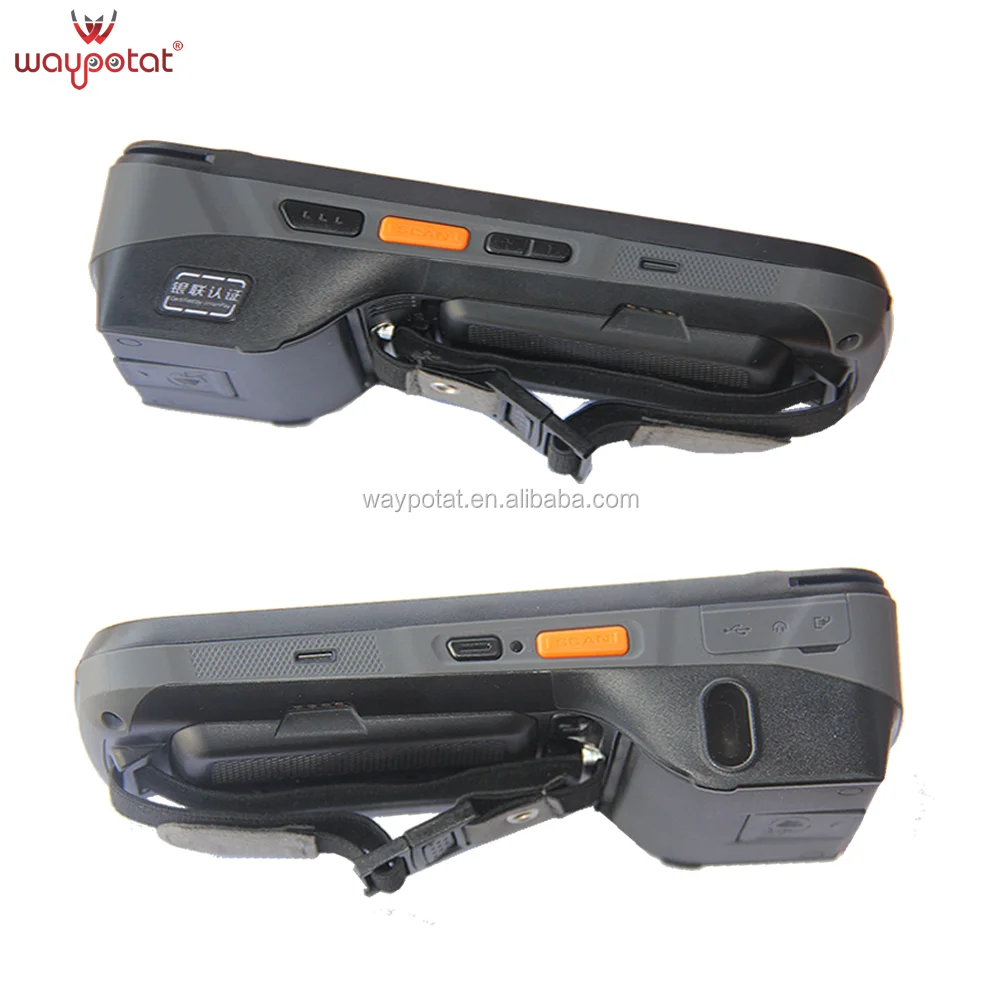

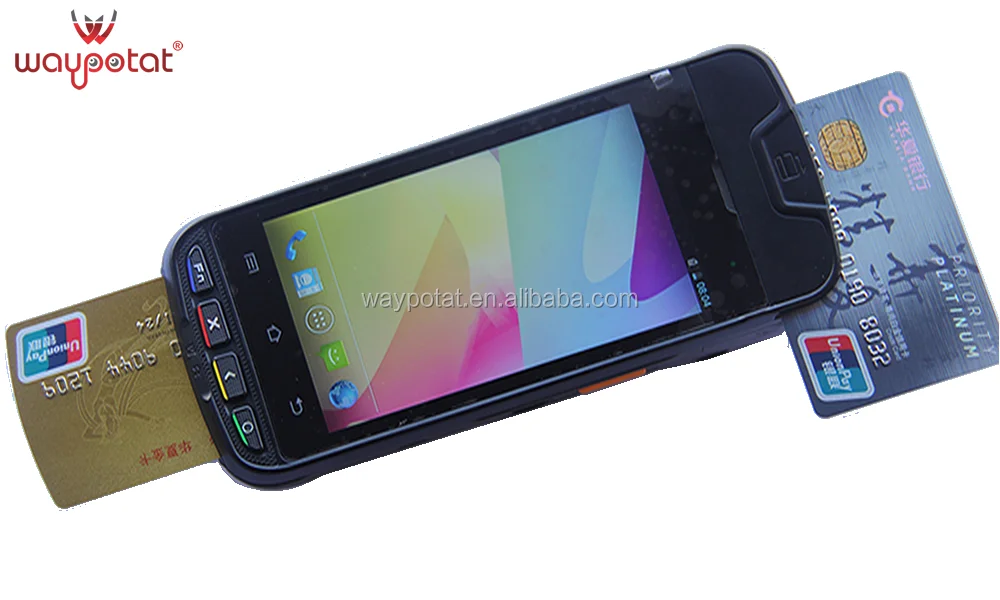

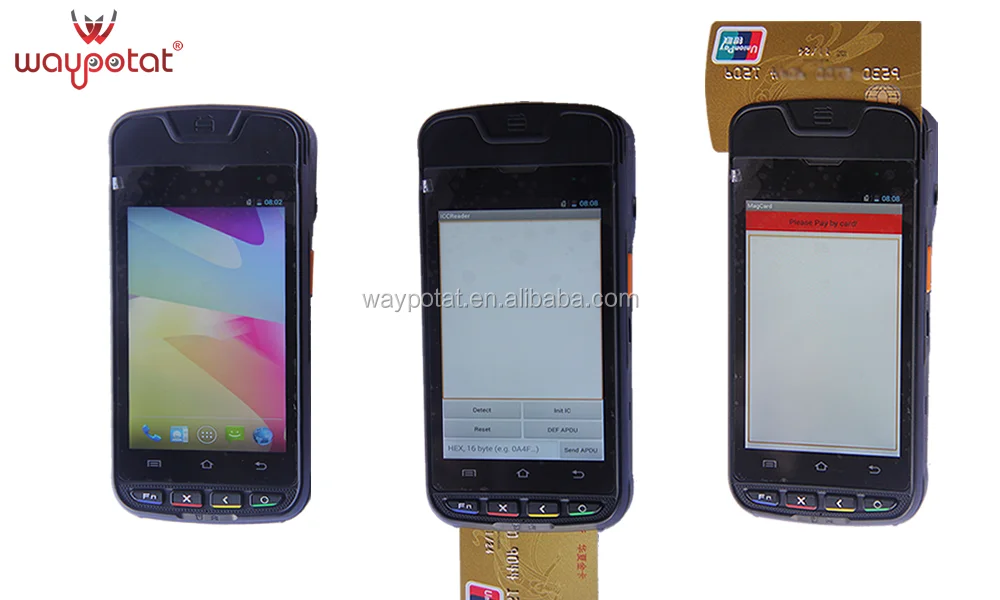

Smart POS Payment Terminal i9000s
In order to meet the needs of e-commerce,financial insurance,commercial retail,O2O applications,Logistics Express and other industry applications,Waypotat has developed the Smart POS Payment Terminal i9000s. Waypotat Smart POS Payment Terminal i9000s combines the functions of financial POS and big screen PDA,which maintains a high degree of integration and portability.It can be used to provide powerful calculation,safe payment,fast data collection and convenient information access.
Company Information
WAYPOTAT Industry Inc. was established in Dec. 2012 by Hongkong Way Po Tat Technology Limited with a registered capital of one million RMB. Our focus is on research and development ("R&D"), manufacturing, sales and after sales support of industrial mobile devices. Our products and solutions are widely used in the logistics, retail, manufacturing, medical, and government sectors.
With over 15% of our annual revenue reinvested into R&D, WAYPOTAT has a professional technical team. Our products and solutions have been successfully deployed in mega projects such as logistic ,parking and warehousing system.
When we first introduced our locally designed Xsmart12 and the PT396 series of wireless mobile intelligent client, we gained recognition as the pioneer and leader in the mobile solutions for the logistics industry in China. Today, we have added over 10 models of mobile devices to our portfolio, which include the mobile payment client, the handheld data terminal integrated with RFID reader/writer, 1D/2D barcode scanner & wireless communications, the industrial tablet computer and various handheld barcode scanners. We also complement our hardware devices with our complete client-server software systems to offer a comprehensive solution to our clients.
Our manufacturing facility is in ShenZhen, and we have sales and support centers in Singapore, Newzealand, and Brazil. Using WAYPOTAT as our global marketing gateway, we have over 150 distributors, system integrators, and business partners working closely with us to deliver our products and solutions in over 40 countries in the world.
As the most prominent maker of industrial mobile devices in China, WAYPOTAT always begins at the client's point of view, providing high quality products and value added services to our clients.
