CCTV Security Camera SONY SNC VB635 Box type 1080p Camera SNC EB630B/SNC EB600B SNC EB520
- Category: >>>
- Supplier: Shenzhen SafeEye Technology Co. Ltd.
Share on (60417103934):
Product Overview
Description
Product Description

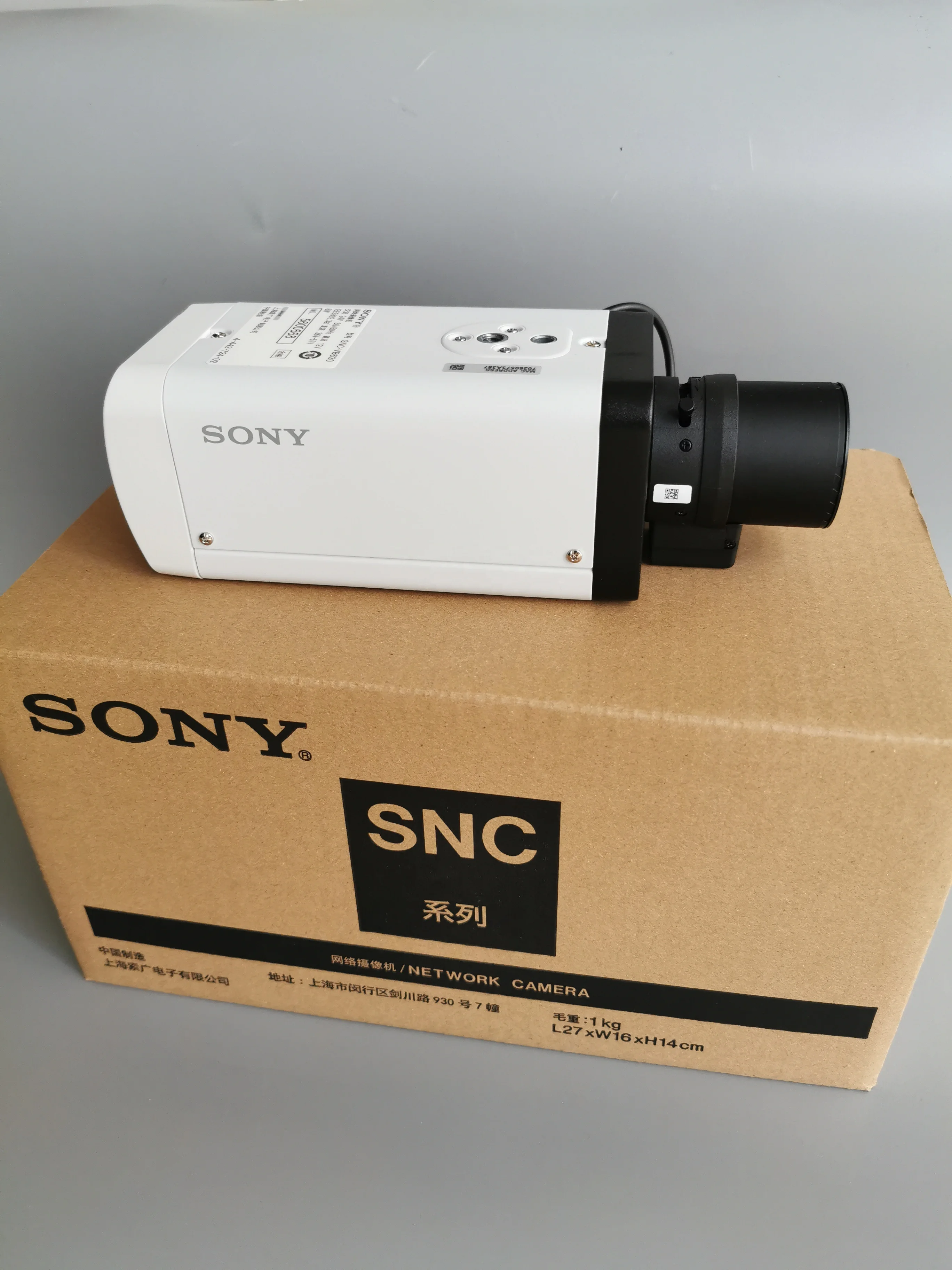

SONY CCTV Security Camera SONY SNC-VB635 Box-type 1080p Camera SNC-EB630B/SNC-EB600B SNC-EB520
Sprcifications:
Highly sensitive box camera with the half-inch Exmor CMOS sensor powered by IPELA ENGINE EX, with Full HD image quality, advanced analytics and high frame rate recording.
The SNC-VB635 is a high performance versatile fixed network camera that’s ideal for a wide range of security and surveillance applications – from city centres, airports, traffic and transport systems to government and utilities.
This high-sensitivity box camera design is supplied without a lens, giving the freedom to select from a wide range of lenses to suit virtually any surveillance needs.
Full HD picture quality is assured by the sensitive, high-resolution Exmor™ CMOS sensor that’s teamed with Sony’s latest-generation IPELA ENGINE EX signal processing system. Every scene looks clearer, sharper and more detailed – even in challenging low-light conditions or with harsh backlighting where other cameras struggle. Extra intelligence is added by DEPA Advanced Intelligent Video Analytics that can intelligently trigger an alarm based on user-defined rules.
Please be aware that the features/specifications can differ from country to country:
Technical Specifications:
| Image Sensor | 1/1.9-type progressive scan Exmor CMOS sensor |
| Number of Effective Pixels | Approx. 2.38 Megapixels |
| Signal System | NTSC/PAL (switchable) |
| Sync System | Internal synchronization |
| Minimum Illumination (50 IRE) | Color: 0.04 lx (F1.2, View-DR Off,VE Off, AGC On, 1/30 s, 30 fps) |
| B/W: 0.03 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps) | |
| Minimum Illumination (30 IRE) | Color: 0.02 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps) |
| B/W: 0.01 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps) | |
| Dynamic Range | Equivalent to 90 dB with View-DR technology |
| S/N Ratio (Gain 0 dB) | More than 50 dB |
| Gain | Auto |
| Shutter Speed | 1/1 s to 1/10,000 s |
| Exposure Control | Exposure compensation, Shutter speed, Iris |
| White Balance | ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual |
| Lens | C-mount varifocal lens (option) |
| Easy Focus for Setup | Yes |
| Camera Features | |
| Day/Night | True D/N |
| Day/Night linked with Easy Focus | Yes |
| Image rotate | 90°, 270° |
| Mirroring | Yes |
| Wide-D | View-DR |
| Tone Correction | Visibility Enhancer |
| Noise Reduction | XDNR |
| Image Stabilizer | Electronic |
| Picture Mode | Yes |
| Privacy Masking (number) | 20 |
| Privacy Masking (shape) | Quadrangle formed by any four corner points |
| Privacy Masking (color/effect) | Opaque 14 colors (Black, White, Red, Green, Blue, Cyan, Yellow, Magenta, Gray (6 scales)), Mosaic |
| Edge Storage | Yes |
| Voice Alert | Yes |
| Superimpose Number | 3 independent positions for characters (Codec, Date & Time, Event, Text (Max. 64 characters)), 1 independent position for logo marks |
| Superimpose Language | English |
| Menu Language | English, Japanese, Chinese (simplified), Chinese (traditional), French, Spanish, German, Italian, Korean, Portuguese, Russian, Arabic, Hindi, Vietnamese, Thai |
| Smartphone viewer | Yes |
| Video | |
| Resolution | 1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 (H.264, JPEG) |
| Compression Format | H.264 (High/Main/Baseline Profile), JPEG |
| Maximum Frame Rate | H.264: 60 fps (1920 x 1080) |
| JPEG: 60 fps (1280 x 720) | |
| Bitrate Control Mode | CBR/VBR (selectable) |
| Range of Bit Rate Setting | 64 Kbps to 32 Mbps |
| Solid PTZ | Yes |
| Adaptive Rate Control | H.264 |
| Bandwidth Control | JPEG |
| Multi streaming Capability | Yes (3) |
| Number of Clients | 20 |
| Network | |
| Protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP*, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, SMTP over HTTP, IPv6, HTTPS, FTP (client), SNMP (v1, v2c, v3), SSL |
| *SSM (Source Specific Multicast) is supported. | |
| Number of IP Address/Mac ADDRESS | 1 |
| QoS | DSCP |
| Multicast Streaming Support | Yes |
| ONVIF Conformance | Profile S |
| Authentication | IEEE802.1X |
| General | |
| Power Requirements | IEEE 802.3af compliant (PoE system), DC 12 V ± 10%, AC 24 V ± 20% |
| Power Consumption | 6.0 W max. |
| Operating Temperature | -10℃ to +60℃ |
| 14°F to 140°F | |
| Cold Start Temperature | 0℃ to +60℃ |
| 32°F to 140°F | |
| Storage Temperature | -20 ℃ to + 60 ℃ |
| -4 °F to + 140 °F | |
| Operating Humidity | 20 % to 80 % |
| Storage Humidity | 20 % to 95 % |
| Dimensions *2 | 79 mm x 74 mm x 145 mm (without lens) |
| 3 1/8 inches x 3 inches x 5 3/4 inches (without lens) |
Our Services
- The product is based on Ex-works for 1-50pcs, FCA shenzhen for 50-500pcs, FOB shenzhen for above 500pcs.
- Payment term:100% payment in advance before shIpment (T/T, Western Union ,paypal,cash or any other means at your convenience)
- Delivery Time:sample order: 1-3 working day, Normal order:longer than 3 working days according to the order quanity
- All the above products have CE ,FCC and ROHS certificates
- Welcome OEM & ODM order,MOQ for OEM is 50pcs/model
- Power adapter isn't included in above prices, it's optional
- Price Validity: 30 days from issuing date.
- Warranty: 2 years after receiving goods,unlimited lifetime Technique support.
- If quanity more than 100pcs one model, we will free supply some camera parts for preapre exchange
FAQ
What the Payment terms:
T/T,Western Union,VISA,Mastercard,Escrow, paypal and so on.
1. We can arrange to produce in advance once we get the bank slip of deposit.
2. Order value less than 20,000USD, 100% payment before production;
3. Order value more than 20,000USD, 30% deposit. 100% paid before shipment.
Q.May I print our company logo on package box and products?
A:Of course,buyer logo is welcome in our company.We have one production line for printing buyer logo.
Q.Do you provide warranty for your products?
A:Yes,we promise two years warranty for all our products.
Q.What is Minimum Order Quantity?
A:Min Order Quantity is 10pcs,but sample order is welcome.
Q: Can We to be your Agency in our Country?
A: Of Course, welcome to be SafeEye Security Products agency in your country, we will try best support for you.
