Low Price 9 15MM Thickness Fireproof Calcium Silicate Board For Ceiling

Product Overview

Description

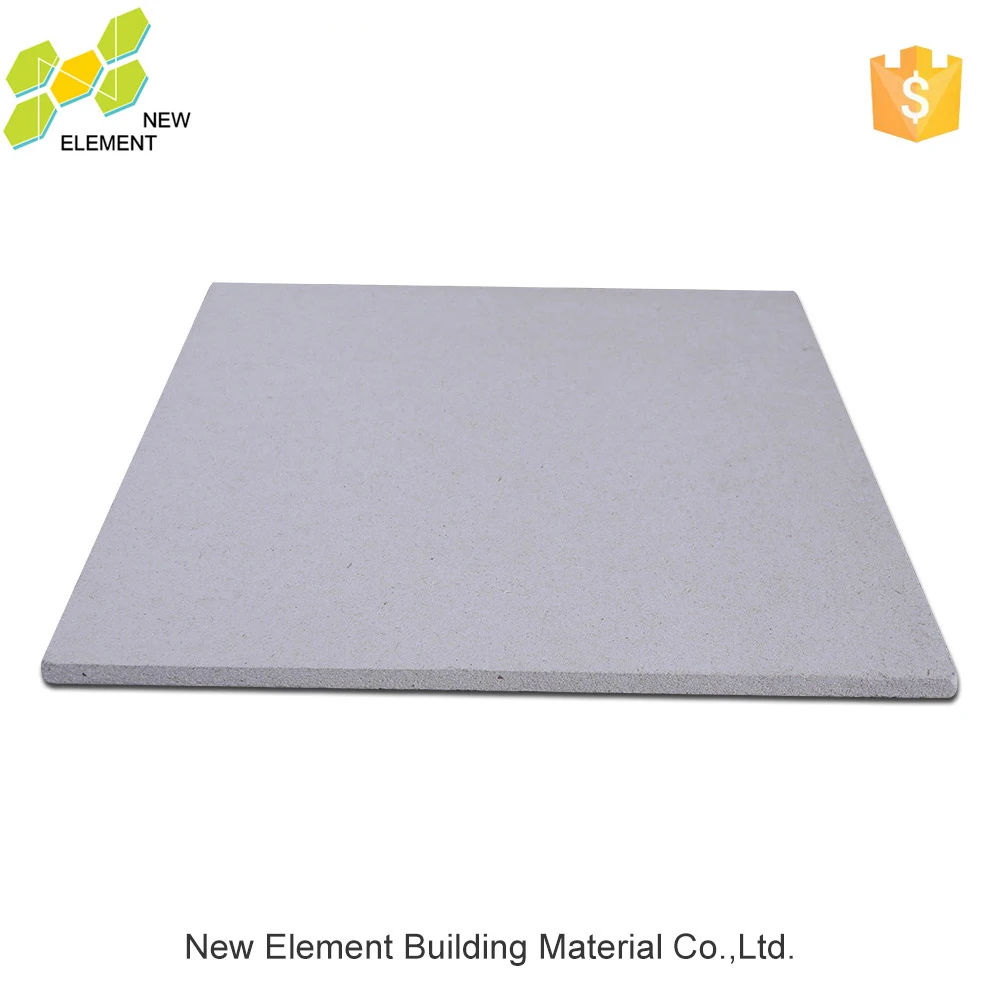

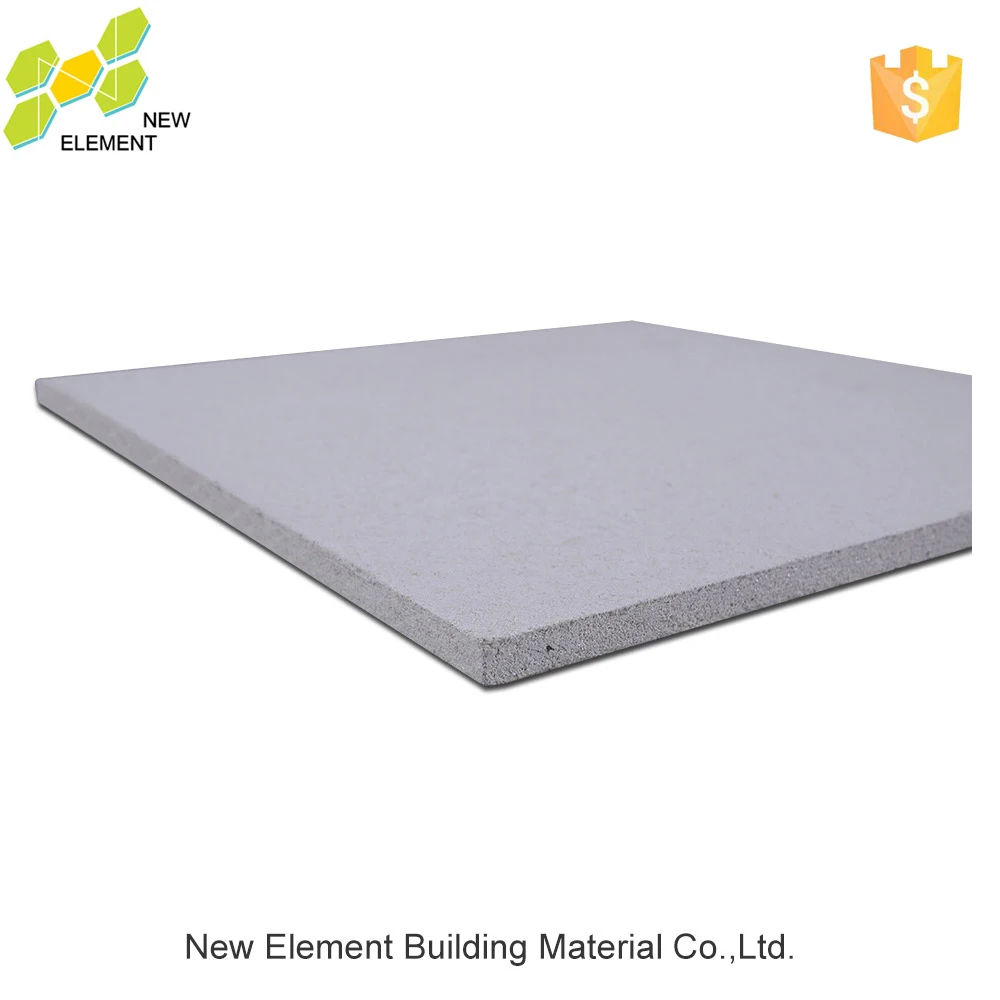

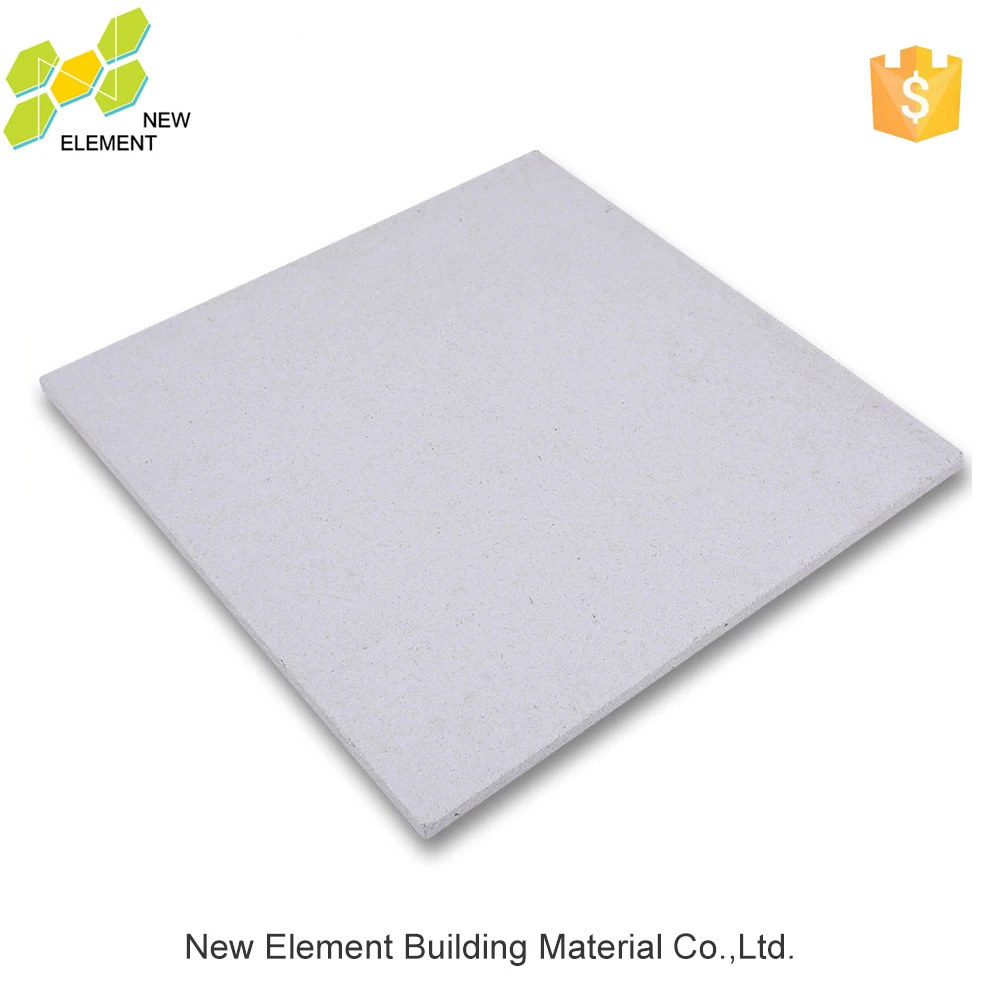

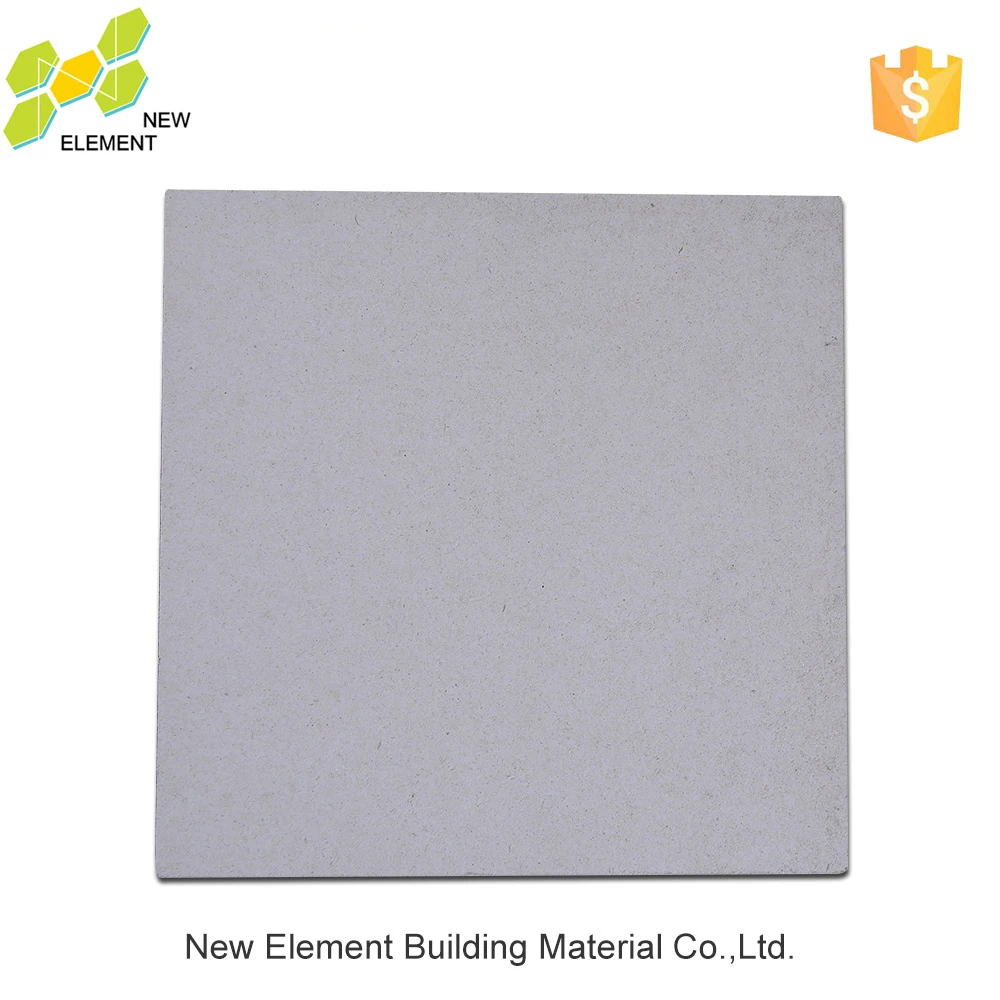

Low Price 9-15MM Thickness Fireproof Calcium Silicate Board For Ceiling

Product Feature

1.100% asbestos free

2.A1 class High fire rating:4 hours

3.High fireproof temperature:up to 1200℃

4.Fireproof material:pure quartz,quit lime,

portland cement, cellulose,mineral additives

5.Low density:≤0.95g/cm3

6.Easy to install & fix

7.Excellent impact resistant



Thickness	Width	Length
9,12,15,18,20,24mm	1220mm	2440,3050mm
REMARK: We can also supply other specification as the client’s specially requirement

2.Physical properties

The following data are the average tested figures during manufacturing

Item			Index	Unit
Density			≤0.95	g/cm3
Thermal Conductivity			≤0.20	W/(m·k)
Water Contain			≤10	%
Moisture Movement			≤0.25	%
Non-combustibility			GB 8624 Class A, BS 476 part 4,6 and 7		/
Bending Strength	Oven dry	Cross	≥7.0		Mpa
		Parallel	≥5.0		Mpa

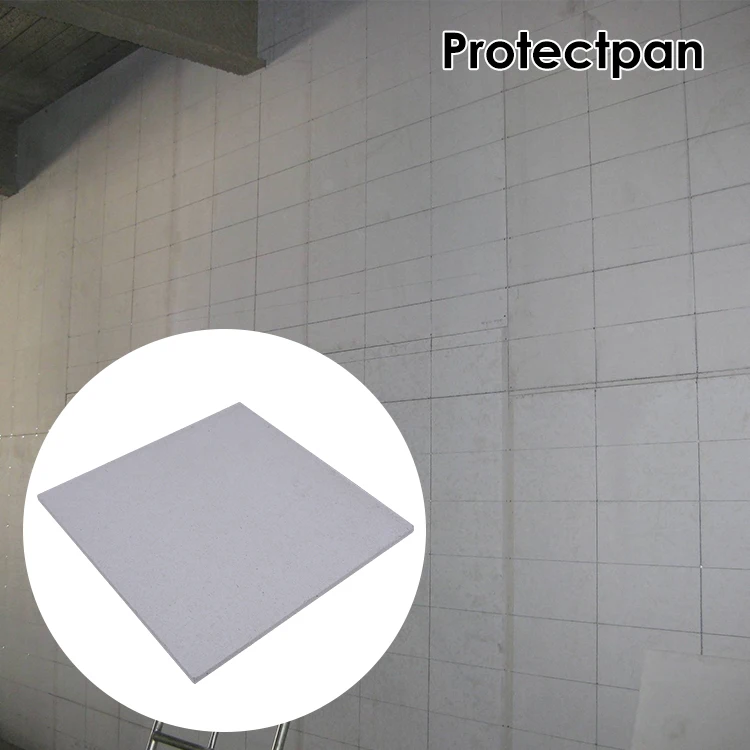

China National Convention Center (Material: fireproof protectpan, coverage: 12000  square meter)



1.Electronic Machine Room /Cable Fire Protection Wrapping

2.Steel Strip Ventilation Ducting Fire Protection Wrapping

3.Self-support Fire Rating Ventilation Ducting

4.Fire Rating Ceiling

5.Steel Column Fire Protection Wrapping

6.Steel Beam Fire Proctection Wrapping

7.Glass Cladding Fire Protection Wall

8.Fire Rating Vertical Wall

9.Fire Rating Wall

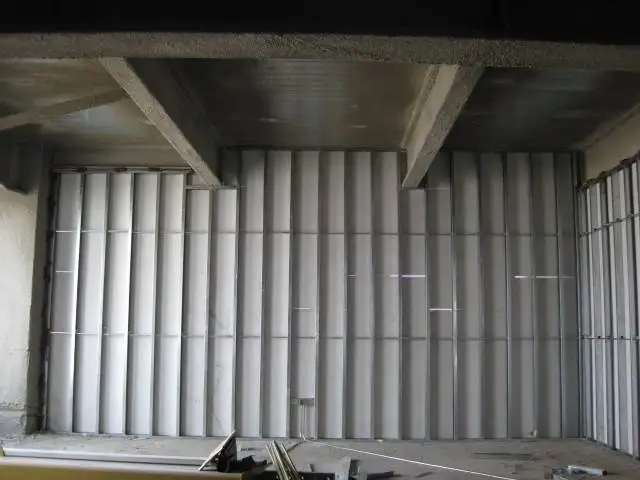

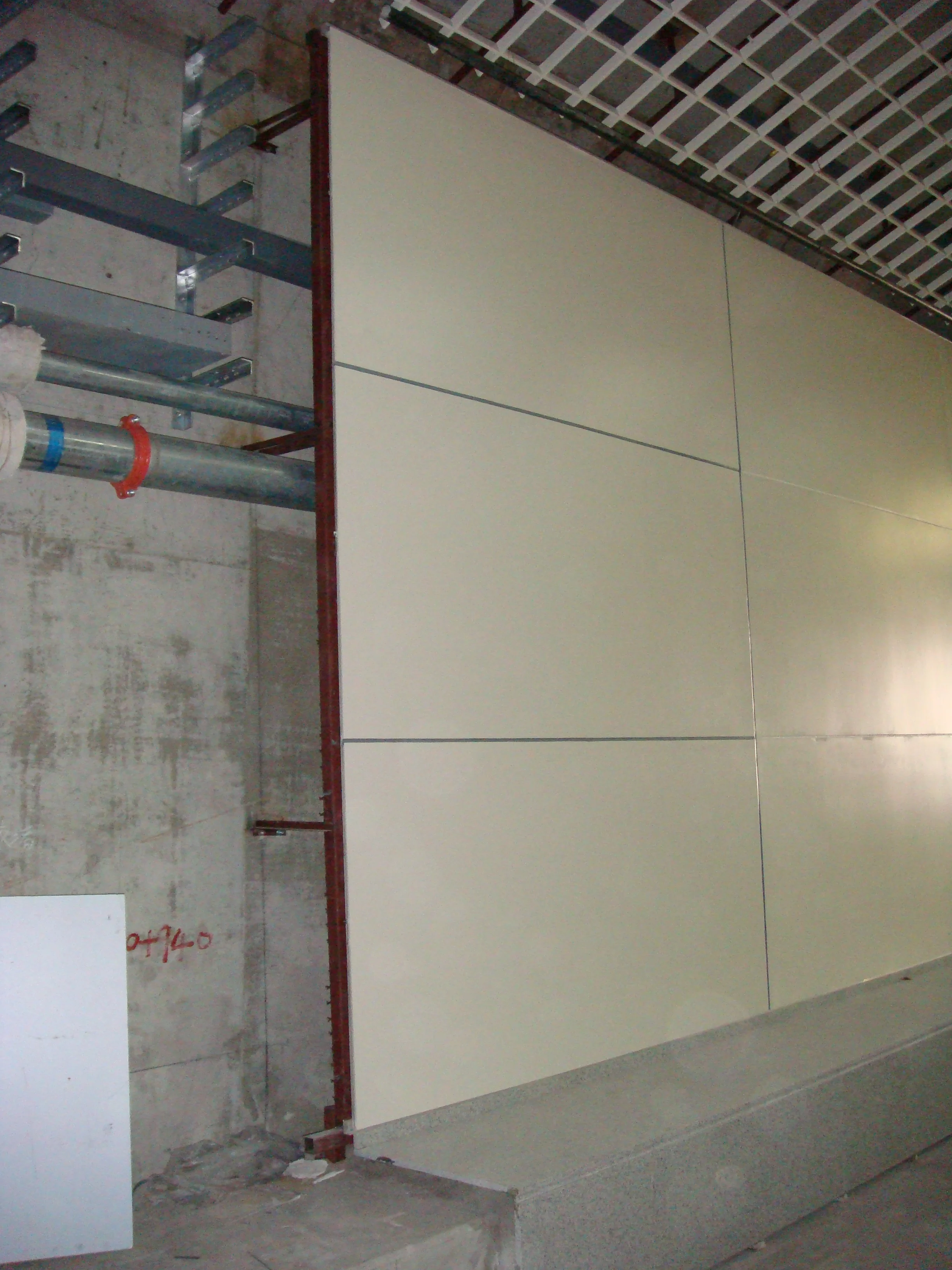

Installation systerm

1.Guangdong New Element Building Material Co.,Ltd was estabilished in 2003.

   It has 3 highly mechanized pulp flowing production line.

2.Annual output for Non-Asbestos fiber reinforced calcium silicate board / fiber cement board are

  more than 10 million square meters.

3.The unique manufacturer which produce low, medium and high density products in China.

4.CE,BS,AS,ISO9001,14001, China Environmental Labeling Product Certificate.

5.Have our own R&D team.

6.Protectpan in Tianjin tunnel poject, Cladboard in National stadium olympic project, and Starpan in

   Guangzhou TV tower project that were awarded “New Century, New Architecture, New Material -

   China Building Application & Innovation”
