USUN brand Model: JG40 CO2 pneumatic driven liquid co2 booster pump for supercrital extraction
- Category: >>>
- Supplier: DongGuan Usun Fluid Control Equipment Co Ltd
Share on (60417237604):
Product Overview
Description
WHY CHOOSE OUR PUMP?
This brochure introduces pneumatic driven air /Hydraulic boosters and Complete booster system.
These air liquid pump offer a flexible and efficient source for delivering high pressure liquids
1. Costing savings: An alternative to the purchase of High Pressure compressor ,our air driven liquid are
Compact and Require no electrical or mechnical drive connections ,Are powered by the same air that they amplify
and can mounted in any position
2. High Flow rates at High pressure: When High flow rates at high pressure are needed ,the Air Liquid pump
can charge a receiver to an even higher pressure level ,thus storing a volume of air aviable for rapid release at a constant
pressure through a pressure reducing valve
3.Safety Operation : Safe Pneumatic Operation-No Heat, Flame or Spark Rish and No need electricity .

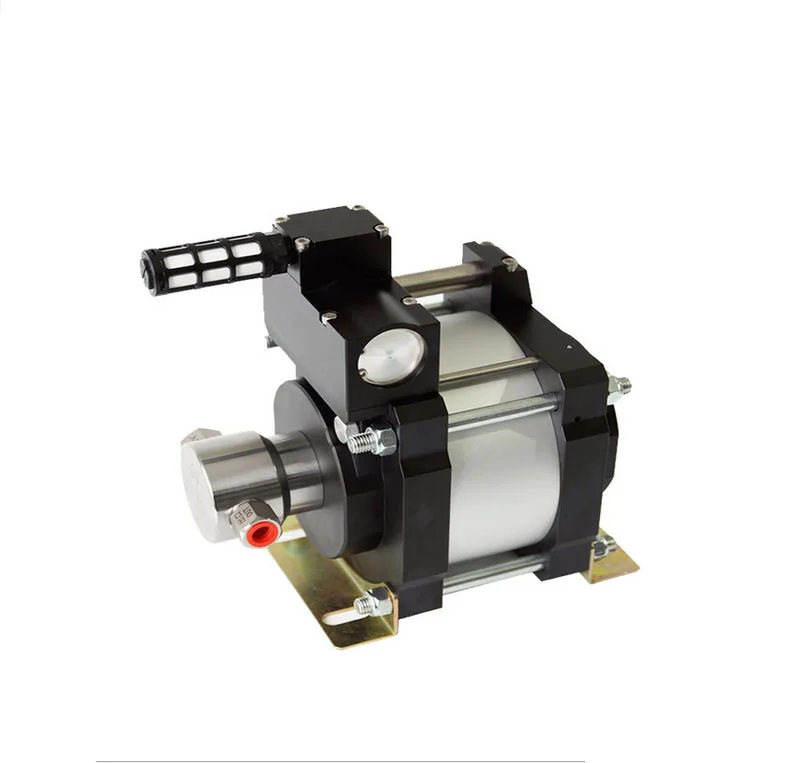

Usun Model:JG40-CO2 40:1 pressure ratio 320 Bar output pneumatic driven liquid Co2 booster pump
It Can be used for pressure testing ,cylinder positiong for valves ,super critical fluid extraction for food
preservation .Chemical metering /Injection ,hydrostatic testing for liquid pump .
Product Description
| Item number | JG40-CO2 40:1 pressure ratio 320 Bar output pneumatic driven liquid Co2 booster pump for charging co2 tanks |  |
Air driven Pressure | 3-8 Bar | |
| Dealing with air source | G1/2 ''size air regulator | |
| lubrication | Non-lubricated | |
| Theory of operation | The Air liquid pump consist of a large reciprcating air driven piston directly and coupled by a connecting rod to small area Air piston.The Air piston operates in a high pressure air barrel section .Each barrel end contains high pressure inlet and outlet check valves | |
| Air consumption | 0.5-0.6M3/Min | |
| Installation | Any |
Configuration
Product features
1. Realiable ,Easy to Maintain ,compact and robust
2. No heat,flame or spark risk
3. Infinitely variable output pressure and flow capability
4. Air driven Models do not require electrical connection ,easy to apply automatic controls
5. Wide range of models and controls and options
6.Seals system designed for long working life,No airline lubricated required
7. Wide range of standard and customized liquid pump systems

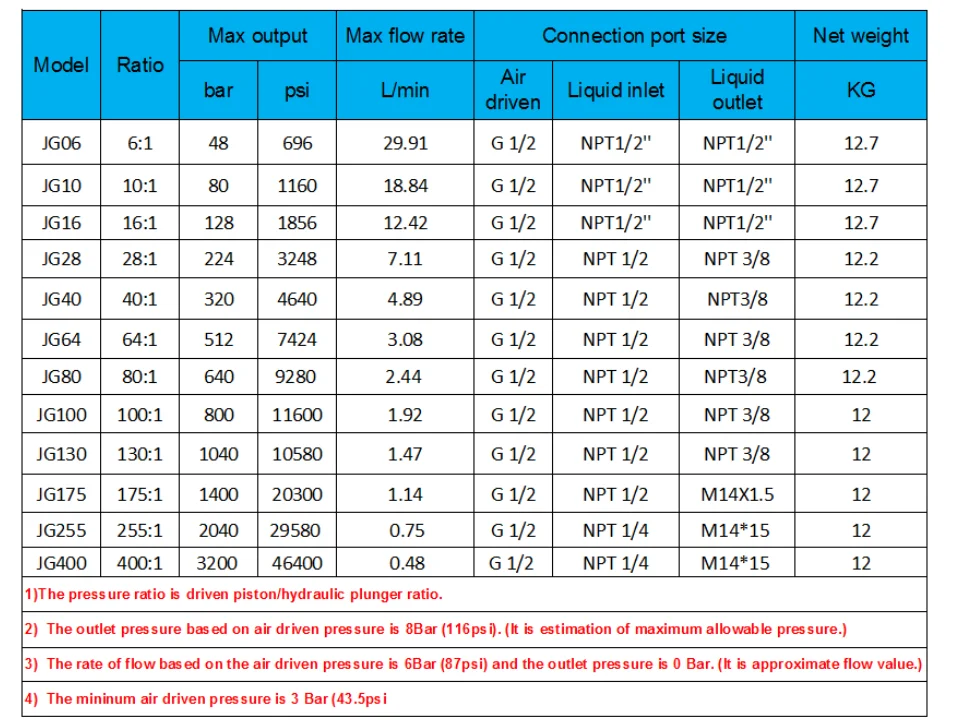

Main technical parameter
* The pressure ratio is driven piston/hydraulic plunger ratio.
* The outlet pressure based on air driven pressure is 8Bar (116psi). (It is estimation of maximum allowable pressure.)
* The rate of flow based on the air driven pressure is 6Bar (87psi) and the outlet pressure is 0 Bar. (It is approximate flow value.)
* The mininum air driven pressure is 3 Bar (43.5psi).
* The outlet pressure based on air driven pressure is 8Bar (116psi). (It is estimation of maximum allowable pressure.)
* The rate of flow based on the air driven pressure is 6Bar (87psi) and the outlet pressure is 0 Bar. (It is approximate flow value.)
* The mininum air driven pressure is 3 Bar (43.5psi).
Product overview drawing
Product diagram
Packaging & Shipping
Shipping
| By sea | Cheapest but longest option 18~30 days by sea delivery for mass shipment |
| By air | More expensive than sea delivery, But cheaper than express 5~7 days by air to airport. |
| By express | door to door service,the fastest and most expensive one, 3~5 day for DHL /Fedex /UPS/TNT express |
Company Information
Dongguan Usun Fluid Equipment Co Ltd Ltd, its a machinery factory, was founded in DongGuan,GuangDong
Province in 2007 which Specializing in making Hydro-Pneumatic product such as Air driven gas booster
,hydro-pneumatic pump ,air hydro pump ,High pressure stainless needle valve ,high pressure complete
gas/hydraulic booster system for many hydro-pneumatic machinery and automatical
Having worked in numerous industries for years, our various experiences benefit us by knowing how to
provide customers with the most efficient solutions.
Having worked in numerous industries for years, our various experiences benefit us by knowing how to
provide customers with the most efficient solutions.We have also already exported for many countries
for our High pressure pump and high pressure system to USA ,North America ,Europe ,Middle east
and south America and so on .
FAQ
How do I select a correct model
1. Free to inform us that your Inlet gas Pressure range
2. Kindly advise your needed output pressure for connecting machine
3. Should be kindly informed the Gas flow at the rated pressure for calculating the suitable pressure
ratio base on customer"s requirement
4.Feel kindly advise us the avaible air driven pressure
5.Then we can suggest a suitable model base on above Technical data
What is the warranty for product
1.We have 1 Year Warranty for product and can send some easy wear out repairing parts for fixing
the pump such as important seal kits
2.Customer should cover the to-and fro shipping cost for repairing if goods is out of warranty peroid
