SONY CCTV Security Camera SNC EB632R EB602R SNC EB520 SNC EB630B EB600B Bullet Camera Powered by IPELA
- Category: >>>
- Supplier: Shenzhen SafeEye Technology Co. Ltd.
Share on (60417262224):
Product Overview
Description
Product Description

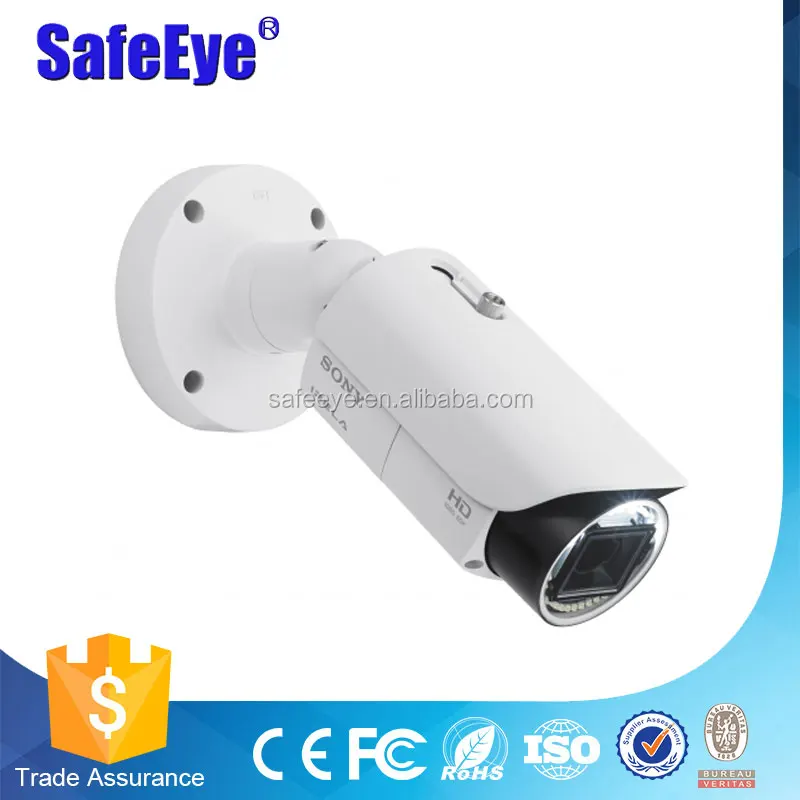

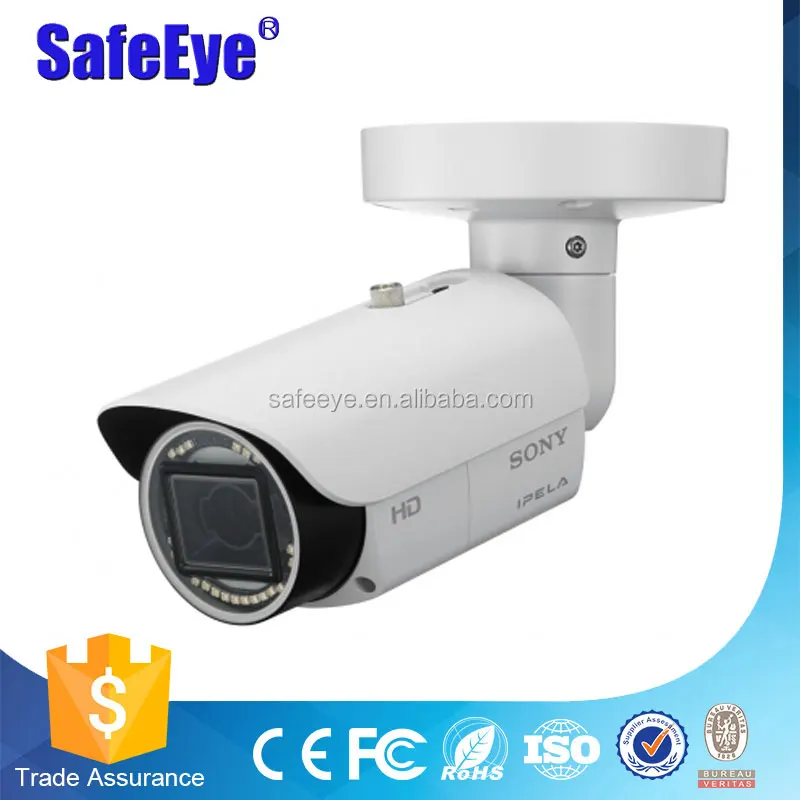

SONY CCTV Security Camera SNC-EB632R EB602R SNC-EB520 SNC-EB630B EB600B Bullet Camera Powered by IPELA
Sprcifications:
Weather-resistant ‘bullet type’ fixed camera with IPELA ENGINE EX™ processing for excellent Full HD quality and high sensitivity, plus image stabilisation and Advanced IR technology
The SNC-EB632R is a weather-resistant, easy to install ‘bullet-type’ fixed network camera. It’s ideal for a wide range of outdoor security and surveillance tasks, from city centres, transport systems and retail centres to schools and colleges.
Sony’s acclaimed Exmor CMOS sensor captures crisp Full HD pictures, while industry-leading sensitivity delivers clear, low-noise images in challenging low light conditions.
The award-winning IPELA ENGINE EX platform uses unique signal processing to boost image quality in a wide range of operating environments, while state-of-the-art video analytics technologies offer more efficient security operations based on user-defined rules.
View-DR expands dynamic range to assist with identifying human faces and other objects in high-contrast and strongly backlit scenes, like sun-drenched offices or car park entrances. Visibility Enhancer (VE) dynamically fine-tunes image brightness and colours on a pixel-by-pixel basis, while XDNR (eXcellent Dynamic Noise Reduction) dramatically reduces noise, minimising motion blur in low light conditions. DEPA Advanced Intelligent Video Analytics to trigger an alarm based on user-defined rules.
The camera can see in conditions of complete darkness, with built-in IR (infrared) illumination that’s coupled with Advanced IR technology to capture near and far-away objects without overexposure.
The image stabiliser keeps images stable for crisper footage, even when the camera is subject to vibration on a mounting pole or bracket.
Designed for round-the-clock outdoor use, the unitised camera can operate in extreme temperatures from -30°C to +50°C and is IP66 rated for resistance to water and dust. The unique mounting arm simplifies installation with flexible two-axis adjustment of viewing angle. For extra convenience, a built-in sunshade helps cut glare for improved picture quality and contrast on brightly-lit days.
Please be aware that the features/specifications can differ from country to country:
Technical Specifications:
| Image Sensor | 1/2.9-type progressive scan Exmor CMOS sensor |
| Number of Effective Pixels | Approx. 2.14 Megapixels |
| Signal System | NTSC/PAL (switchable) |
| Sync System | Internal synchronization |
| Minimum Illumination (50 IRE) | Color: 0.1 lx (F1.2, View-DR Off,VE Off, AGC On, 1/30 s, 30 fps) |
| B/W: 0 lx (IR illuminator On) | |
| Minimum Illumination (30 IRE) | Color: 0.06 lx (F1.2, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps) |
| B/W: 0 lx (IR illuminator On) | |
| Dynamic Range | Equivalent to 90 dB with View-DR technology |
| S/N Ratio (Gain 0 dB) | More than 50 dB |
| Gain | Auto |
| Shutter Speed | 1/1 s to 1/10,000 s |
| Exposure Control | Exposure compensation, Shutter speed, Iris |
| White Balance | ATW, ATW-PRO, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual, Indoor, Outdoor |
| Lens | Built-in varifocal lens |
| Zoom Ratio | Optical zoom 3x |
| Digital zoom 4x | |
| Total zoom 12x | |
| Horizontal Viewing Angle | 105.3° to 35.6° |
| Vertical Viewing Angle | 56.9° to 20.1° |
| Focal Length | f = 3.0 mm to 9.0 mm |
| F-Number | F1.2 (Wide) to F2.1 (Tele) |
| Minimum Object Distance | 300 mm |
| IR Illuminator | Yes |
| Wave length (typical): 850 nm , IR LED: 20 pieces) | |
| IR Working Distance | 30 m (50 IRE) |
| 98 ft. (50 IRE) | |
| Video | |
| Resolution | 1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184 (H.264, JPEG) |
| Compression Format | H.264 (High/Main/Baseline Profile), JPEG |
| Maximum Frame Rate | H.264: 30 fps (1920 x 1080) |
| JPEG: 30 fps (1920 x 1080) | |
| Bitrate Control Mode | CBR/VBR (selectable) |
| Range of Bit Rate Setting | 64 Kbps to 32 Mbps |
| Solid PTZ | Yes |
| e-Varifocal | Yes |
| Adaptive Rate Control | H.264 |
| Bandwidth Control | JPEG |
| Multi streaming Capability | Yes (3) |
| Number of Clients | 20 |
| Network | |
| Protocols | IPv4, TCP, UDP, ARP, ICMP, IGMP*, HTTP, DHCP, DNS, NTP, RTP/RTCP, RTSP over TCP, RTSP over HTTP, SMTP, IPv6, HTTPS, SNMP (v1, v2c, v3), FTP (client), SSL |
| *SSM (Source Specific Multicast) is supported. | |
| Number of IP Address/Mac ADDRESS | 1 |
| QoS | DSCP |
| Multicast Streaming Support | Yes |
| ONVIF Conformance | Profile S |
| Authentication | IEEE802.1X |
| Interface | |
| Analog Monitor Output for Setup | Phono jack x1 |
| Network Port | 10BASE-T/100BASE-TX (RJ-45) |
| General | |
| Power Requirements | IEEE 802.3af compliant (PoE system) |
| Power Consumption | Max. 11.4 W (IEEE 802.3af(PoE)) |
| Operating Temperature | -30°C to +50°C |
| -22°F to +122°F | |
| Cold Start Temperature | -20°C to 50°C |
| -4°F to 122°F | |
| Storage Temperature | -20 ℃ to + 60 ℃ |
| -4 °F to + 140 °F | |
| Operating Humidity | 20 % to 90 % (no condensation) |
| Storage Humidity | 20 % to 95 % (no condensation) |
| Built-in Heater | Yes |
| Dimensions *1 | 93 mm ×93 mm × 160.9 mm |
| 3 3/4 x 3 3/4 x 6 3/8 inches | |
| φ140 x 313.4 mm (including arm) | |
| φ5 5/8 x 12 3/8 inches (including arm) |
