rice destoner stone sand removing machine Destoner separator

Product Overview

Description

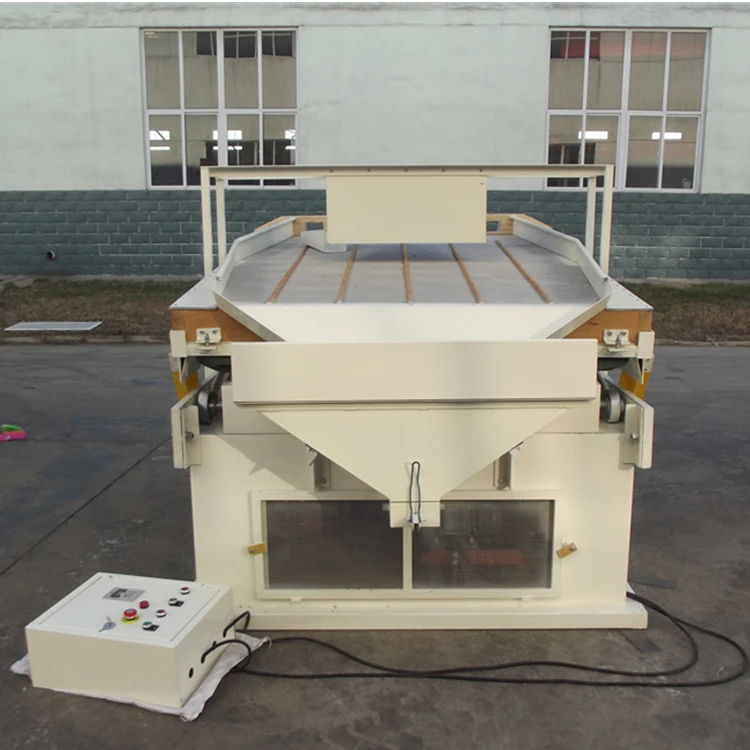

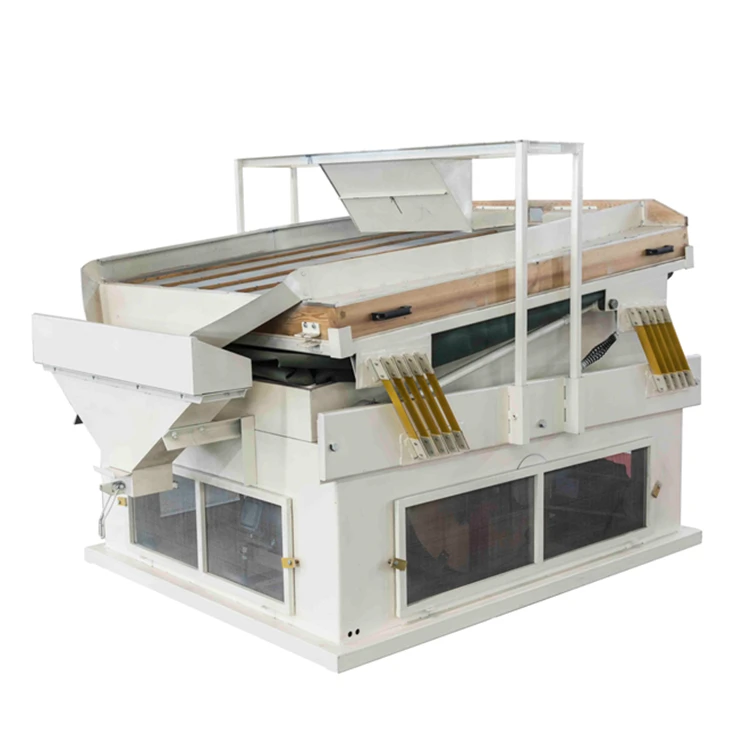

5XQS-5 rice destoner stone sand removing machine



Introduction of 5XQS-5 rice destoner stone sand removing machine

5XQS-3 rice destoner machine for sesame beans seed is used to remove heavy foreign impurity like stone, metallic and glass pieces etc., on the principle of weight difference.



Principle of 5XQS-5 rice destoner stone sand removing machine

With the combination of fluidization and deck oscillation, heavy particles migrate to upper levels of the deck discharge from outlets and the light particles move to the lower level of the deck.

Features of 5XQS-5 rice destoner stone sand removing machine

The 5XQS-5 rice destoner stone sand removing machine is the blow type destoner, which is not only widely applied for removing stone from all kinds of seeds and grains, also can be used in other fields such as remove stone from active carbon.

The 5XQS-5 rice destoner stone sand removing machine  can adjust the vibrating frequency of sieve table, as a result it has a perfect effect on removing stones.



Model	5XQS-3 Destoner	5XQS-5 Destoner	5XQS-10 Destoner
Capacity(kg/h)	3000 kg	5000 kg	10000
Power(kw)	4.75 KW	7 KW	9.7
Dimension of Sieves(mm)	1260×1800	1560×1800	2200*1800
Dimension (L*W*Hmm)	2200×1200×1600	2500×1400×1600	2500*2300*1600
Weight(kg)	600	700	900
