mobile towable selfpropel airport ground service equipment ASU aircraft air start unit

Product Overview

Description

MORE INFO PLEASE CONTACT BELOW

ATTN: Michael Zhu

Email: uniaviation(AT)yeah.net   or    cnhtgse(AT)gmail.com

mobile towable selfpropel airport ground service equipment ASU aircraft air start unit



Specification

ASU is used for starting jet engines directly by discharging low pressured & compressed airflow. The pressure of compressed air is adjustable up to 42 pound per square inch and can deliver 290 pounds per minute. The unit consists of a diesel engine, aircooled & oilfree rotary screw compressor and air regulating system, which features sound attenuation and easy control panel operation

Standard and specification

IATAAHM905/910/913/916/976

Working Conditions

Height above sea level less than 4000m.

Ambient temperature:-40°C~+50°C.

Relative humidity:≤95%

ApprovalforAircraft A300,A310,A318,A319,A320,A321,A330,B707,B717,B727,B737series,B747,B757,B767,B777(excludeGE90engine),DC8,DC9,DC10,MD80,MD90,MD11.

Performance Airconditioningsupply

1.7~2.1bar(25~30psi),adjustable.

Airsupplyforjetstart

2.4~2.9bar(35~42psi),adjustable.

Airsupplyflowrate

290PPM.



Chassis( selfpropel model)

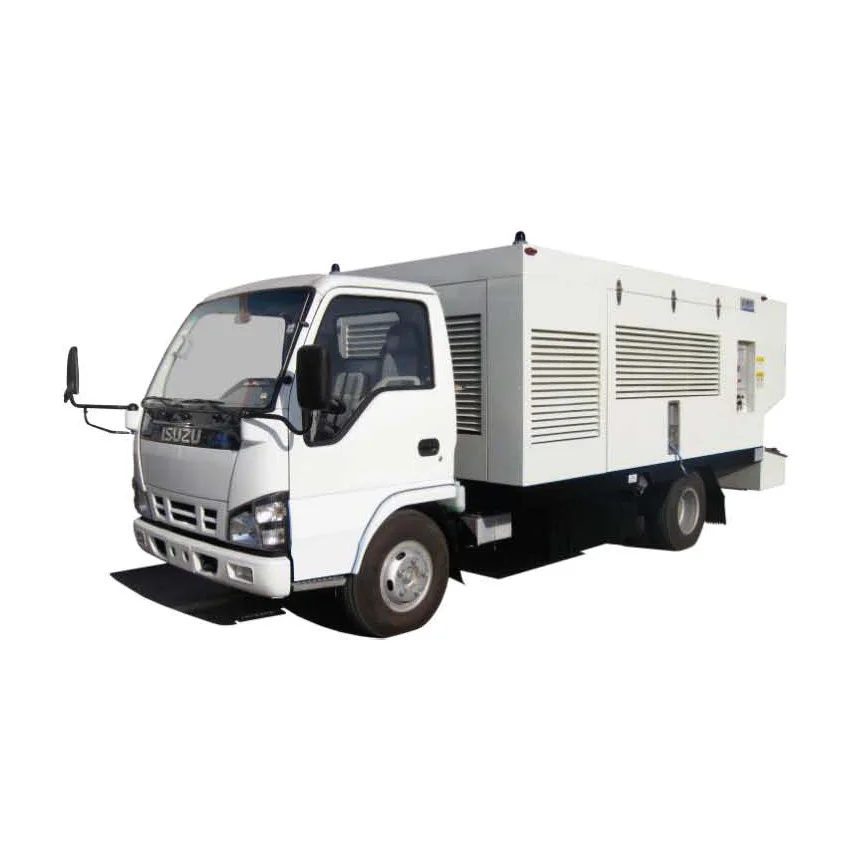

ISUZU chassis or trailer mounted chassis.

ISUZU chassis:7300*2260*2710mm.

Trailer mounted:5655*2260*2630mm(with towbar fully up).





Safety DevicesTo protect aircraft

Mechanical safety valve: to keep the air supply pressure below 50psi. Air supply pressure protection switch. In starting aircraft engine mode, all functions used for protecting unit are disabled.

Toprotectengine

Overspeed.Highcoolanttemperature(morethan103℃).

Lowoilpressure.

Toprotectcompressor

High lubricating oil temperature(morethan76℃).

Low oil pressure(lessthan50kpa).

Charge protection.

Emergencystop
