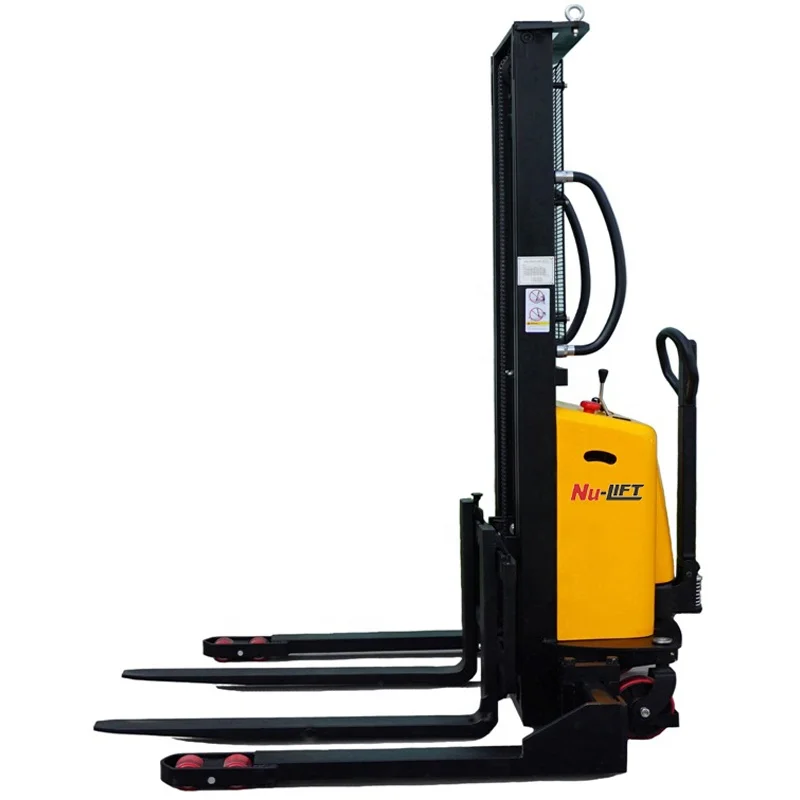

Semi Electric Stacker with Straddle Leg

Product Overview

Description

Model				PM1016	PM1025	PM1029	PM1031	PM1033
				PM1516	PM1525	PM1529	PM1531	PM1533
Driving style				Pedestrian
Load capacity		Q	kg	1000/1500
Load center		C	mm	600
Overall length		L1	mm	1807
Overall width		W	mm	810	810	810	910	910
Min. overall height		H1	mm	2125	1800	2025	2125	2225
Fork dimension		L×b×m	mm	1150×160×56
Outside width of forks		D	mm	560/660
Base distance		L0	mm	1170
Wheel material				Nilon or PU
Front wheel size			mm	φ82×80/φ78×70
Steering wheel size			mm	φ180×50
Min. steering radius		Wa	mm	1435
Min. width of aisle			mm	≥2370
Max. height of forks		H	mm	1600	2450	2900	3100	3300
Max. overall height		H2	mm	2172	3022	3472	3672	3872
Min. height of forks		H3	mm	90
Brake type				Mechanical
Power of lift motor			Kw	1.6
Battery capacity/voltage			Ah/V	120/12
Weight of battery			kg	30
Net weight(without battery)			kg	376	416	436	446	456
			kg	380	420	440	450	460
