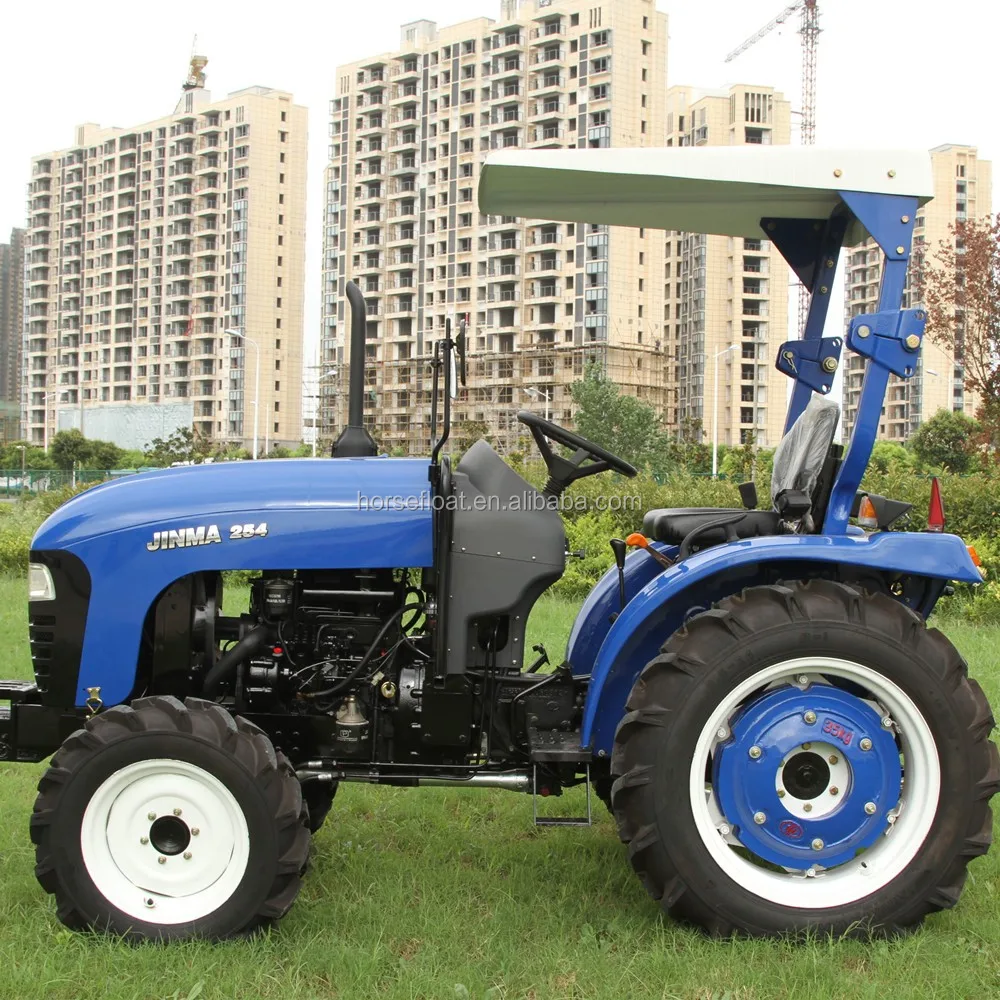

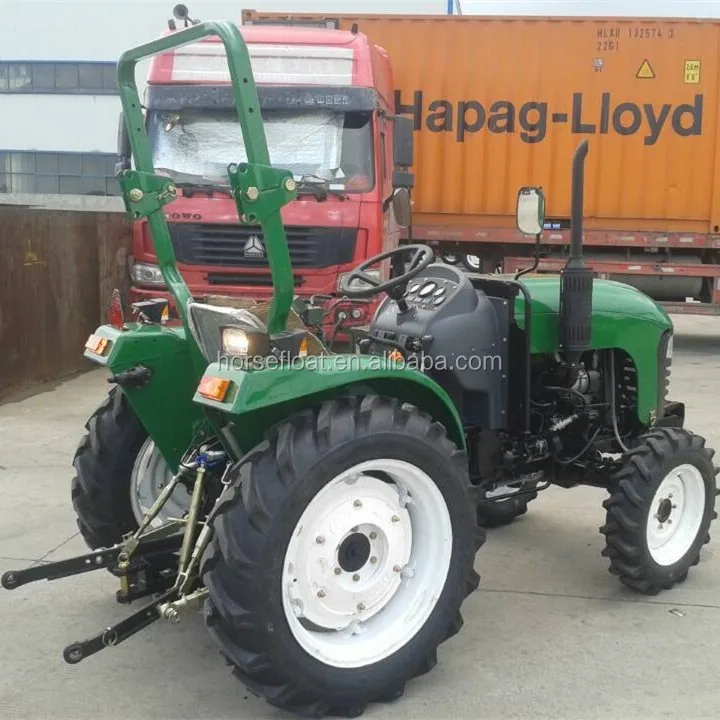

35hp 4wd jinma mini tractor for sale at very good prices
- Category: >>>
- Supplier: Henan Lucky Machinery Co. Ltd.
Share on (60417487658):
Product Overview
Description
Product Description
Jinma 20-35hp mini tractor for sale now at very good price. All the tractors are from Jinma factory with 12 months warranty.
35hp 4wd Jinma 354 tractor spec.
Tractor Parameters | Model | JM-354 | |
| Drive Type | 4WD | ||
| Overall Dimensions L*W*H(mm): | 3357x1435x1985 | ||
| WheelTrack(mm) | Front | 1200 | |
| Rear | 1150-1450 | ||
| Wheel Base(mm) | 1833.5 | ||
| Ground Clearance (mm) | 292 | ||
| Rated Traction Force(N) | 8800 | ||
| Construction Mass(kg) | 1800 | ||
| Min.Turning Radius(m) | 4.2 | ||
Theoretical Speed (With out creeper gear (km/h) | Forward | 2.248,3.008,4.217,6.258,10.37,13.875,19.451,28.867 | |
| Reverse | 2.861,13.2 | ||
| Engine | Model | TY3100/4L22T | |
| Type | 3/4-Cylinder,Vertical,Water-Cooed,4 Stroke Cycle | ||
| Rated Power(kw/hp) | 25.7/35 | ||
| Rated Speed (rpm) | 2300/2350 | ||
| Bore*Stroke(mm) | 100*105/85*95 | ||
| Total Displacement(L) | 2.47/2.156 | ||
Drive Sysytem | Clutch | Single/Dual stage | |
| Gear Box | (4+1)*2 | ||
| Main Drive | One Pair of Spiral Bevel Gearing | ||
| Differential | Bevel Gear | ||
| Differential Lock | Jaw Lock | ||
| Final Transmissions | Spur Gear,External,Gearing | ||
Travelling Mechanism | Tyre | Front | 7.5-16 |
| Rear | 11.2-24 | ||
| Steering Gear | Power Steering | ||
| Brake | Disc type | ||
Working Device | Hydraulic System | Lifting Capacity at 610mm Behind Lift Pioint (N) | 5800 |
3-Point Suspension | Category:I | ||
| P.T.O Shaft | Speed (rpm) | 540/720 or | |
| 540/1000 | |||
| Spline Size | 5Rectangular 6 Spline | ||
| OPTIONS | ROLL BAR,CANOPY,CAB | ||
Color: gree, red, blue, silver are optional
Packaging & Shipping
Iron frame or nude packing in container
L/T: 35days after order confimmation
Our Services
Payment terms: 30% TT down payment, 70% TT before delivery
Warranty: 12months
Departure port: Qingdao or Shanghai
FAQ
Why we only sell Jinma/YTO tractor?
1)Jinma/YTO tractor quality is good, it is reliable tractor
2)YTO company is with high reputation and good credit
3)We are partner of Jinma/YTO factory
What's the payment terms?
30% TT down payment, 70% TT before delivery.
Is it farm implements available?
Yes, it is available.
