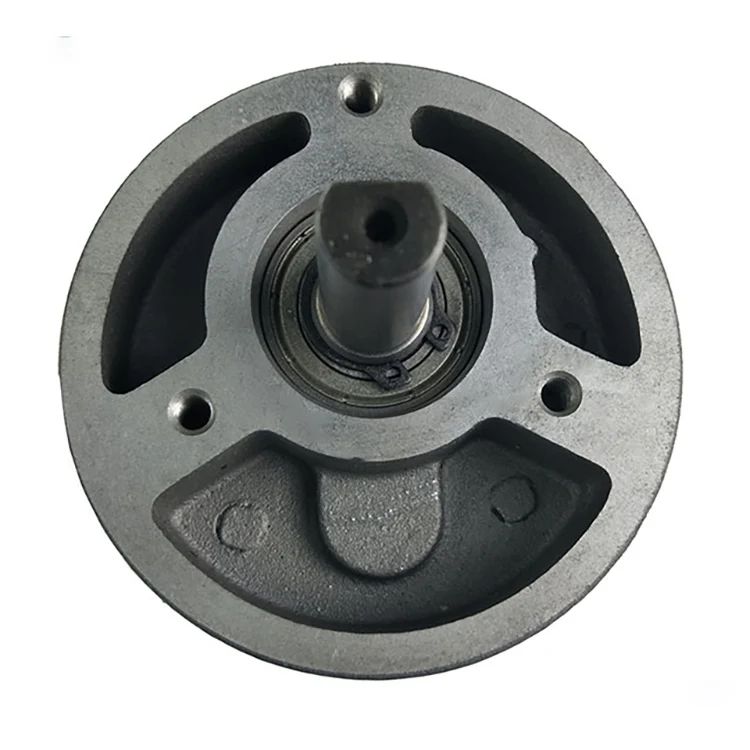

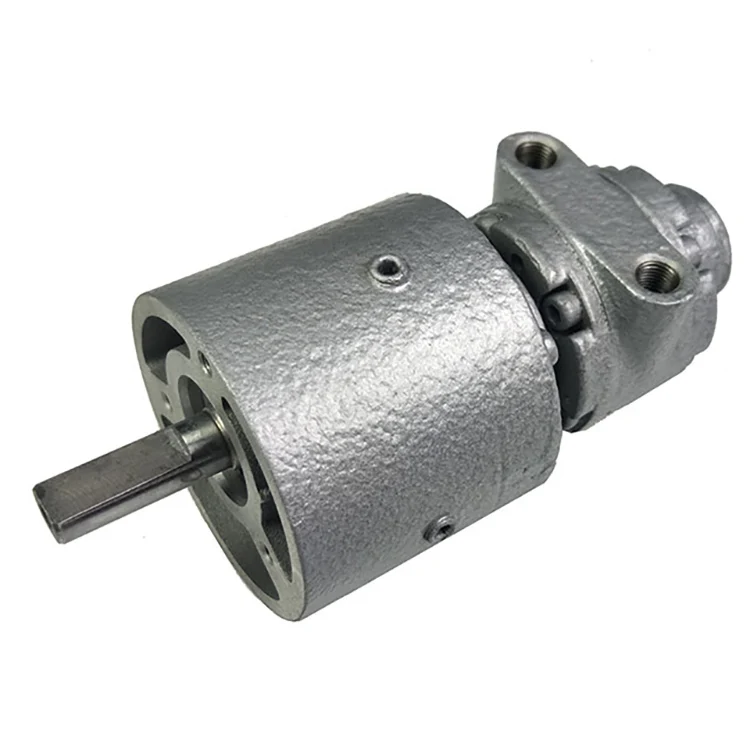

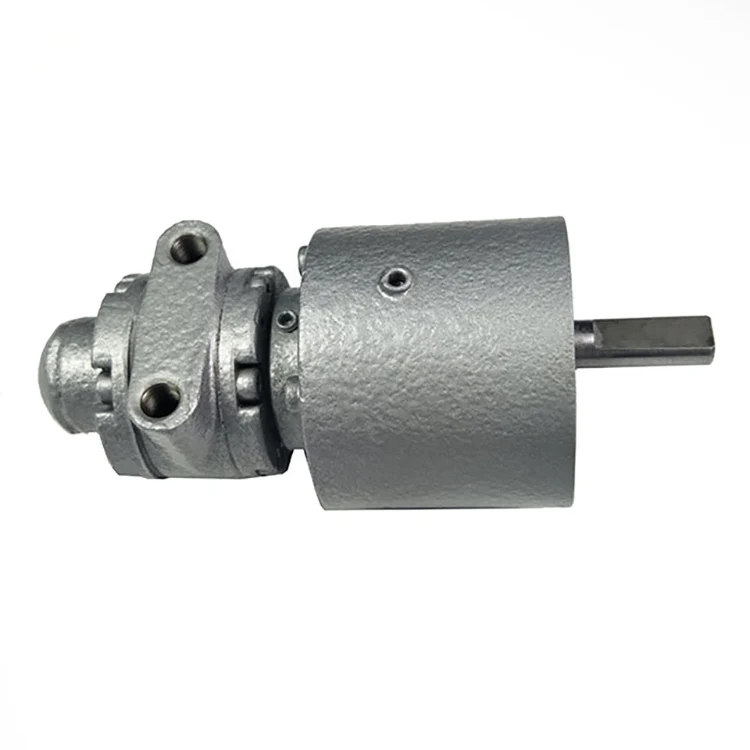

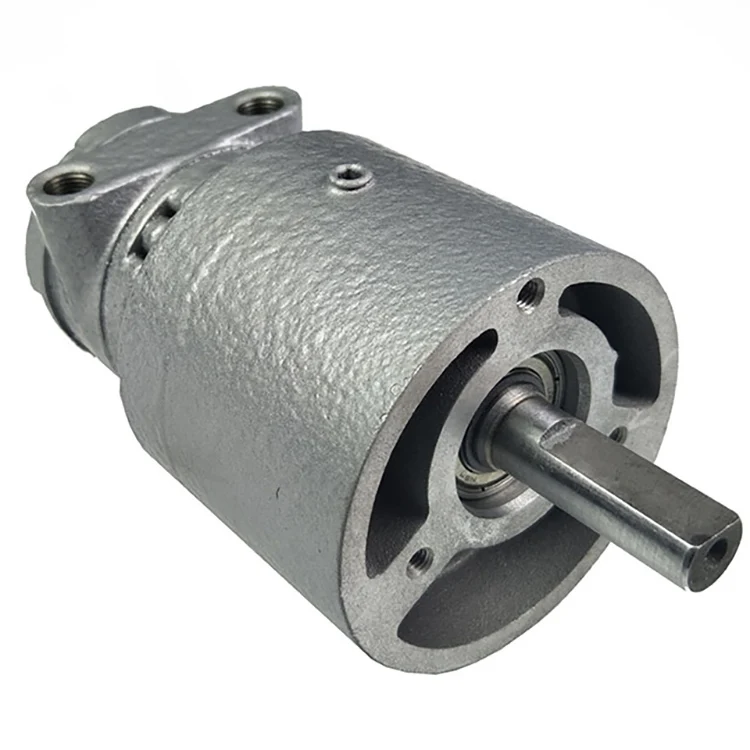

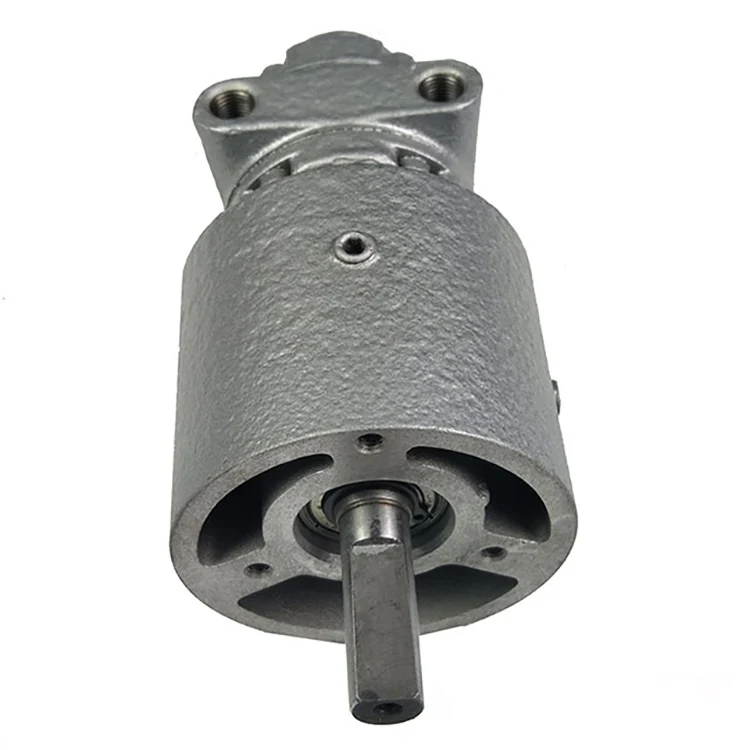

Air powered gear motor 15:1 Air Gear Motor, HX1AM Small Pneumatic Motor

Product Overview

Description

Why you should look into a Hongxin Air Motor?

Variable speed

Nonelectrical sparking

Instantly reversible

Cool running

Compact and portable

Minimum maintenance

Will not burn out

Low price

Operate in all positions

Low shock starts

Self sealing vanes

Mounting flexibility

Four vane or eight vane

Long life accessories



Typical Applications

Mixing equipment

Conveyor drives

Pump drives

Food packaging

Pharmaceutical packaging

Hoists and winches

Hose reels

Fiberglass choppers

Tension devices

Turntables



Main technical parameters:

Model	Gear Ratio	Operation Data							Maximum Torque
		Power		Torque		Rotate Speed	Air Consumption		Rotate Speed	Torque
		hp	kW	Nm	lb.in	rpm	m³/h	cfm	rpm	Nm	lb.in
HX1AM-NRV-95-GR15	15:1	0.34	0.26	7.1	62	350	36	21	30	8.1	72
HX1UP-NRV-16-GR15	15:1	0.32	0.23	5.5	49	400	36	21	30	8.0	71
HX4AM-RV-10	10:1	1.26	0.94	31	274	300	98	57.5	30	48	425
HX4AM-RV-15	15:1	1.25	0.9	45.2	400	200	102	60	20	72	640
HXWG01	20:1	0.64	0.48	21	172	110	34	20	12	28	240
HXWG02	20:1	0.90	0.68	29	256	150	46	27	17	40	343.5



Photoes & Drawings



                HX1AM-NRV-95-GR15                                           HX1UP-NRV-16-GR15



                HX4AM-RV-10                                                                HX4AM-RV-15



                        HXWG01                                                                HXWG02
