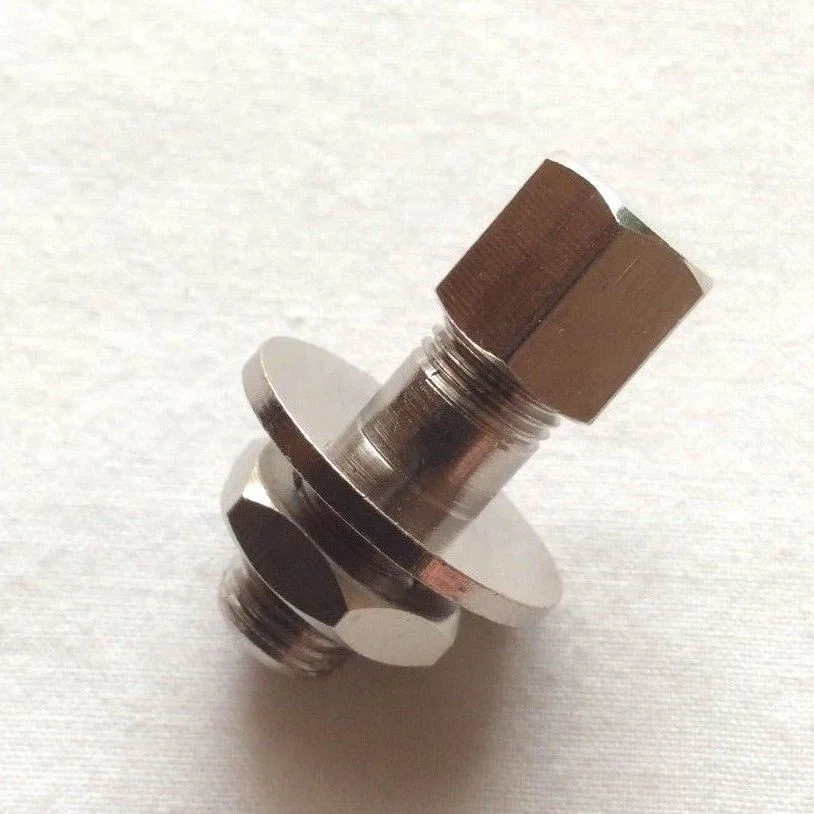

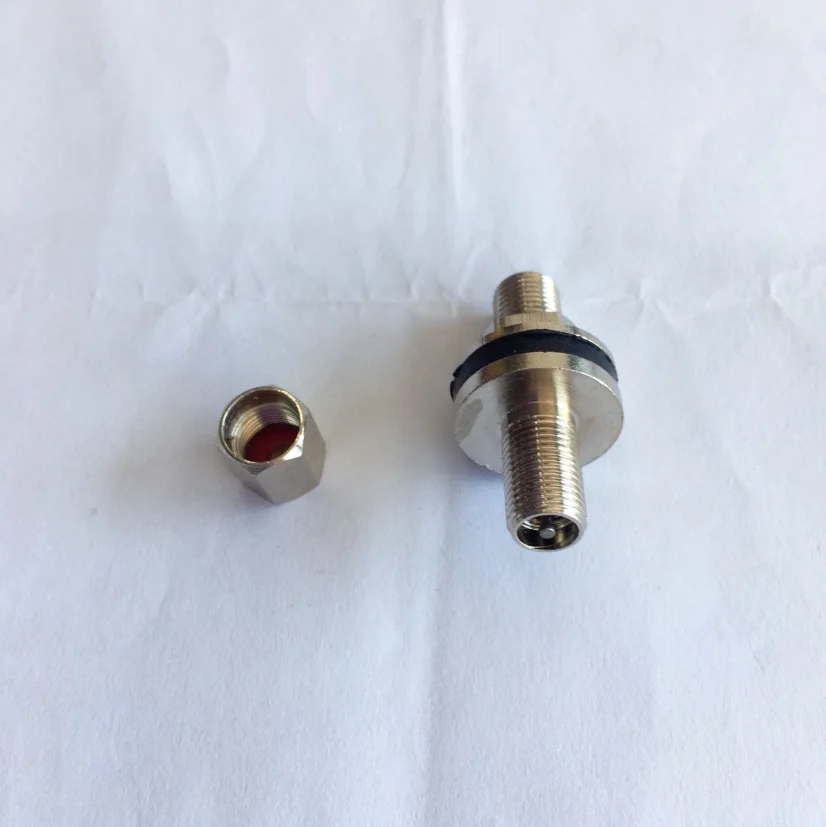

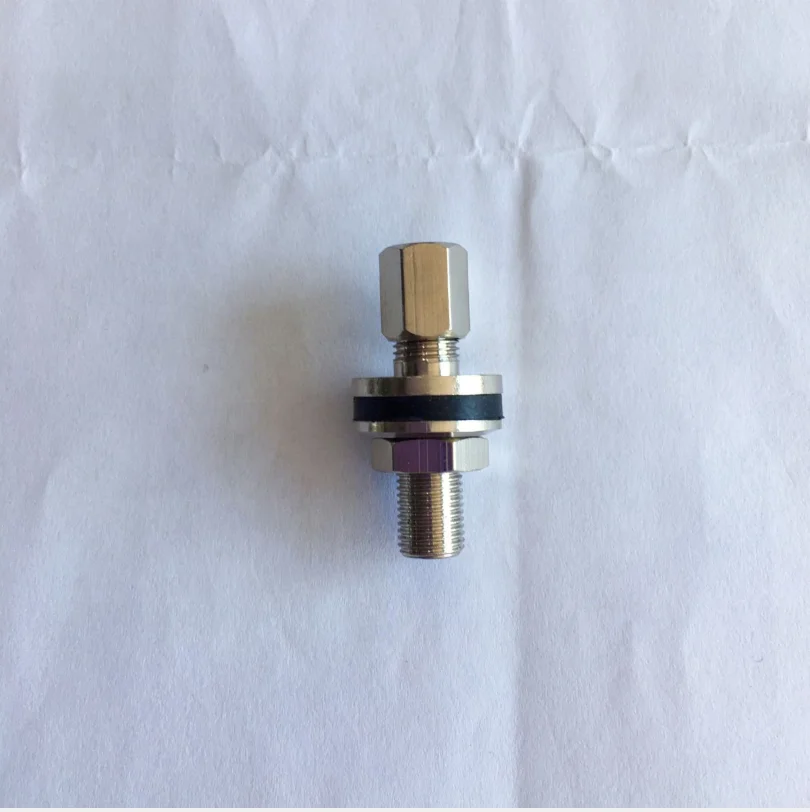

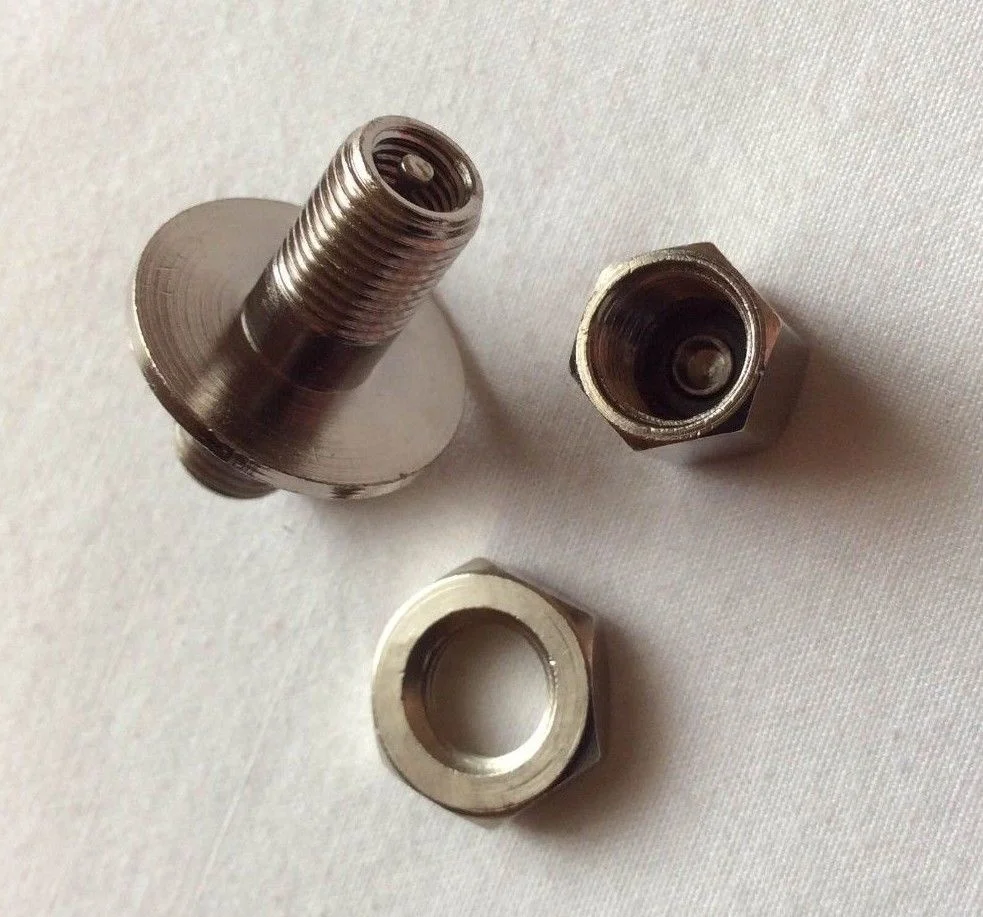

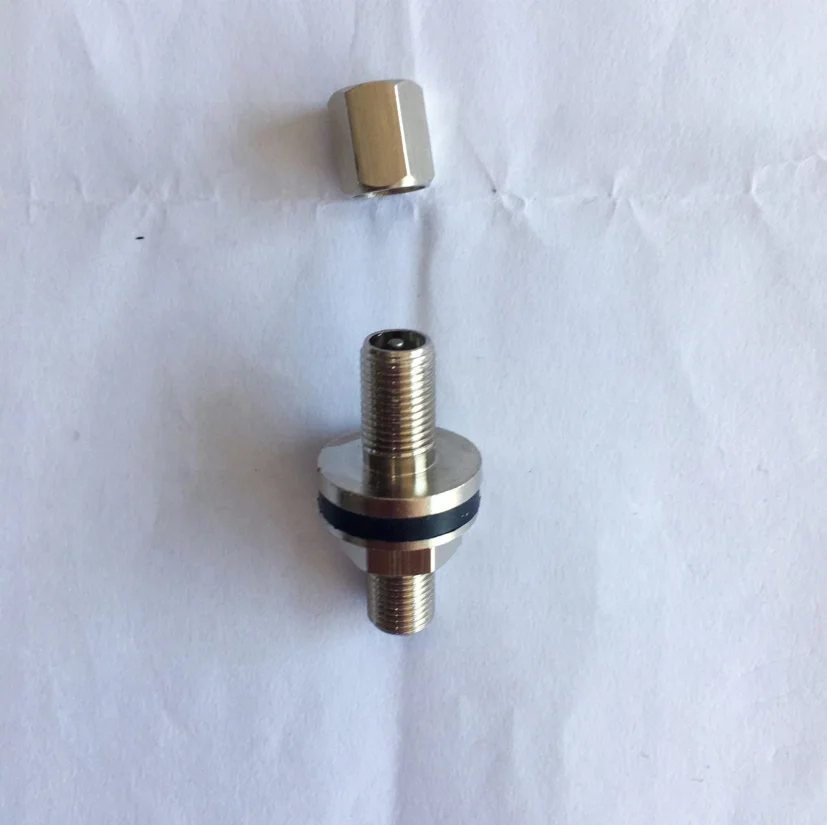

nickel plated brass bulkhead panel mount air compressor tank fill valve schrader YHTR18 VALVE

Product Overview

Description

Specifications

· The mounting thread under the flange is the same thread as the schrader stem

· 1/2” hex mounting nut

· 0.96” overall length

· 0.75” flange diameter

· 0.06" flange thickness

· 0.53" stem length

· 0.4" thread length

· Solid nickel plated brass with installed core and metal hexagonal cap with black rubber seal

· Core rated to 200psig working pressure and 300psig max
