004 METALLOGRAPHIC MICROSCOPE MODEL 4XC METALLOGRAPHIC MICROSCOPE

Product Overview

Description

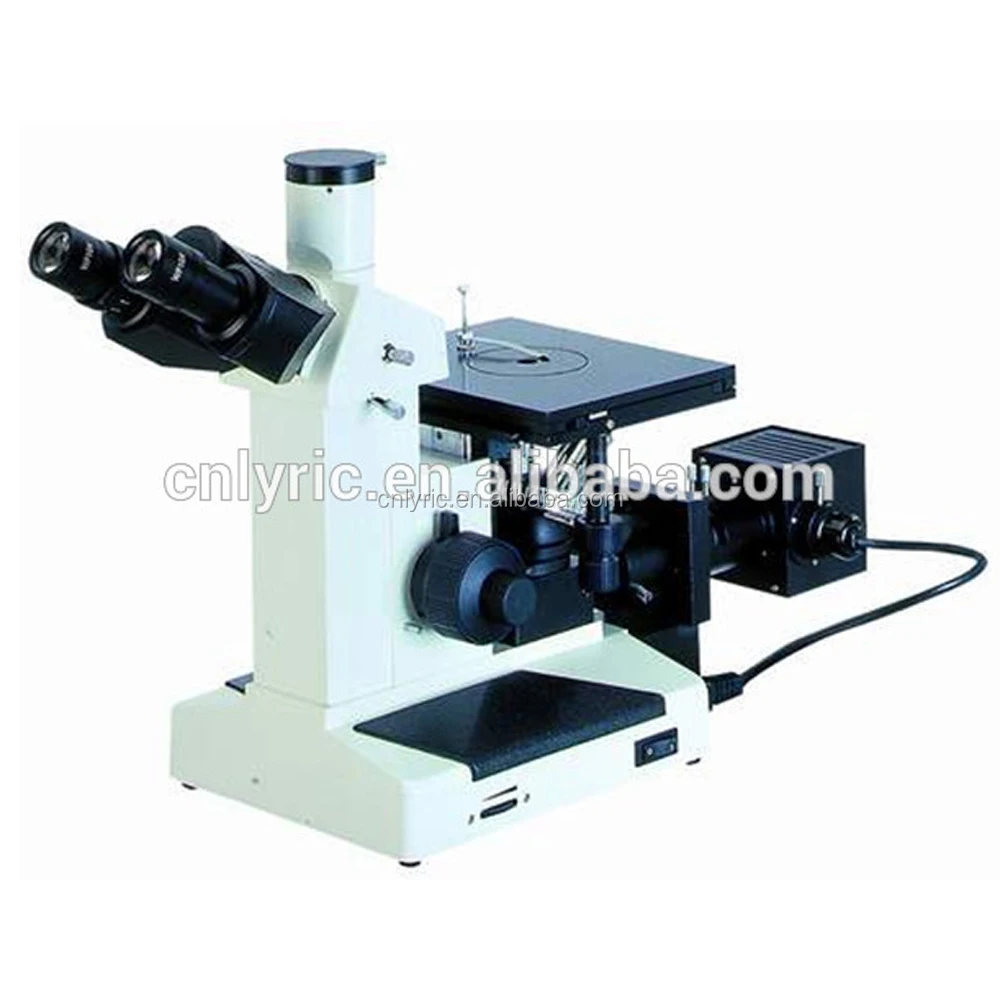

MODEL 4XC METALLOGRAPHIC MICROSCOPE



















































MODEL 4XC METALLOGRAPHIC MICROSCOPE is mainly used for metal identification and analysis of the internal structure of organizations. It is the important device which can be used to study the metallography of metal, and it is also the key instrument to verify the product quality in industrial application. This microscope can be equipped with photographic device which  can take metallographic picture to carry out artifical contrast analysis, image editing, output, storage, management and other functions.



Technical specifications

Three eyepiece tube	Tilting angle: 30° Adjustable range: 55-75mm
Eyepiece	Wide view eyepiece 10X (16mm)
Objective lens	Flat fielding achromatic objective lens 10X, 25X, 40X, 100X (oil)
Loading table	150 x 200mm  Moving range: vertical 15mm, horizontal 15mm
Eyepiece (optional)	12.5X, 16X, 20X, 10X flat fielding graduation eyepiece (grid value 0.1mm)
Objective lens (optional)	60X, 80X
Photographic device (optional)	1. Image adapting lens, high resolution color CCD camera static and dynamic capturing card, image analysis software, EPSON color jet printer 2. Digital camera, specific adapting lens
