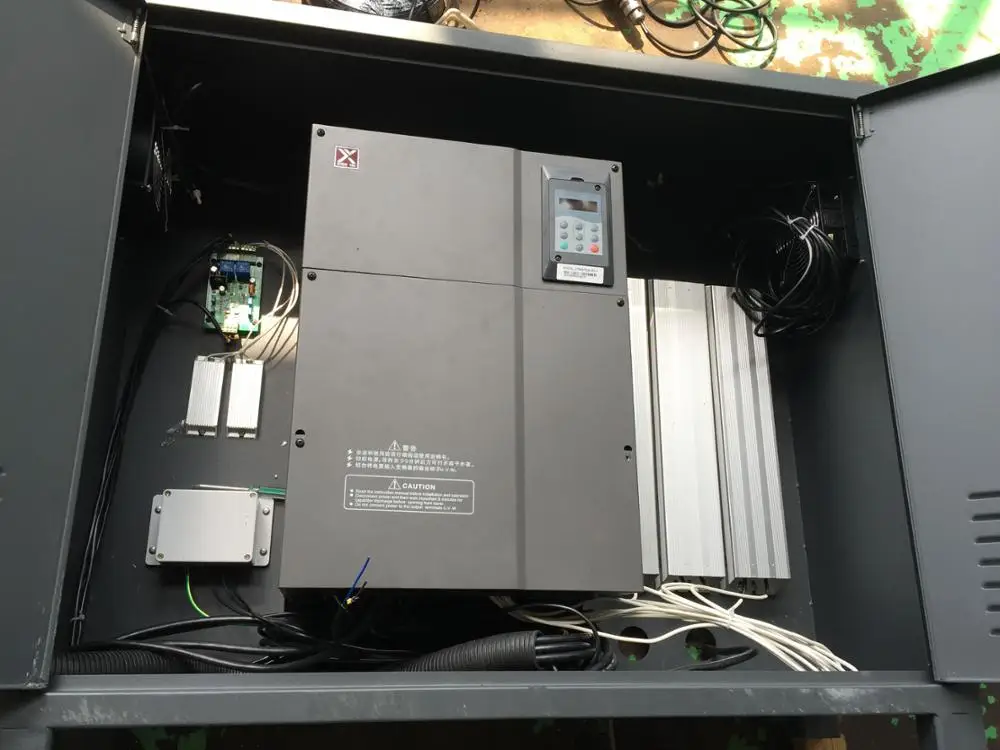

Серво система для энергосберегающая машина инжекционного метода литья

Complete set Servo System for energy saving injection molding machine

Xingtai XT690 Servo Drive:

Features:

1.Input voltage: Three Phase 380V with wide range voltage design 320V~450V .

2.Rated Frequency: 50/60Hz

3. Build-in DC reactor and brake unit to provide a protection of short circuit braking resistance,brake loop overload,brake pipe straight .

4.All models realized output to ground short circuit protection, buffer relay(contactor) Pull in failure protection

5.With overload capacity; 150% rated output current 60s;180% rated output current 3s.

6.Support various encoder:  software encoder,rotary transformer with or without PTC/KTY,ABZ optical-electricity encoder,multi-turn type absolute encoder .etc

7.Utilize rotary encoder and permanent magnet servo motor, to achieve ±0.5% of speed control precision and faster response speed (20~50m).

8.Motor overhear protection:KTY 84

9.LED Display operation panel .

Brief Introduction of XT690 Series  servo driver

XT690 Series AC servo drives use the newest DSP from America TI company as the core control system,adopt the advanced full digital motor control algorithm, completely realize the closed loop servo control of current loop,velocity loop and pressure loop by software .

The servo drives have the characteristics of high energy conservation, rapid dynamic response, high control precision and good self-adaptive ability ,could be matched by XingTai Servo motor and various specification servo motors, widely applied in the application filed which request fast-response precise rotary speed control and positioning control,especially in the injection molding machinery .

XT690 Series Servo Drive Specification:

*Note:The adaptive motor and pump suggested on the sheet are referring to 140kg pressure systems.For others please contact us for best suggestions.

Technical Specification

Independent R&D

Strict Quality Test

XingTai Servo Drive pass strict electromagnetic compatibility, high- low temperature ,humidity and vibration test
 to adapt various harsh environment .Our servo drives comply with the European low voltage directive (LVD) and EMC directive.and have passed CE certificate.

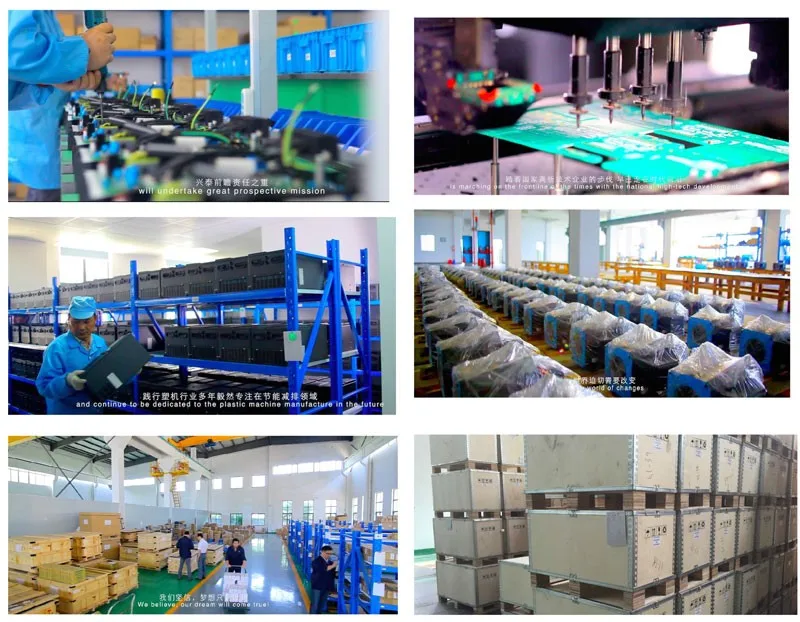

Production & Warehouse & Package

Benefit for Injection molding machine :

High energy saving,High performance,High precision,High response,High efficient:

Retrofit your traditional injection molding machine with Xingtai Servo System not only to save energy and but also make high quality plastic products.

Ningbo Xingtai Technology Co.,Ltd ( Brand XingTai Servo) are professional servo system solution providers for injection molding machine in China, we Concentrate on the research & development, production and sales of high performance servo drive and motors from 2002,We have strong and professional R&D expert as well as technical and sales service teams which are almost 50% of the total employee. XingTai Servo independently R&D and produce XT50 and XT690 series servo drives and its matched servo motors for injection molding machines,which could energy conservation up to 50%. XingTai servo have obtained 3 national invention patents, 16 national utility model patents, 1 appearance design patent; On the market feedback,the performance of our products are far ahead of domestic similar products and reaches the level of European top-class standards.Our XT690 Series have passed CE certificate .Until Now ,XingTai Servo have exported to South Korea, Southeast Asia, Middle east , Africa, South America .etc more than 20 countries and are all well received by our both quality and service.

1.Do you offer complete set of servo system for injection molding machine?
Yes ,We are offering professional solutions of complete set of servo system for different tonnage injection molding machine,We offer servo drive+servo motor+pump+pressure senser+brake resist+other accessories.etc.Please inquriy us for best solutions,

2.What is your mainly delivery port?

Our factory is loacted in Ningbo city,Ningbo Port is our primary choice of delivery sea port.

3. Is there a minimum quantity request?

We does not require a minimum order for standard servo drive and motor, as we understand that some customers may only need 1 or 2 sets of our products or wish to try us out for the first time.

4.What are your packing methods?

We mostly pack into wooden cases or a combination of box and pallet.Xingtai packages will protect the servo drives well.

5.When can I except to receive my order?

Generally 3-15days after order confirmation.

6.What is your servo products quality assurance?

Our XT690 Series servo drive passed CE certificate and all servo drive and motors will be tested on injection molding machine in our factory before delivery ,You just assemble and easy debuge as per our introductions.

Generally we offer 18month warranty for our servo drive and motors,Any problems we are on the behind of you.
