Product Overview

Description

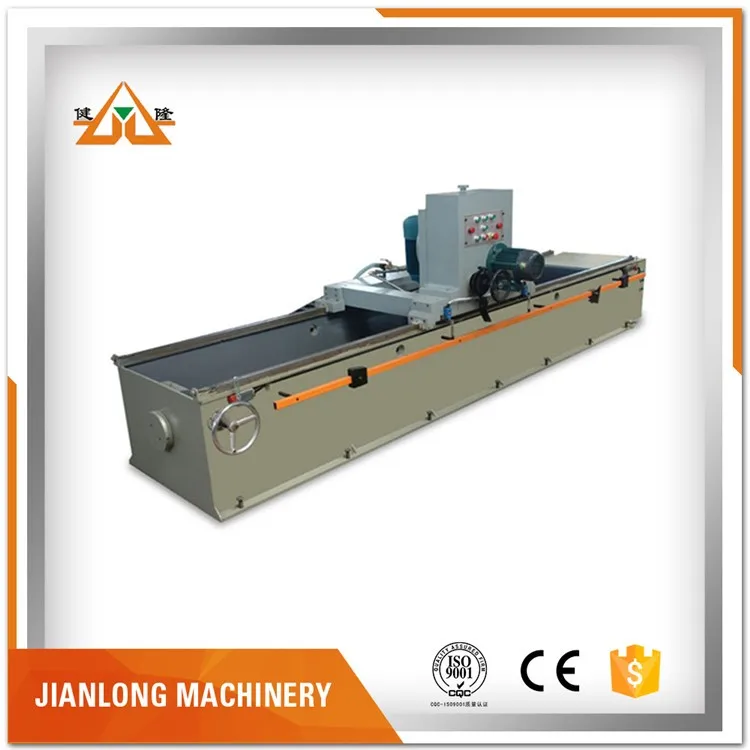

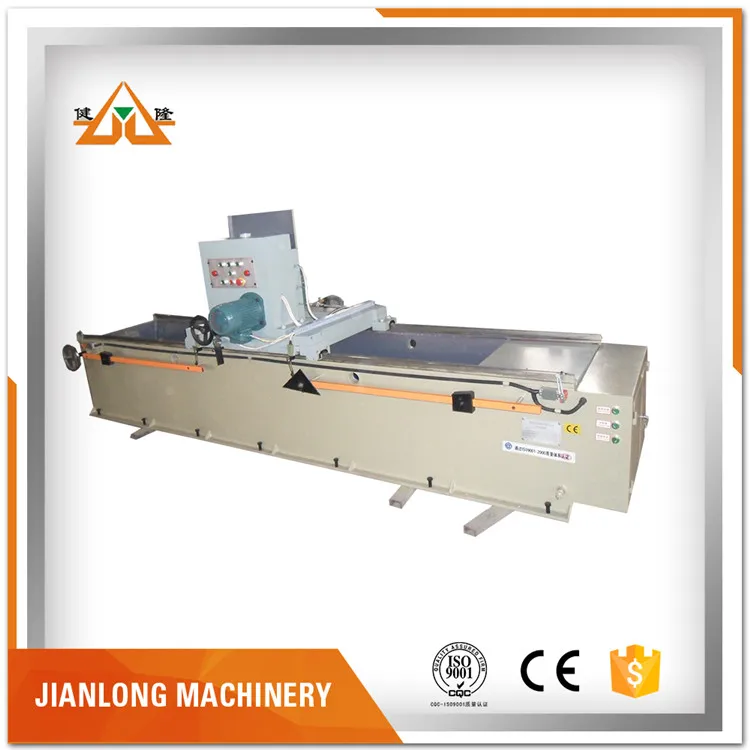

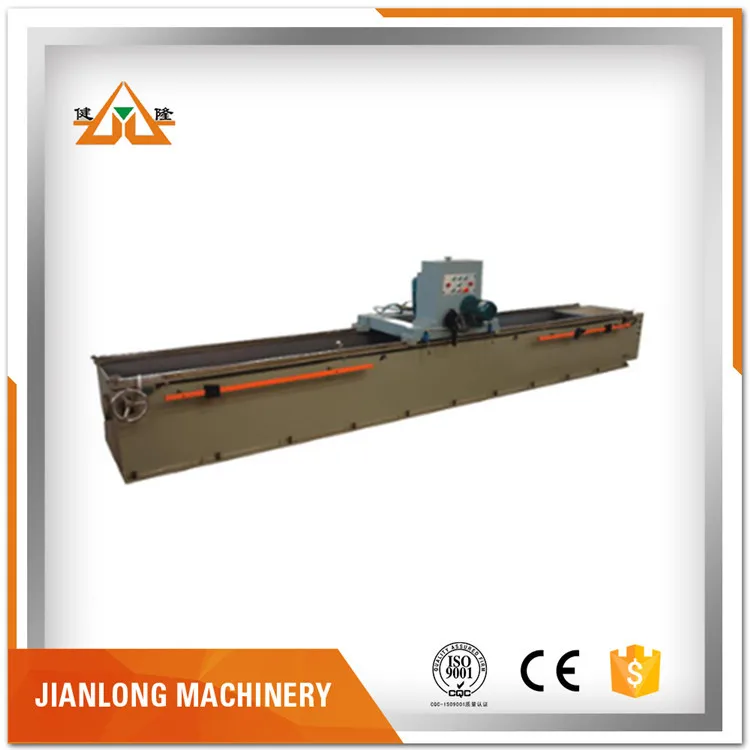

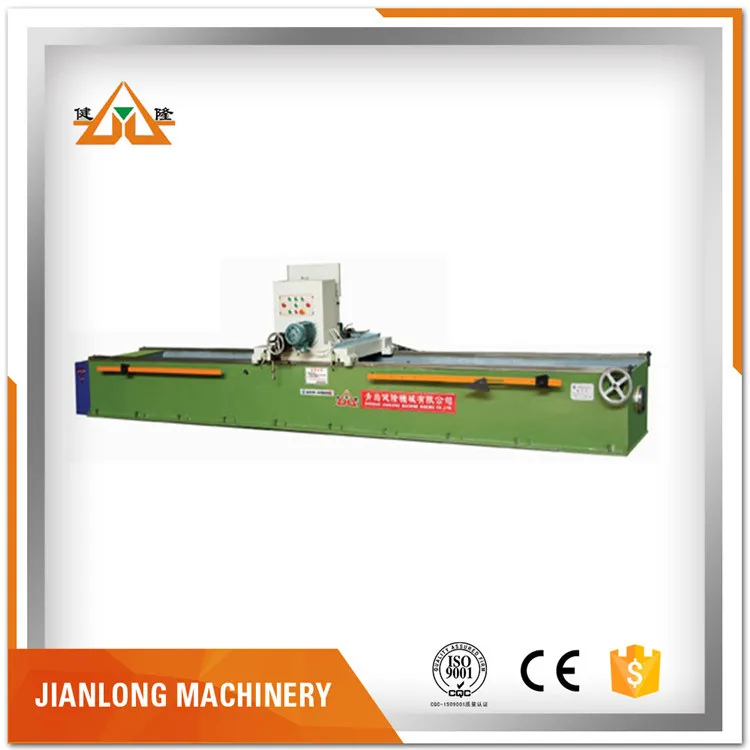

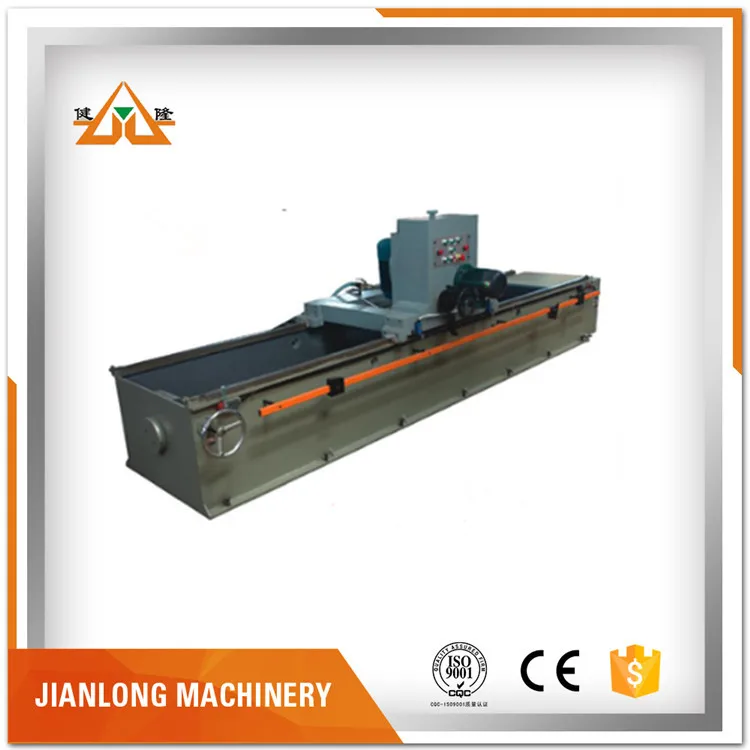

 almighty band saw blade sharpening machine knife grinder

    This knife grinding is a semi automatic spline grinder with grinding reciprocating at stepless speed changing and is mainly used for grinding the blades of veneer slicer and clipper and a variety of planer tools and plane iron, etc., which is a service machine tool that is used most widely in wood processing industry. When operating, please make sure you have been acquainted with the performance and operating method of the machine for proper operation and adjustment and personal safety, and prolonging the service life and improving the working accuracy of the machine.

Specification



knife grinding
Model	MMD1500	MMD3000
Max working length	1500mm	3200mm
Max cutting width	200mm	200mm
Wheel rotation rate	1400r/min	1400r/min
Wheel diameter	200-250mm	200-250mm
Total power	6.47kw	6.47kw
Tilting angle of saw blade	0-45degree	0-45degree
Adjusting angle of magnetic chuck	front90degree,back90degree	front90degree,back90degree
Overall dimensions	3800*1250*1300mm	6500*1250*1300mm
Net weight	2300kg	3400kg



knife grinding
Model	MMD3600	MMD4200
Max working length	3600mm	4200mm
Max cutting width	200mm	200mm
Wheel rotation rate	1400r/min	1400r/min
Wheel diameter	200-250mm	200-250mm
Total power	6.47kw	6.47kw
Tilting angle of saw blade	0-45degree	0-45degree
Adjusting angle of magnetic chuck	front90degree,back90degree	front90degree,back90degree
Overall dimensions	5300*1250*1300mm	5900*1250*1300mm
	2900kg	3100kg



Product Show

Other Hot Sale

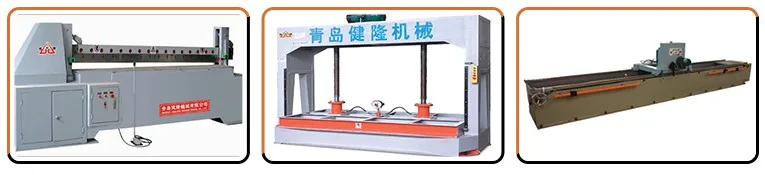

        Veneer Clipper                          Cold Press Machine                    Knife Grinder
