Better mini stevia extract machine

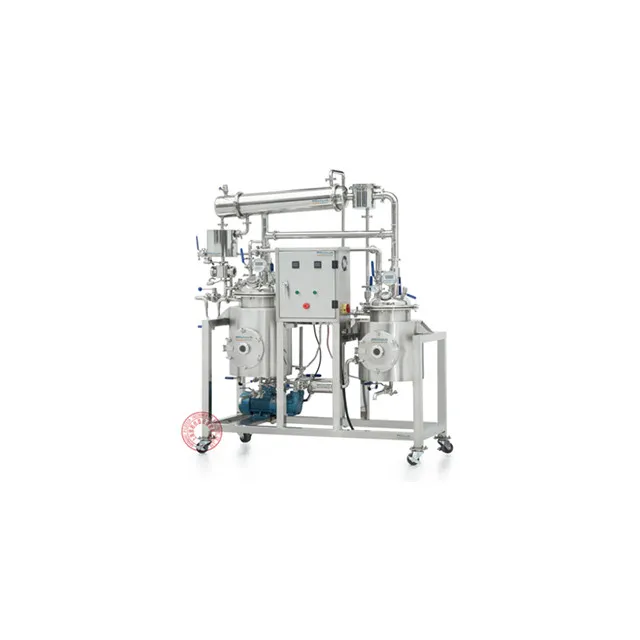

YC-020 Lab multi-functional extracting and concentration tank can be used for extracting and concentration of Chinese medicinal herbs and natural products (water and organic solvents) and recovery of volatile aromatic oil with a concentration ratio of 1.1-1.38. The unit consists of extracting tank, reflux condenser, reflux cooler, volatile aromatic oil collector, filters, tubular heater, evaporator, recovery condenser, recovery cooler, collecting tank, stainless steel rack and connecting pipe valves, and meters, etc.

YC-020 Lab multi-functional extracting and concentration tank function

water extraction or alcohol extraction from herbs and natural products, normal pressure hot reflux water extraction or alcohol extracting, normal pressure outer circulation concentration, atmospheric concentration, vacuum concentration, organic solvent recovery  (online ultrasonic extraction function is optional)

YC-020 Lab multi-functional extracting and concentration tank specification

1) Integrated and compact design allows less installation area(2-3m2).Works directly with water and power with a minimum inventory of 0.3KG and a maximum inventory of 5KG.

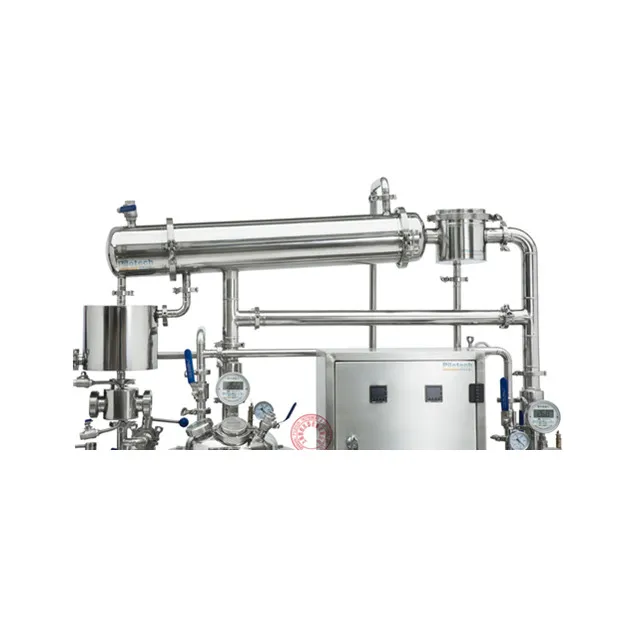

2) Extracting system is equipped with a reflux condenser, reflux cooler, oil-water separator that can recover aromatic oil in materials in an effective manner.

3)The system are equipped with outer circular evaporating concentrator with high concentrating efficiency, concentration ratio 1.1 ~ 1.38.

4) Circular heating of conduction oil (no pressure between lamination) and uniform heating. The heater is far away from the extraction tank which is more secure for organic solvent extraction and concentration.

5) Can be used to water, alcohol and solvent extraction for natural herb extraction. Suitable for extracting and concentration of herbal liquid and tea and fruit juice and recovery of organic solvents in research institutions, universities, hospitals, pharmaceutical factory and food industry.

6) It combines multi-functional extracting tank, vacuum concentration tank and solvent recovery tank as a whole and simplify operations with functions of heat reflux circular extraction.

7) The contact part with the material is of qualified stainless steel of SUS304, meeting with GMP standard.

8) Low temperature concentration ensures the material property stability. Dynamic circular evaporation increases heat transfer efficiency, provides an effective solution to decreased heat transfer efficiency with increased concentration, reduce energy consumption and improves efficiency.

9) The extraction basket to improve deslagging efficiency.

10) Optional on-line ultrasonic extraction function: adopts energy-concentrating ultrasonic generator. The unique physical process and cavatition of ultrasonic wave can break or deform plant cell tissues and enhance the strength of solute particle vibration, acceleration shock and sound pressure. Local extreme high temperature and pressure formed on materials make large-volume Chinese herbal medicines fully exposed to the ultrasound probe, which accelerates uniform precipitation of active ingredients and significantly increases extraction rate compared with traditional techniques. Ultrasonic extraction works under normal temperature and effectively reduces the loss of heat-sensitive components. Selectable frequency range contains 15KHz, 20KHz, 28 KHz, 30 KHz, 35 KHz, 40 KHz, 50 KHz, 60KHZ.

YC-020 Lab multi-functional extracting and concentration tank technical parameters

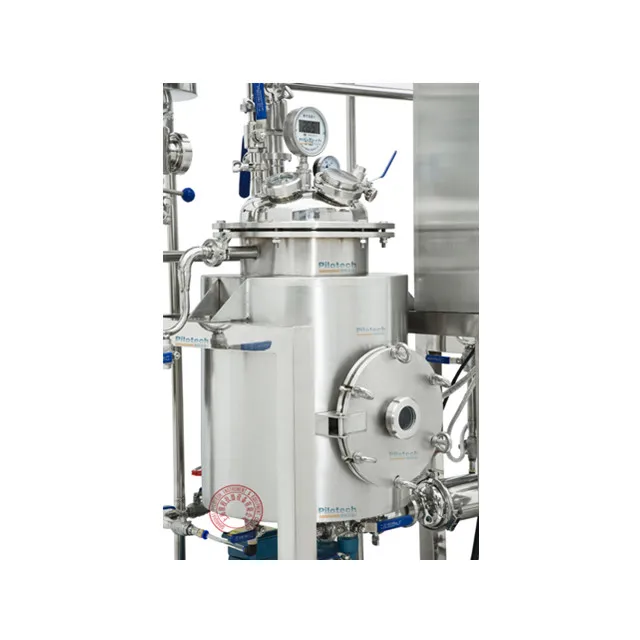

1. Extraction tank volume: 0.025m3; material mass: 0.3-5Kg/batch; minimum material mass: 0.3KG.

2. Extraction system is equipped with a reflux condenser, reflux cooler and oil-water separator that can recover aromatic oil in materials in an effective manner.

3. The system are equipped with outer circular evaporating concentrator with an evaporation capacity (water) of: 4Kg/h. Low concentration temperature and dynamic circular evaporation provide an effective solution to decreased heat transfer efficiency with increased concentration, reduce energy consumption and improve efficiency so that a higher concentrated concentration ratio of up to 1.1 ~ 1.38 (traditional Chinese medicine extract) is reached.

4. Vacuum degree: ~-0.08MPa

5. Extraction temperature accuracy of ± 2℃.

6. Heating power: 380V/9Kw

7. System configuration: extraction tank, reflux condenser, reflux cooler, aromatic oil collector, extractor filter, tubular heater, evaporator, recovery condenser, recovery cooler, collecting tank, conduction oil heating tank, vacuum pump, stainless steel rack and connecting pipe valves, and meters, etc.

8. Cooling water consumption: 1t/h. Cooling water pressure: <0.3 MPa.

9. Circular heating of conduction oil (no pressure between lamination) and uniform heating. The heater is far away from the extraction tank. Can be applied to water, alcohol and solvent extraction and serve as pilot plant testing equipment for natural herb extraction. Suitable for extraction and concentration of herbal liquid and tea and fruit juice and recovery of organic solvents in research institutions, universities, hospitals, pharmaceutical factory and food industry.

10. It combines multi-functional extraction, vacuum concentration and organic solvent recovery as a whole and simplify operations with functions of heat reflux circular extraction, concentration, conventional extraction, concentration, water sedimentation (alcohol sedimentation).

11. Unit parts contacting materials are made of stainless steel that works in negative pressure, ordinary pressure and positive pressure conditions.

12. The extraction basket to improve deslagging efficiency

13. The contact part with the material is of qualified stainless steel of SUS304, meeting with GMP standard.

14.Size: 1500X800X1900mm.

More models of 10L ,30L,50L,100L,200L,500L are available.
