CTG 20 4 Axis CNC Tool Grinding Machine (Pneumatic Type)
- Category: >>>
- Supplier: Taizhou Liyou Precision Machinery Co. Ltd.
Share on (60417868417):
Product Overview
Description

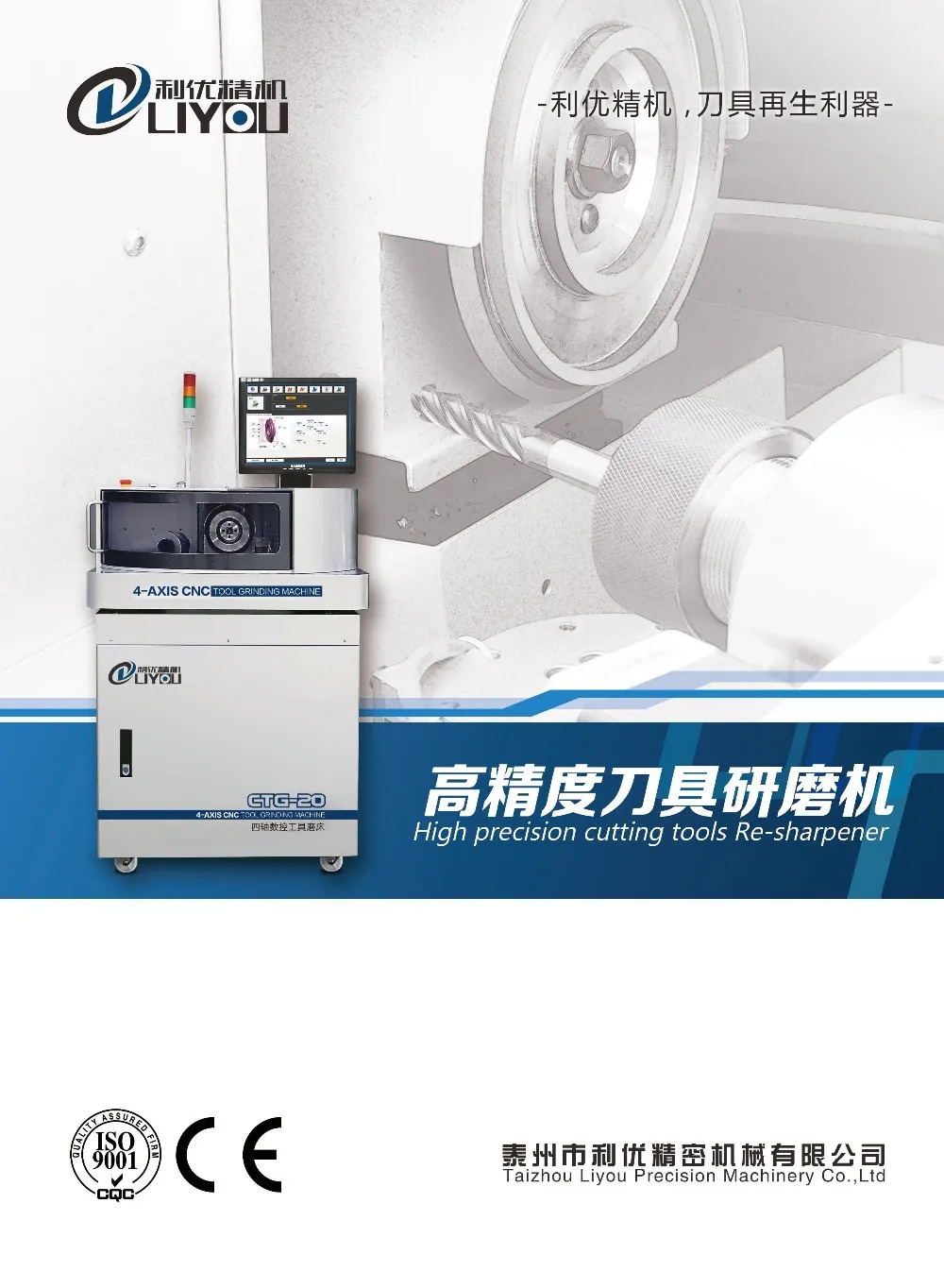

CTG-20 4-Axis CNC Tool Grinding Machine
(The best choice for tool&cutter produce and resharpen)

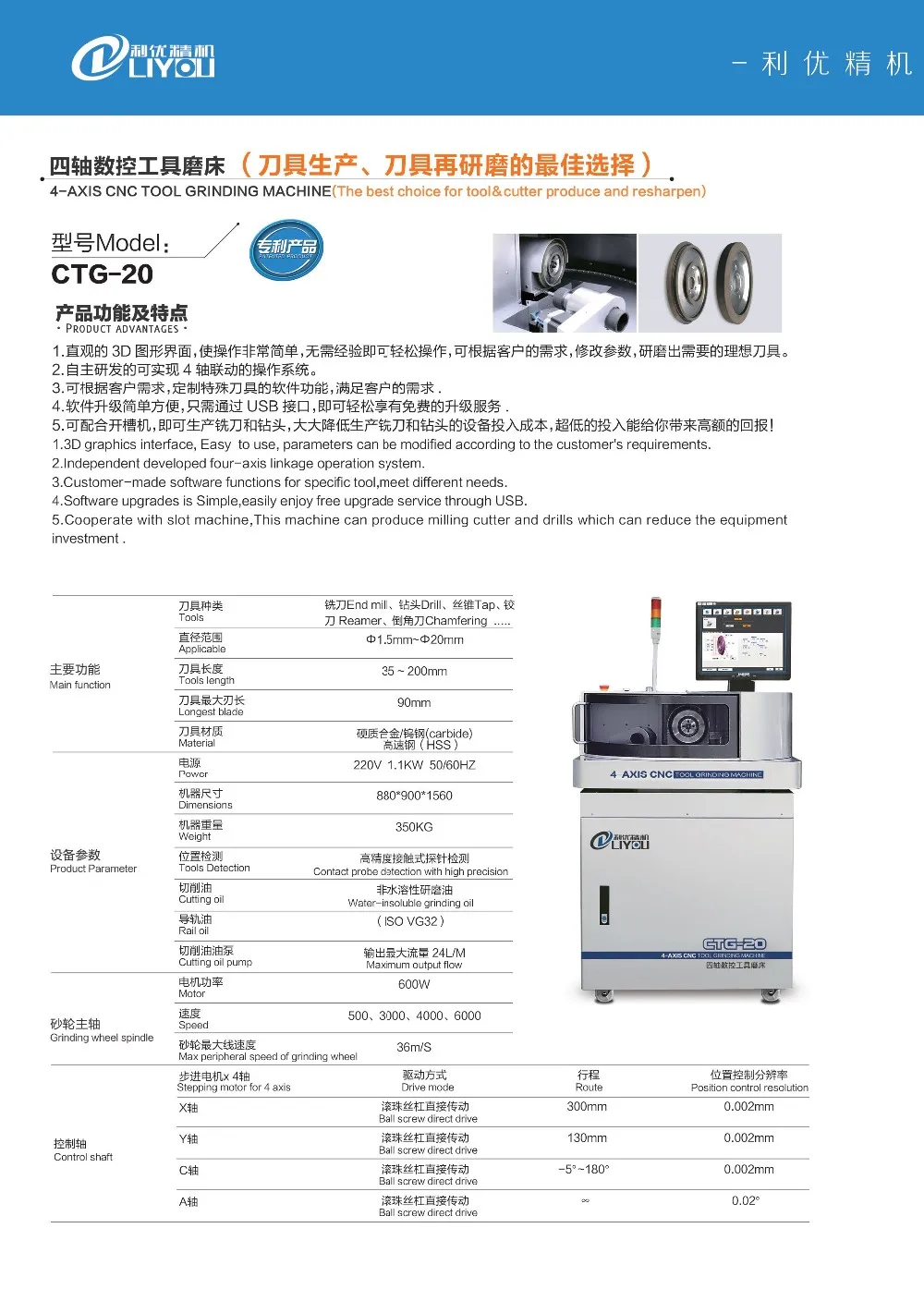

PRODUCT ADVANTAGES
1. 3D graphics interface, easy to use, parameters can be modified according to the customer’s requirements.
2. Independent developed four-axis linkage operation system.
3. Customer-made software functions for specific tool, meet different needs.
4. Software upgrades is simple, easily enjoy free upgrade service through USB.
5. Cooperate with slot machine, this machine can produce milling cutter and drills which can reduce the equipment investment.
Main fuction | Tools | End mill, Drill,Tap, Reamer, Chamfering... | ||
Applicable | Fai 1.5-fai 20mm | |||
Tools length | 35-110mm | |||
Longest blade | 85mm | |||
Material | carbide HSS | |||
Product parameter | Power | 220V 1.1KW 50/60HZ | ||
Dimensions | 1240*1050*1560 | |||
Weight | 430KG | |||
Tools detection | Contact probe detection with high precision | |||
Cutting oil | Water-insoluble grinding oil | |||
Rail oil | (ISO VG32) | |||
Cutting oil pump | 24L/M Maximum output flow | |||
Grinding wheel spindle | Motor | 600W | ||
peed | 500,3000,4000,6000 | |||
Max peripheral speed of grinding wheel | 36m/S | |||
Control shaft | Stepping motor for 4 axis | Drive mode | Route | Position control resolution |
X axis | Ball screw direct drive | 300mm | 0.002mm | |
Y axis | Ball screw direct drive | 130mm | 0.002mm | |
C axis | Ball screw direct drive | -5°~180° | 0.002mm | |
A axis | Ball screw direct drive | ∞ | 0.02° | |
The function can be made according to customer needs, only need to update software.

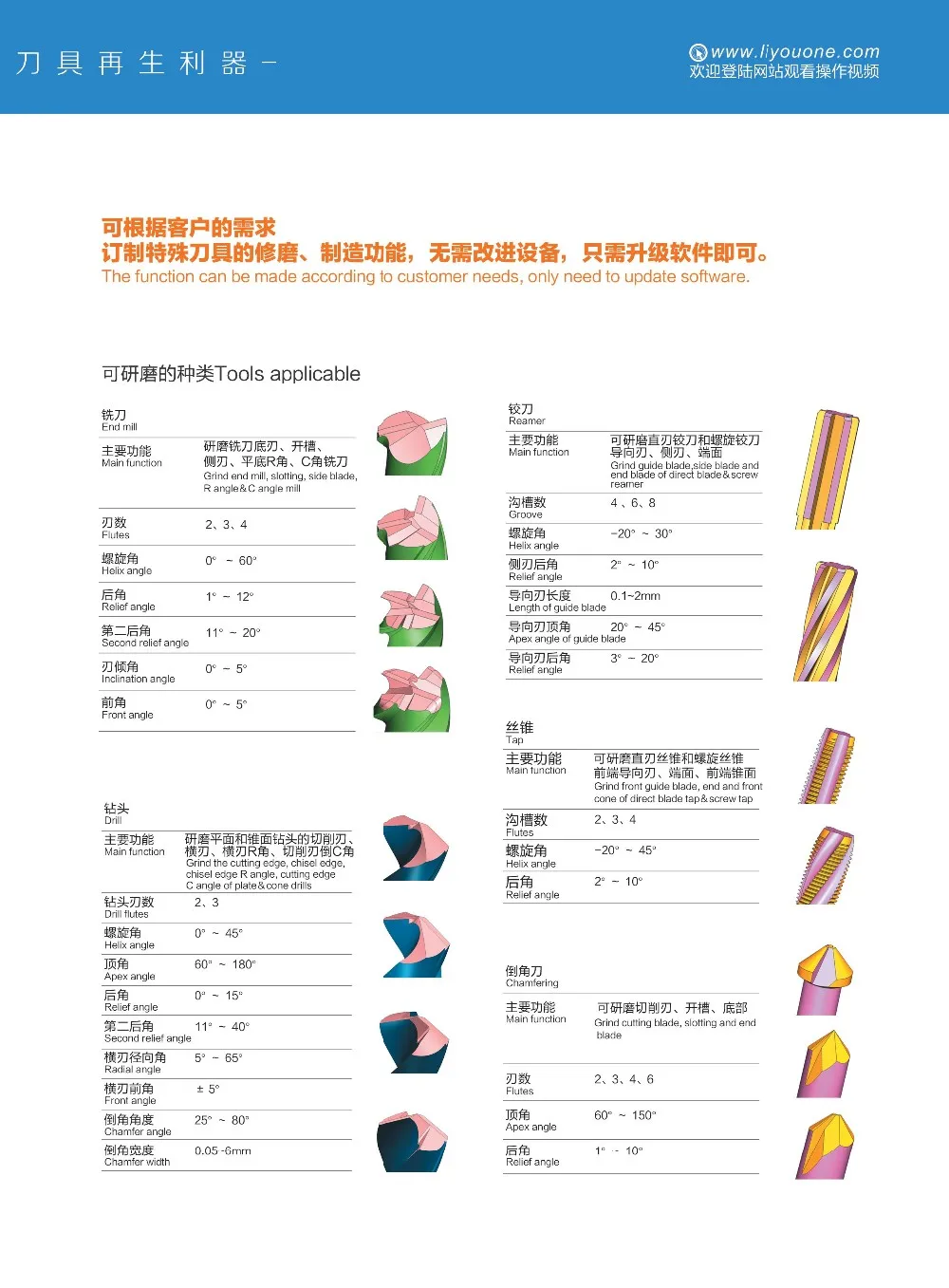

Tools applicable
End mill |
|
Main function | Grind end mill, slotting, side blade, R angle&C angle mill |
Flutes | 2,3,4 |
Helix angle | 0°-60° |
Relief angle | 1°-12° |
Second relief angle | 11°-20° |
Inclination angle | 0°-5° |
Front angle | 0°-5° |
Drill |
|
Main function | Grind the cutting edge, chisel edge, chisel edge R angle, cutting edge C angle of plate&cone drills |
Drill flutes | 2,3 |
Helix angle | 0°-45° |
Apex angle | 60°-180° |
Relief angle | 0°-15° |
Second relief angle | 11°-20° |
Radial angle | 5°-65° |
Front angle | ±5° |
Chamfer angle | 25°-80° |
Chamfer width | 0.05-6mm |
Reamer | |
Main function | Grind guide blade, side blade and end blade of direct blade & screw reamer |
Groove | 4,6,8 |
Helix angle | -20°~30° |
Relief angle | 2°-10° |
Length of guide blade | 0.1-2mm |
Apex angle of guide blade | 20°-45° |
Relief angle | 3°-20° |
Tap | |
Main function | Grind front guide blade, end and front cone of direct blade tap & screw tap |
Groove | 2,3,4 |
Helix angle | -20°~45° |
Relief angle | 2°-10° |
Chamfering | |
Main function | Grind cutting blade, slotting and end blade |
Flutes | 2,3,4,6 |
Apex angle | 60°-150° |
Relief angle | 1°-10° |
