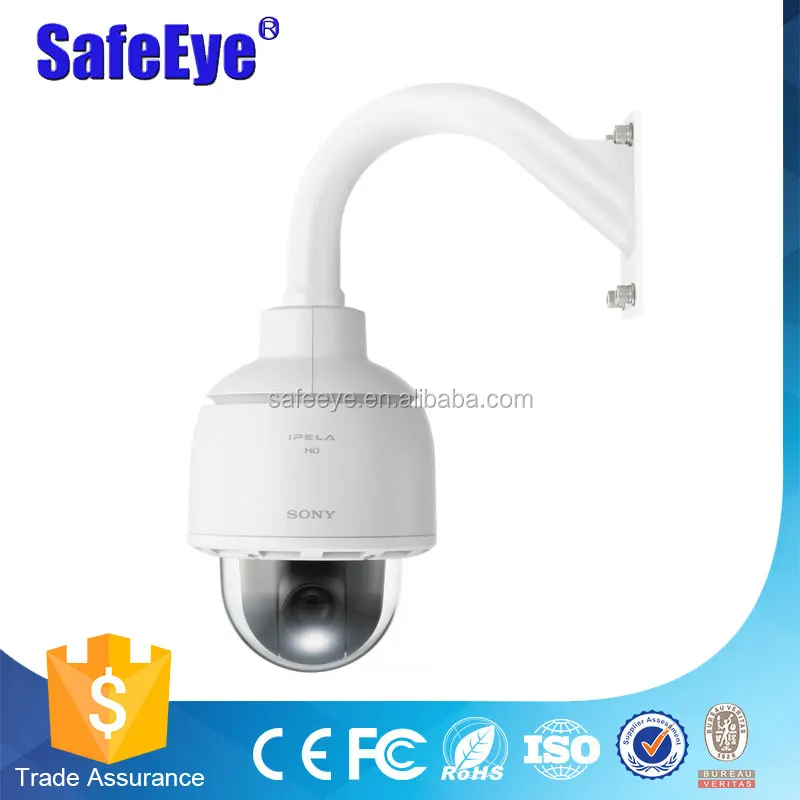

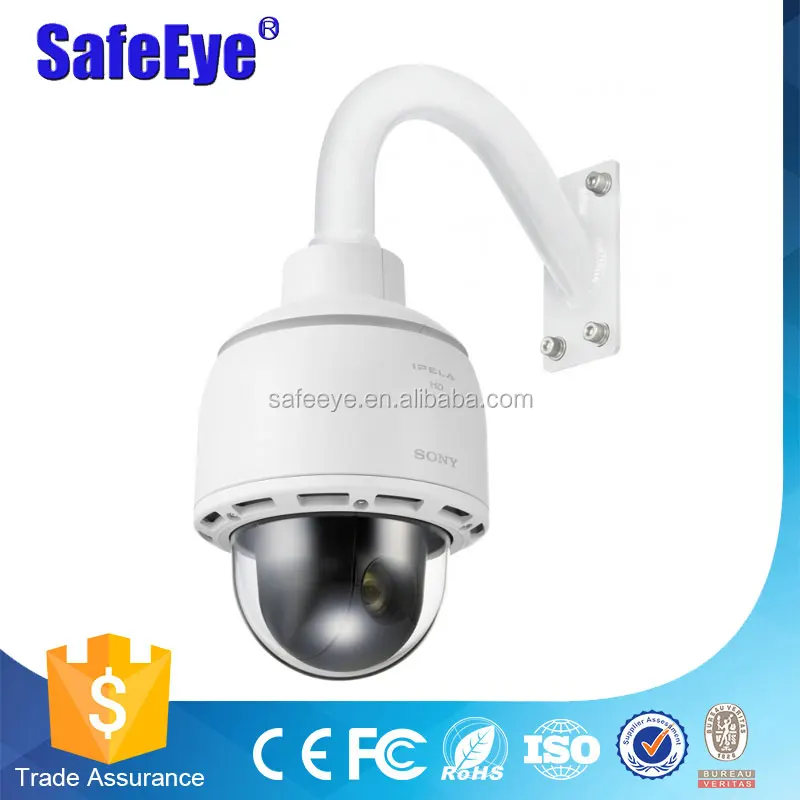

SONY SNC WR632C Outdoor1080p/60 fps Rapid Dome Camera with Optical zoom 30x
- Category: >>>
- Supplier: Shenzhen SafeEye Technology Co. Ltd.
Share on (60417921443):
Product Overview
Description
Product Description
SONY SNC-WR632C Outdoor Unitised 1080p/60 fps Rapid Dome Camera with Optical zoom 30x Digital zoom 12x zoom Total zoom 360x
Features & Fuctions:
Optimised for critical outdoor surveillance applications, with superb image quality and advanced analytics, industry-leading pan speed and weather/vandal resistance.
The SNC-WR632C is a high-performance rapid dome network camera that’s ideal for wide-area surveillance in challenging environments – from airports, stadiums and urban areas to malls and perimeters.
IPELA ENGINE PRO delivers an extra-wide 130dB dynamic range at Full HD to assure clear video images, even in harsh lighting environments where other cameras struggle with extremes of light and shade in the same scene. Frame rates as high as 60fps – double that of normal IP cameras – let operators recognise and assess split-second incidents in recorded footage with unprecedented precision. This advanced processing engine can even correct focal plane distortion from fast camera pans or moving objects in real time.
The SNC-WR632C allows continuous 360° PTZ operation, with the industry’s fastest pan speed of 700°/s letting an operator quickly recall preset areas of interest in a single, seamless motion. A powerful 30x optical zoom offers wide area coverage, plus the ability to grab detailed close-ups without losing clarity.
Designed for dependable round-the-clock performance in demanding outdoor environments, the unitised camera can operate in temperatures from -40°C to +50°C on 24V AC power (-30°C to +50°C with HPoE+), and is IP66/IK10 rated to resist weather and unwelcome tampering by vandals. Suitability for external use is enhanced by a Defog Image Processing feature that reduces smog or haze, while the gyroscopic image stabiliser combats camera-shake caused by vibration on a windy mounting pole or road bridge.
*Product shown with housing accessory. Housing accessory not included.
Sprcifications:
| Camera | |
| Image Sensor | 1/2.8-type progressive scan Exmor CMOS sensor |
| Number of Effective Pixels | Approx. 2.38 Megapixels |
| Signal System | NTSC/PAL (switchable) |
| Sync System | Internal synchronization |
| Minimum Illumination (50 IRE) | Color: 0.4 lx (F1.6, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps) |
| B/W: 0.03 lx (F1.6, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps) | |
| Minimum Illumination (30 IRE) | Color: 0.24 lx (F1.6, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps) |
| B/W: 0.018 lx (F1.6, View-DR Off, VE Off, AGC On, 1/30 s, 30 fps) | |
| Dynamic Range | Equivalent to 130 dB with View-DR technology |
| S/N Ratio (Gain 0 dB) | More than 50 dB |
| Gain | Auto/Manual |
| Shutter Speed | 1/1 s to 1/10,000 s |
| Exposure Control | Full auto, Shutter priority, Iris priority, Manual |
| White Balance | ATW, ATW-PRO, Indoor, Outdoor, Fluorescent lamp, Mercury lamp, Sodium vapour lamp, Metal halide lamp, White LED, One push WB, Manual |
| Lens | Auto-focus zoom lens |
| Powered Zoom | Yes |
| Zoom Ratio | Optical zoom 30x |
| Digital zoom 12x | |
| Total zoom 360x | |
| Powered Focus | Yes |
| Auto Focus | Yes |
| Horizontal Viewing Angle | 63.7° to 2.3° |
| Vertical Viewing Angle | 38.5° to 1.3° |
| Focal Length | f = 4.3 mm to 129.0 mm |
| F-Number | F1.6 (Wide) to F4.7 (Tele) |
| Minimum Object Distance | 300 mm |
| Pan/Tilt Angle (powered) | 360 ° endless rotation/220 ° |
| Pan Speed | 700 °/s (max.) *1 |
| Tilt Speed | 700 °/s (max.) *1 |
| Number of Preset Positions | 256 |
| Number of Tour Programs | 5 |
| Video | |
| Resolution | 1920 x 1080, 1280 x 720, 1024 x 576, 720 x 576, 720 x 480, 704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 184, (H.264, JPEG) |
| Compression Format | H.264 (High/Main/Baseline Profile), JPEG |
| Maximum Frame Rate | H.264: 60 fps (1920 x 1080) |
| JPEG: 60 fps (1280 x 720) | |
| Bitrate Control Mode | CBR/VBR (selectable) |
| Range of Bit Rate Setting | 64 Kbps to 32 Mbps |
| Adaptive Rate Control | H.264 |
| Bandwidth Control | JPEG |
| Multi streaming Capability | Yes (3) |
| Number of Clients | 20 |
| Network | |
| *SSM (Source Specific Multicast) is supported. | |
| Number of IP Address/Mac ADDRESS | 1 |
| QoS | DSCP |
| Multicast Streaming Support | Yes |
| ONVIF Conformance | Profile S |
| Authentication | IEEE802.1X |
| General | |
| Power Requirements | HPoE+ system *2, AC 24 V |
| Power Consumption | Max. 30.0 W (AC 24 V/HPoE+, heater OFF) *2 |
| Max. 80.0 W (AC 24 V, heater ON) | |
| Max. 55.0 W (HPoE+, heater ON) *2 | |
| Operating Temperature | -40°C to +50°C (AC 24 V) -30°C to +50°C (HPoE+) *2 |
| -40°F to +122°F (AC 24 V) -22°F to 122°F (HPoE+) *2 | |
| Cold Start Temperature | -40°C to +50°C (AC 24 V) -30°C to +50°C (HPoE+) *2 |
| -40°F to +122°F (AC 24V) -22°F to 122°F (HPoE+) *2 | |
| Storage Temperature | -20 ℃ to + 60 ℃ |
| -4 °F to + 140 °F | |
| Operating Humidity | 20 % to 80 % |
| Storage Humidity | 20 % to 95 % |
| Built-in Heater | Yes |
| Heater Working Temperature | 5 °C or less |
| 41 °F or less | |
| Dimensions *3 | φ222.0 x 324.1 mm |
| φ8 3/4 inches x 12 7/8 inches | |
| Mass | Approx. 4.1kg |
| 9 lb 0.6 oz |
