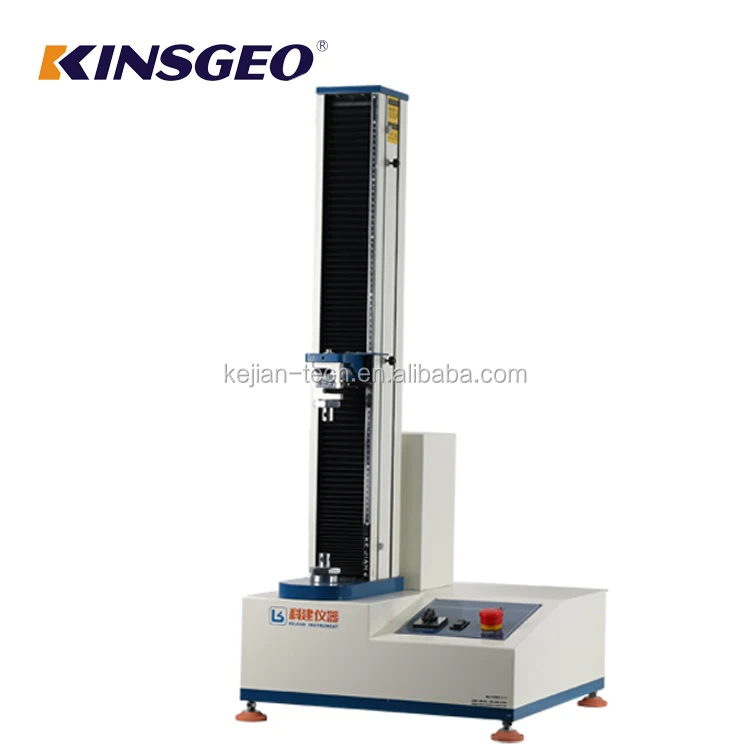

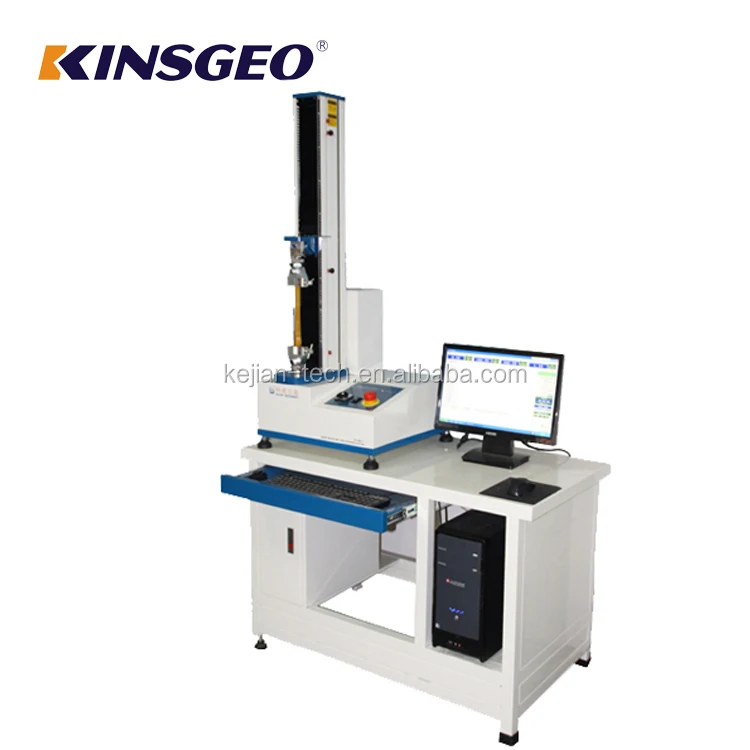

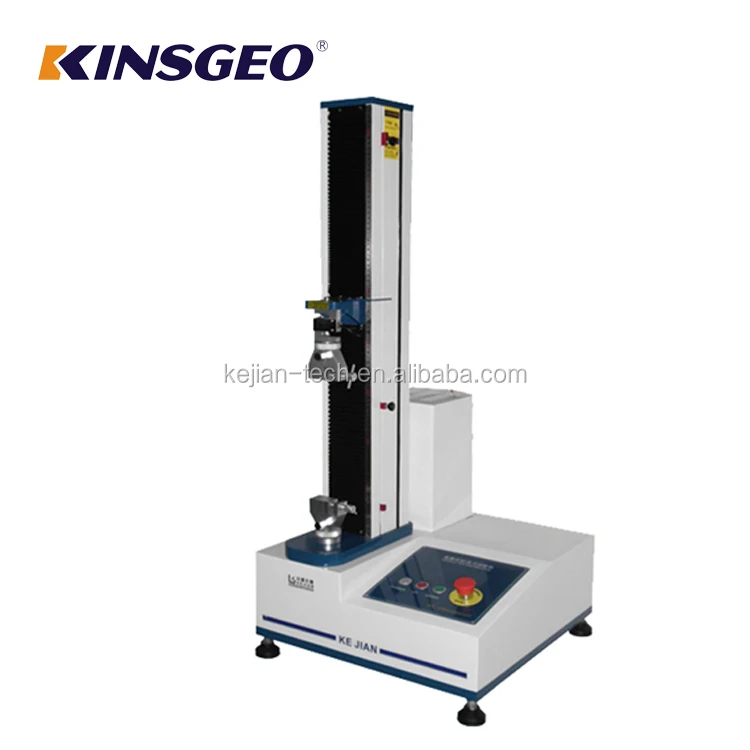

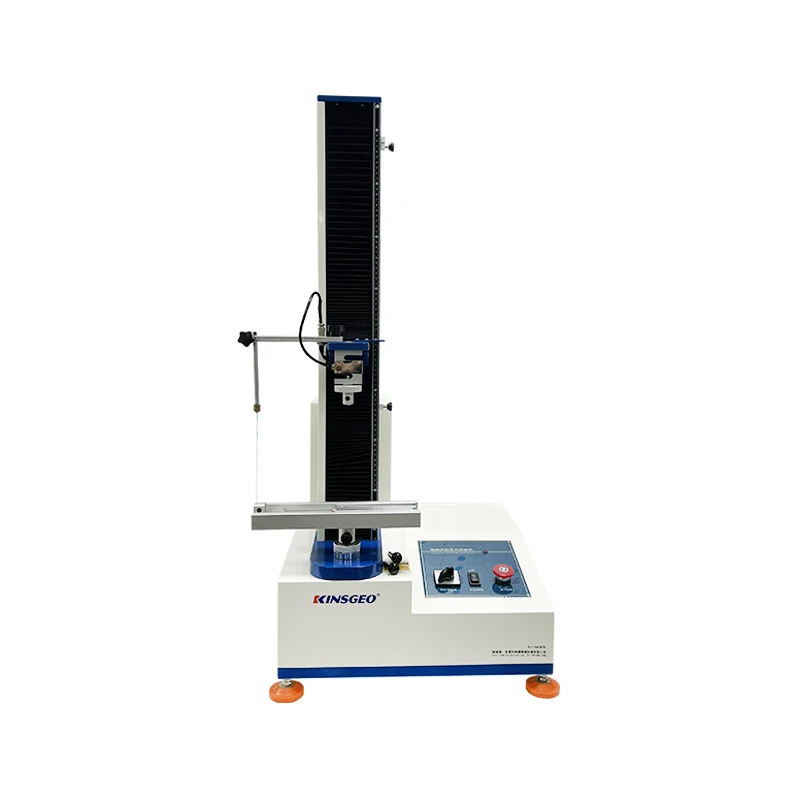

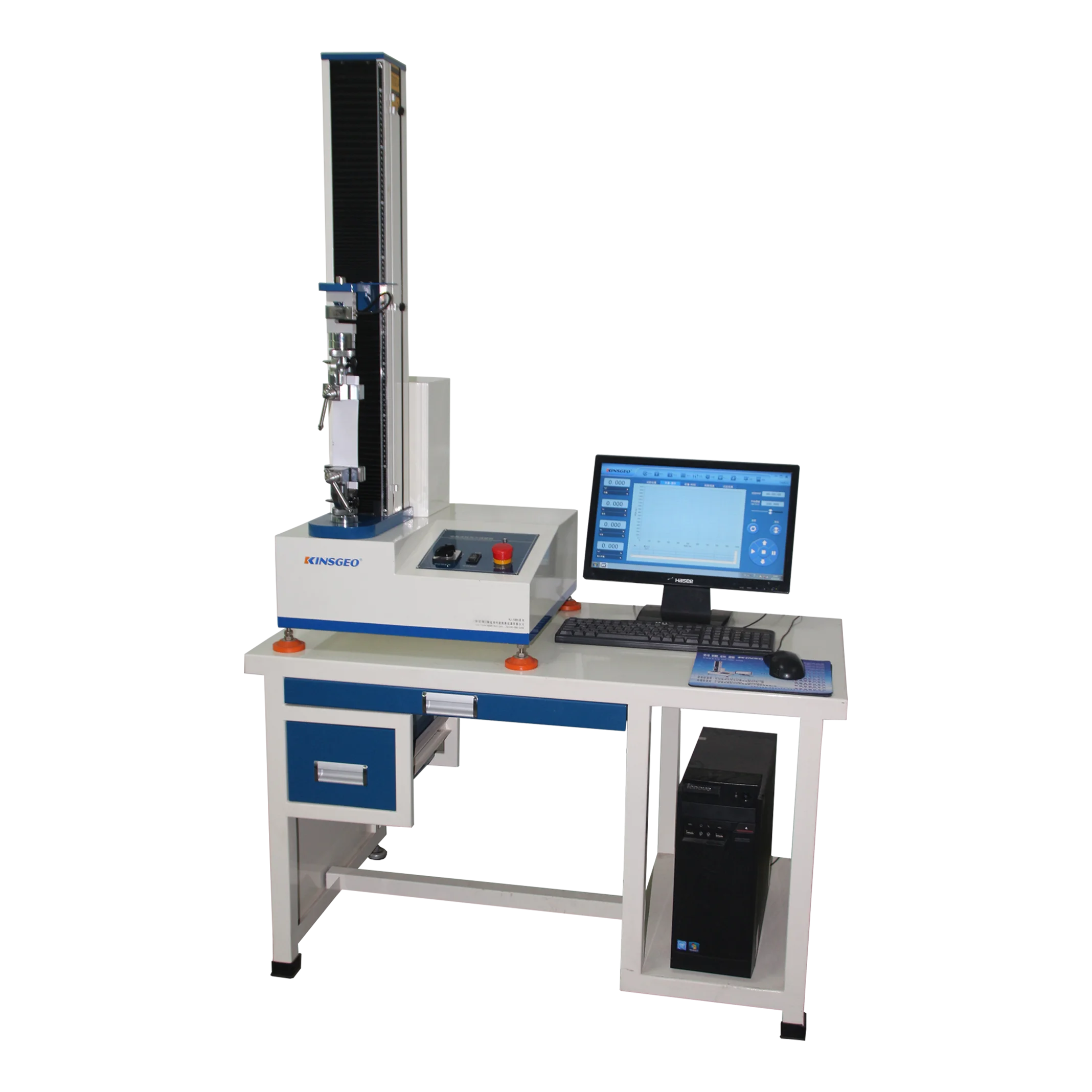

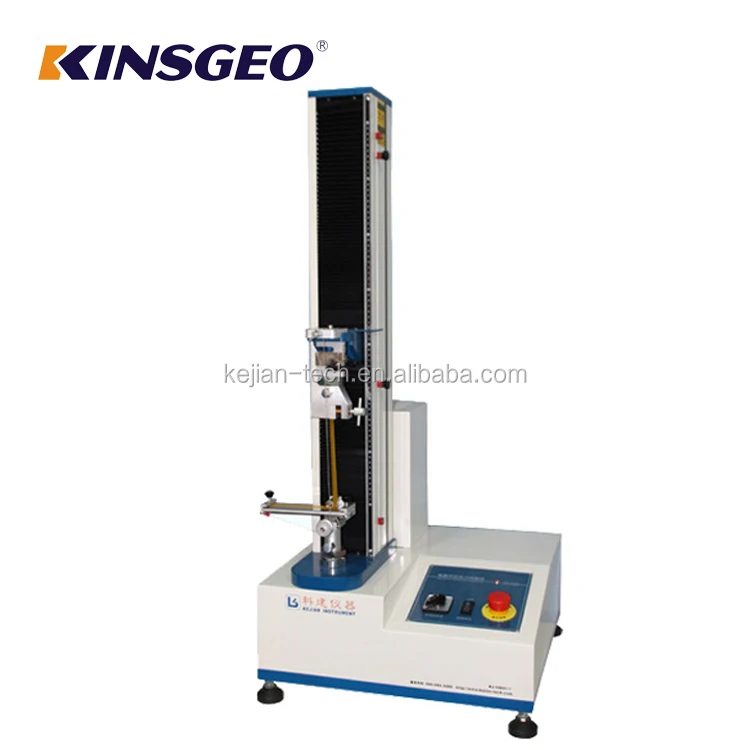

KJ-1065 Lab Test Equipment Button Pull Test Machine
Product Description
Standard:
ASTM E4, ASTM D882, ASTM D1938,ASTM D3330, ASTM D903,FANIT(No1,No2,No3,No4), CNS11888, JIS K6854, PSTC7 and etc.
Note: our tester is designed according above standards, but not limited to above standards, for more, please contact us.
Uses:
This machine also known as a materials testing machine , is applicable to testing tensile stress, compressive stress, shearing force, peeling force, and elongation of materials, components, and finished product for metal, plastic, rubber, textile, synthetic chemicals, wire and cable, leather, etc.
Character:
1. The structure is made of the paint-coated aluminum blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.
2. Use Panasonic servo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controlled in 2%.

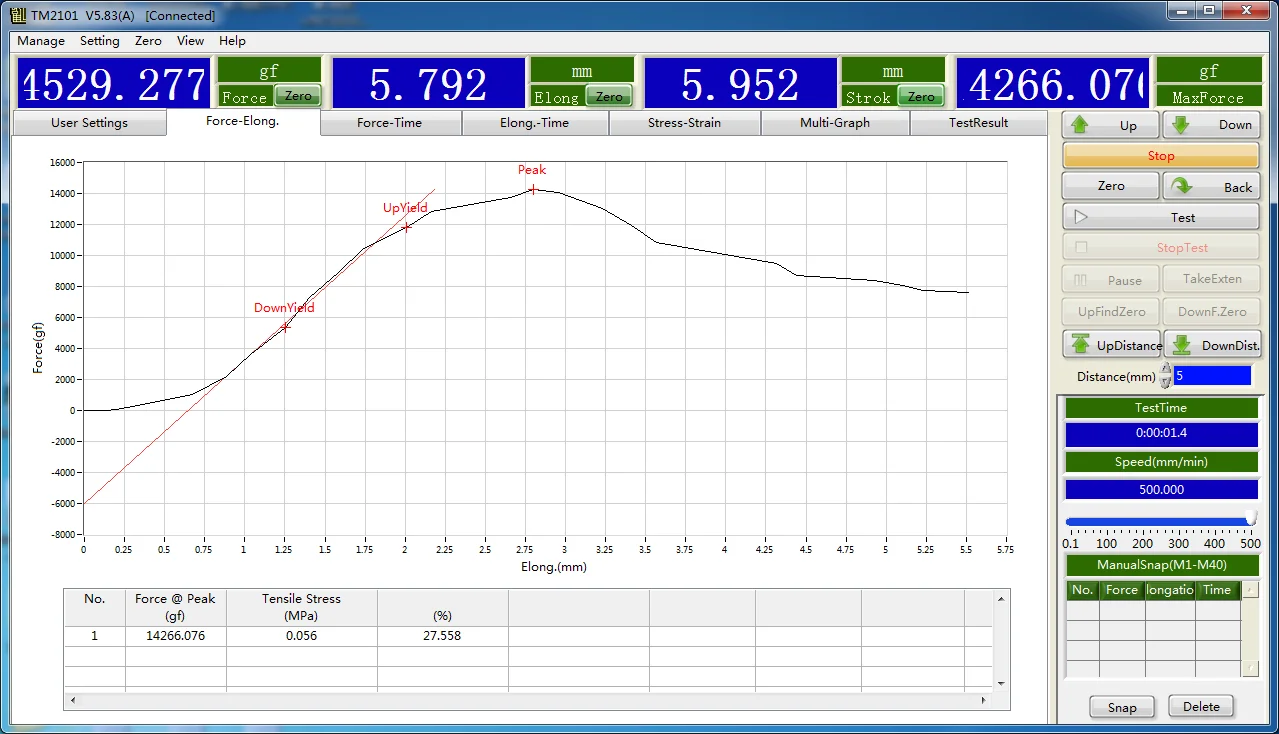

3. That Using the business computer as the main control machine plus the special testing software of our company can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.
Specifications:
| Model | KJ-1065A | KJ-1065B |
| Range of speed | 0.1~1000mm/min | 50~500mm/min |
| Motor | Japan Servo Motor | AC motor |
| Capacity | 500KG optional | |
| Resolution | 1/250,000 | 1/150,000 |
| Effective testing space | max 120mm | |
| Accuracy | ±0.5% | |
| Operation Method | Windows | |
| Accessories | English video, system operation manual | |
| Optional accessories | 1 pair of grips | |
| Stroke protection | Upper and lower protetion, prevent over preset | |
| Force protection | System setting | |
| Emergency stop devive | Handing emergencies | |
Safety Device:
Stroke protection: Machinery, computer double protection, prevent over preset
Force protection: system setting
Emergency stop device: Handling emergencies
Company Information
Guangdong KeJian Testing Instrument co., LTD., founded in 2003, is a professional research and development, production of precision testing instruments and provides a complete set of test solution technology enterprises, with professional factory equipment technology research and development team and excellent production, management level, continuously provide customers with satisfactory products and services, and gradually become the industry's leading supplier of instrumentation.
Packaging & Shipping
Fumigated Heat Treating Wooden Package
Ship from Shenzhen Seaport or Shenzhen/Guangzhou/Hongkong by Air
Our Services
KeJian Instrument Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
FAQ
1. Why Choose Us?
(1)Focusing on this testing field for over 15 years makes us professional.
(2)Located in Dongguan city--the world class manufacturing city.
(3)After-sales service for 12 months, promptly deal with all the problems.
2. Are you a factory?
Yes, we are.
3. What's the product delivery time?
Within 10 work days after deposit received.
If we have stock, the delivery time will be greatly shortened.
4. What's your terms of trade?
We accept EXW, FOB, CIF, CNF and so on.
