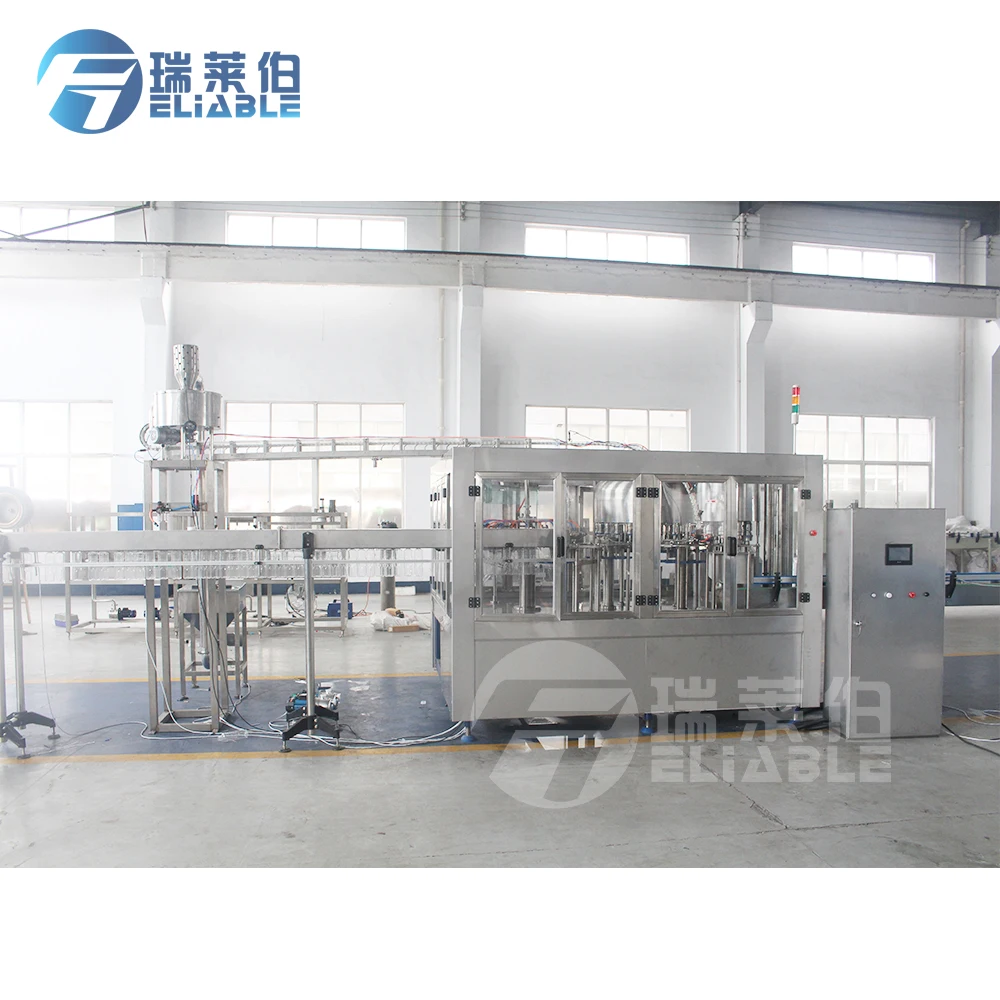

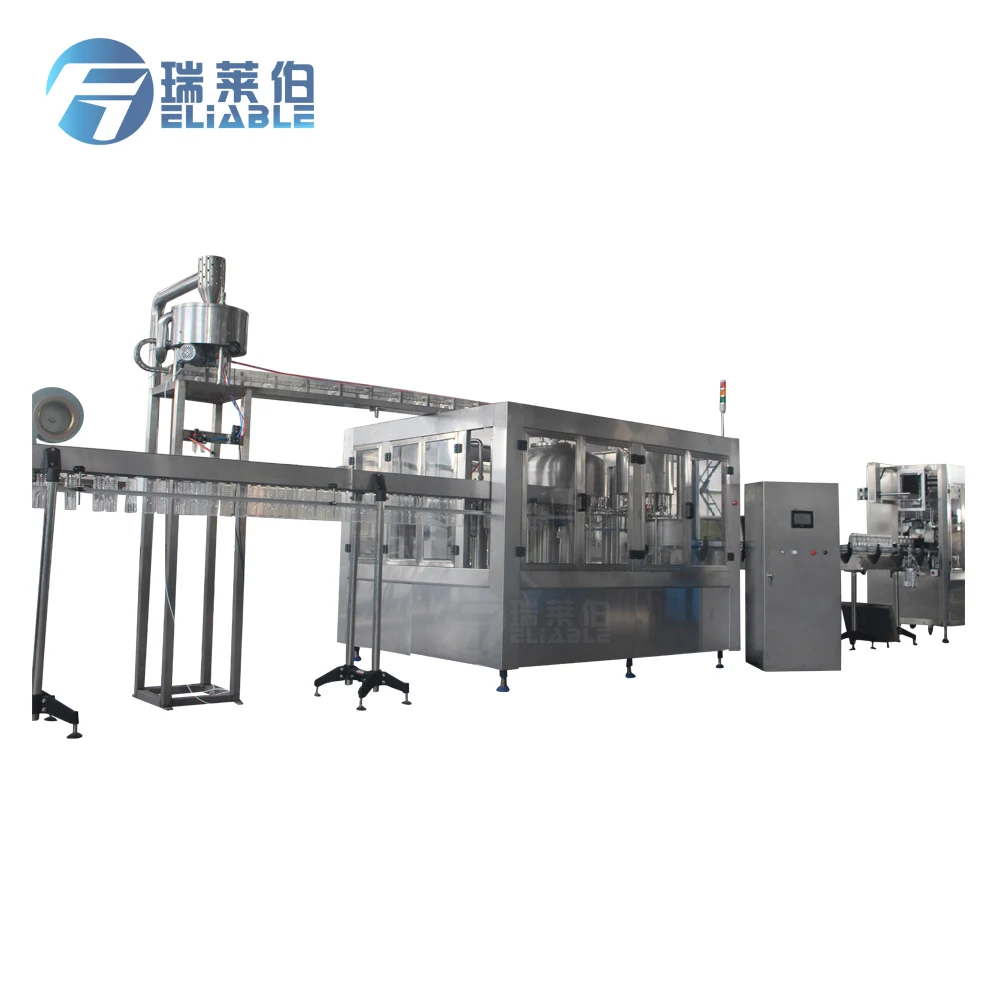

Hot Sale Automatic Drinking Water Bottling Machine Mineral Water Bottling Equipment 10000BPH for 0.2-2L Plastic Bottle
A---Product Description
Features of Water Bottling Machine
CGF Series washing , filling , capping 3 in 1 unit is a new type water bottling machine , which base on years’ usual practice and adopt the advanced technology , and absorb many clients’ views .
It meets the client’s requirement about filling different bottle size through one set . The suspension card bottleneck is adopted to make changing the bottle size more convenient .
It can deliver the bottles automatically by blind and then washing , drying , filling , covering , capping by order automatically .
It is impossible to cover lids when the bottles are’t up to the limited level , or don't arrive to the limited possible , or to adjust the speed freely , for it employs the advanced PLC system and frequency conversion and speed control system.
The function of touching the screen enables the operation easier and faster . It is mainly used to non-carbonated beverage (pure water and mineral water)
Photos of Water Bottling Machine

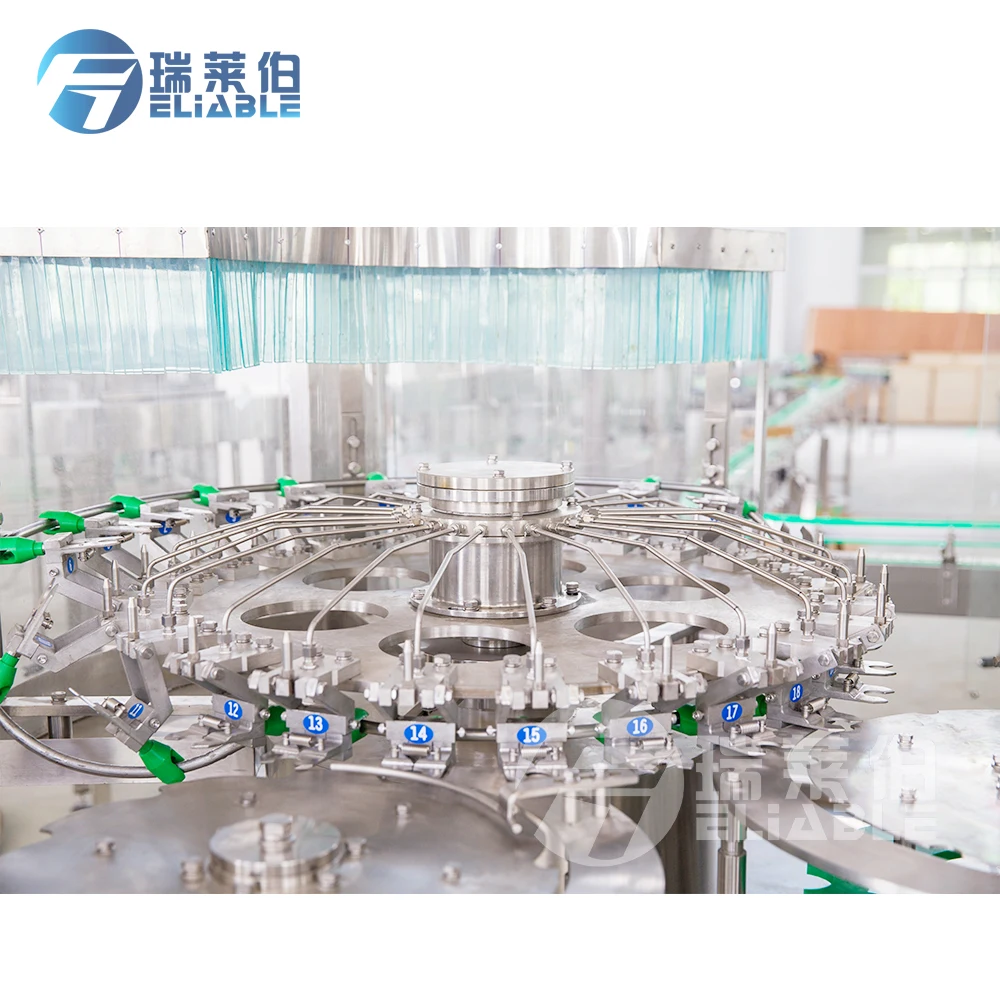

All 304 stainless steel rinser heads, water spray style inject design, more save water consumption & more clean
304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing
304 stainless steel washing pumps

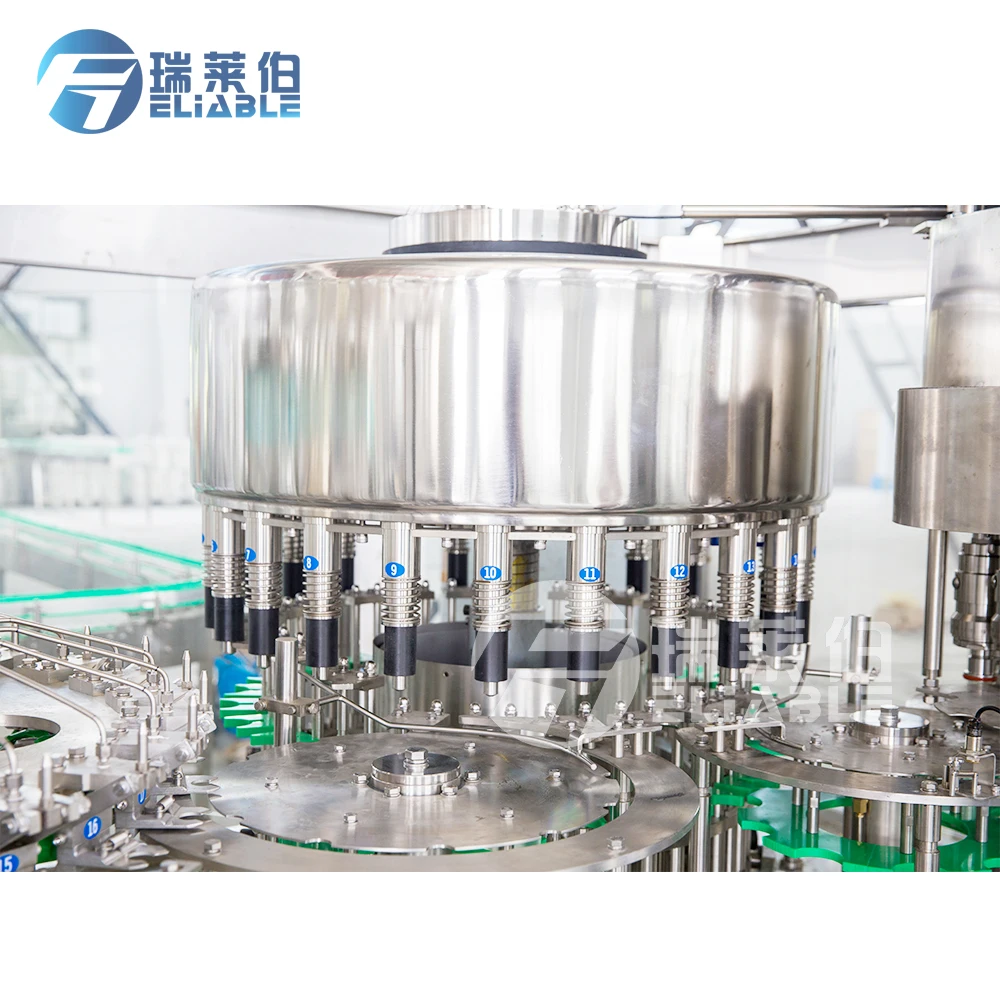

Filler Station:
The filling station using all metal (not plastic) 304 stainless steel contact parts gives consistent accurate, high precision filling nozzle together with vacuum pump regurgitant system, to ensure the high filling precision, ensure same filling level
Filling temperature is adjustable.
Centre 304L stainless steel filling nozzle used which are designed for maximum flow rate and minimum bottle distortion during filling.
All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

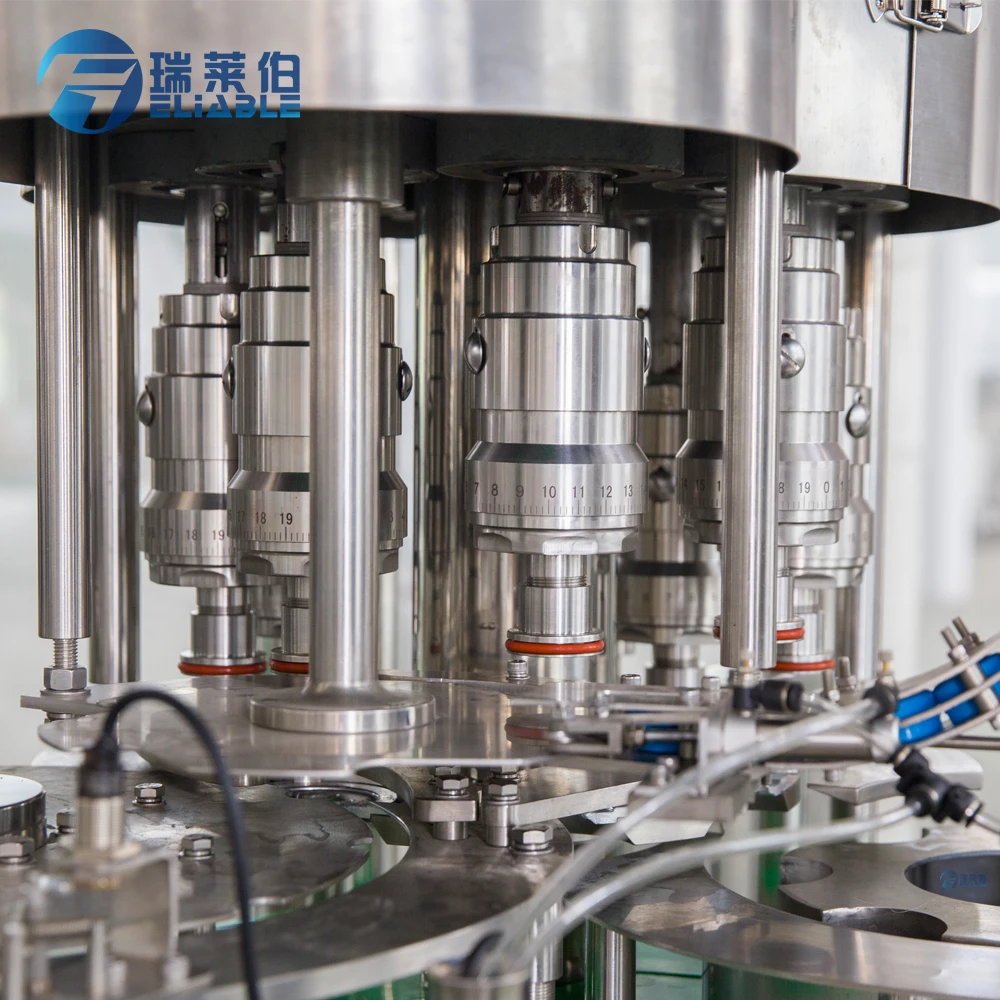

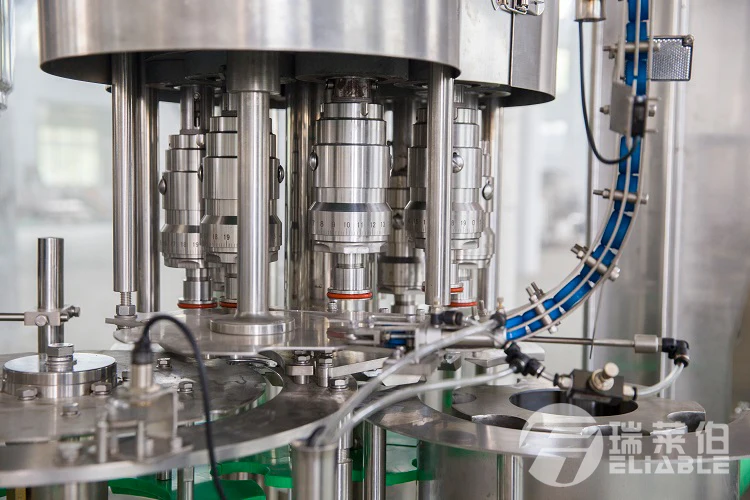

Capper Station:
Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
All 304stainless steel construction
No bottle no capping,
Automatic stop when lack of caps
Technical Parameters of Water Bottling Machine
Model | CGF8-8-3 | CGF12-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-10 |
Rinsing Head No | 8 | 12 | 18 | 24 | 32 |
Filling Head No | 8 | 12 | 18 | 24 | 32 |
Capping Head No | 3 | 6 | 6 | 8 | 10 |
RatedCapacity (500ml) | 2000BPH | 4000BPH | 7000-8000BPH | 10000-12000BPH | 12000-15000BPH |
Overall Size (mm) | 1900*1420*2000 | 2200*1600*2300 | 2450*1900*2300 | 2750*2180*2400 | 4000*2300*2300 |
Weight | 1.5T | 2.2T | 3.0T | 4.0T | 8.0T |
Power(KW) | 3.0kw | 3.5kw | 4.0kw | 4.8kw | 7.6kw |
Rated Voltage | 380V | 380V | 380V | 380V | 380V |
B---Package & Delivery
C---Certificates
D---Reliable Service
E---FAQ
Q1:Are you a trading company or a manufactory?
A1:We are a manufactory,can give u best service .
Q2:What’s your guarantee or the warranty of the quality if we buy your machines?
A2:We offer you high quality machines with 2 years guarantee . we will give u spare part free in 2 years.
Q3:When can I get my machine after I paid?
A3:We will deliver the machines on time as the date we agreed both side.
Q4:How can I install my machine when it arrives?
A4:We will send our engineer to your side as soon as you get all your machines ready , for testing and teaching your technicians how to run the machines.
Q5:How about the spare parts?
A5:After we deal down all the things , we will offer you a spare parts list for your reference
