DATAI 60V 2000W dc brushless motor

Product Overview

Description

1.complete set of a transaxle kit as shown in the picture(1.brushless dc Permanent magnet  gear  motor)

2.controller

3..two direction awith

4..brake power switches

5.connection box

6.throttle

it use for Electric tricycle

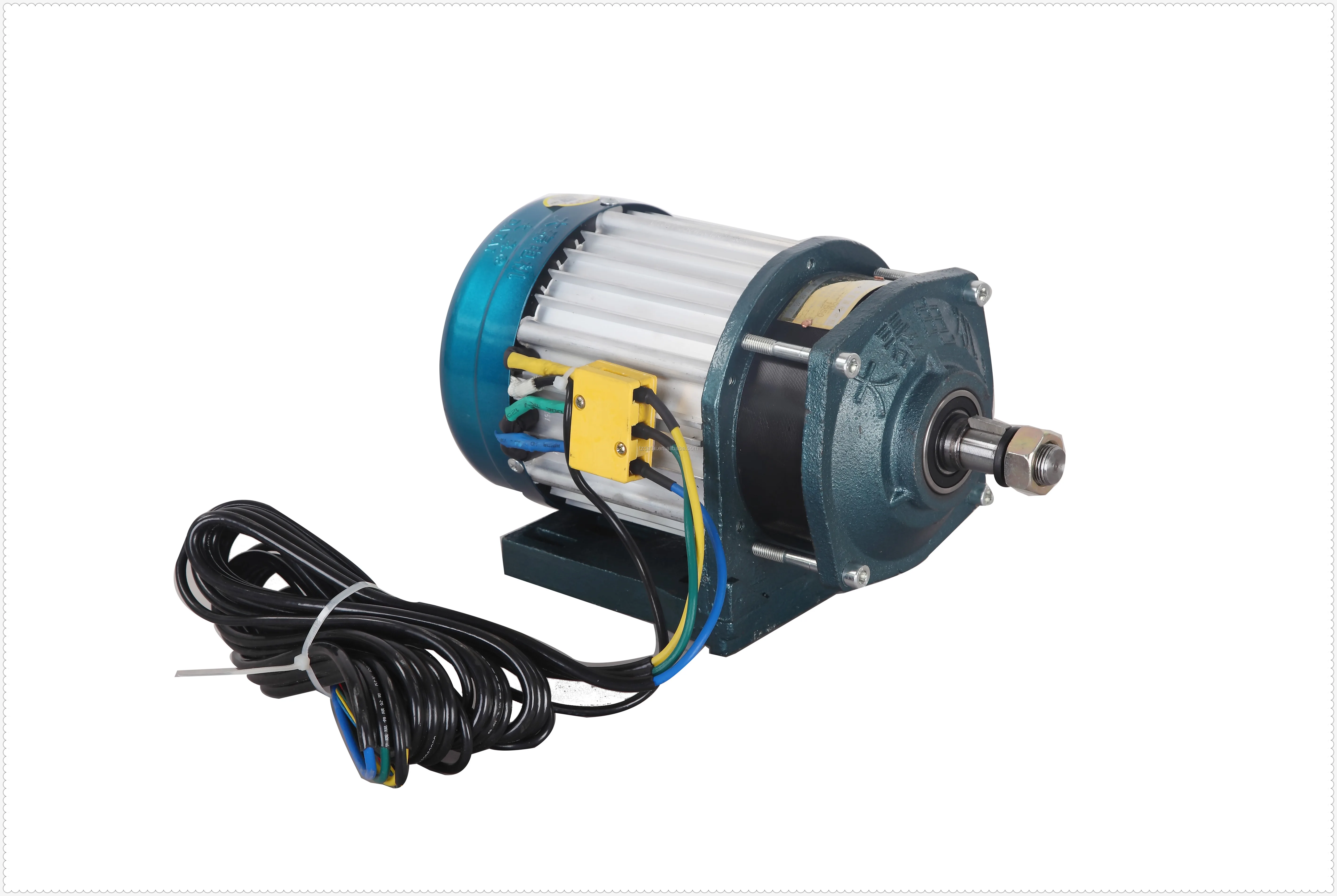

Motor description

Motor voltage:60v

Rated current:40A

Rated speed:600-700rpm

Rated torque:85N.m

Maximum load:1700kg

Maximum load speed:25km/h

Maximum speed:30km/h

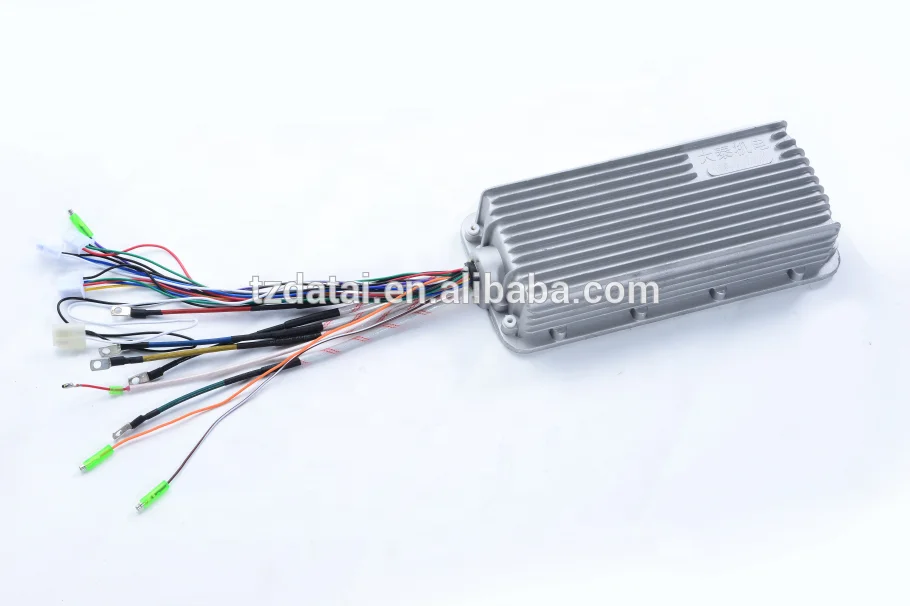

Controller description

Maximum limit:100A

under voltage:50.5±0.5V

brake handle voltage:  1.2-4.3V

brake blackout:low level

Climbing degree:20-30
