Серия ZLG, непрерывная вибрация, флюидизированная кровать, сушилка

Product Overview

Description

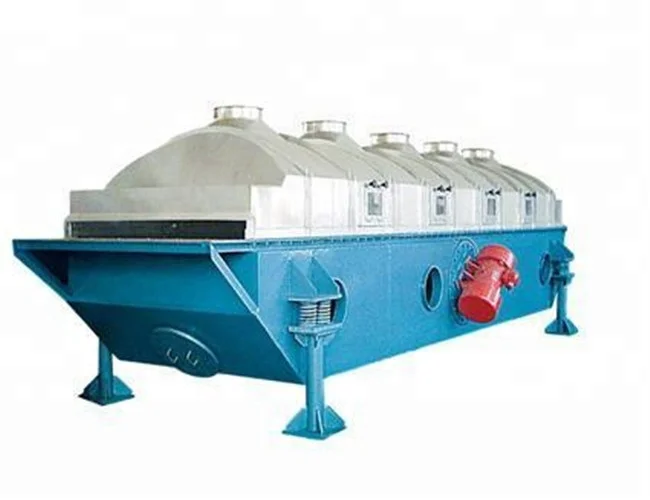

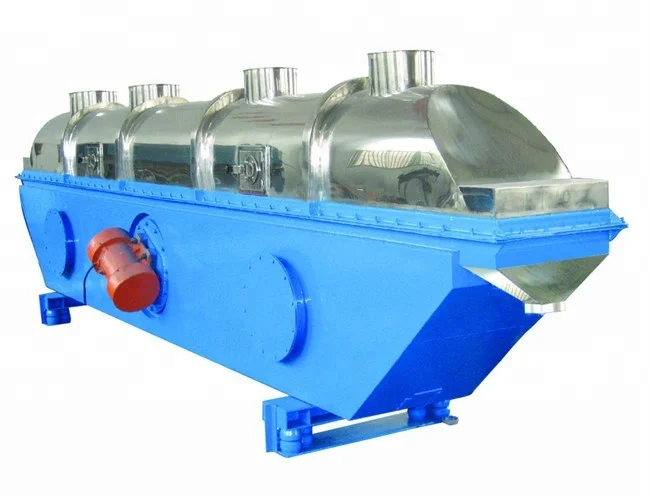

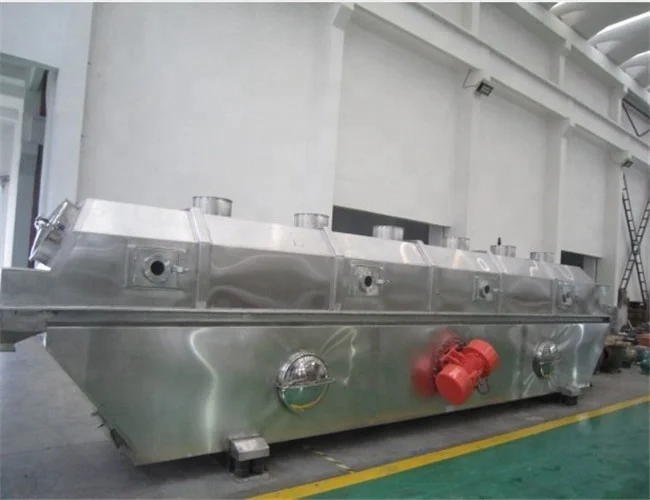

ZLG Series Recdinear Vibrating Fluid Bed Dryer

Principle



Raw materials is fed into the machine from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration. The hot air passes through fluidized-bed and carries out hot heat exchange with damp raw material. Then the damp air is exhausted out through cyclone seperator and duster and the dry raw material is discharged through discharge outlet.

Descriptions



The drier is suitablity in chemical industry, pharmaceutical, food,plastic, oil, slag, salt sugar and so on, for drying,cooling and wetting.

Application



Pharmaceutical and chemical industries: ail kinds of press tablet and granule,boric acid,borax.dihydroxybenzene,malic acid, maleic add and so on;

Foodstuff and construction material industries: less, monosodium glutamate, edible sugar, edible salt, mine residue, bean, seeds and so on;



Features



♦            The vibration is created by motor. Lt Is stable in operation and convenient in maintenance, low noise arid long life.

♦            High Effectlon.raw material is heated evenly and heat exchange is fully used and dry capacity is high. Compared with ordinary drter, the energy can be saved about 30%.

♦            It is good in regulation and wide in suitablity. The thickness of raw material layer and movable speed inside the machine and the amplitude can be adjusted through continuos variable speed.

♦            It Is small for danaging the surface of raw material. The equipment can be used for drying raw materials that are easy broken. The drying effect can not be affected even if raw materials have anomaly shape.

♦            It is affective to prevent cross pollution between raw material and air because the equipment adapts fully closed struture. The environment of operation Is clean.

♦            You can string muttl-set to rasidd capacity of raw materials,such as polyacrylam.



Technical Parameters
