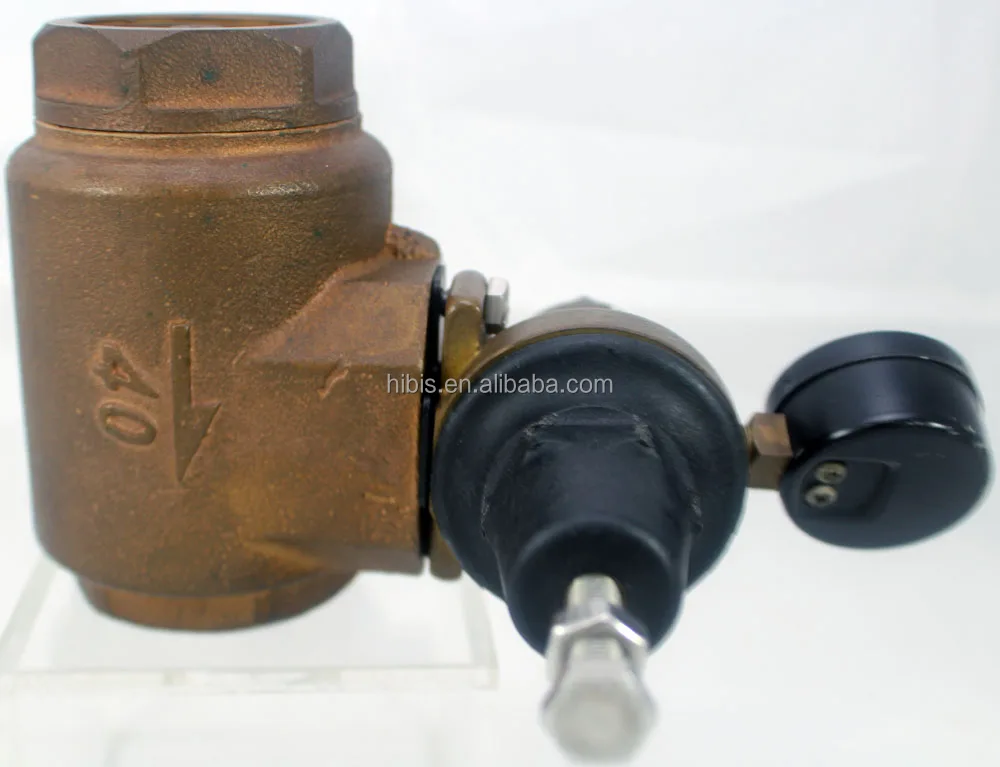

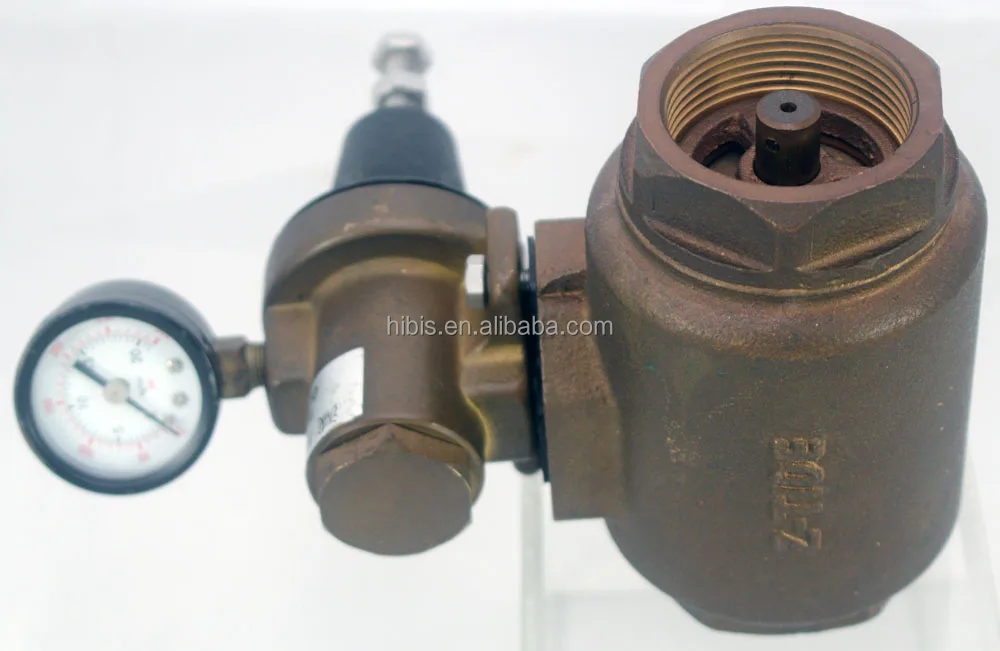

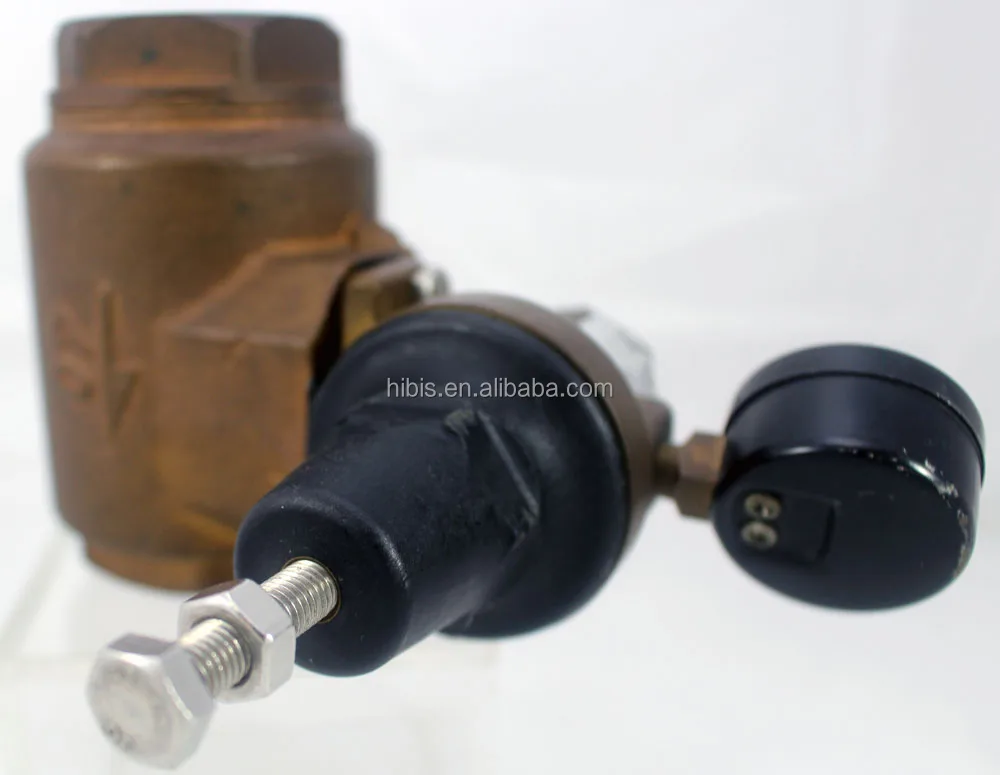

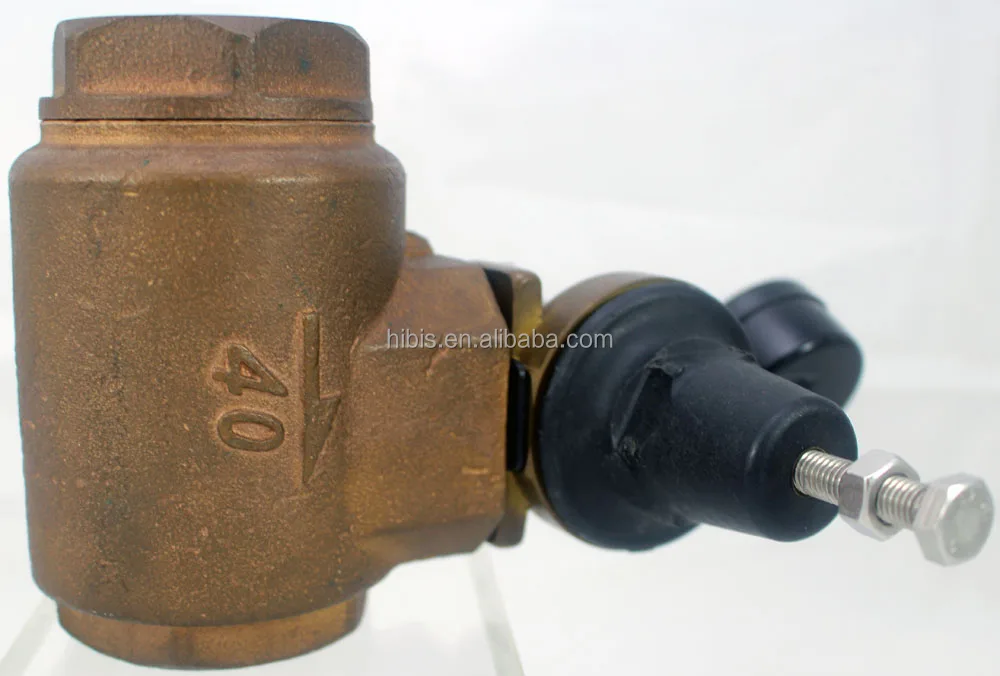

Z TIDE BFR 80 Bronze Piston Type Flange End Pressure Reducing Valve

1. Pressure reducing valve can prevent pipeline breakage due to high pressure.

2. Pressure reducing valve is installed in waer supply pipeline and maintains the

   setting outlet pressure in main valve, regardless of the different inlet pressure.

3. Pressure reducing valve can be installed in water supply, air conditioning and

    fire control systems to maintain the setting outlet pressure.

4. *Special order can be arranged for higher pressure adjustment range.

5. Pressure Adjusting Range:

    * 1kgf / cm²~7kgf / cm²
    * 2kgf / cm²~10kgf / cm²
    * 4kgf / cm²~12kgf / cm²

6. Pressure needed from fully-closed gate to fully-opened gate :

    1.5 kgf/cm² (1 kgf/cm2 = 14.2 psi)

7. Applied Temperature
    * -15°C~80°C

8. Maximum Applied Pressure: 21 kgf/cm²
